LILASCALE

?

A12(E)

?

?

Standard Function:

lHigh precision A/D conversion with readability 1/30000

lCall and display inner code to replace weight observing and analysis tolerance

lSpecial software process to strengthen anti-vibration ability

lAble to set up zero-tracking range, zero(auto/manua) range

lAble to set up digital filter intensity, range and stable time

lWith counting function(unit weight data save protection in case of power off)??

lSelectable backlight mode

lAC/DC power supply, with built-in rechargeable 6V/4AH battery

lAlarm for low battery and auto power off at low battery

lOptional of RS232 interface with selectable baud rate and communication method

lOptional of scoreboard interface sending by 20mA current loop

?

?

Nonstandard Function(Optional, please inform sales staff if need) :

lKG/LB switch function

lAuto calculating average function(For livestock scale)

lTwo fixed-value outputs function(For low speed weighing)

?

?

?

?

Technical Parameter

lA/D conversion method: Σ-Δ

lA/D conversion speed: 10 times/sec.

lMax. A/D conversion bits:20

lInput signal range: -10mV~15mV

lInput sensitivity: ≥1μV/e

lLoad cell excitation: C5V;I≤150mA

lMax. connection number of load cell: 4 at 350 ohm

lLoad cell connection mode: 4 wire

lVerified counts:3000

lMax. external counts:30000

lMax. internal resolution: 300000

lDivision:1/2/5/10/20/50 optional

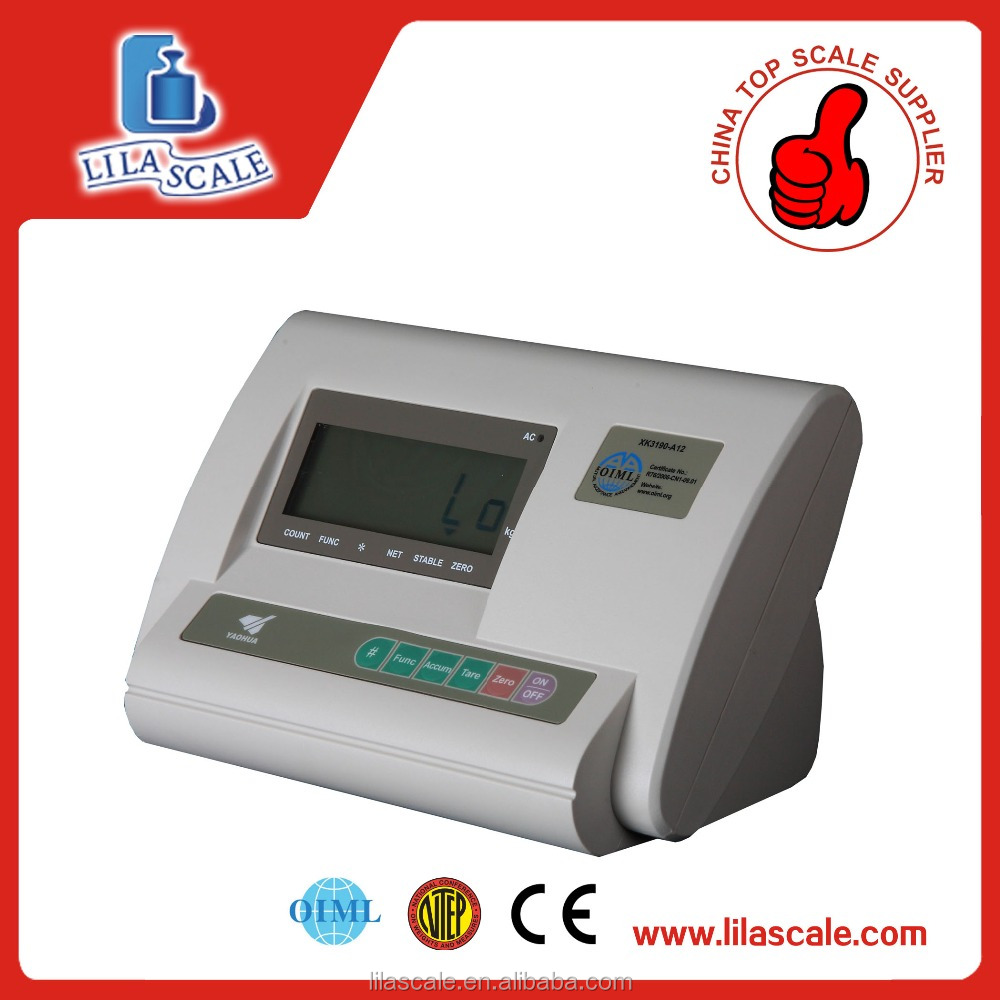

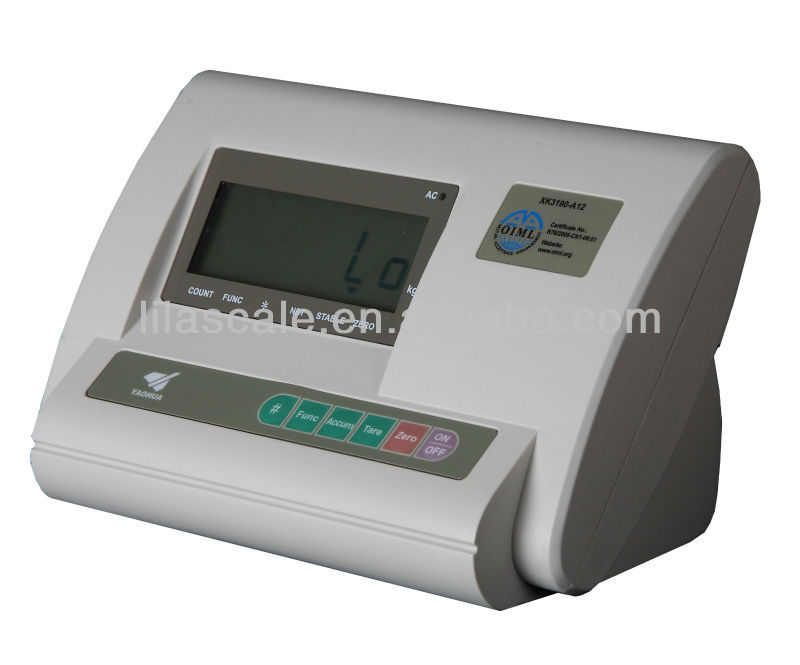

lDisplay(XK3190-A12):6 bits LCD. 6 status indications

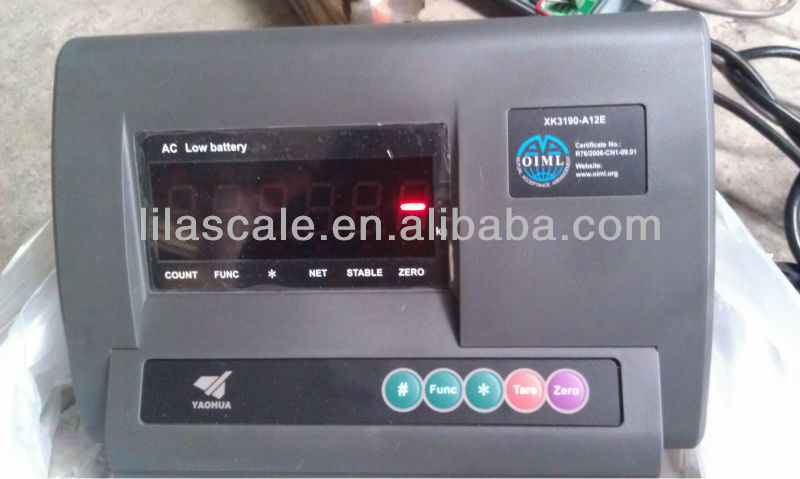

lDisplay(XK3190-A12E):6 bits LED. 6 status indications

lDisplay range: -2000~150000(d=10)

lOptional: Scoreboard interface serial sending signal by current loop with baud rate 600

lTransmission distance: Current loop≤100 meters

lOptional:RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method

lTransmission distance: RS232C≤30 meters

Power supply: AC 187~242V;49~51Hz; DC built-in rechargeable 6V/4AH battery

?
