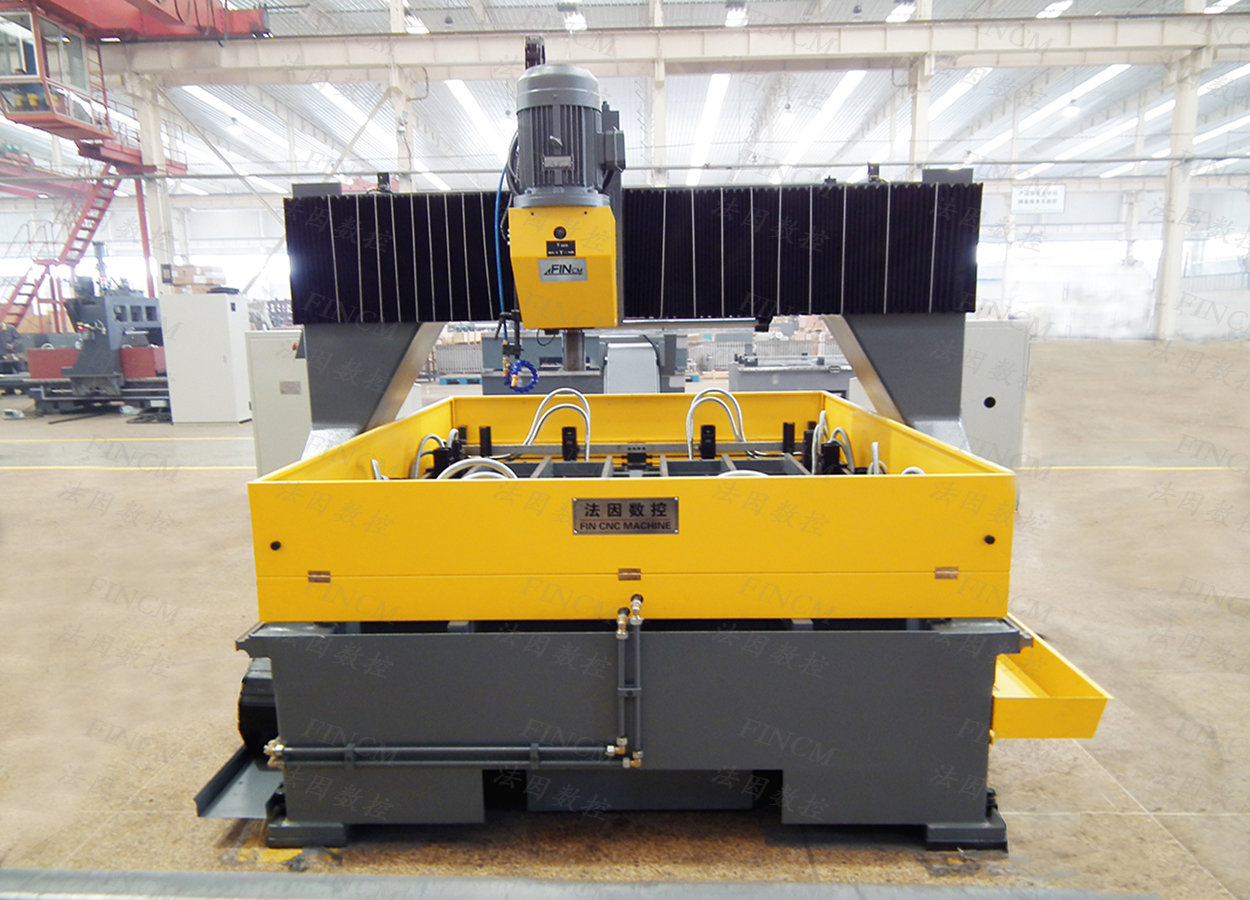

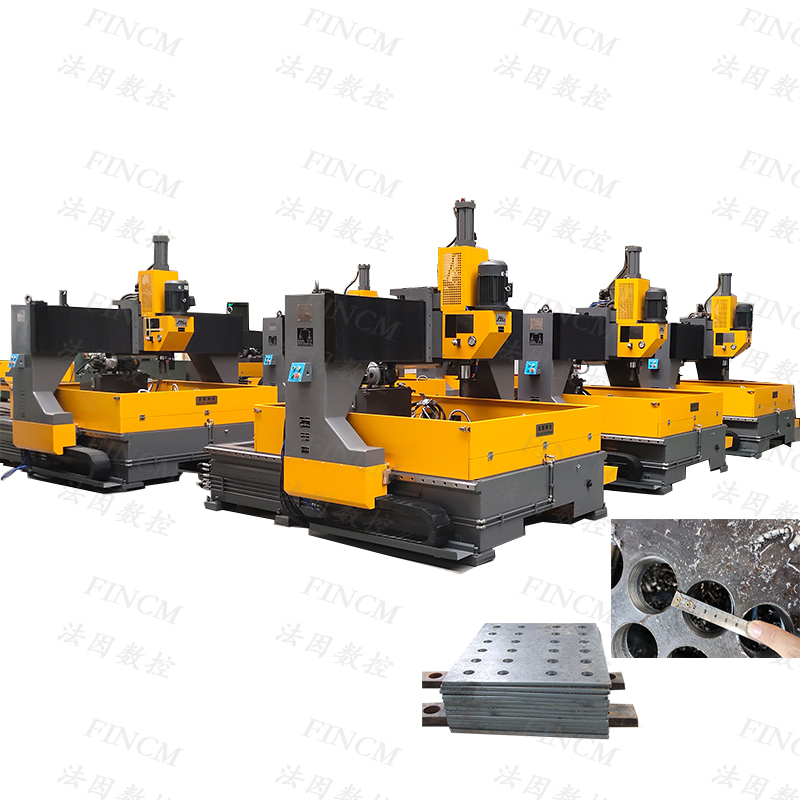

PLD2016N FINCM Steel Structure Gantry Mobile CNC High-Speed Drilling Machine

Video

1 / 7

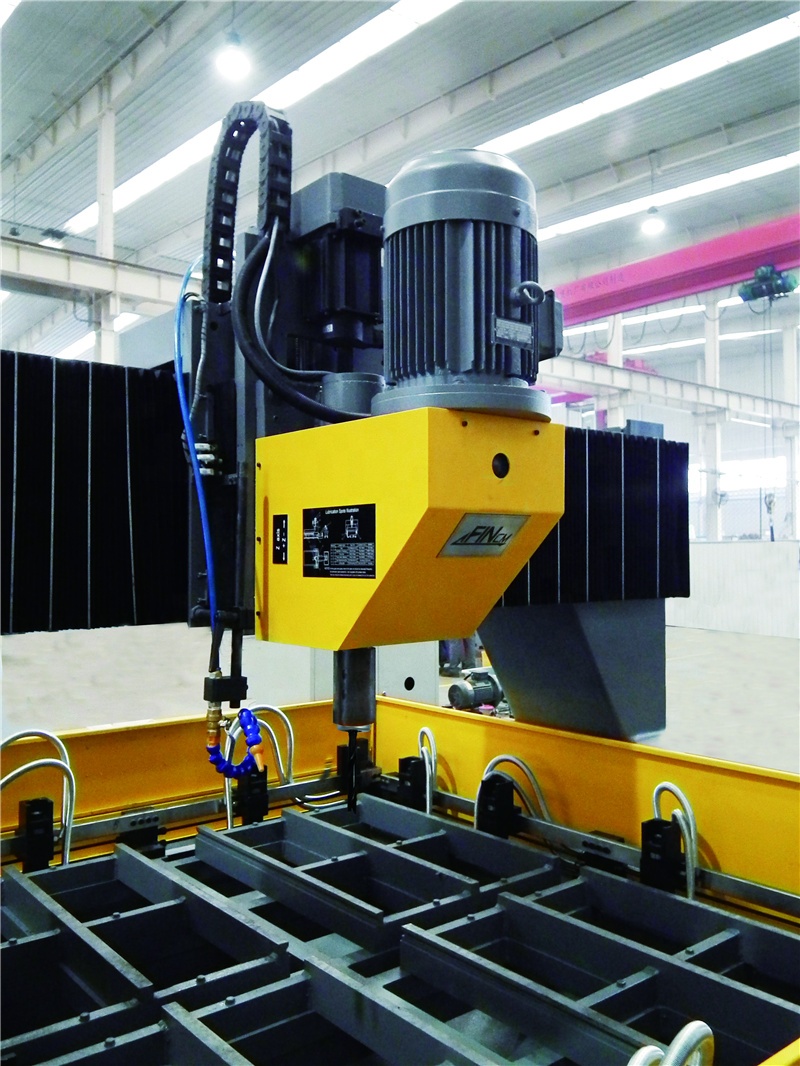

PLD2016N FINCM Steel Structure Gantry Mobile CNC High-Speed Drilling Machine

$30000.00 ~ $35000.00 / piece

Options:

50 mm
48 mm
45 mm
40 mm
36 mm
35 mm
32 mm
30 mm
26 mm
25 mm
23 mm
20 mm
16 mm
13 mm
12 mm

Get Latest Price

You might also like

PLD2016N FINCM: High-Speed CNC Drilling Machine with Movable Plate

1 set (MOQ)

CNC Automatic Plate Drilling Machine for Steel Plates in Construction Structures (PLD2016 FINCM)

$34000.00

1 set (MOQ)

PLD2016N FINCM Steel Structure Gantry Mobile CNC High-Speed Drilling Machine

$30000.00

1 piece (MOQ)

CNC Angle Line Tower Manufacturing Machine: Punch, Mark, and Hydraulic Power Transmission

1 set (MOQ)

PLD2016N FINCM: High-Speed CNC Plate Drill Press for Steel Structure Fabrication

1 set (MOQ)

PLD2016 FINCM Construction Hydraulic Vertical CNC Metal Drilling Machine for Steel Plates

1 set (MOQ)

PHD2016 FINCM Heavy Duty Automatic Drill Machine

$63000.00

1 set (MOQ)

Gantry Mobile High-Speed CNC Drilling Machines PLD3016N FINCM for Steel Plates

$44000.00

1 set (MOQ)

PD30B FINCM Hydraulic Borehole Drilling Machine for Plates

$42500.00

1 set (MOQ)

Basic Info

Model No.
Brand Name
Condition	New
Type	Cnc Drilling Machine
Max. Drilling Dia. (mm)	50
Range Of Spindle Speed(r.p.m)	120 - 560 R.P.M
CNC Or Not	Cnc
Drilling Speed	/
Place Of Origin	Shandong, China
Brand Name	FIN CNC
Model Number	PLD2016N
Voltage	Made as per order request
Dimension(LWH)	200016001000
Power (kW)	/
Weight (KG)	1000 KG
Warranty	1 Year
Key Selling Points	Automatic
Showroom Location	Viet Nam, Saudi Arabia, Indonesia, India
Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works?, Energy & Mining
Marketing type	Ordinary Product
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core components	Pump
machine	CNC Drilling Machine for Steel Plates
Thickness of workpiece (mm)	Max 100mm
Quick-change drill chuck	Morse 3#,4#
Diameter of drilling head (mm)	12mm-50mm
The mode of speed adjustment	Transducer stepless speed adjustment
Rotate speed (r/min)	120-560r/min
Stroke(mm)	180mm
Processing feeding	Hydraulic stepless speed adjustment
Thickness of clamping(mm)	15-100mm
Quantity of clamping cylinder(piece)	12 pieces

Product description

Products Description

Item	Name	Value
Size of workpiece	Thickness of workpiece (mm)	Max 100mm
		Width×Length (mm)	2000mm×1600mm （One piece）
				1600mm×1000mm (Two pieces)
				1000mm×800mm (Four pieces)

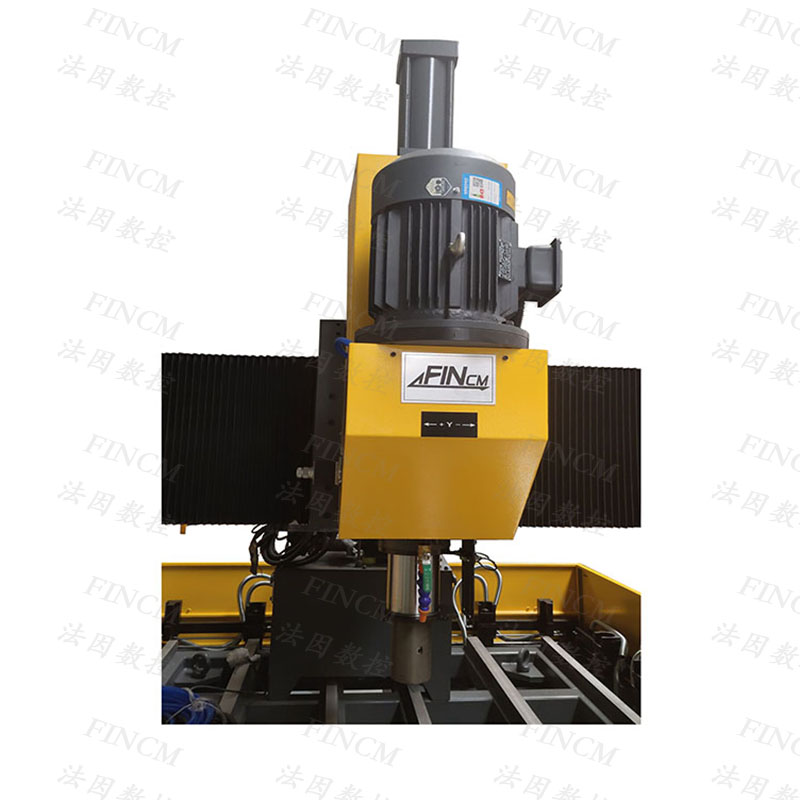

Drilling spindle	Quick-change drill chuck	Morse 3＃、4＃
		Diameter of drilling head (mm)	Φ12mm-Φ50mm
		The mode of speed adjustment	Transducer stepless speed adjustment
		Rotate speed (r/min)	120－560r/min
		Stroke（mm）	180mm
		Processing feeding	Hydraulic stepless speed adjustment

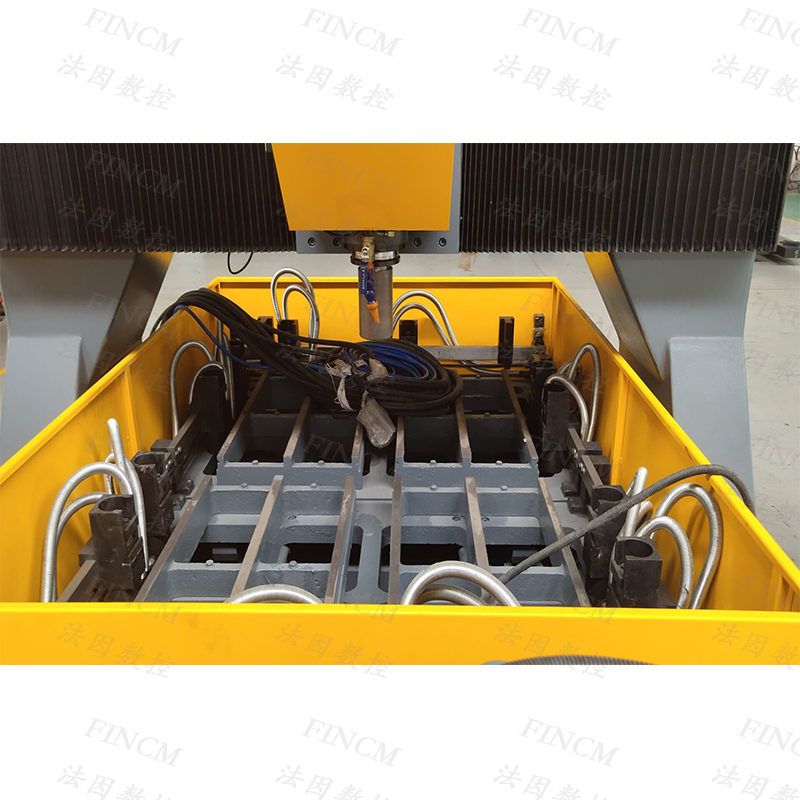

Hydraulic clamping	Thickness of clamping(mm)	15－100mm
		Quantity of clamping cylinder(piece)	12 pieces
		Clamping force(kN)	7.5kN
		Start-up clamping	Foot-switch
Cooling fluid	Mode	Forcing cycle
Hydraulic system	System pressure(MPa)	6MPa（60kgf/cm2）
Hydraulic system		Volume of oil tank(L)	100L
Air pressure	Source of compressed air(MPa)	0.4MPa（4kgf/cm2）
Motor	Spindle (kW)	5.5kW
		Hydraulic pump (kW)	2.2kW
		Chip removal motor(kW)	0.75kW
		Cooling pump(kW)	0.25kW
		Servo system of X axis(kW)	1.5kW
		Servo system of Y axis(kW)	1.0kW
Overall dimensions	L×Wx×H(mm)	About 5183×2705×2856mm
Weight(KG)	Main machine	About 4500kg

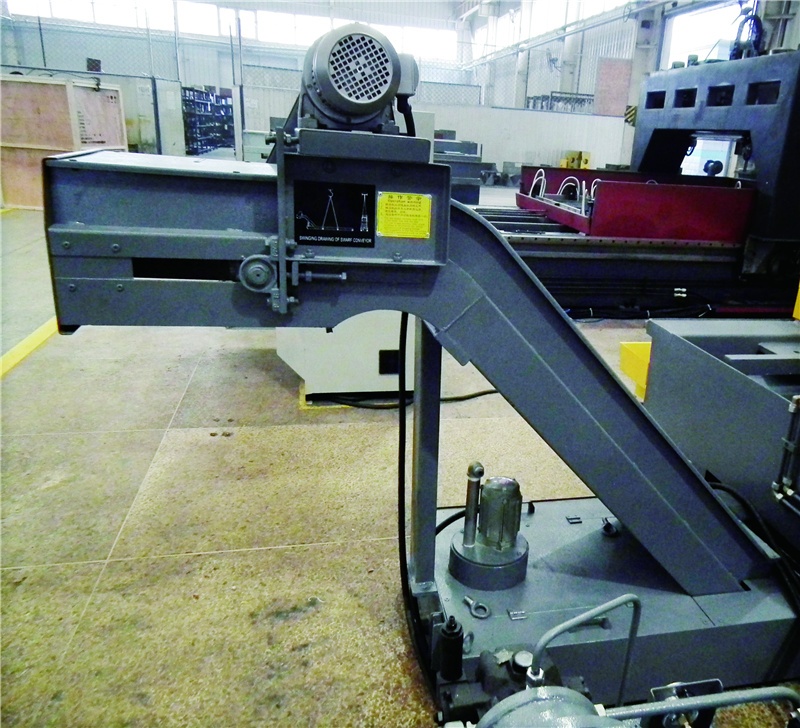

Weight(KG)		Scrap Removal Device	About 800kg
CNC Axis	X,Y（Point position control）Z(Spindle, Hydraulic feeding)
Travel	X Axis	2000mm
Travel		Y Axis	1600mm
Maximum Positioning speed	10000mm/min

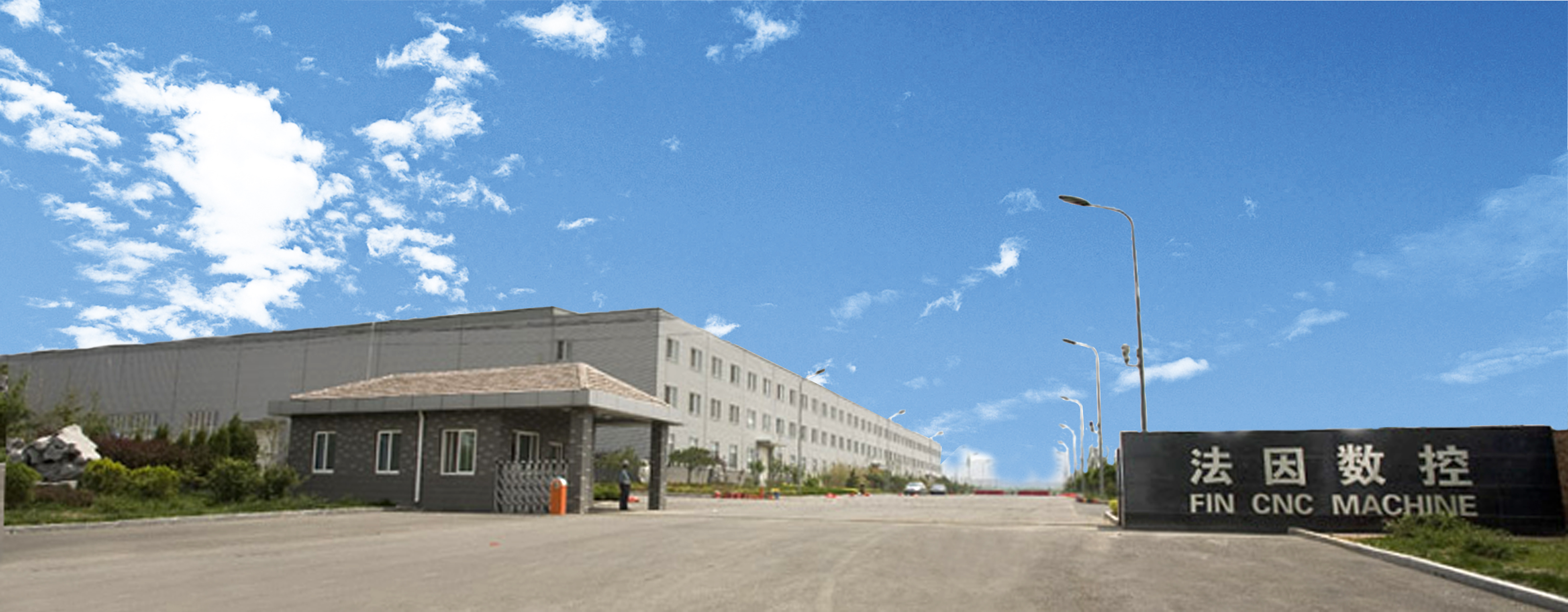

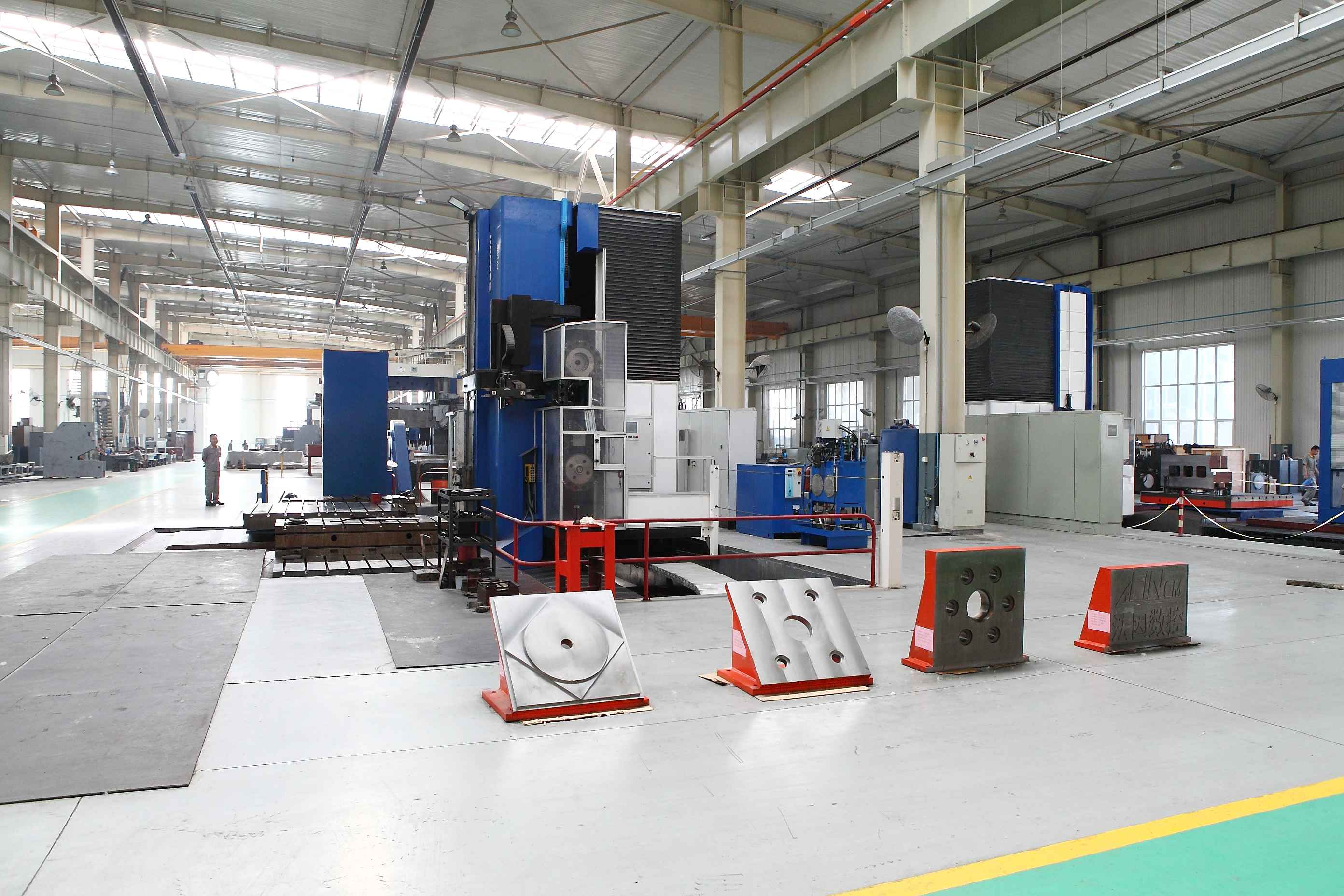

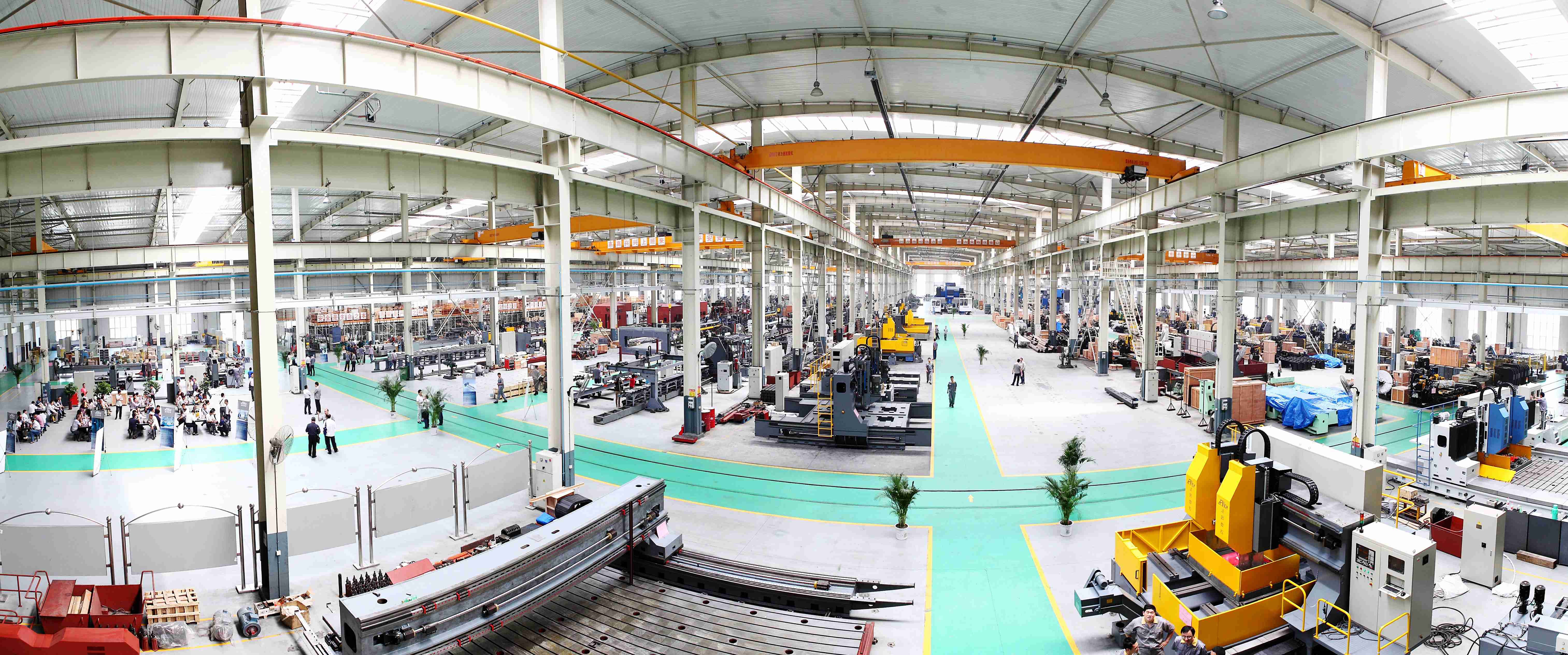

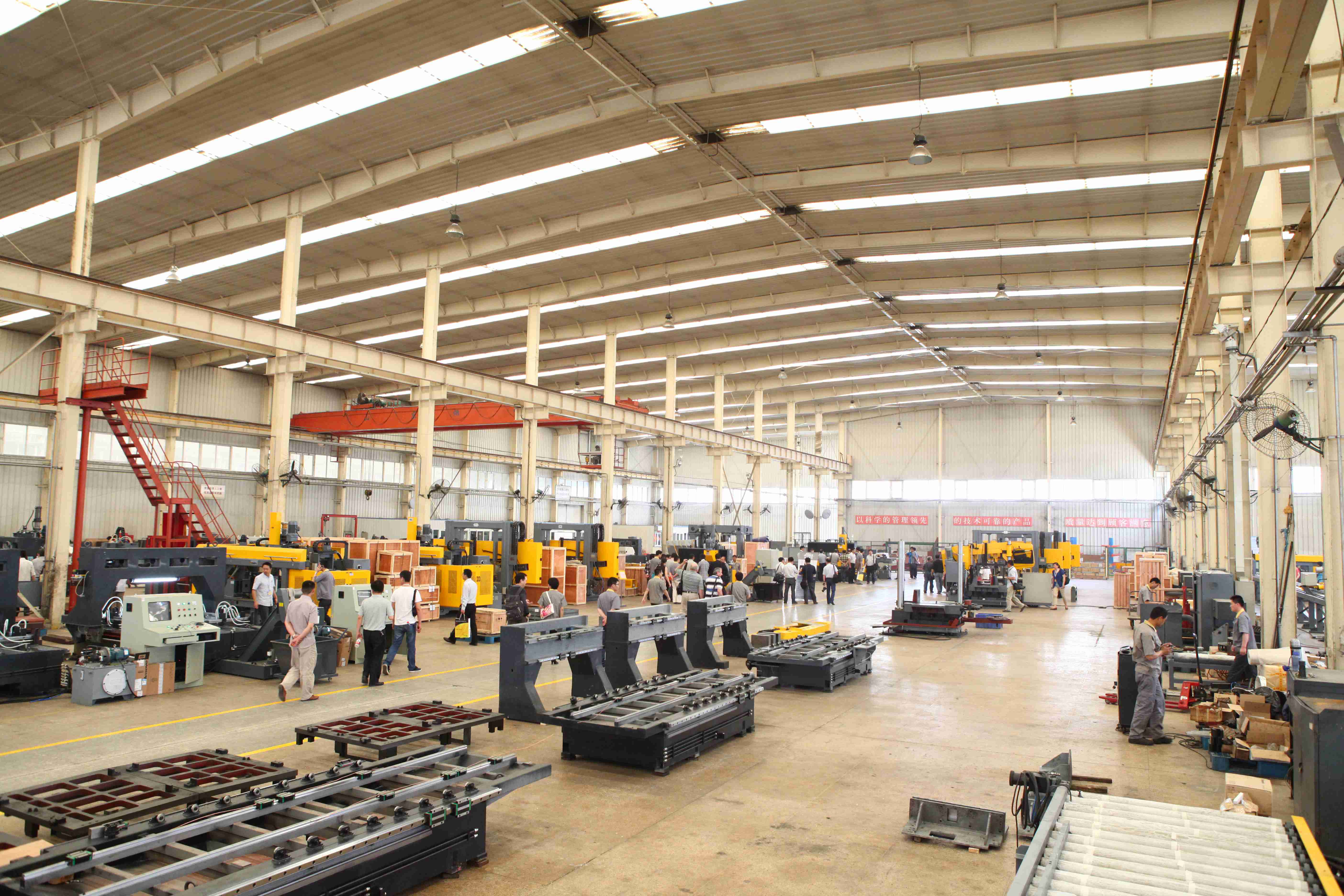

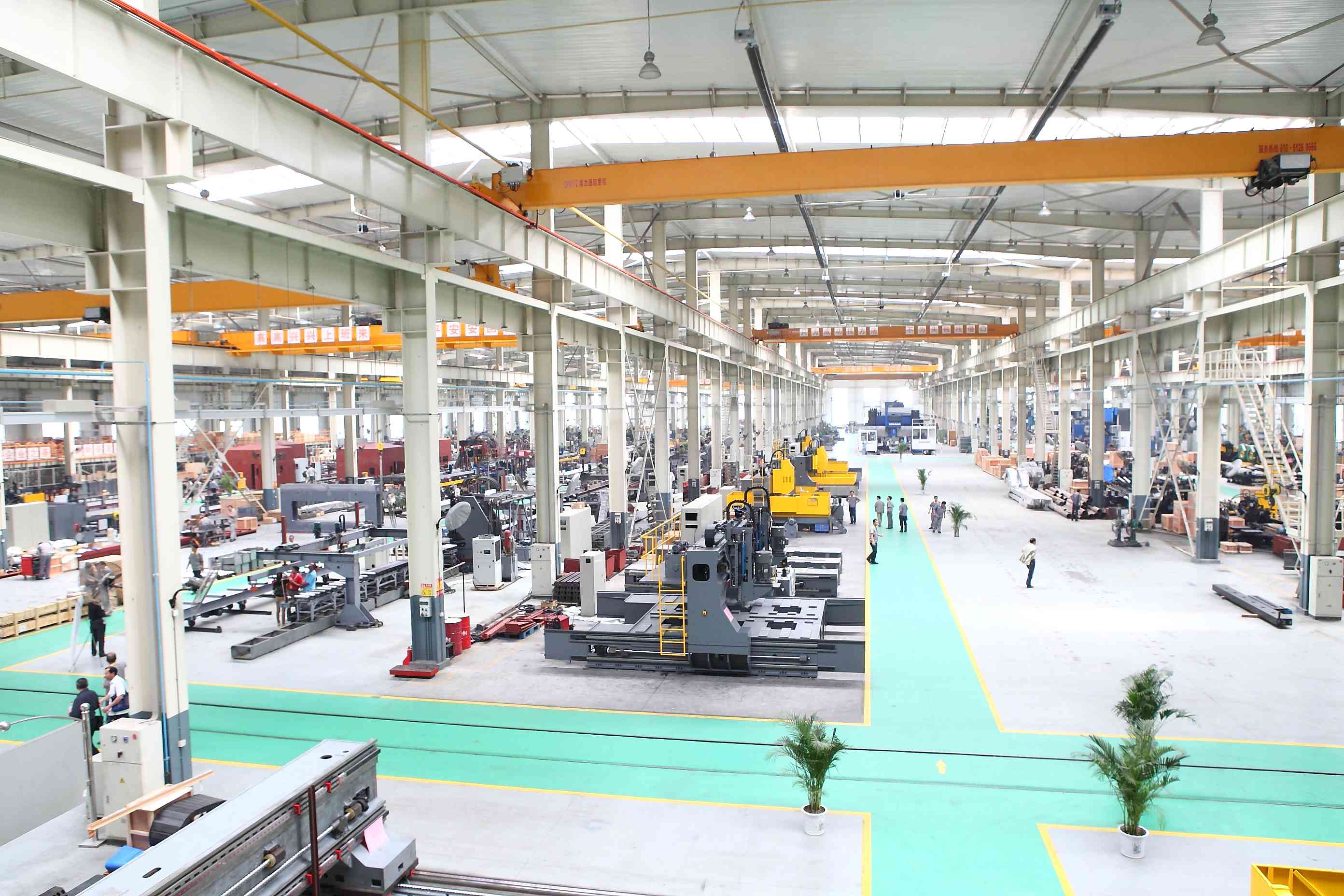

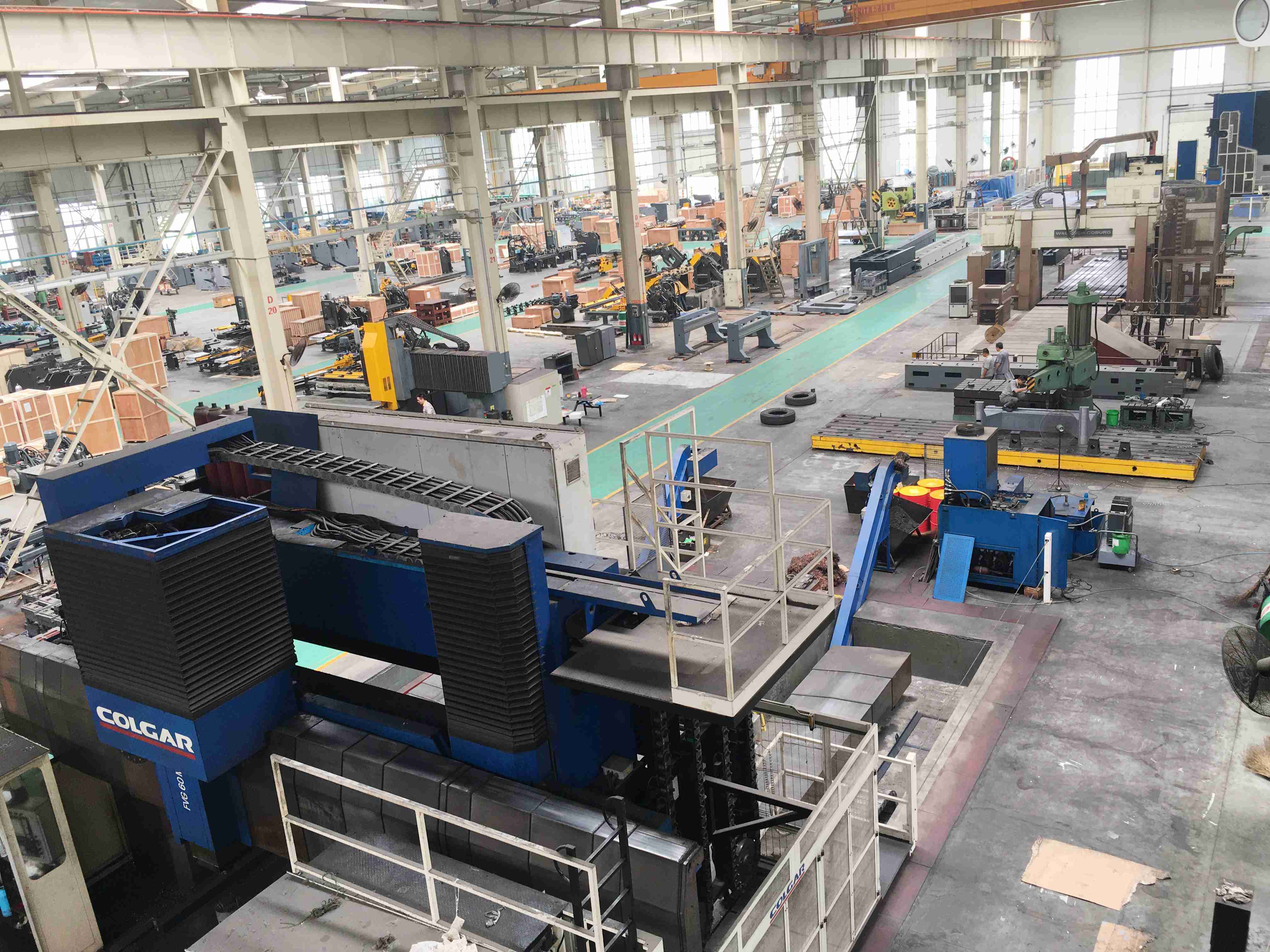

Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine. FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients. Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine. The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.
