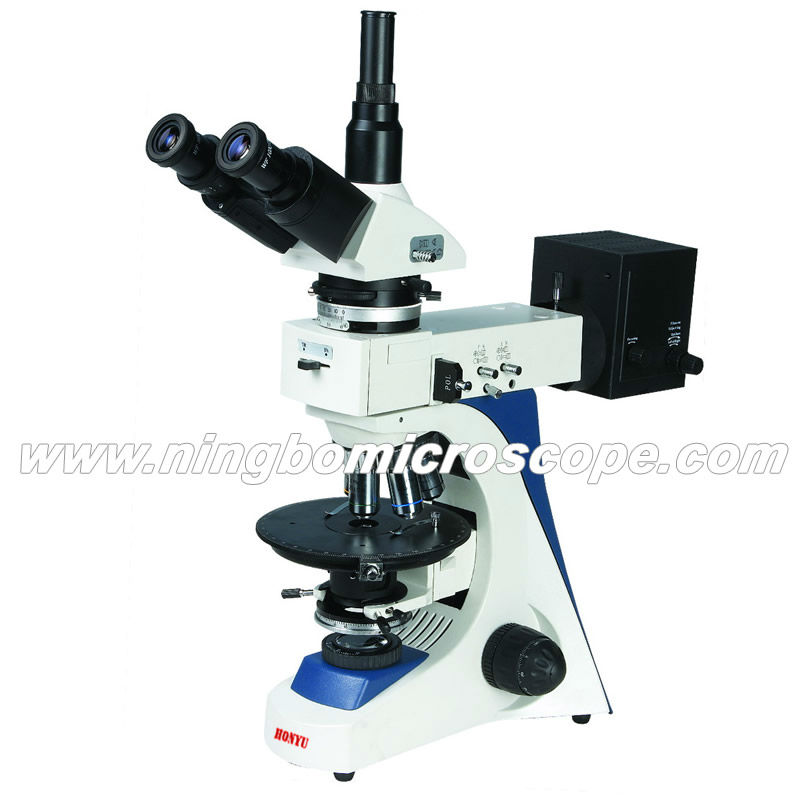

Polarizing Microscope with Light Source: POL.01.607LPT

1 / 1

Polarizing Microscope with Light Source: POL.01.607LPT

$1000.00 ~ $3000.00 / piece
Get Latest Price

Basic Info

Model No.
Brand Name
Place of Origin Zhejiang, China
Brand Name Honyu
Model Number POL.01.607LPT
Theory Biological Microscope
Drawtube Trinocular
Condenser Swing Type N.A.1.25 Abbe Condenser with Iris Diaphragm
Nosepiece Quintuple Nosepiece with centering adjustable
Stage Rotary Stage,Stage Size: 172mm,Moving Range:360
Checking Tool 0.01mm Micrometer
Show More

Product description

? Polarizing Light Microscopes??

?

Description and Notes

?

?

POL.01.607LPT Polarizing Microscope With Light Source/Polarizing Light Microscopes ?

?

Specification

?

Reflected and Transmitted Polarizing scopePOL.01.607LPBPOL.01.607LPT
HeadCompensation Free Binocular,30°inclined,55mm-75mm
?
-
Compensation Free Trinocular,30°inclined,55mm-75mm
-
?
EyepieceWide field WF10X/22mm
?
Gridding Eyepiece
Cross Eyepiece
Eyepiece with Reticule
ObjectiveStress-Free Infinity Plan-Achromatic Metallurgical Objective40X
60X
Stress-Free Infinity Plan Achromatic Objective4X
10X
20X
40X
60X
CondenserSwing Type N.A.1.25 Abbe Condenser with Iris Diaphragm
Focus SystemCoaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
NosepieceQuintuple Nosepiece with centering adjustable
FilterGreen Inserting Type Filting
Blue Inserting Type Filting
Neutral Inserting Type Filting
StageRotary Stage,Stage Size: Φ172mm,Moving Range:360°
Testing PieceGypsum 1 λTesting Piece
Mica1/4 λ
Quartz Wedge Testing Piece
IlluminationHigh brightness Fixed Illumination
Light SourceUpper:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness
Down:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness
Checking Tool0.01mm Micrometer

?

Optional Accessory

?

EyepieceWF16X
WF20X
P16X
Stress-Free Infinity Plan-Achromatic Metallurgical Objective4X
10X
20X
Photo AdapterPhoto Adapter
CCD Adapter0.5X
0.57X
0.75X

? ?

POL.01.607LPT Polarizing Microscope With Light Source/Polarizing Light Microscopes
