Polyethylene Fitting Saddle Welding Machine

Video

1 / 6

Polyethylene Fitting Saddle Welding Machine

$17000.00 ~ $27000.00 / Set/Sets

Model:

MRH-A630/315
MRH=A630/355
MRH-A630/400

Get Latest Price

You might also like

PE Saddle Fabrication Machines

$20000.00

1 Set/Sets (MOQ)

HDPE Pipe Saddle Fusion Welding Equipment

$20000.00

1 Set/Sets (MOQ)

CNC Saddle Welding Machine for Reducing Tee

$17000.00

1 Set/Sets (MOQ)

Polyethylene Fitting Saddle Welding Machine

$17000.00

1 Set/Sets (MOQ)

Basic Info

Model No.	MRH-A630
Brand Name	Yuda
place of origin	China
status	New
warranty period	1 Year
Core selling point	Accurate Temperature Control, Patented Product, Flexible Manufacturing, Low Maintenance Cost, Sustainable, Low Noise Level, Easy To Operate, Long Service Life, High Rigidity, High-Accuracy, Multifunctional
Out-of-warranty service	Video Technical Support, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	None
Applicable industry	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works, Energy &Amp; Mining, Other
Showroom location (in which countries are there sample rooms overseas)	None
Marketing type	Hot Product 2019
Mechanical test report	Provided
Video factory inspection	Provided
Usage	Sewage,Water Treatment, Gas
Material	Hdpe , Pp, Pe Pipe
Control	Manual
Solution	Butt Welding
Principle	Heat Fusion
Application	Reducing Tee Fabrication
Auxiliary Tools	Radius Saw
Main Pipe Size	315-630mm
Branch Pipe Size	90-315mm
Voltage	380v, 50hz

Product description

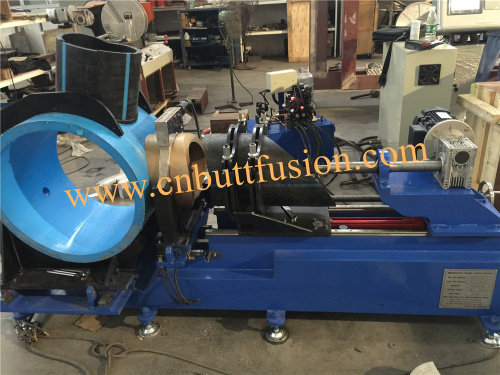

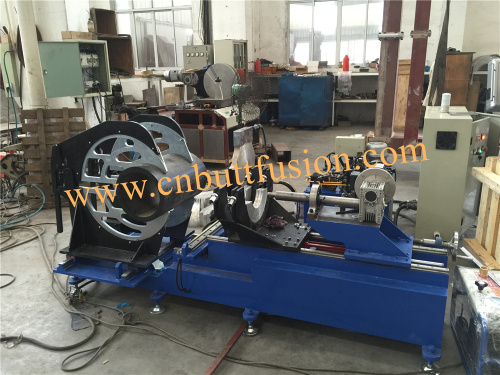

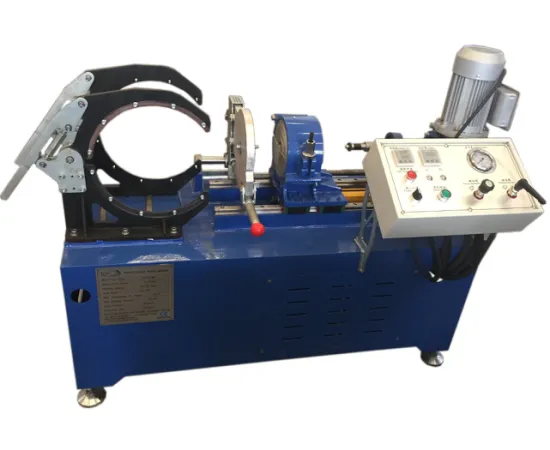

Polyethylene Fitting Saddle Welding Machine

Saddle or sidewall fusion is used to join a saddle to the side of a pipe by heating the external surface of the pipe and the matching surface of the fitting. A tool/machine is used to insure proper heating, alignment and force control. This process can be conducted while pressurized creating a “hot tap” when allowed by regulations and the pipeline owner. The pipe and saddle fitting surfaces are heated until they reach a proper temperature, the heating tool is removed and then the weld is formed. The process is complete following a cooling process. Always have a trained joining operator perform this procedure using properly maintained equipment. For more information for polyethylene reducing tee fabrication, feel free to view " www.cnbuttfusion.com"

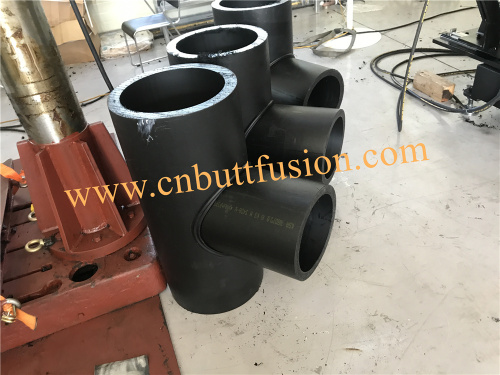

1.Suitable for fabricating PE reducing tee in a workshop. Integrated function of welding and taping enables it can complete the whole fabricating process
2.Removable PTFE coated heating mould
3.Control panel accompaines with CNC system to eliminate any risk of error due to the operator
4. Full-Automatic welding procedures with PLC and Touch screen
5. Welding statistics recording and printing function.
6. Linear guide ways are equipped with main pipe clamps, branch pipe clamps, knife tool and heat mould

Optional Parts:
* Heat Moulds
* Drilling Tool

Model	MRH-A630	MRH-A1200	MRH-A1800	MRH-A2000
Working range	Reducing tee
Max. Temp heating plate	270oC	270oC	270oC	270oC
System pressure ranges	0~20MPa	0~20MPa	0~20MPa	0~20MPa
Working voltage	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz
Heating plate power	6 KW	16 KW	25KW	32 KW
Hydraulic unit power	2.2 KW	2.2 KW	3KW	5.5KW
Drill motor power	2.2 KW	3 KW	4KW	5.5KW
Power	10.4KW	21.2KW	32KW	46KW

Type	MRH630
Main pipe Branch pipe	315	355	400	450	500	560	630
110	√	√	√	√
160	√	√	√	√	√	√
200			√	√	√	√	√
225				√	√	√	√
250					√	√	√
315							√

Q: Which parts of butt fusion machine are produced by your company?

A: We are manufacturer. All aluminum parts are done by ourselves, we have moulds for heating plate, planing tool, aluminum stub end device, inserts, narrow clamps for all RDHS, RDH, RGH, MRH, RDT series. Even PTEF coating ,steel basic frame, painting are all done by ourselves,too. welcome to visit our factory.

Q: What's your delivery for standard machine?

A: We have stock for most machines for RDH series up to 1200mm; sometimes one stock for 1600mm; also stock for RGH315.450, 630, 1200 Multi-angle fitting welding machine and DQJ630, 800, 1200 Multi-angle cutting machine, MRH630 saddle fusion machine & MQJ315 arched surface cutter in stock too. You can choose which one you want

Q: Does your company make custom-made machine?

A: We have our own technical design teams that can undertake OEM and ODM, If you have any requirement, feel free to contact me.

Q: Does your company provide machine training?

A: It is available, you can choose to come to our factory to learn machine installation, operating, machine maintenance etc, also we can arrange our engineer to your factory for detailed training,even online training available too.
