• Equipment Application: ? ?

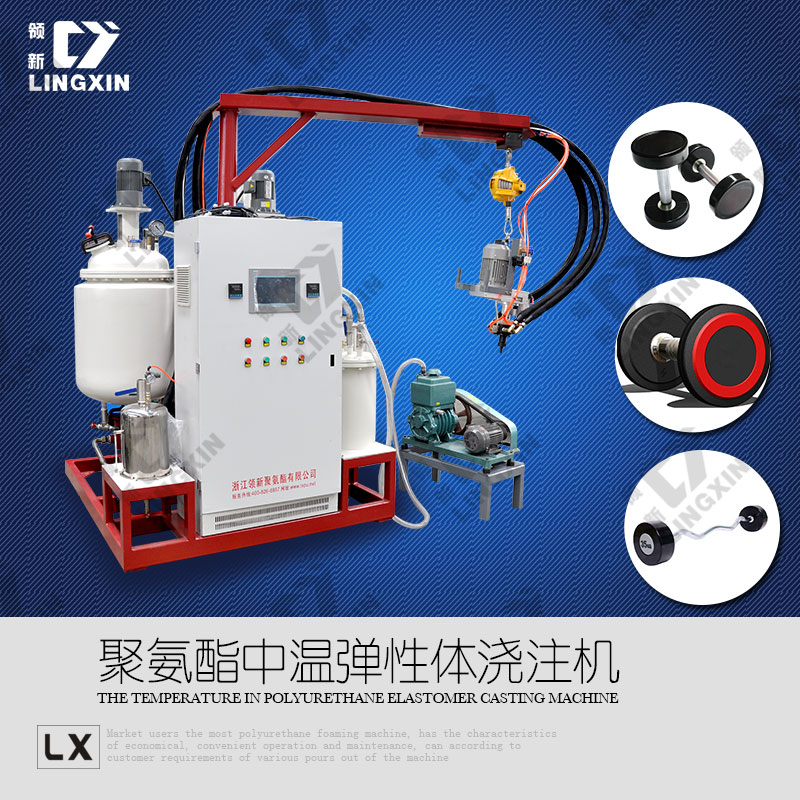

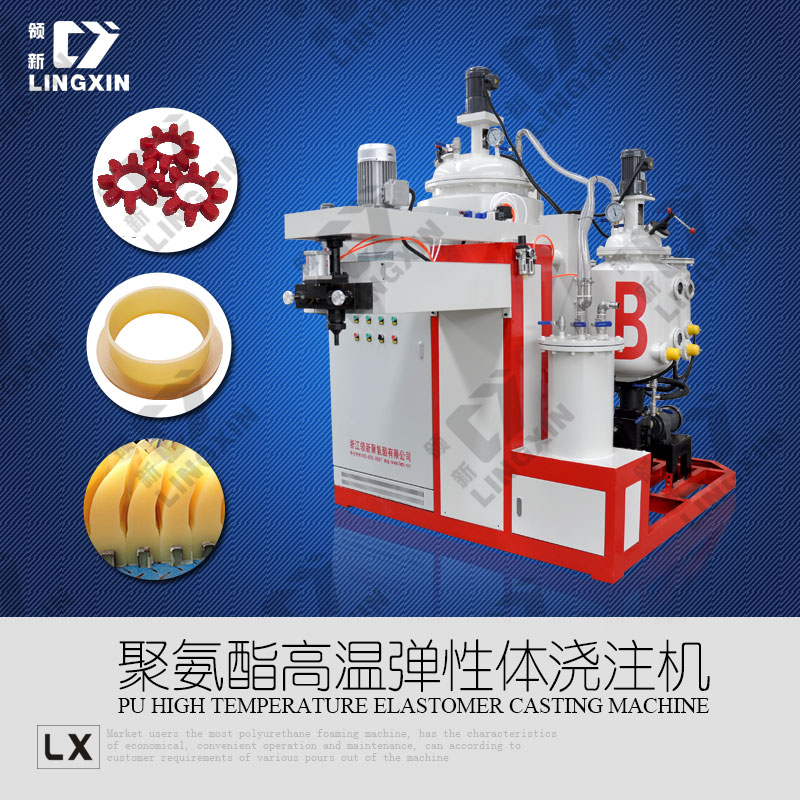

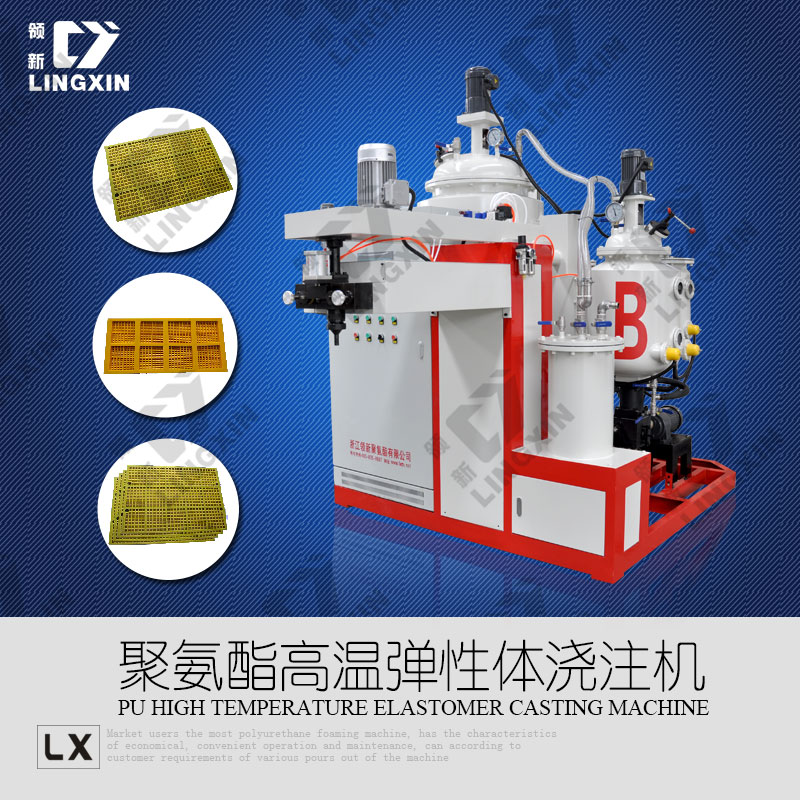

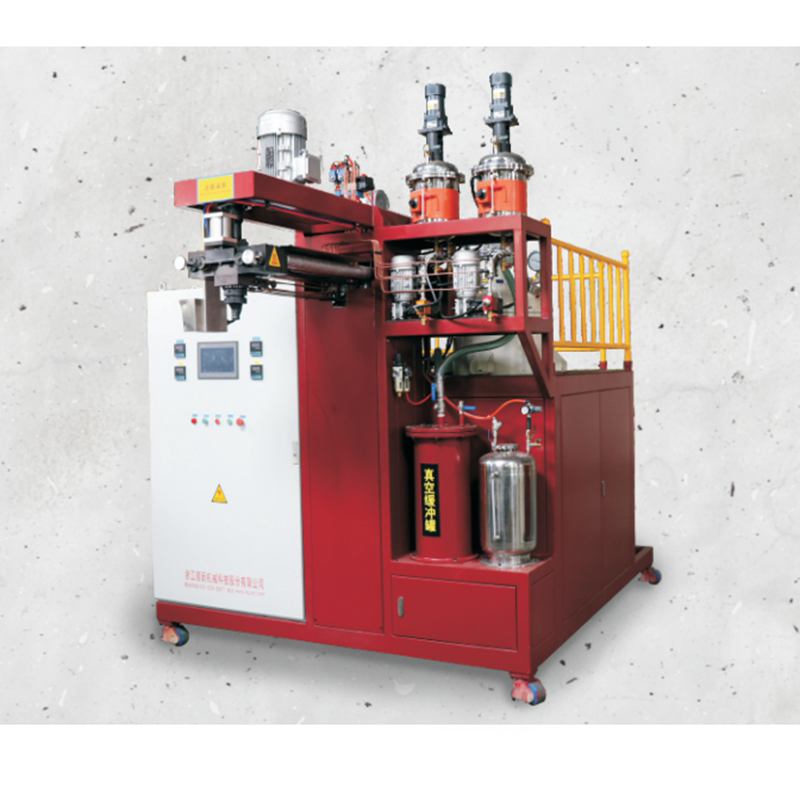

  PU elastomer casting machine is fit for making sealing element, wheel, roller, sieve, impeller, OA machine, skating wheel, buffer, and other kinds of CPU products.

  ?

  Equipment Features:

  High temperature resistant low speed high precision metering pump, accurate measurement, random error within±0.5%;
  Material output adjusted by frequency converter with motor, high pressure and precision, simple and rapid ratio control;
  High performance mixing device, adjustable pressure, accurate material output synchronization and even mix; New type mechanical seal structure avoids reflux problem.
  High-efficiency vacuum device with special mixing head ensures product no bubbles.
  Adopting electromagnetic heating to heat transfer oil, efficient and energy saving; Multi-point temp. control system ensures stable temperature, random error <±2℃.
  Adopting PLC and touch screen man-machine interface to control casting, automatic cleaning flush and air purge, stable performance, high operability, which can automatically distinguish, diagnose and alarm abnormal situations as well as display abnormal factors;

  ?

  Technical Parameters:

  Voltage	380V 50Hz
  Output	100-800?g/min;?1-3.5kg/min;2-5kg/min;?3-8kg/min;?5-15kg/min;12-30kg/min
  Material tank volume	30L-500L
  Power	25-35KW
  Injection Pressure	0.01-0.1Mpa
  Injection time	0.5~99.99S (correct to 0.01S)
  Mixing head	Around 6000rpm, forced dynamic mixing
  Compressed air requirement	Dry, oil free? P:0.6-0.8MPa Q:600L/min(Customer-owned)
  Vacuum pump	2X-15 Speed of exhaust:15L/S
  Input power	Three-phrase five-wire,380V 50HZ
  Temperature control system	18~24KW
  Color (selectable)	White/Blue/Red
  Weight	1500kg

?

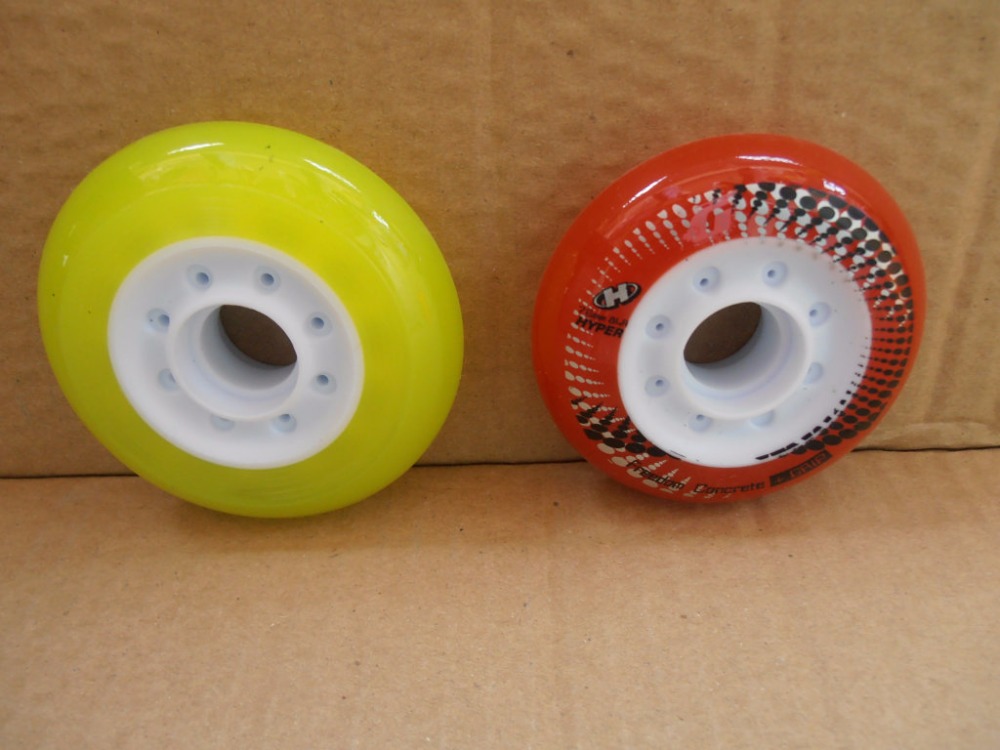

Samples made by machine:

?

??

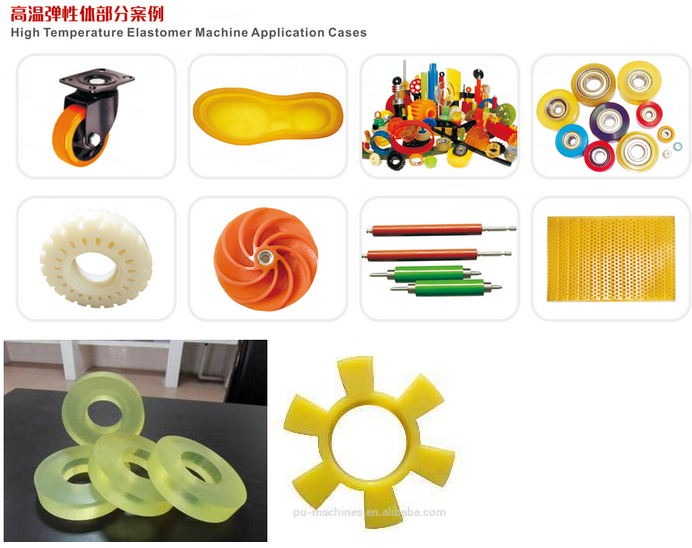

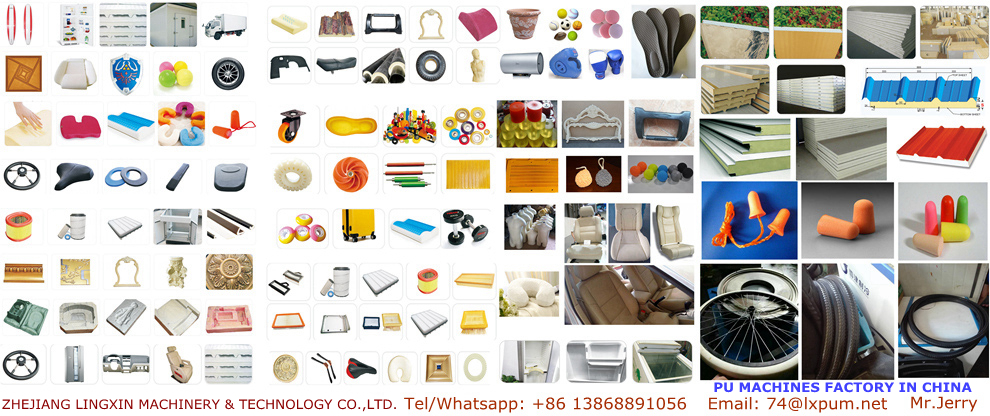

Part of PU Products can be made by our machines:

Welcome?to?contact?with?us?/send?inquiry?for?more?details?of?machines.?We?will?reply?you?ASAP.?Thanks.
