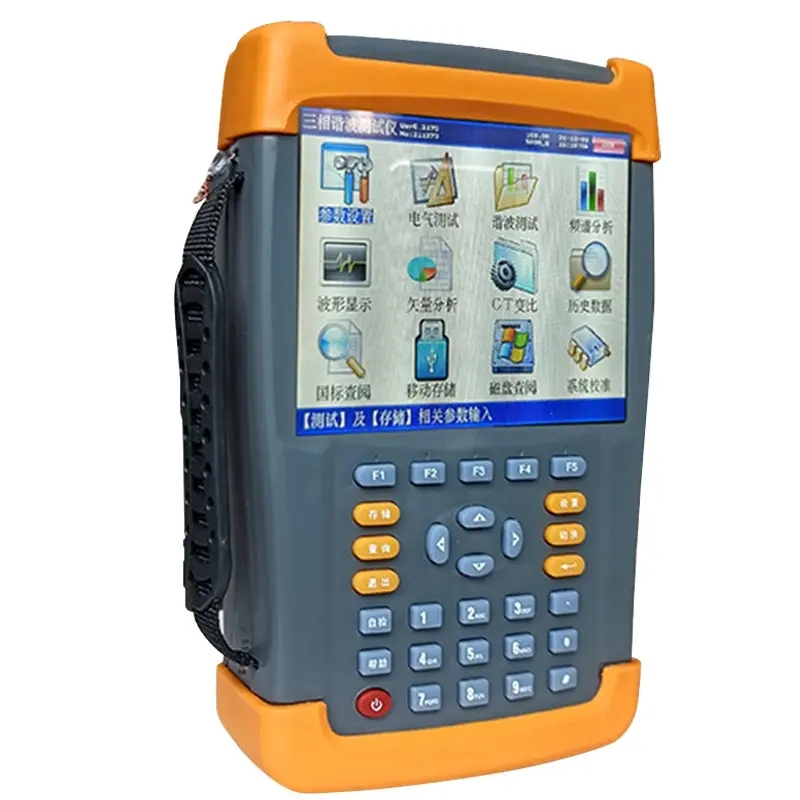

Power and Harmonics Analyzer / 3 Phase Power Quality Analyzer
$2830.00
≥1 set
$2750.00
≥10 set
$2600.00
≥50 set
use:
- 3 Phase Energy and Power Quality Analyzer
Get Latest Price
You might also like
Basic Info
| Warranty | 2 Years |
|---|---|
| Customized Support | OEM, Software reengineering, ODM, OBM |
| Place Of Origin | Hubei, China |
| Brand Name | Lvnengde |
| Model Number | LNDN-220D |
Show More
Product description
1. The instrument is a high-precision testing instrument specifically designed to detect power quality issues such as waveform distortion, harmonic content, voltage fluctuation and flicker, and three-phase imbalance in the power grid; At the same time, it also has the functions of electrical parameter testing and vector analysis.
2. It can accurately measure various electrical parameters such as voltage, current, active power, reactive power, phase angle, power factor, frequency, etc.
3. It can display the vector diagram of the measured voltage and current, and users can analyze the vector diagram to determine whether the wiring of the measuring equipment is correct or not

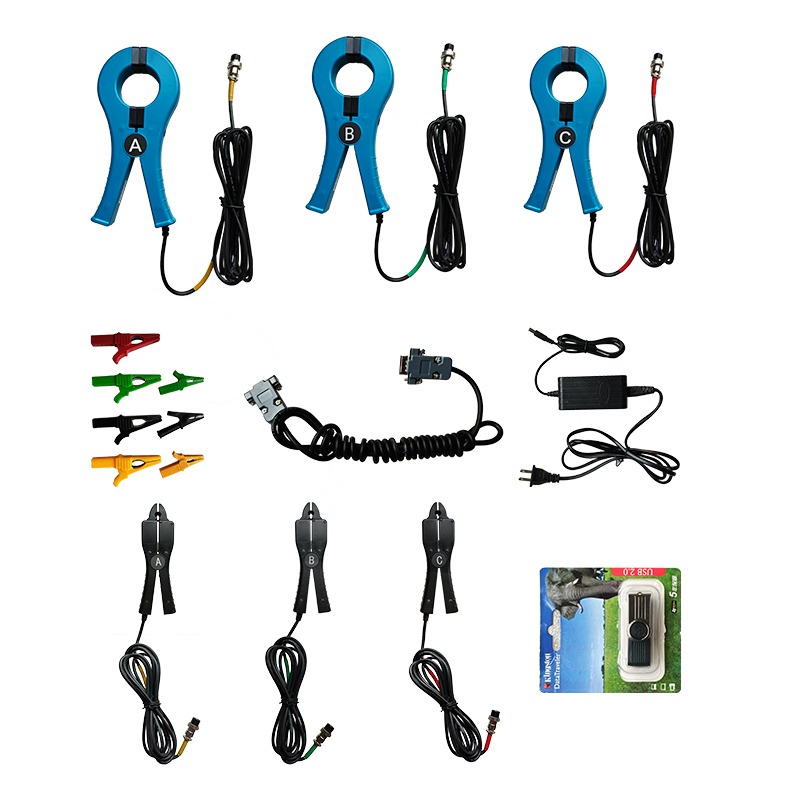

4. The current is measured using a clamp type transformer. Because when using a clamp current transformer for measurement, the operator does not need to disconnect the current circuit, which allows for convenient and safe measurement. Depending on the user's measurement range, different range clamp gauges can be selected.
5. It can measure and analyze the AC power quality supplied by the public power grid to the user end, including frequency deviation, voltage deviation, voltage fluctuation, flicker, allowable three-phase voltage imbalance, and grid harmonics.
6. It can display single-phase voltage and current waveforms, and can simultaneously display three-phase voltage and current waveforms.
7. All testing interfaces have screen locking function to facilitate user reading and data analysis
8. Load fluctuation monitoring: Measure and analyze the fluctuations caused by various electrical equipment in different operating states on the power quality of the public power grid. Regularly record and store the trend of changes in power parameters such as voltage, current, active power, reactive power, apparent power, frequency, phase, etc
9. Dynamic monitoring of power equipment adjustment and operation process, helping users solve problems that arise during the adjustment and operation of power equipment.
10. Able to test and analyze the dynamic parameters of reactive power compensation and filtering devices in the power system, and make quantitative evaluations of their functions and technical indicators
11. Different storage intervals can be set to continuously store data according to the set time intervals;
12. Built in large capacity data storage, which can be continuously stored for more than 18 months at 1-minute intervals to meet the needs of long-term monitoring test points
13. The instrument has a USB interface, which can easily copy data directly to the backend management computer.
14. In conjunction with powerful data management software, real-time sampling data can be directly uploaded to the backend management computer for more comprehensive and rapid processing in the backend.
15. Equipped with perpetual calendar and clock functions, real-time display of date and time. It can save test data and results while conducting on-site testing, and upload them to the computer through serial port. Through backend management software (optional accessories), it can achieve microcomputer based data management and has powerful reporting functions.

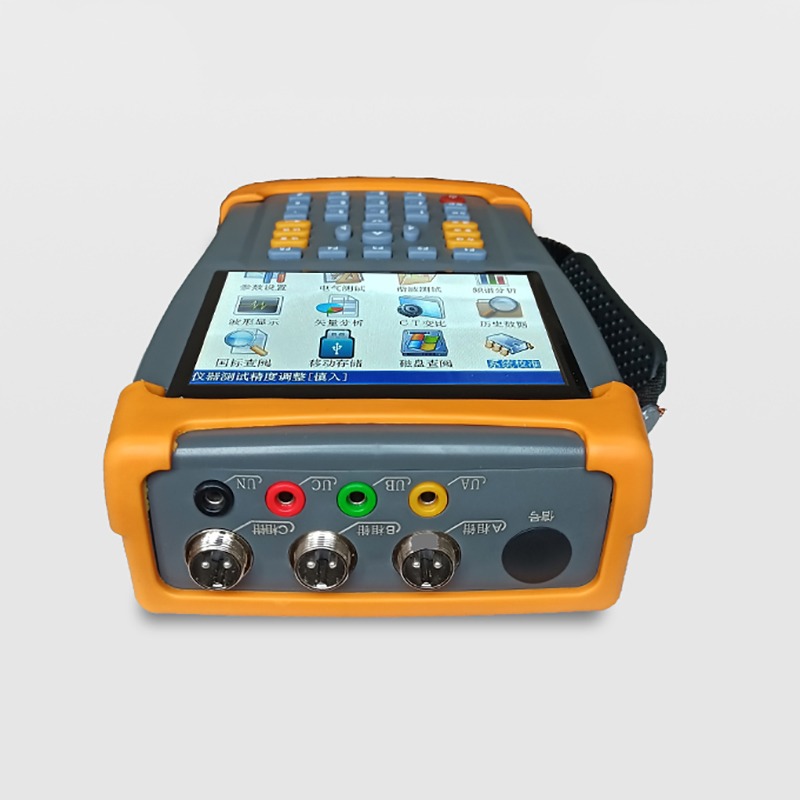

16. The imported color LCD with a large screen is used as the display, and the Chinese operation interface is equipped with a multi parameter LCD display interface for Chinese character prompt information. The human-machine dialogue interface is friendly
17. After 3 minutes of no operation, the LCD display automatically enters the power saving mode to maximize the battery working time.

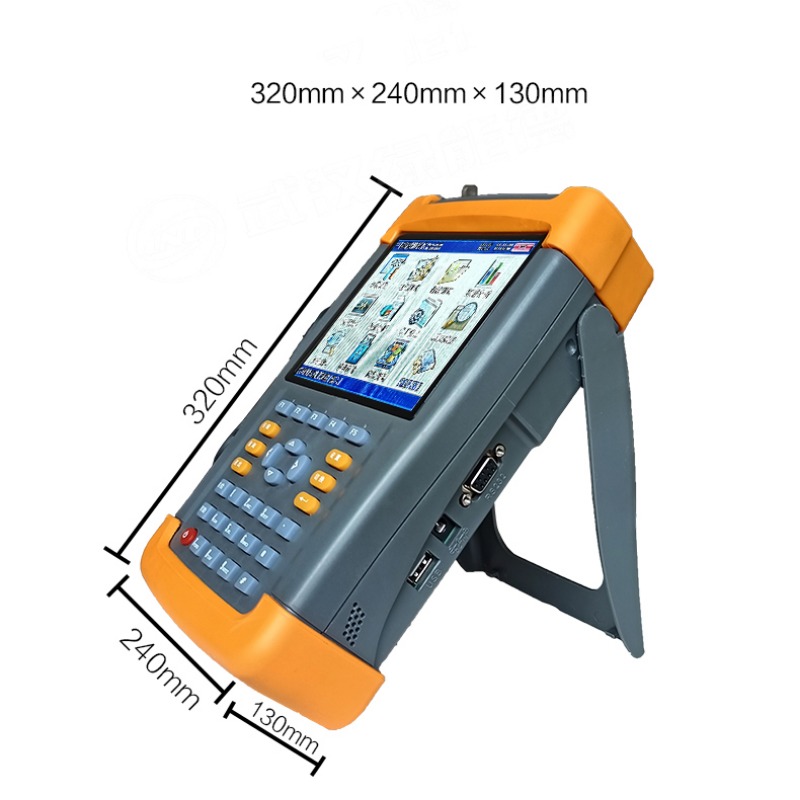

18. Conductive silicone button, with good hand feel, long lifespan, reasonable design, and easy operation. 19. Built in large capacity, high-performance ion charging battery, fully charged and continuously working for more than 10 hours. 20. Small size, light weight, and easy to carry, it can be used for on-site measurement and can also be used as a standard measuring equipment in the laboratory.

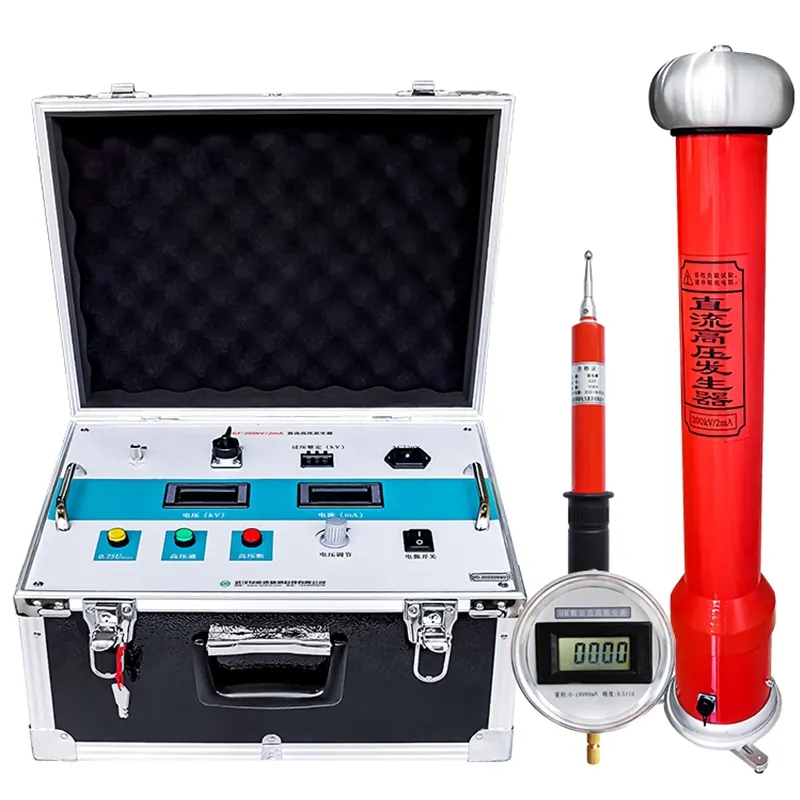

ZGF 200kV/2mA DC high voltage generator Zinc oxide arrester

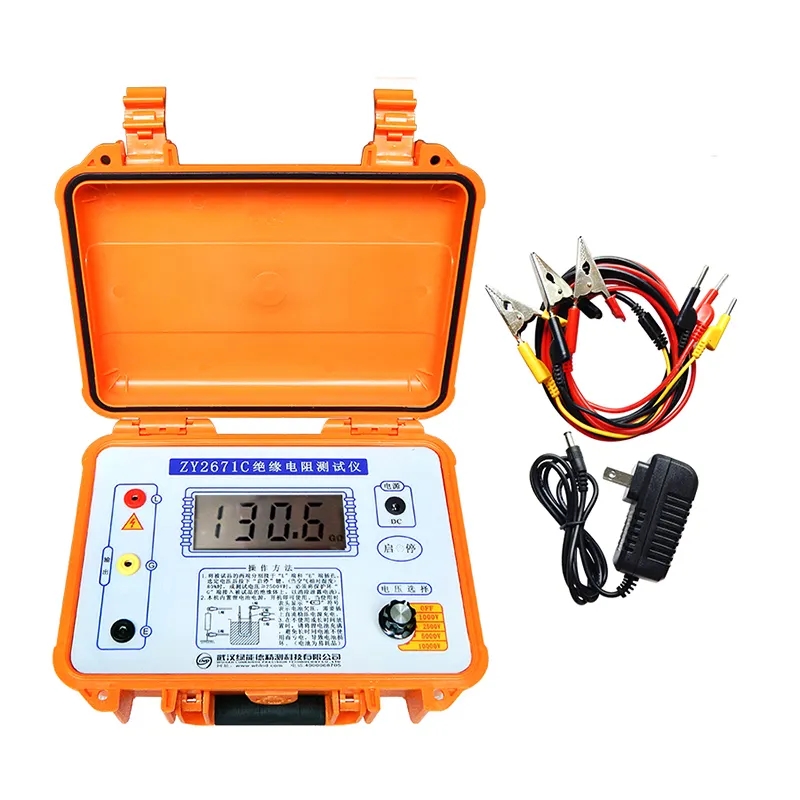

ZY2671C uni-t Insulation resistance tester

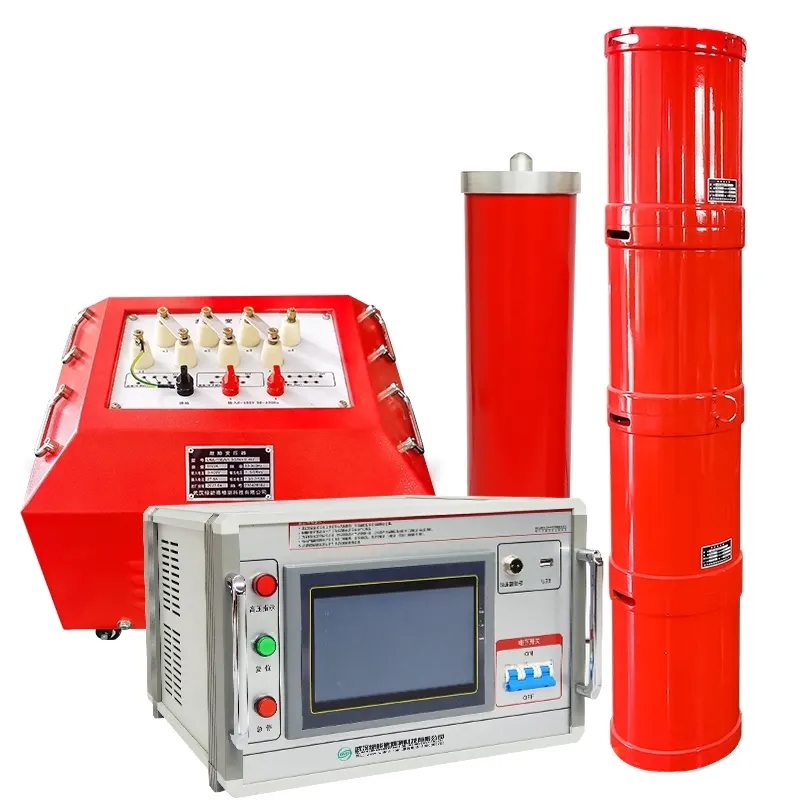

Frequency Conversion Series Device
