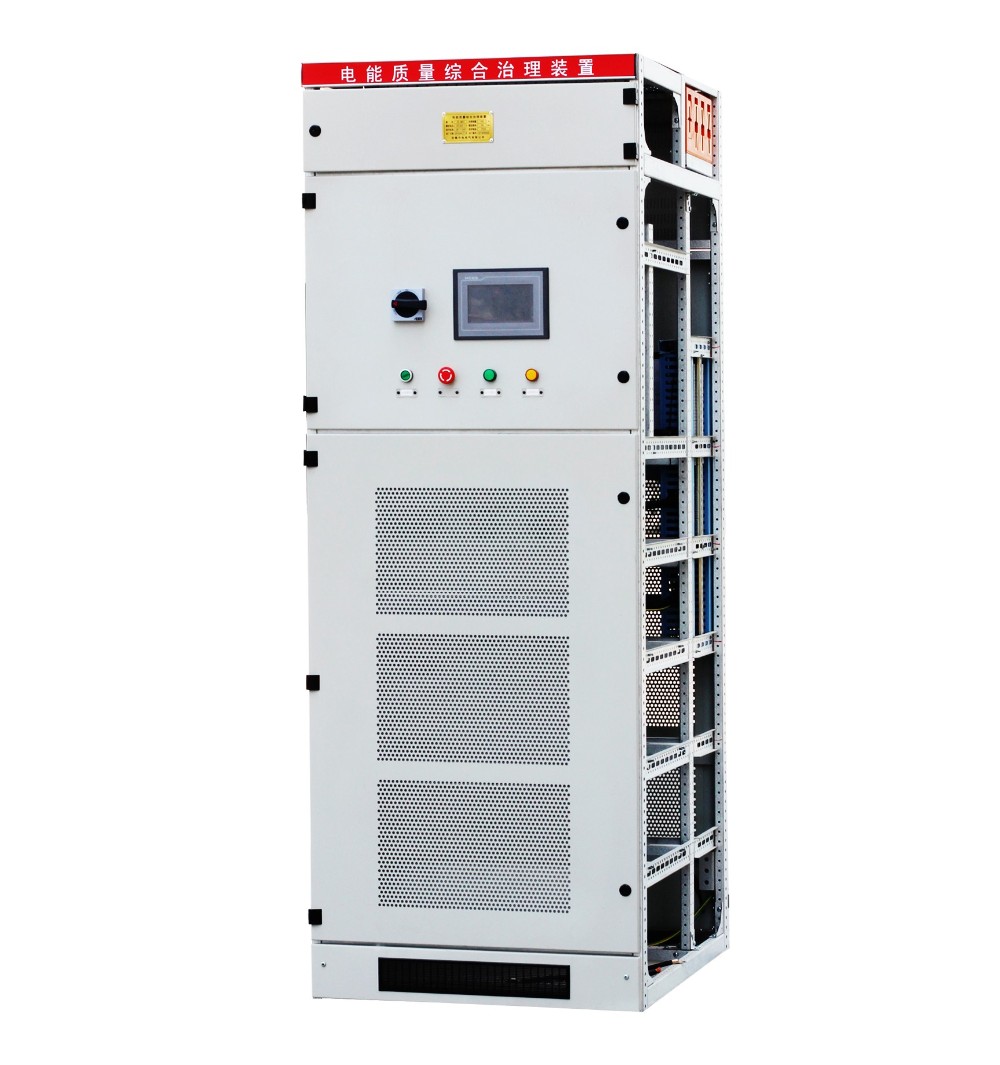

Power Factor Correction using Static Var Compensator at 400V Low Voltage SVC
Basic Info
| Place of Origin | Other |
|---|---|
| Brand Name | ZHONGDIAN |
| Model Number | ZD-SVC |
| Rated Voltage | 220V-1000V |
| Rated Frequency | 50Hz/60Hz |
Product description

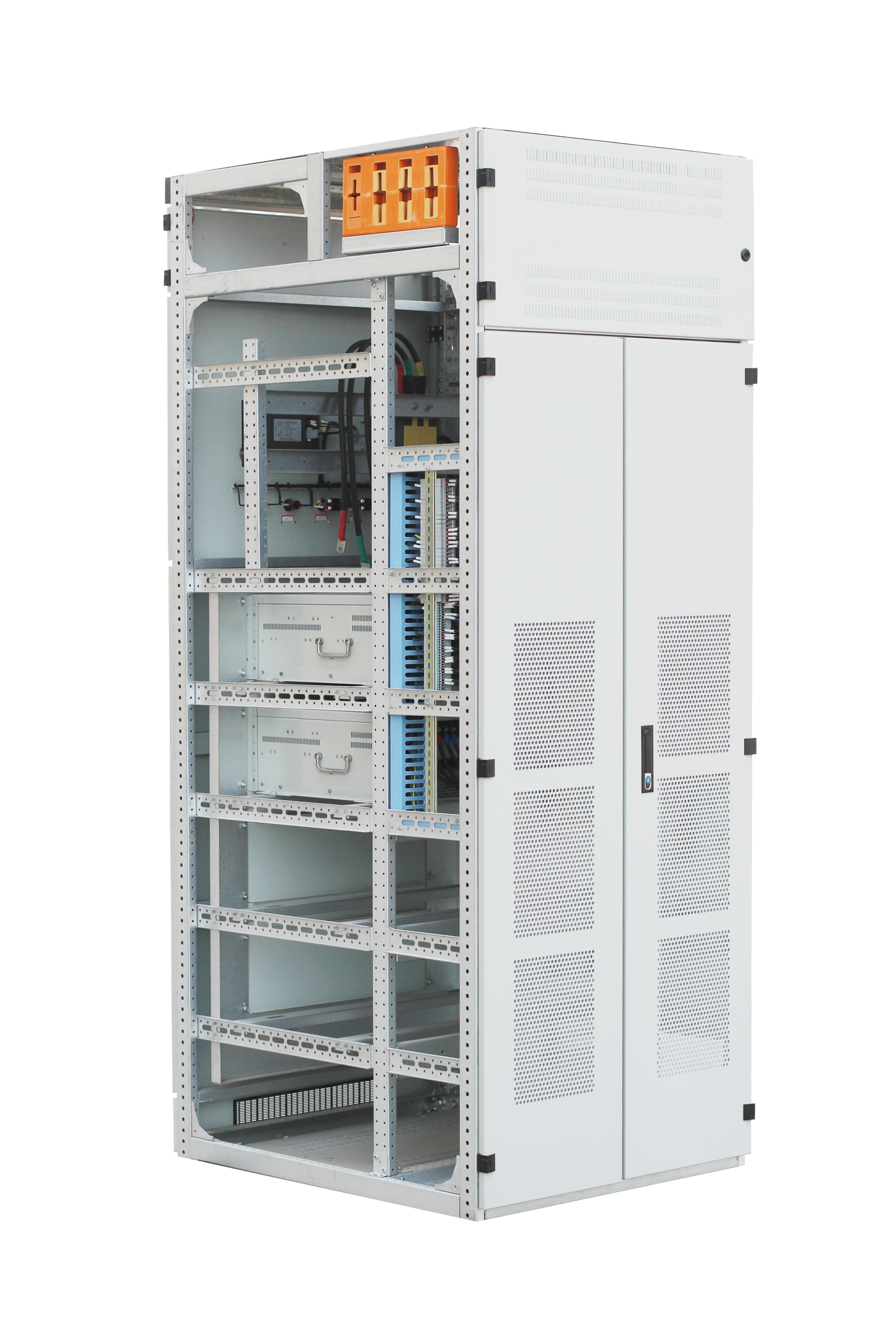

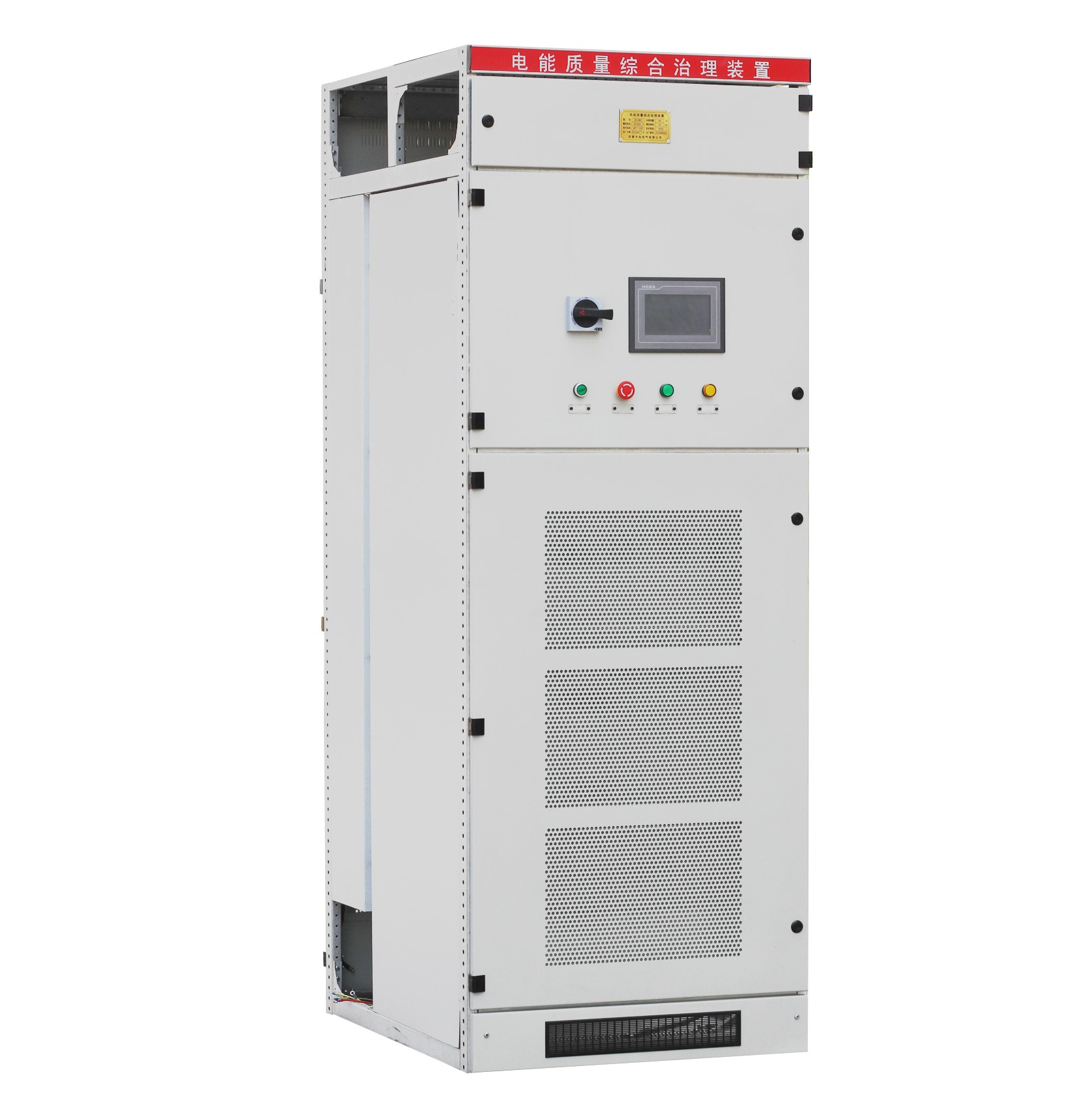

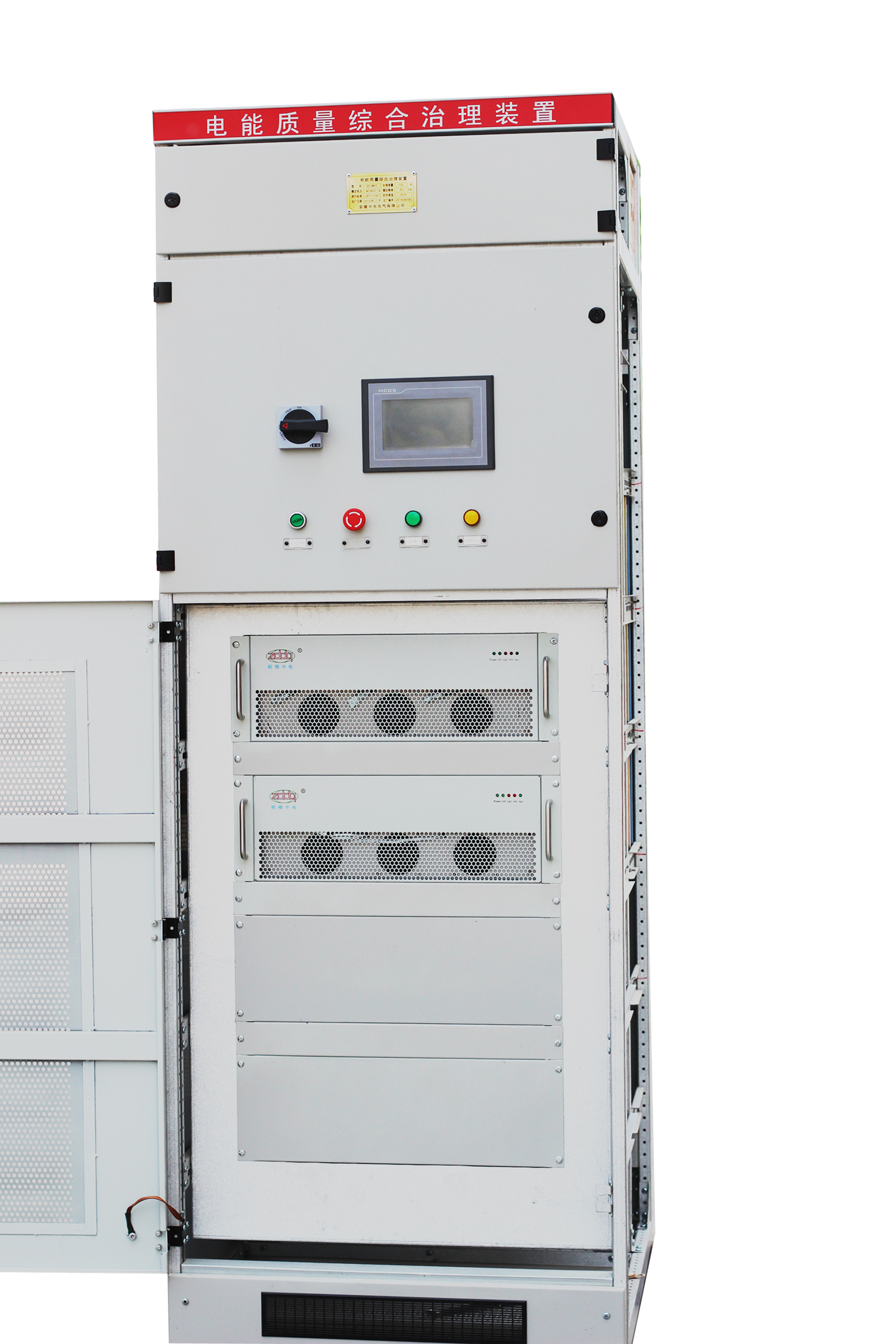

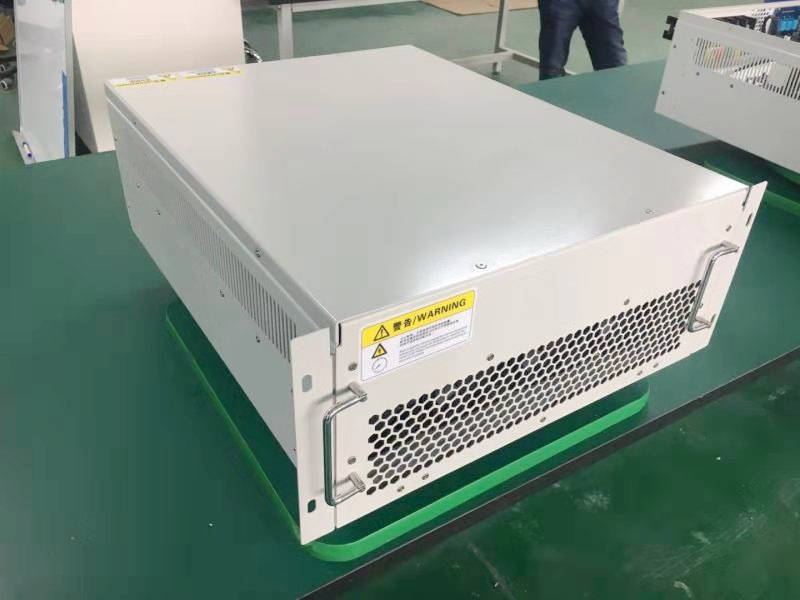

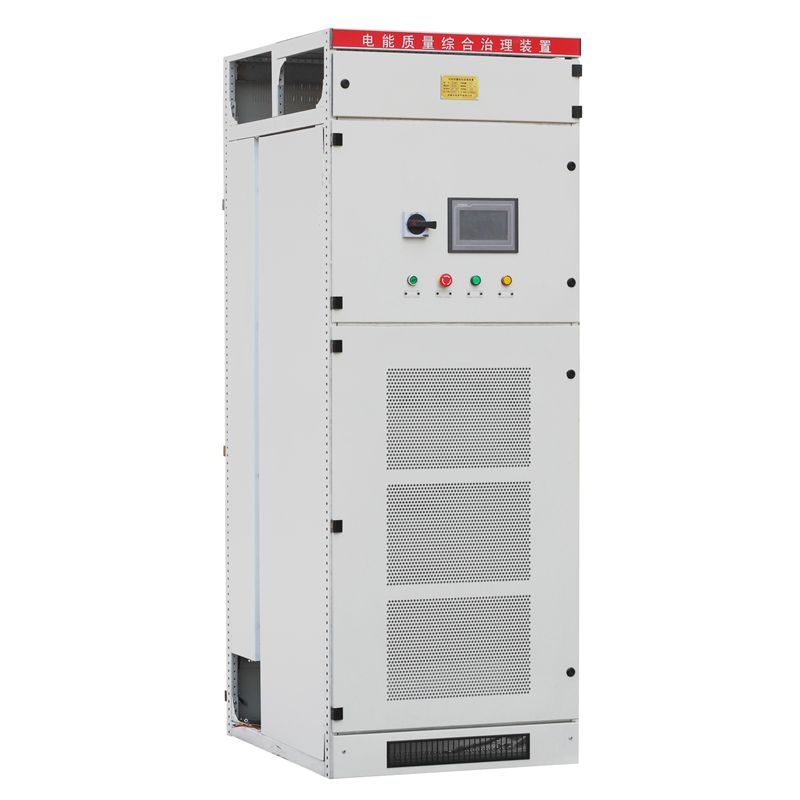

Static Var Compensator:ZD-SVC Series
A static VAR compensator is a set of electrical devices for providing fast-acting reactive power on high-voltage electricity transmission networks. SVCs are part of the Flexible AC transmission system device family, regulating voltage, power factor, harmonics and stabilizing the system.
Electrical properties | Rated voltage | 400V-1000V,AC | ||||
Operating frequency | 50Hz/60Hz | |||||
Electrical connection | Three-phase Three wire/four-wire? | |||||
Capacity of whole cabinet | 50~500kvar | |||||
Compensation mode | Either three-phase? | |||||
Compensation effect | ≥0.98 | |||||
SVG module response time | <5ms | |||||
Active loss of system | <3% | |||||
Number of units connected in parallel | ≤10 units | |||||
MTBT | >100,000 hours | |||||

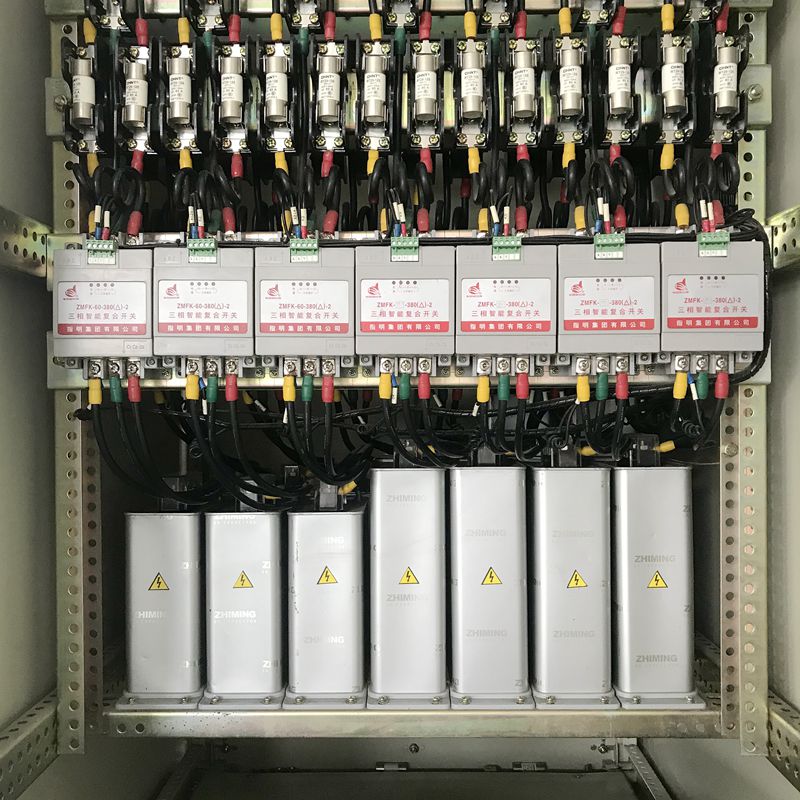

Control characteristics | Controller | Thyristor/Compound switch | ||||
Switching frequency | 12.8K | |||||
Capacitor control interface | 14 ways | |||||
Communication mode | Adopt Modbus remote | |||||
Control connection | Fiber or electrical | |||||
Structural characteristics | Weight | Refer to the model? | ||||
Level of protection | IP20 | |||||
Cooling method | Air cooling | |||||
Noise | <50db | |||||
Installation method | Cabinet mounting | |||||
Environmental requirements | Ambient temperature | -20~55℃ | ||||
Relative humidity | Maximum 95%, without | |||||
Altitude above sea level | ≤1,000m | |||||
Main Function
1. maintain receiving end voltage, strengthen system voltage stability
2. compensate system reactive power, improve power factor,save energy,?reduce line loss and cost.
3. suppress voltage fluctuation and flicker
4. suppress three phase unbalance
Our Pre-sale service
* Inquiry and consulting support.?
* Sample testing support.?

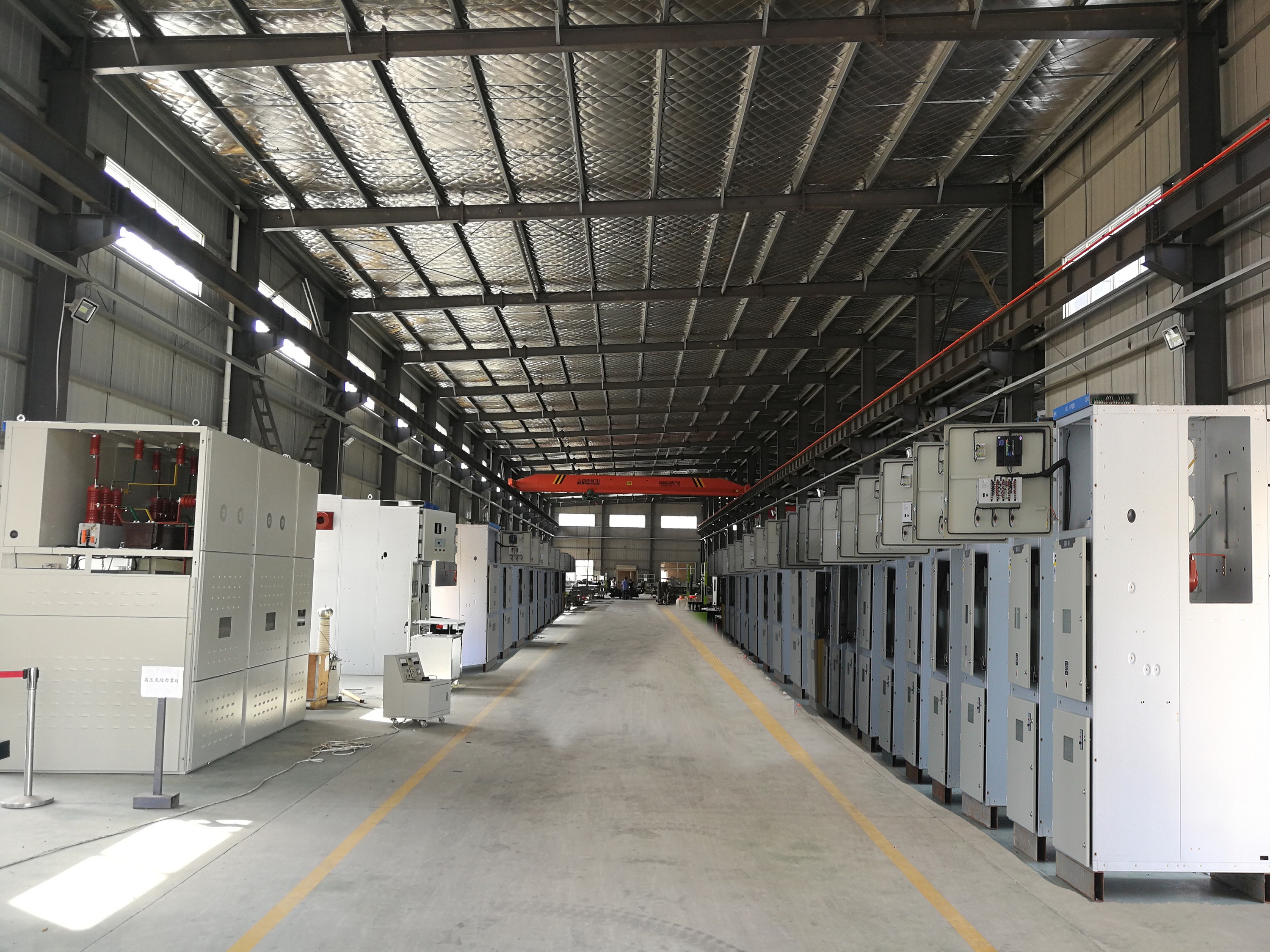

* View our Factory.
Our After-sale service
* Training how to install the machine, training how to use the machine.?
* Engineers available to service machinery overseas.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.?
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.?
6. Based on mutural benefit,creat ?win-win business and long relationship .
