Brief introduction

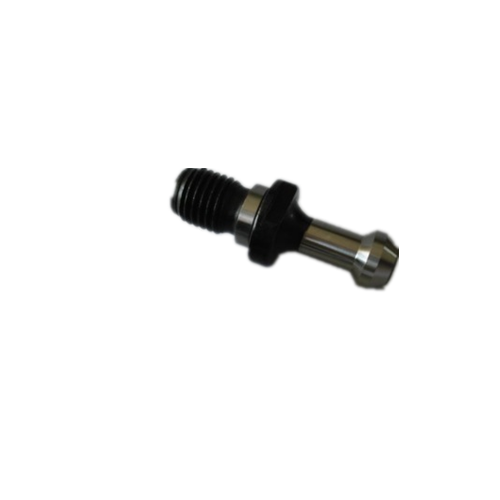

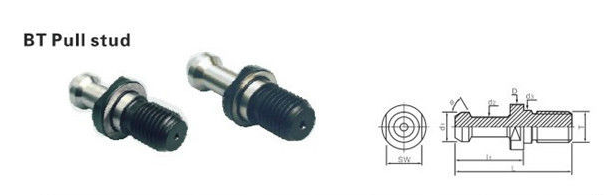

Precision CNC Milling BT Pull Stud, Tool Stud.Pull studs of minor quality not only decrease the performance of the machine,they are even a safety risk.

A breaking pull stud might cause severe damage on machine and workpiece and even injuries on persons.

Specifications

1. Made of special steel with high rigidity.
2. Costly heat treatment in several steps.
3. Spots with highest stress tempered specifically.
4. High impact strength.
5. All functional surfaces fine finished after hardening.
6. Highest security and reliability.

The Steel Pull Studs are used in CNC tool holders ,We got the lot of good comment from our abroad customers because of our strong professional,Competitive prices Short delivery time and courtesy service

Products advantages

1. After heat treatment, and then quenching, cleaning, tempering, pull the nail out hard, not easy to fracture.

2. the use of flexible steel material.

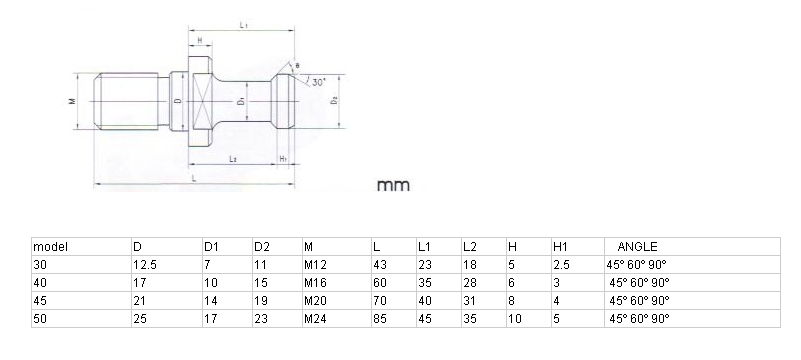

3. BT conical shell cutter shank: 30, 50, 40
4. suitable milling cutter: 13mm-50mm
5. Precision is less than 0.01mm balance 8000rpm. High accuracy can also be made according to your requirements. (g6.3/12000rpm, G2.5 / 20000) 48-55hrc hardness.
6. suitable for pulling the stub with the milling cutter disk is also required.
