Professional Customization solar panel support structures

$0.13

≥10 Others
$0.11

≥50 Others
$0.08

≥100 Others

Installation method:

Ground Mounting
Roof Mounting

slope:

0-60

Material:

Hot dip galvanized
Stainless steel

Get Latest Price

Basic Info

Model No.
Brand Name	JINBIAO
Product name	Ground Solar Mounting
Material	Hot dip galvanized,Stainless steel
Wind Load	60m/s
Snow Load	1.5KN/㎡
Feature	Quick Installation
Type	Pv System Structure

Product description

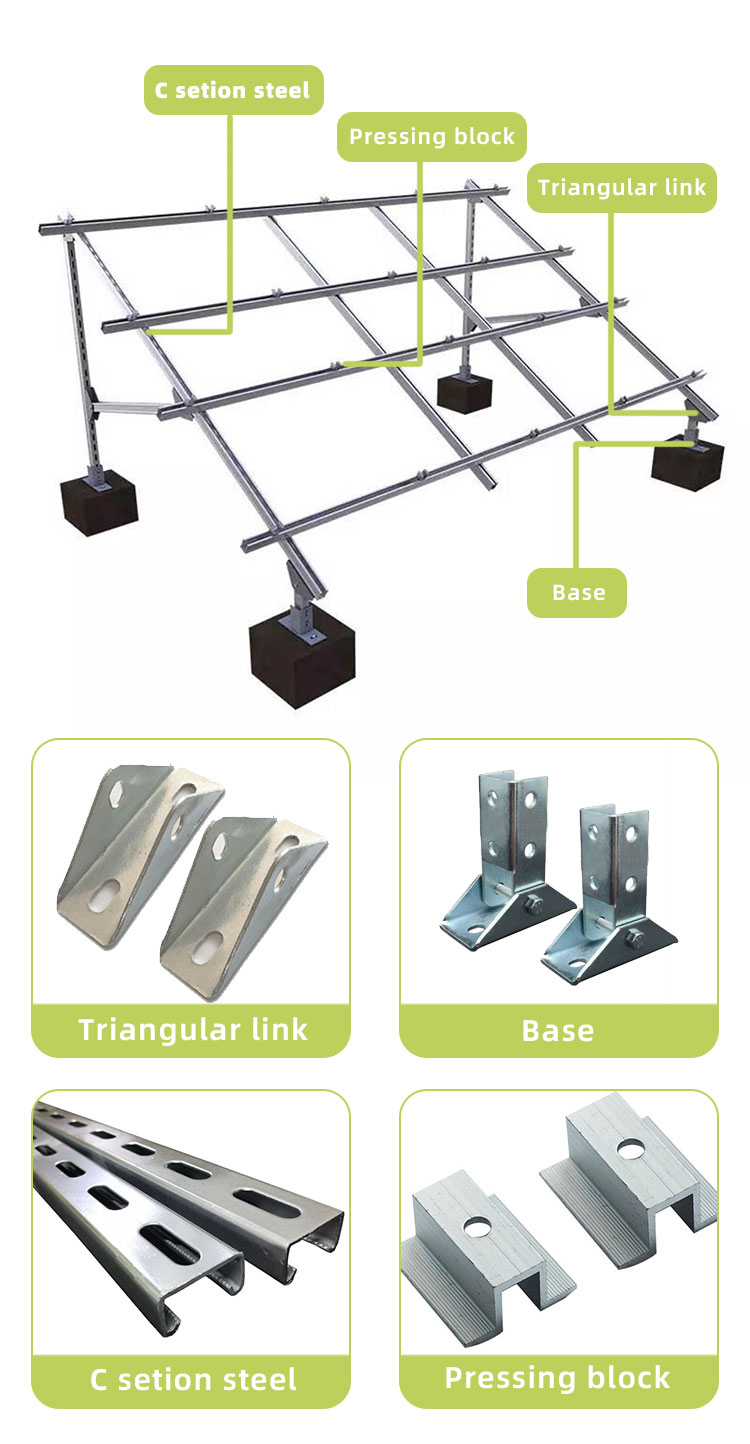

Ground-mounted solar support structures serve as the core supporting components in photovoltaic power generation systems. Their functionality extends beyond mere physical load-bearing to directly impact the system's power generation efficiency, operational safety, and long-term economic viability.

Installation location	ground
Oblique scaffold tissue	According to the actual needs
Drawing force	1000N
Wind capacity	40m/s、32.5kg/ m、Level 13
Snow load bearing capacity	70kg/m
Stent type	rame
Material Science	Zinc aluminum magnesium
service life	25 years

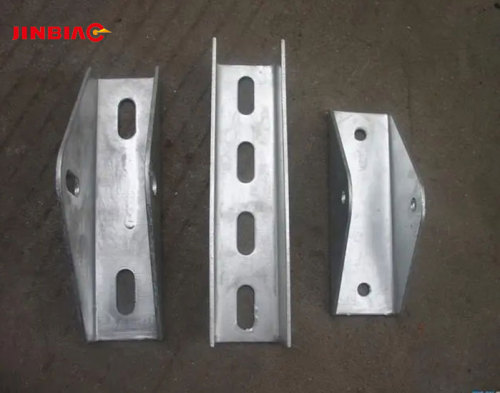

1 Can the specifications and dimensions of the solar mounting bracket be customized? Can it be customized if the thickness is more than 2.5mm?

The specifications and dimensions of the solar mounting bracket can be customized according to the needs. Generally, we can finish the design drawings within 24 hours, finish the samples within 48 hours, and send the samples within 72 hours. 2.5mm is the thickest, and the material of the solar mounting bracket is the factor to determinde whether it is firm. Thickness 2.5mm meets the standards of all countries in the world.

2 What’s the wind load and snow load of the angled solor mounting bracket?

The bracket design needs to know your local wind load and snow load to calculate what it is suitable for. And different bracket structures have different values.What kind of bracket do you need?We have 10 technicians who can complete the calculation for you within 24 hours.

3 What are the advantages and disadvantages of aluminum material and zinc aluminum magnesium material?

Although aluminum material is light in weight, its price is high, and its strength is low. There will be risks when encountering strong winds. Zinc aluminum magnesium material has high strength and corrosion resistance for 25 years. At present, all large surface power stations in China use zinc aluminum magnesium materials.

4 I'm in the retail industry,how about your product appearance?

We produce in strict accordance with the industry standards. 16 staff from the professional inspection department strictly review the 48 procedures. Unqualified products are not allowed to leave the factory to ensure that the appearance of each product is consistent and 100% meets the industry standards. Introducing our cutting-edge Solar Mounting System, designed to maximize energy production and efficiency. Our company, SolarMount, specializes in providing high-quality solar racking systems solutions for commercial, residential, and industrial applications. Our innovative products are engineered to withstand even the harshest weather conditions, providing a long-lasting, reliable foundation for your solar panels.Solar Tracking System, Solar Mounting System，Solar Panel.

5 What’s the price difference between hot dip galvanized material and zinc aluminum magnesium material? What are the advantages and disadvantages of these two materials?

The hot dip galvanized material needs to be formed by cold steel first and then coated with zinc at high temperature. The material will be changed by high temperature, and the material will become soft and the strength will be reduced. The zinc layer will only be on the surface and will not soak into the inside. If it is damaged, it will be corroded from inside to outside, causing rust. Zinc aluminum magnesium material contains zinc, aluminum and magnesium elements. It is a high-strength integrated molding material. There will be zinc aluminum magnesium on the surface and inside, without secondary heating. As elements penetrate into the interior, cutting or electric welding will automatically repair and form a protective layer, so it can resist corrosion for 25 years.

6 What is the zinc content? How long is the service life?

The amount of zinc is generally 60g-600g according to customer demand, and the service life is up to 25 years.
