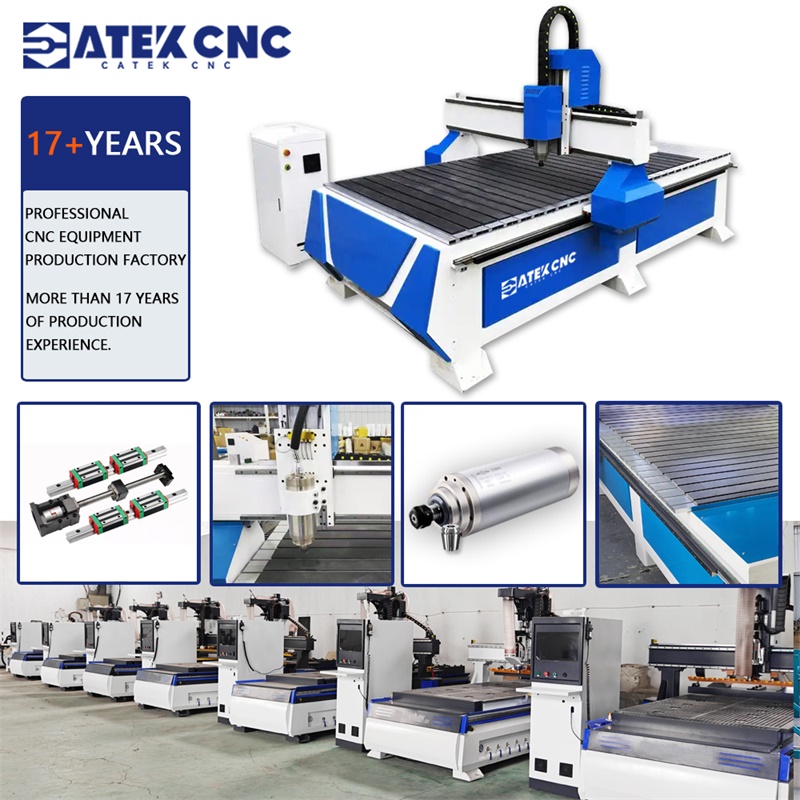

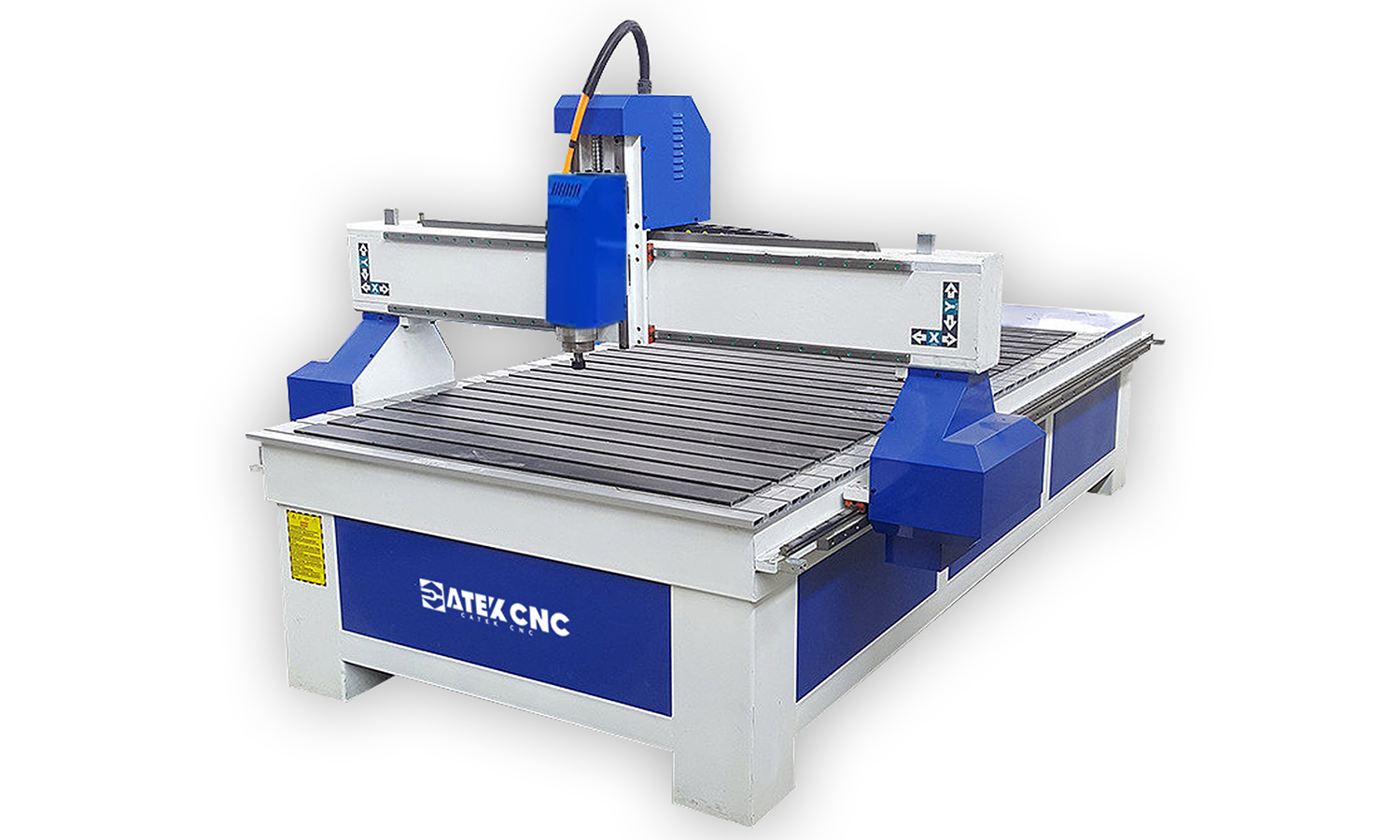

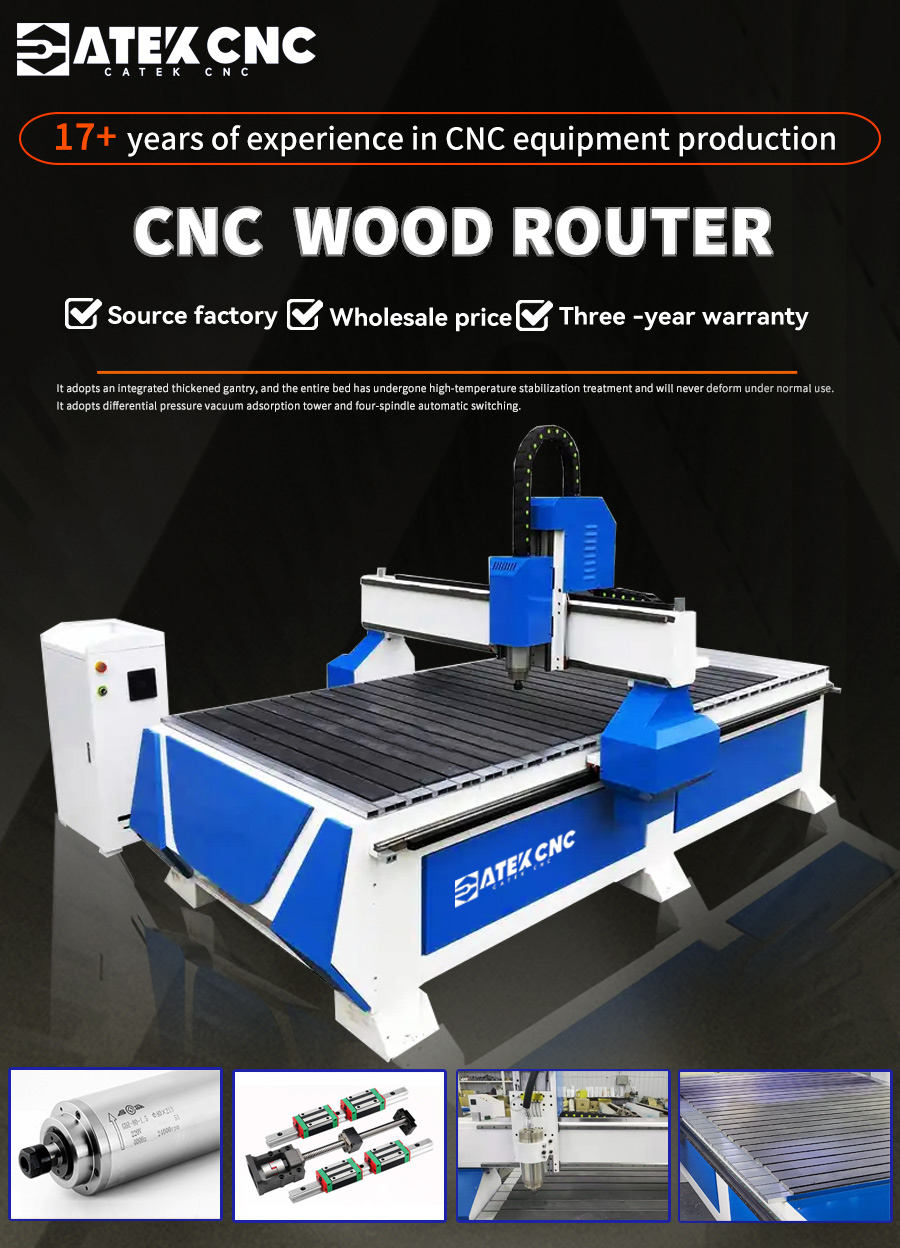

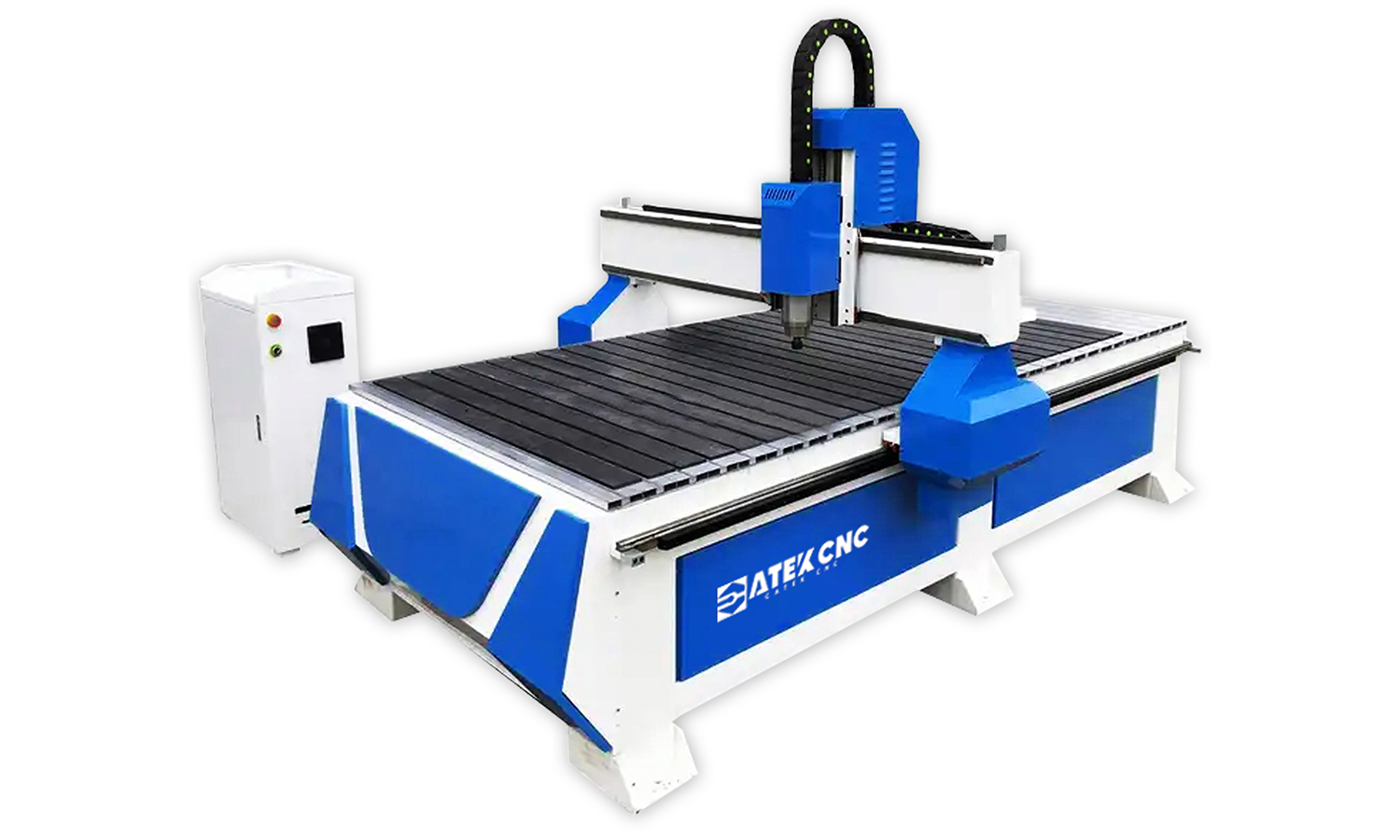

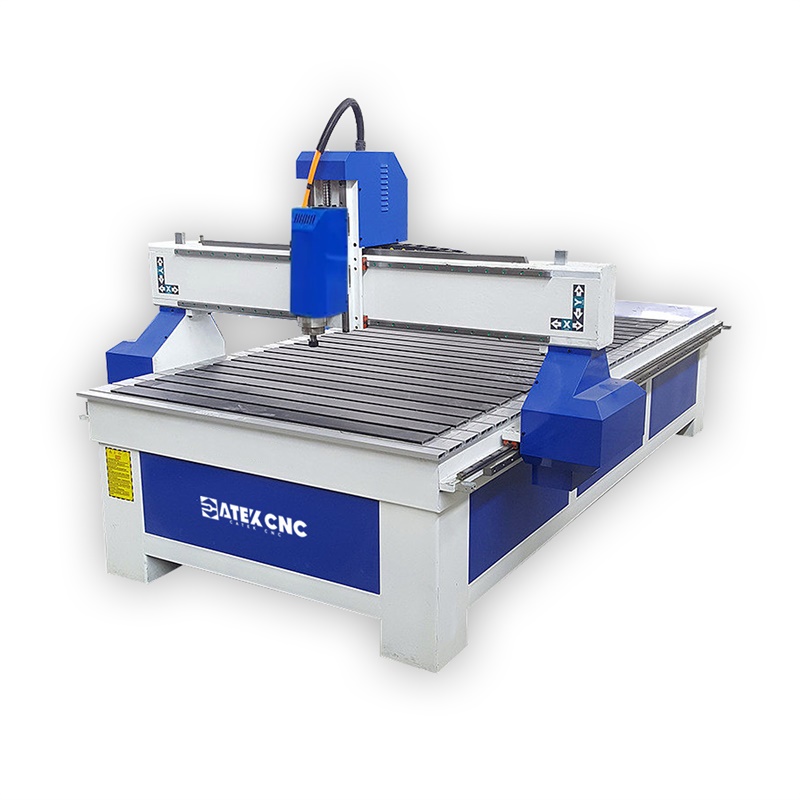

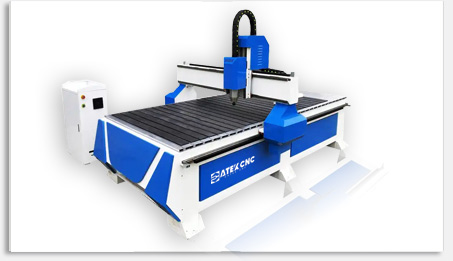

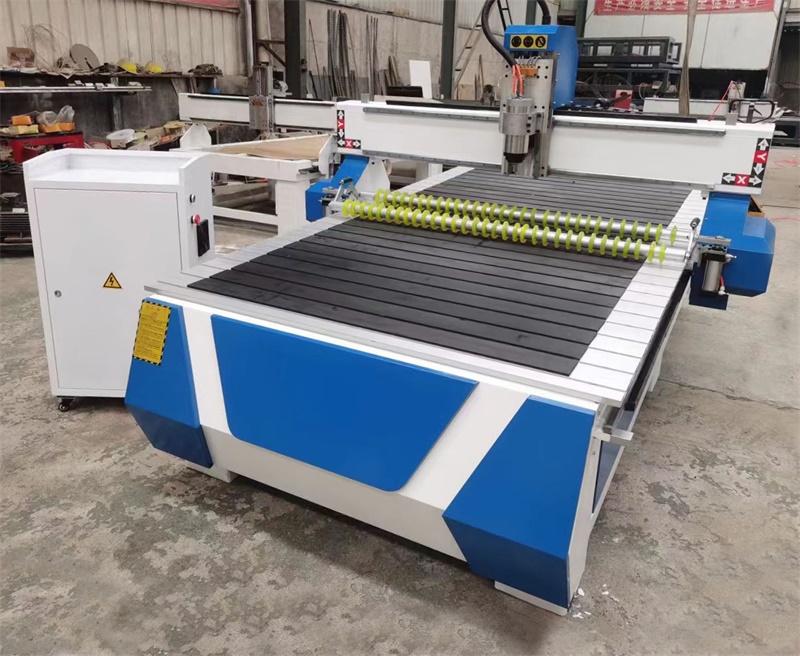

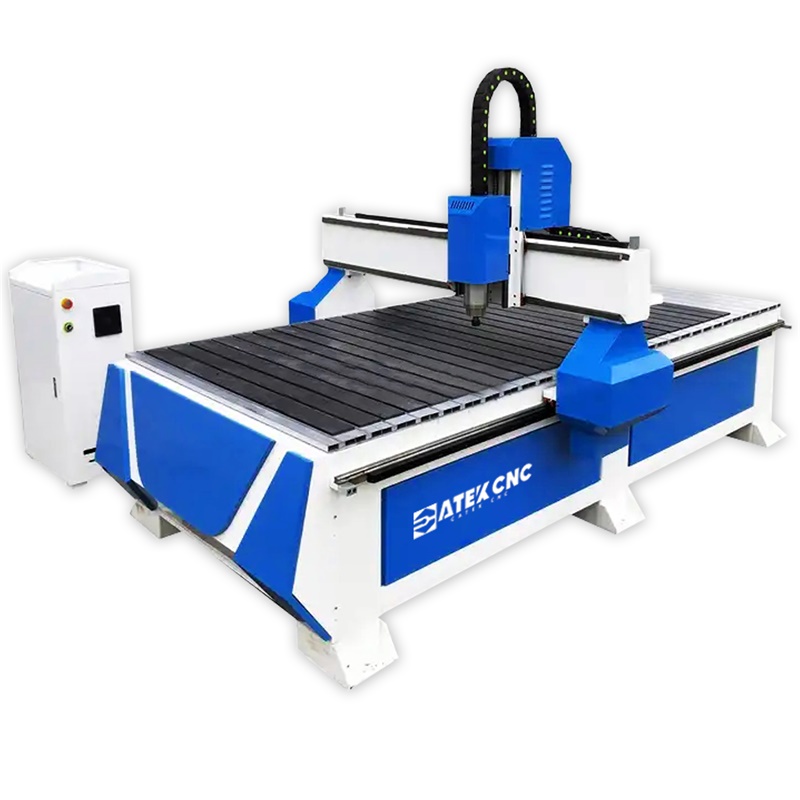

Professional Quality Woodworking CNC Machines: Specialized for Wood Door Punching, Cutting, and Routing
$2700.00
≥1 piece
$2400.00
≥5 piece
Options:
- CK-1325
Get Latest Price
You might also like
Basic Info
| Condition | New |
|---|---|
| Range of Spindle Speed(r.p.m) | 6000 - 24000 rpm |
| Positioning Accuracy (mm) | 0.02 mm |
| Number of Axes | 3 |
| No. of Spindles | Single |
Show More
Product description
Products Description
Product Paramenters
XYZ working stroke/processing size | 1300*2500*200mm |
Bracket | Thickened cast iron gantry, cast iron bracket |
Bed frame | Machining center processing bed (heavy-duty bed),Independent control cabinet |
Spindle power | 3.5KW high-speed water-cooled spindle |
Drive mode | Stepper motor driver/yako/leadshine driver |
Frequency converter | Best frequency converter |
Spindle speed | 6000-24000r/m |
Mesa | Aluminum alloy T-slot countertop |
Transmission mode | XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission |
Slideway | Taiwan Hiwin High Precision 20 Straight Line Square Rail |
Device cable | pure copper cable |
Holdable tool shank diameter | 3.175mm,4mm,6mm,,12.7mm等 |
Control system | Weihong v5.4.49 (supports resuming carving after power outage) |
Lubrication system | Oil filling and maintenance system |
Working voltage | AC380V/220V 50/60Hz |
Compatible software | Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc. |
Engraving instructions | Standard G code, u00, mmg, plt |
Security system | All photoelectric limits of XYZ three-axis |
Locating Accuracy | ±0.02mm |
Engraving precision | 0.01mm |
Max woking speed | 18000mm/min |
Maximum idling speed | 25000mm/min |
Machine size | 3100*2000*1650 |
Machine weight | 1200KG |
Toolbox | Including special tools for engraving machines, tool sets, tool holders, Weihong control cards, connection data cables, open-end wrenches, and pressure plates. |
Sample display

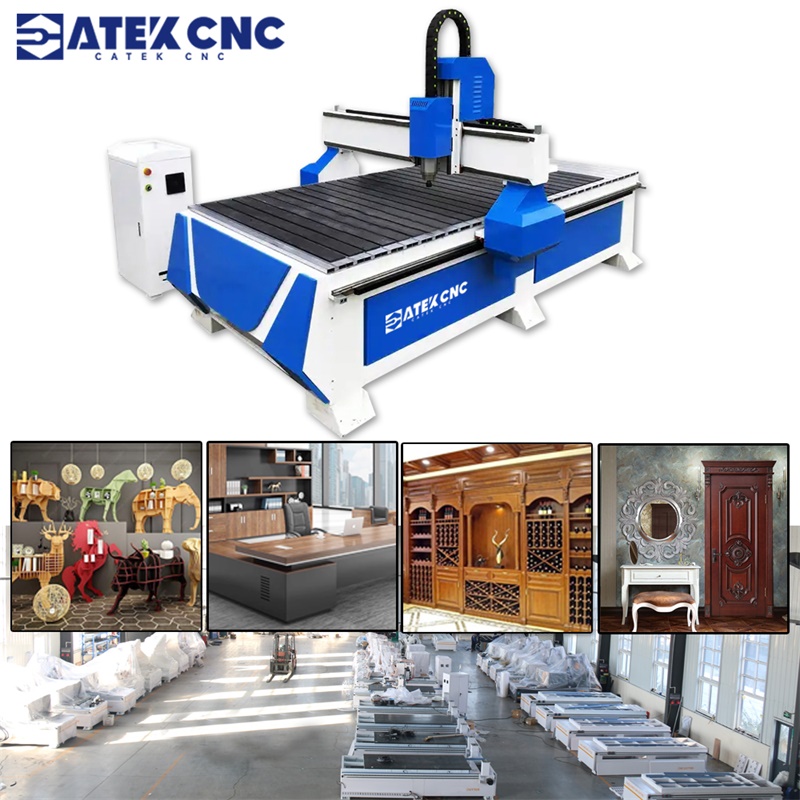

Here are some samples of machine-processed wood, aluminum, acrylic, and PVC. The machine can be applied to various materials, such as wood, density board, fiberboard, acrylic, PVC, foam, resin, PTFE board, and other materials. In addition, There are also some soft metals that can be processed, such as copper, aluminum, etc.
Recommend Products
Details Images

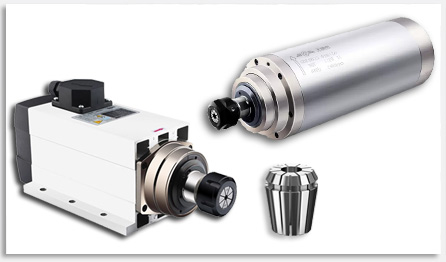

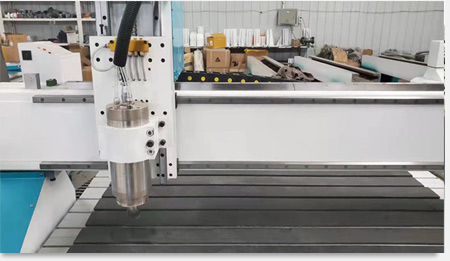

Water-cooled/air-cooled spindle is optional, high speed, 3.5KW high power

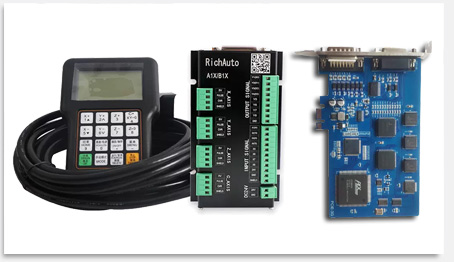

DSP/NC STUDIO optional, easy to operate

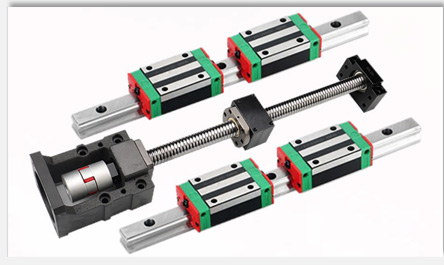

Taiwan HIWIN slider, Slideway, TBI high-precision ball screw
The heat-treated and thickened one-piece gantry has higher strength and does not deform

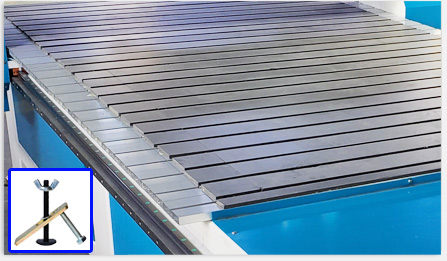

It adopts aluminum alloy T-slot table and fixed pressure plate, making clamping more convenient
Machines are all using independent control system and with strong anti-interference ability

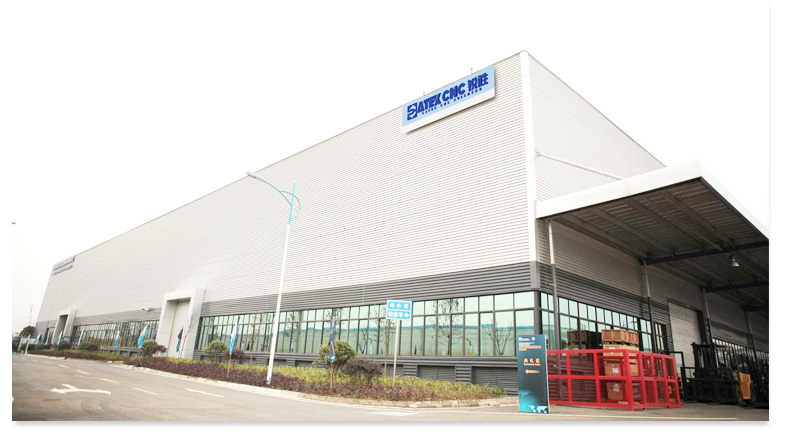

Company Profile
Jinan Catek CNC Machinery Co., Ltd
Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.

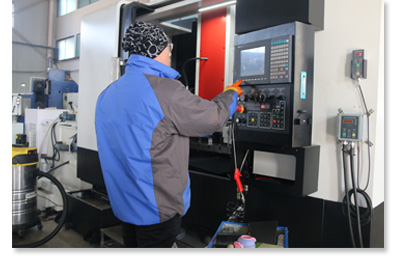

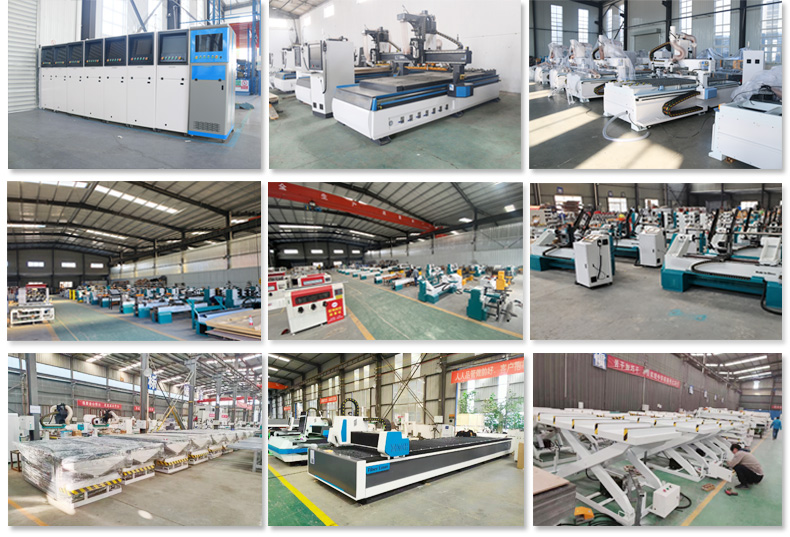

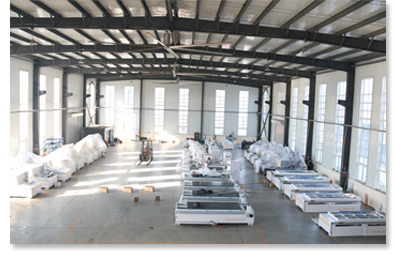

The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry.
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.

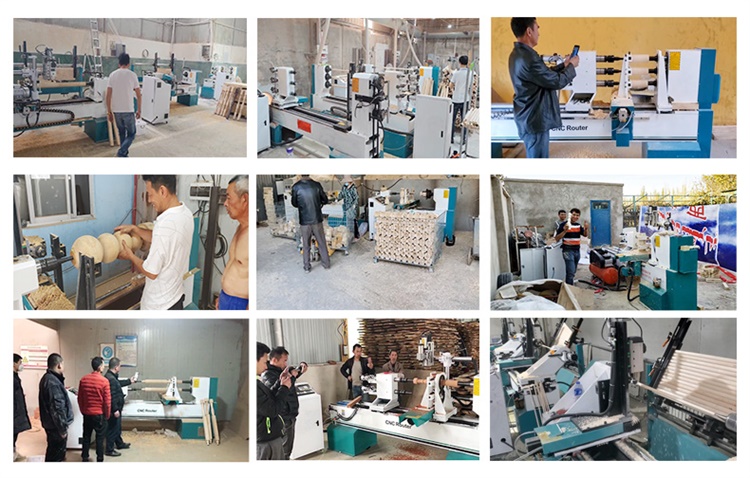

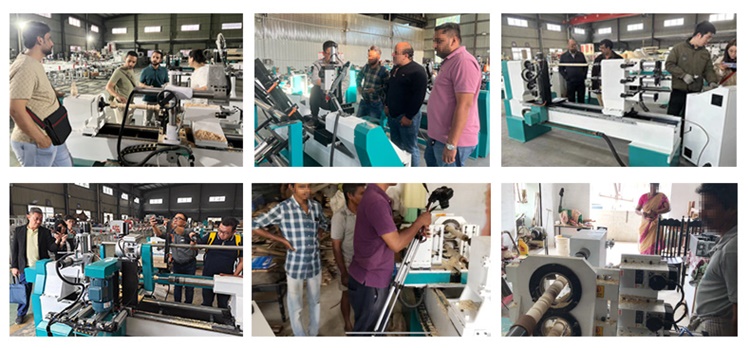

Customer Photos
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
