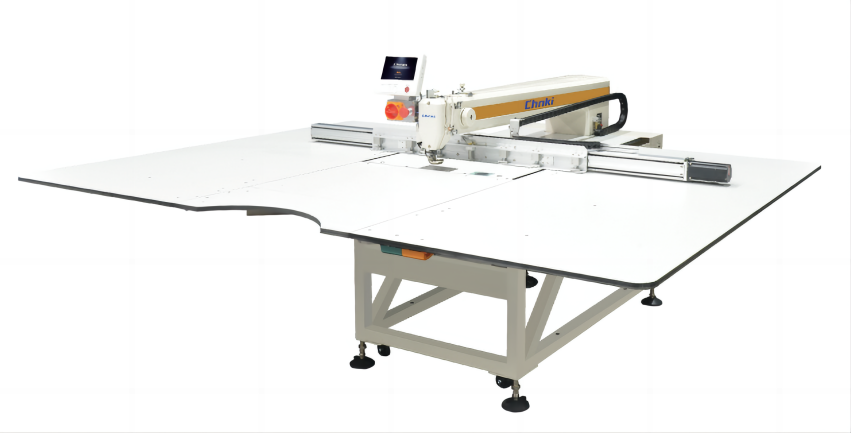

Programmable Intelligent Template Sewing Machine With Extended Working Area（Servo Drive System）

General Description

GC90F-130-D-JG adopts the classic platform of Chnki, Double screw rod transmission structure, with high sewing speed. Stable sewing operation.As an apparel equipment，application for Down Jackets, cotton clothing, bags, leather shoes uppers，automotive interiors and special sewing materials. It is an automatic sewing machine with a higher degree of automation of computer-controlled machines instead of the original manual operation of the sewing machine, reducing the degree of dependence on highly skilled personnel, to ensure quality at the same time, to solve the problem of labor shortages of industrial workers and skill deficiencies, full automation to complete the garment sewing, and to promote the clothing template process finishing assembly line.

Advantages

1、3500 rpm sewing speed, Intelligent & Efficient.

2、Standard sewing Area : 900mm*1300mm, Customized size: 900mm * 1500mm.

3、Flexible & programmable intermediate presser foot. CHNKII Technical Patent for prevent down feather off-tracking.

CHNKI Technical Patent --- Flexible Intermediate Presser foot driving system, which can be programmed according to different fabric thicknesses, The height of the presser foot can match to different duty, reduce the amount of down off-tracking,when users sew down products, and effectively reduce production costs. Improve products quality.

4、Stepping Motor drive double Screw Rod & Double close loop. Perfect combination of Accurate and stabilized.

XY precision double screw rod, double closed-loop, individual motor drive, accurate and durable; The original central motor design, achieves a perfect balance of weight and power; Stability of seam at all angles is guaranteed.

5、One piece casting of body & base, The core guarantee of fast and stable.

6、Intelligent oil supply system,  Start Clean sewing, Improve Service life of Hook.

The oil supply to hook can be adjusted automatically with different sewing speed.

7、Thread Breakage Sensor is standard configuration. Machine stop work automatically when thread breaking.

8、Electronic thread clamp, Top Thread tension can be adjusted. Improve sewing quality.

9、RFID Radio frequency identification technology, Speed pattern identification. Enhance Productivity.

10、Support IOT function. Achieve the smart sewing Data interconnection, Base supports for intelligent manufacturing

11、Adjustable Template groove design.

12、Template groove size: 8mm or 12mm, Can match different Template requirement in the market.

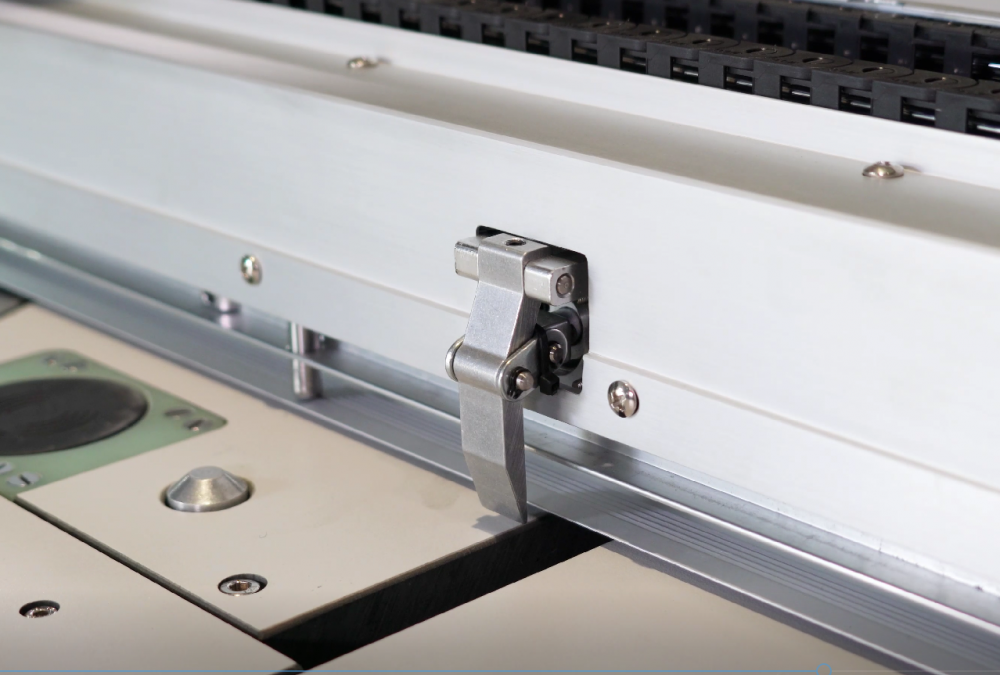

13、Carry Template fixed clasp Device. Prevent Template positioning away.
