Model No.	GC90-130-D-JG
Brand Name	Chnki.Kisae
Applicable industry	Garment Shops, Home Use, Other
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
status	New
species	Industrial Sewing Machine
place of origin	China
Pin type	Lock Stitch
Mechanical structure	Flat-Bed
Maximum quilting thickness	20mm
Feeding device	Manual
warranty period	1 Year
Core selling point	Easy To Operate
Mechanical test report	Not Available
Video factory inspection	Not Available
Marketing type	New Product 2019
Core component warranty period	1 Year
Core components	Motor

產品 Model		GC90-130-D-JG
縫紉形式	Sewing style	單針平縫，301線跡	Single needle lockstitch，301 stitch.
縫紉速度	Sewing Speed	3500rpm
最高轉速度	Max. Sewing Speed.	3500sti/min
最高縫紉速度	Max.Sewing Speed	10m/min
最高空移速度	Max.Moving Speed	50m/min
縫制面積	Sewing area	900mm*1300mm
送布裝置	Feeding Device	間歇送布（脈沖馬達驅動）	Intermittent feed (Pulse motor drive)
縫制單位(針跡長度)	Stitch Length	0.05-12.7 mm
機針	Needle	DPx5 #7-#14 DPx17 #14-#21
存儲花樣	Patterns storage	最多999個花樣（單個花樣最大100000針）	Max. 999 patterns, (Each pattern with Max. 10000 stitches).
輔助壓腳驅動方式	Auxiliary presser foot driving mode	氣動式	Pneumatic
輔助壓腳高度	Auxiliary presser foot height	最大15mm	Max.15mm
中壓腳上升量(壓腳提升量)	Intermediate presser foot lift Volume	20mm
中壓腳行程	Intermediate presser foot stroke	0.2-8.0mm（出廠設置： 3mm）	0.2-8.0mm(Default setting:3mm)
中壓腳隨動行程	Intermediate presser foot stroke	0.3-8.0mm（出廠設置： 3mm ）	0.2-8.0mm（3mm/ Factory setting: 3mm）
模板夾持方式	Template clipping mode	氣動夾持	Pneumatic clipping
旋梭	Hock	2倍旋梭	2 times Bobbin Thread Capacity.
掃線器	Thread wiper	標準配備	Standard
切線裝置	Thread trimmer	標準配備	Standard
電子夾線器	Electronic thread-clamp	標準配備	Standard
斷線感應器	Thread-break detector	標準配備	Standard
模板識別	Template identification	RFID模板識別裝置	RFID (Radio frequency identification)
數據存儲方式	Data storage mode	Internal memory128Mb， USB 2.0
用戶程序數	User program	200
循環程序數	Cycle program	9
主軸馬達	Main shaft motor	伺服馬達750W	Servo motor750W
重量	Weight	整機473kg	301kg / Complete set
電源	Power Supply	單相 220V 700VA	Single-phase 220V 700A
氣壓/消耗量	Air pressure/Consumption	0.5 MPa 2.5L/min
花樣識別	Pattern identification	RFID射頻識別技術	RFID (Radio frequency identification)
文件格式	File format	PLT/.DXF/.NSP等格式	PLT/ .DXF/ .NSP, etc.
電壓范圍	Voltage range	190V-240V
輸出功率	Output power	600W

美女脱内裤露出隐私部位-精品久久中文字幕亚洲一区-久久久精品国产亚洲av高清热-91人妻人人澡人人爽精品-99国内精品一区二区三区-精品国产wwxx在线观看-水蜜桃精品视频在线观看-小蜜桃在线高清观看-国产精品视频网站一区

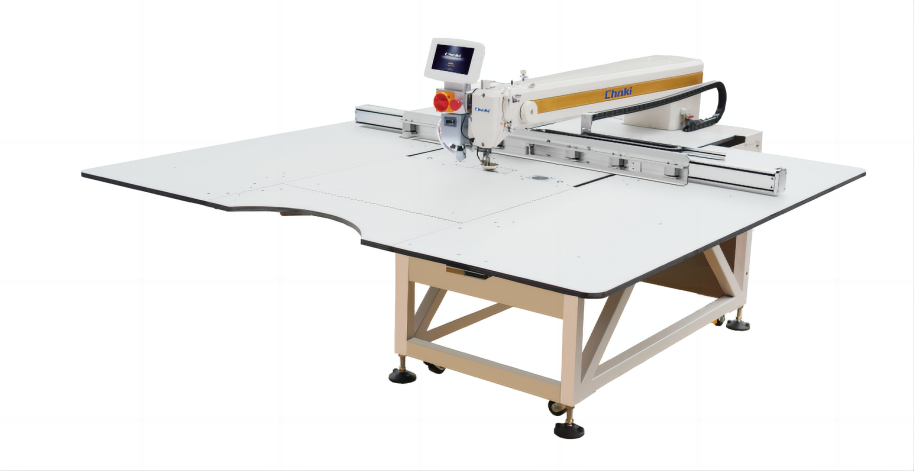

Programmable Electronic Leather Pattern Sewing Machine

Programmable Intelligent Template Sewing Machine With Extended Working Area （Laser Cutting Device）

General Description

Double screw rod Template sewing machine, A good lead of sales.

Configurations

Application

Programmable Electronic Leather Pattern Sewing Machine
