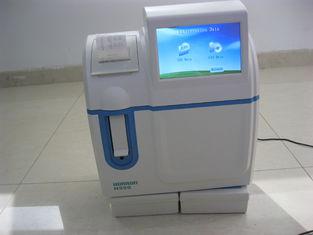

Colorful Electrolyte Analyzer with Reagent Pack and Auto Loader

Main Features:

7" Color touch screen, easy to operate

High accurate and long life electrode and TCO₂ sensor

Programmable multi-format print-out

Reagent pack, real time monitoring of reagent residual volume

Up to 50,000 test results can be stored

RS-232 port, supporting bar code reader and USB interface

Sleep mode to reduce reagent consumption

Option: Auto Sampler

Parameter configuration:

A K, Na, Cl

B K, Na, Cl, TCO₂

C K, Na, Cl, iCa, nCa, TCa, pH

D K, Na, Cl, iCa, nCa, TCa, pH, TCO₂, AG

F K, Na, Cl, Li

G K, Na, Cl, Li, TCO₂

H K, Na, Cl, iCa, nCa, TCa, pH, Li

I K, Na, Cl, iCa, nCa, TCa, pH, Li, TCO₂, AG

J K, Na, Cl, iCa, nCa, TCa, pH, Mg, TCO₂, AG

K K, Na, Cl, iCa, nCa, TCa, pH, Li, Mg, TCO₂, AG

Specifications:

Sample: serum, plasma, whole blood, cerebrospinal fluid and dilute urine

Measuring speed: ≤25s

Analysis Method: ion selective electrode (ISE)

Sample volume: 60-300ul

Sampler position: 39 positions (including 5 emergency and 2 QC)

Sample tube: Primary tube, micro tube, plastic tube, etc.

Storage: up to 10,000 test results

Printer: Internal thermal printer

Interface: RS232 port

Working environment:

Temperature: 5-40℃

Relative Humidity: ≤ 80 %

Atmospheric pressure: (86~106) kPa

Power supply: 220V±20V, 50-60Hz

Power: ≤120W

Dimension: 340mm*200mm*380mm

Net weight: 6Kg

Items	Measuring Range	Resolution	Measuring Precision (CV%)
K+	0.5-20.0mmol/L	0.01 mmol/L	≤1.0%
Na+	15-200mmol/L	0.1 mmol/L	≤1.0%
Cl-	15-200mmol/L	0.1 mmol/L	≤1.0%
Ca2+	0.1-6.0mmol/L	0.01 mmol/L	≤1.0%
Li+	0.1-5.0mmol/L	0.01 mmol/L	≤2.0%
pH	4-9pH	0.01 pH	≤0.5%
TCO2	2.0-70.0mmol/L	0.1 mmol/L	≤3.0%

Competitive Advantage:

Color touch screen

Big display

From 3 up to 11 parameters, with Li, Mg and TCO2 options

16 years proven quality
