Protective Fitting Grading Ring
Basic Info
| Brand Name | Chuandu |
|---|---|
| Sample | Free |
| Color | Silver |
| OEM | ACCEPT |
| Material | Aluminium Alloy |
| Application | Overhead Transmission Line |
Product description

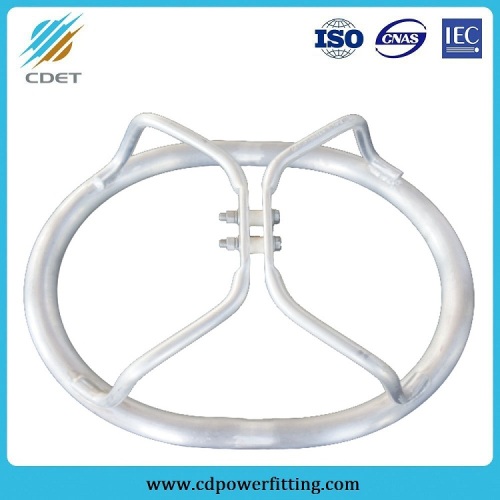

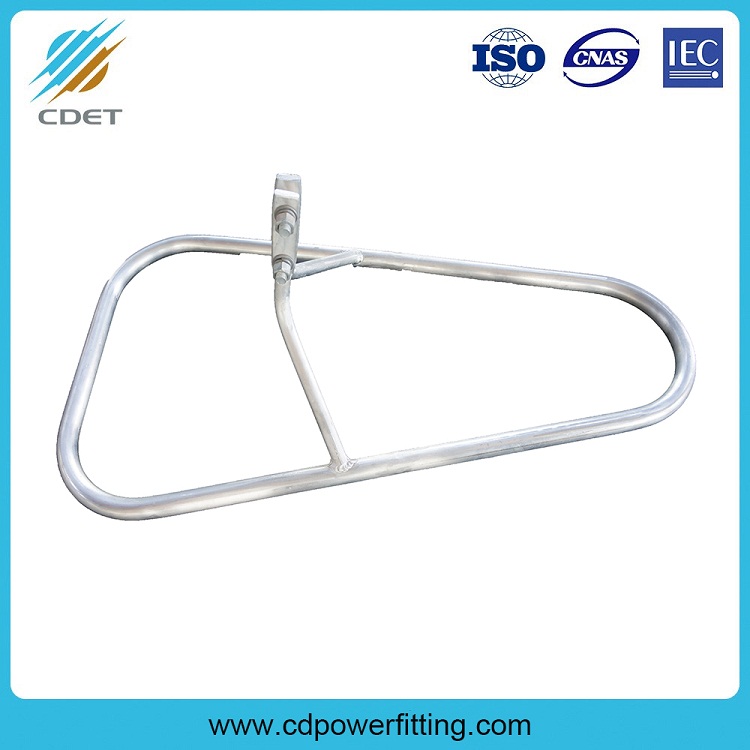

Protective Fitting Grading Ring
According to different
uses, the grading ring can be divided into surge arrester, lightning
grading ring, insulator grading ring,insulator transformer grading
ring,high voltage test equipment grading ring, power transmission lines
grading ring.
The grading ring is mainly used to average voltage,it`s suitable for high voltage test equipment,voltage form is alternating current,can be evenly distributed around the object to ensure that there is no potential difference between the various parts of the ring, so as to achieve the effect of average voltage.
|

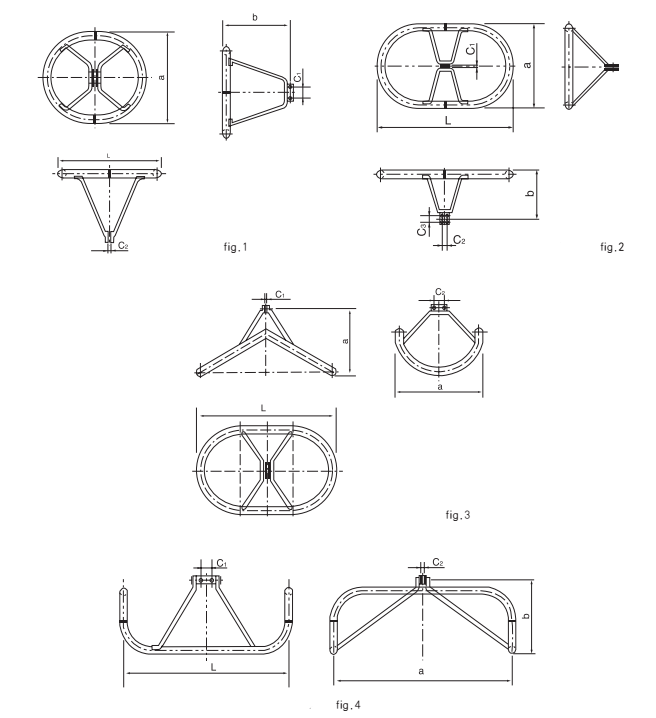

Catalog No. |
Dimensions(mm) |
Weight(kg) |
Fig.No |
|||||
|
a |
b |
C1 |
C2 |
C3 |
L |
|||
|
FJ-760*660D |
660 |
500 |
80 |
24 |
|
760 |
6.2 |
1 |
|
PL-1060*660 |
660 |
375 |
18 |
40 |
50 |
1060 |
7 |
2 |
|
JLV-1060*660 |
660 |
500 |
18 |
80 |
|
1060 |
6.7 |
3 |
|
JPL-1300*1200V |
1250 |
500 |
80 |
23 |
|
1150 |
11.6 |
4 |

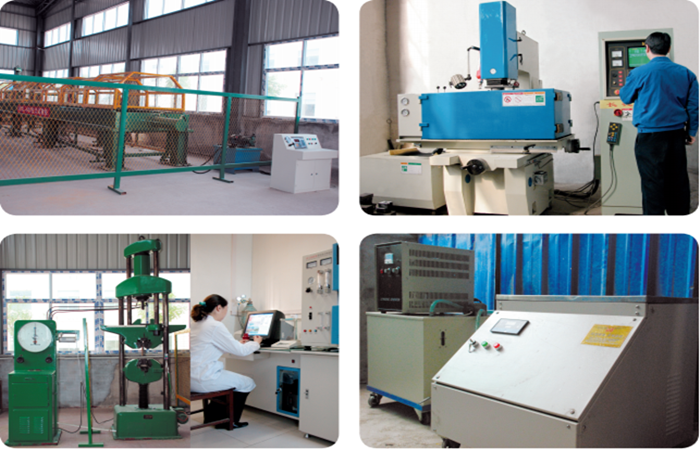

Our factory

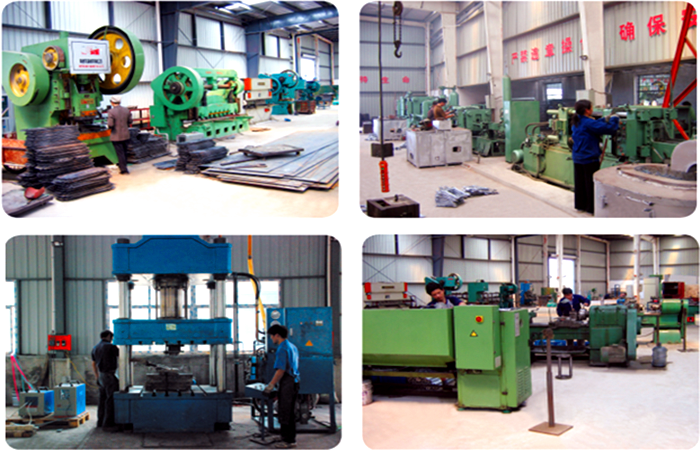

Manufacturing Workshop
