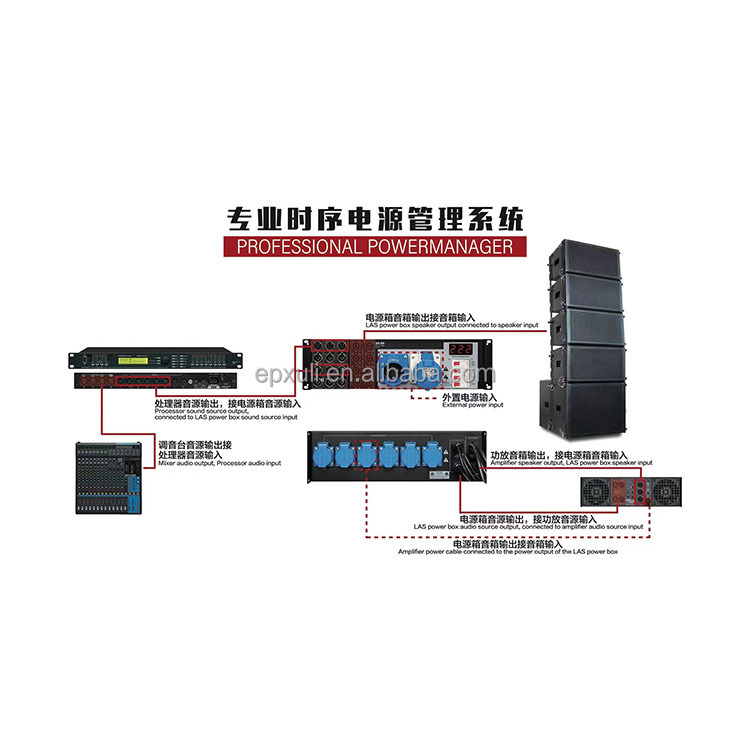

The power sequencer can start the power one by one from the front equipment to the back equipment, and turn off all kinds of electrical equipment in the order from the back to the front when the power supply is turned off. In this way, all kinds of electrical equipment can be effectively managed and controlled in a unified manner, avoiding human error operation, and reducing the impact of electrical equipment on the power grid at the instant of switching. It also avoids the impact of induction current on the equipment and ensures the stability of the entire power system.

?

1, panel color: iron panel (can do black and silver)
2, power input conditions (single-phase 3-wire) : AC220-240V (optional AC90-240V) 50-60HZ two-phase (three-wire: zero, fire, ground)

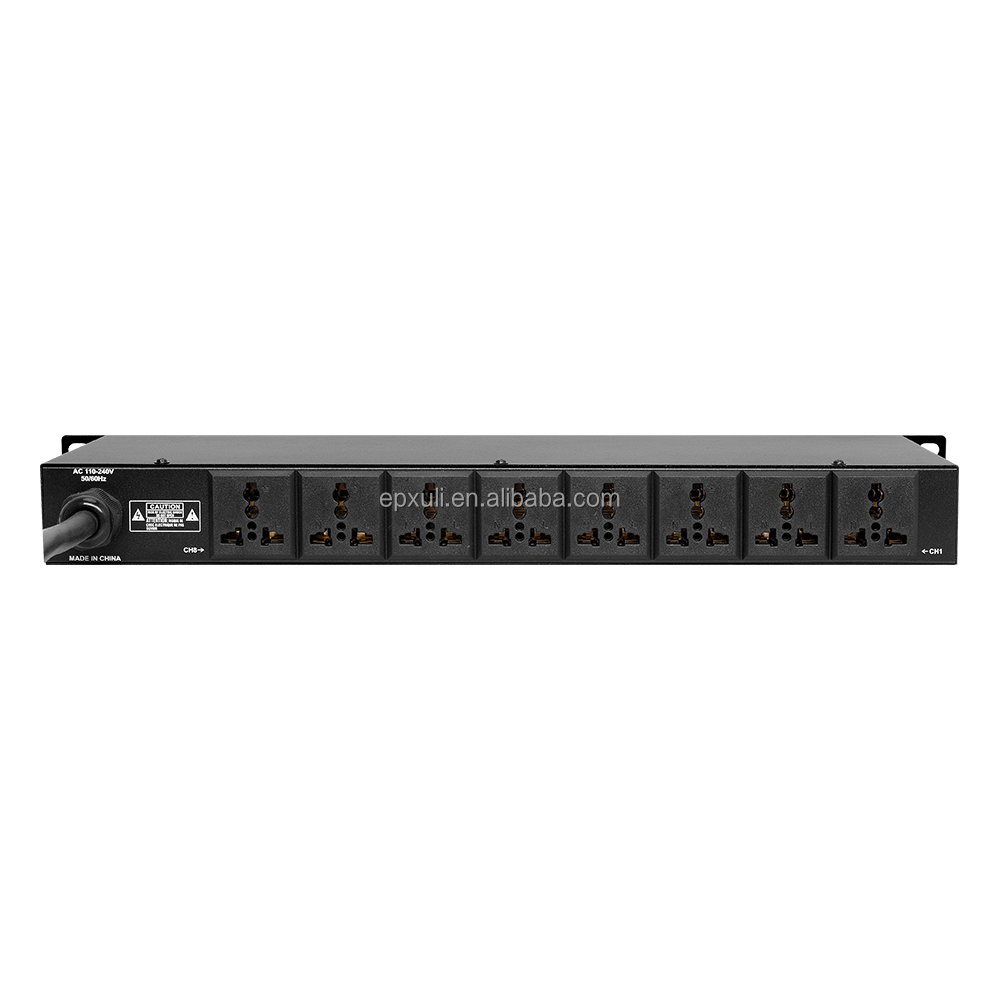

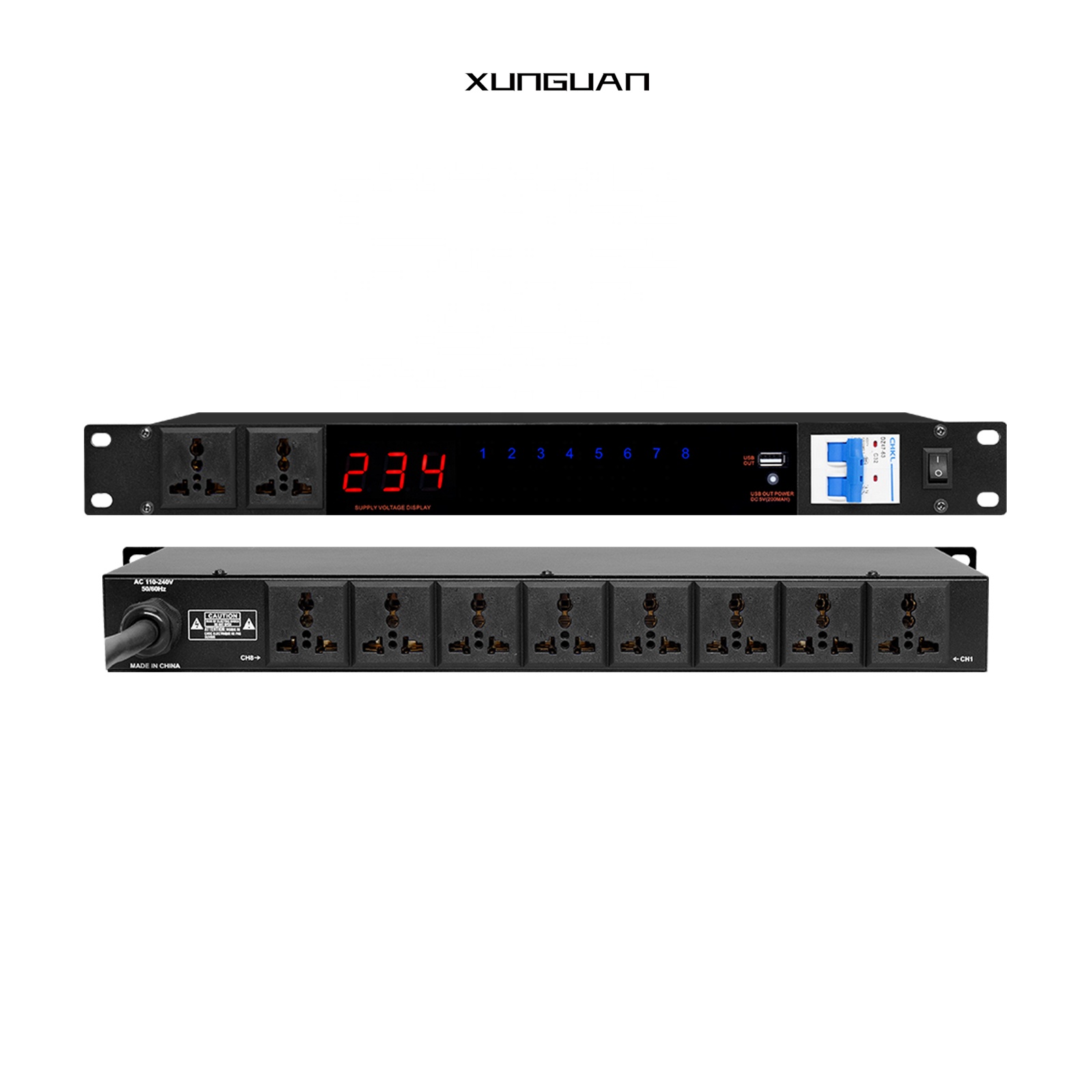

3, the number of channels: 8 universal socket relay controlled and 2 universal socket direct output
4, relay controlled output maximum withstand single power/total power (reactive power) : 2000W/6000W maximum withstand reactive power
5, output power socket specifications: flame retardant ABS material, can withstand the maximum 13A current phosphorus copper material, standard universal socket
6, features: 1. Sequence open reverse order close 2.PASS key can open all channels at the same time 3. Accurate voltage display 4. With 32A air switch
7, each switch interval time/timing time: 1.5 seconds
8, output relay contact current: 30A 277VAC
9, circuit board specifications: double-sided fiberboard, the main power line thickening and coarse processing
10, power supply specifications: built-in transformer voltage AC220-240V, optional (switching power supply for global voltage AC90-260V) 50-60HZ
11, the main cable specification: 3*4 square cable, the total length of 1 m (with power input plug)
12, opening type: square boat switch

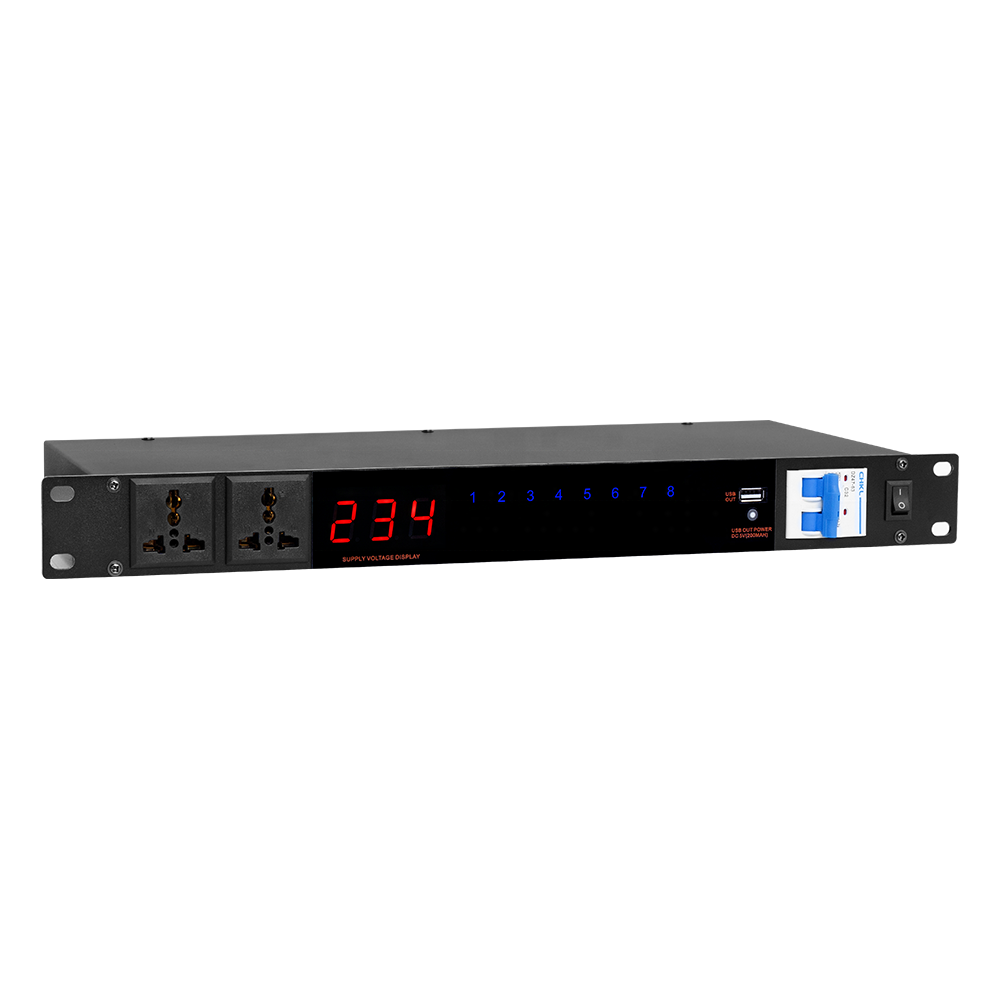

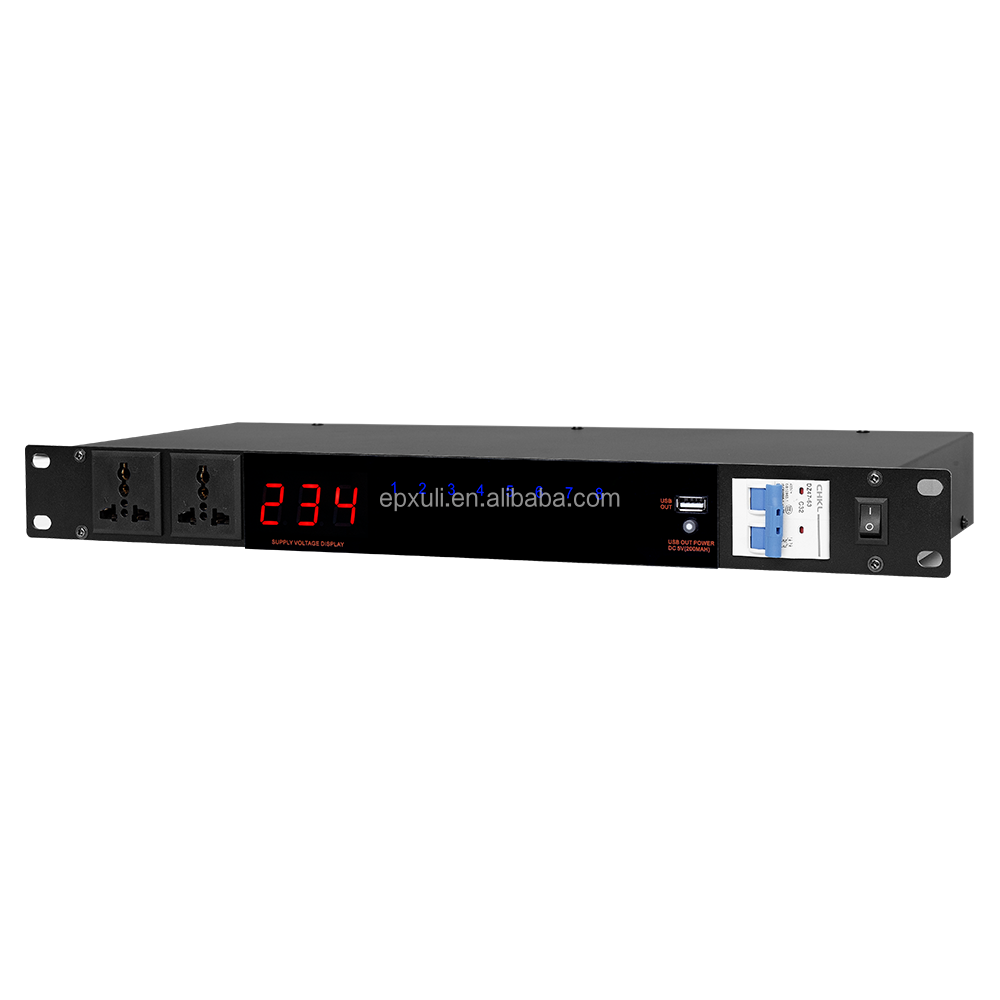

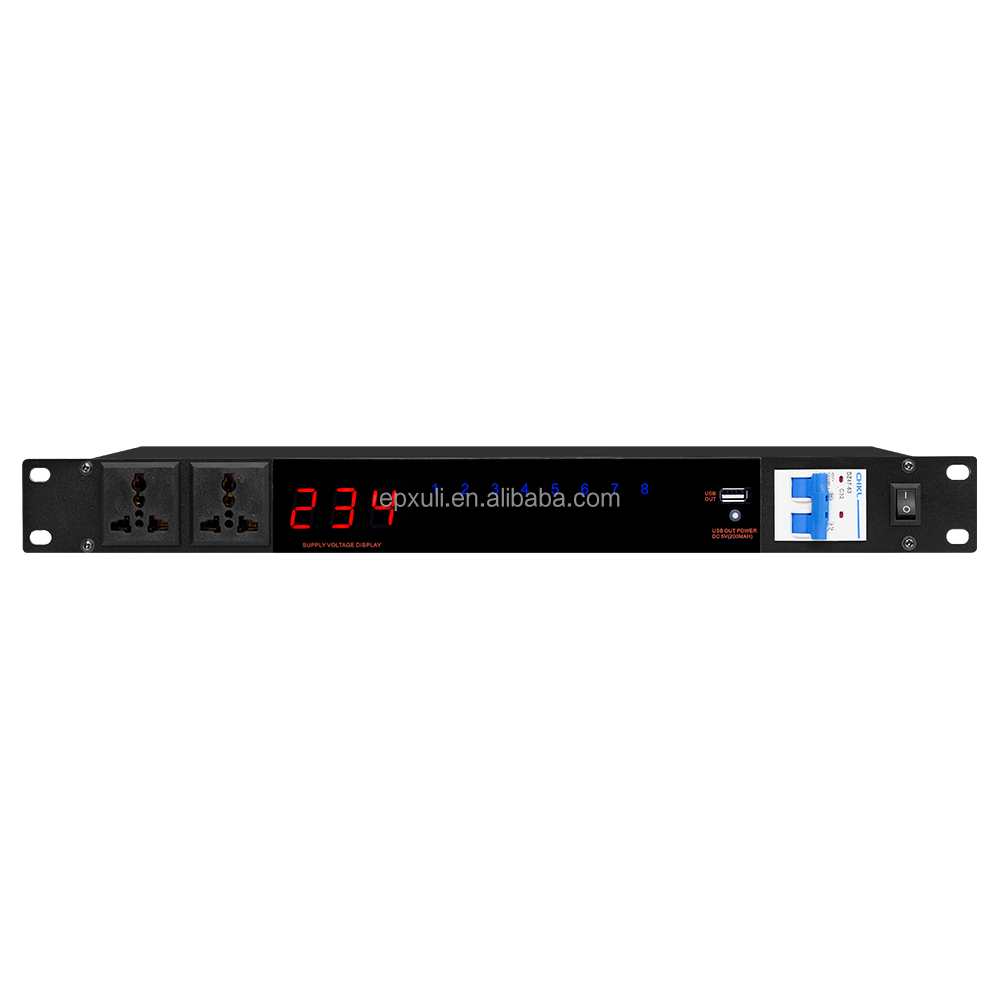

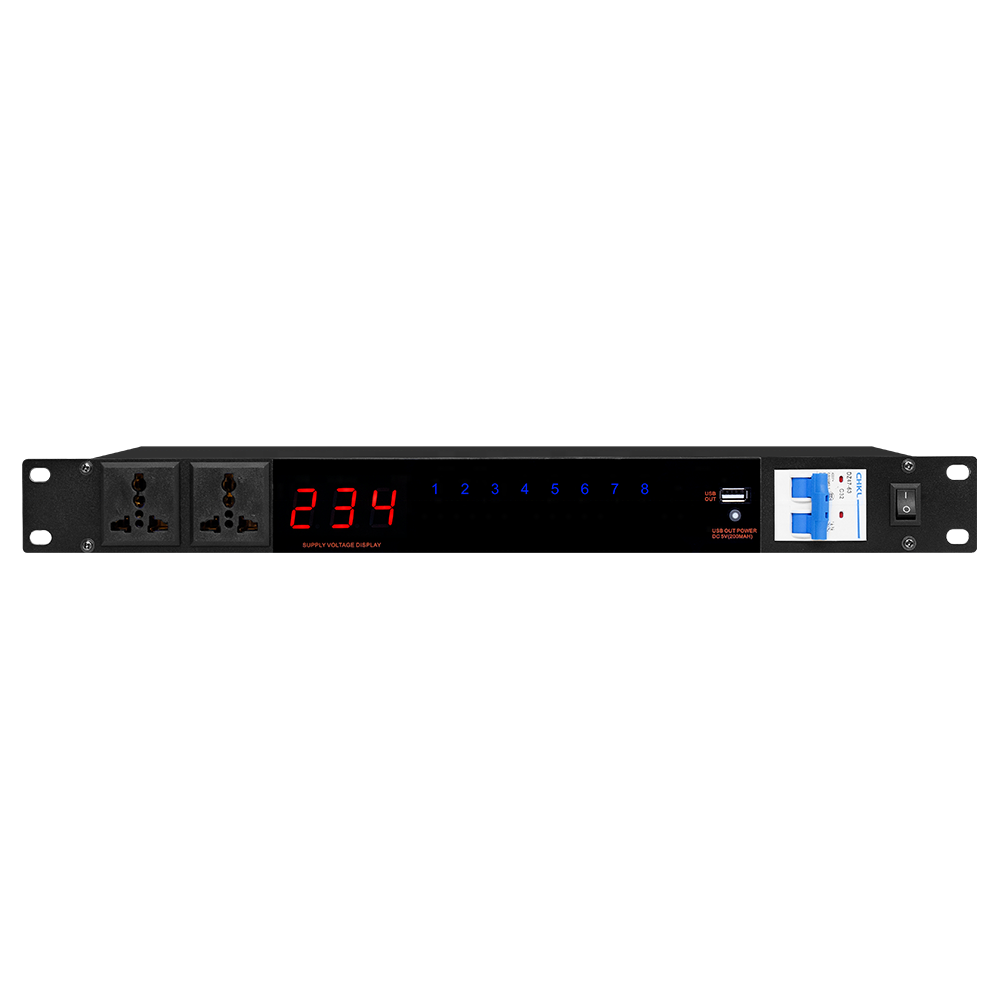

13, function display voltage display meter type: red digital tube display voltmeter

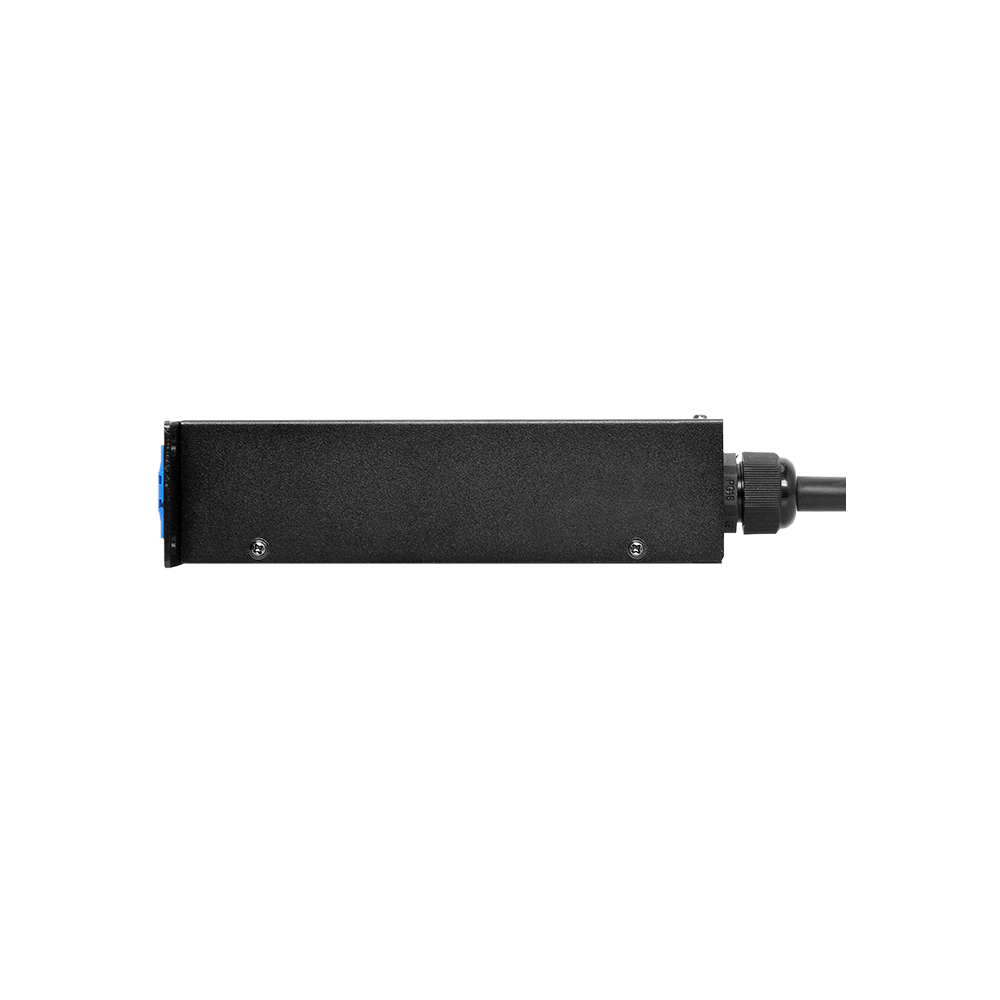

14, body size: length 480MM * width 165MM * height 48MM (non-standard 1U)
15, single packaging size: length 510MM * width 260MM * height 100MM(color printing box)
16, quantity Total weight and outer packing size: 1 piece 5 sets of 16KG, outer packing size: length 562MM * width 274MM * height 450MM
17, total weight (including packaging) : 3KG

56.2*27.4*45cm/5pcs/16kg
