One Station service for PCB,Aluminum PCB,FPC,PCBA ,Clone Boards,Stencil,Membrane Switch,Custom parts Production and Electronic Components Procurement, If you have any inquiry ,pls feel free send us your requirments ,we will make our best offer for you,,thank you:)

?

Specifications:

Single-side FPC, Double-side FPC, Multilayer FPC, Aluminum Substrate, Copper substrate, Single-side hollowed-out FPC and Double-side hollowed-out FPC

?

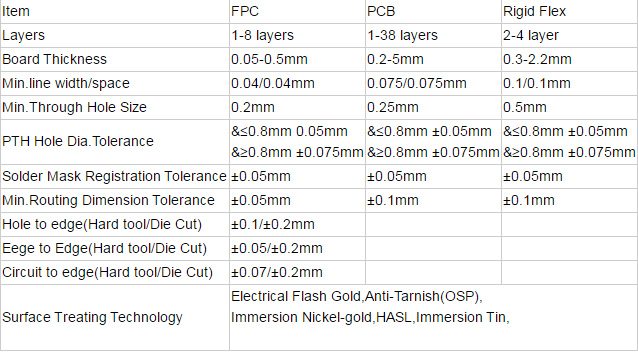

fpc cable Technical Capability:

Scope of products : Single-side FPC, double-side FPC, multilayer FPC, aluminum substrate, copper substrate, single-side hollowed-out FPC and double-side hollowed-out FPC
Thinnest substrate : Copper foil/PI film: 18/12.5 um 12/18um
Smallest wire width and distance : 0.05mm/0.05mm (2mil/2mil)
Smallest aperture : 0.25mm (10mil)
Resistance to flexural cracking : > 150,000 cycles
Etching tolerance : ± 0.5 mil
Tolerance for exposure and alignment : ± 0.05mm (2mil)
Tolerance for projection punching : ± 0.025mm (1mil)
Tolerance for PI film alignment : < 0.10mm (4mil)
Tolerance for reinforcing and take alignment : < 0.1mm (4mil)
Maximum processing area : 25cm × 50cm for double side; 25 cm × 10000cm for single side; 25cm × 25cm for multilayer
Forming tolerance : ± 0.05mm
Mode of surface treatment :
Electroplated guiding : 1-5u "
Chemical gilding : 1-3u "
Pure electroplating tine : 4-20u "
Chemical tin : 1-5u "
Antioxidatio n (OSP) 6-13u "

Applications :

1. Notebook Computer, LCD display,CD driver and hard disk
2. Printer, facsimile machine, scanner and sensor
3. Mobile phone, mobile phone battery, intercom, antenna and ribbon wire for mobile phone
4. Various types of high-end cameras, digital cameras, digital videocorder and DV
5. Magnetic head and laser head for videocorder, CD-ROM, VCD, CD and DVD
6. Instrumentation for aerospace, satellite, medical apparatus and automobile
7. LED bar, LED FPC flashlight, toy, chaplet and lantern decoration
8. LED aluminum substrate, power aluminum substrate, high-power LED and copper substrate

?

?

?

?

?

?

?

?

?

?
