Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

   "T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

  "P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

  "H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive  DC  brushless;  BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

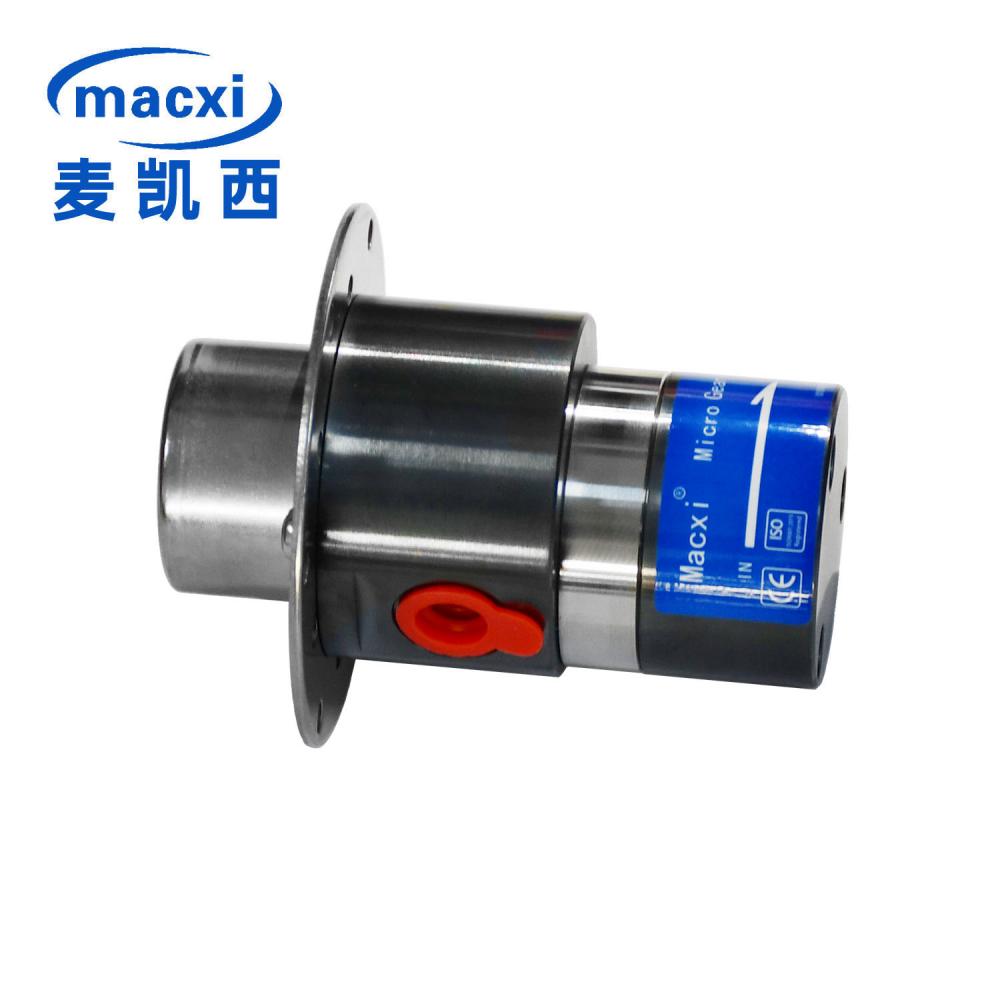

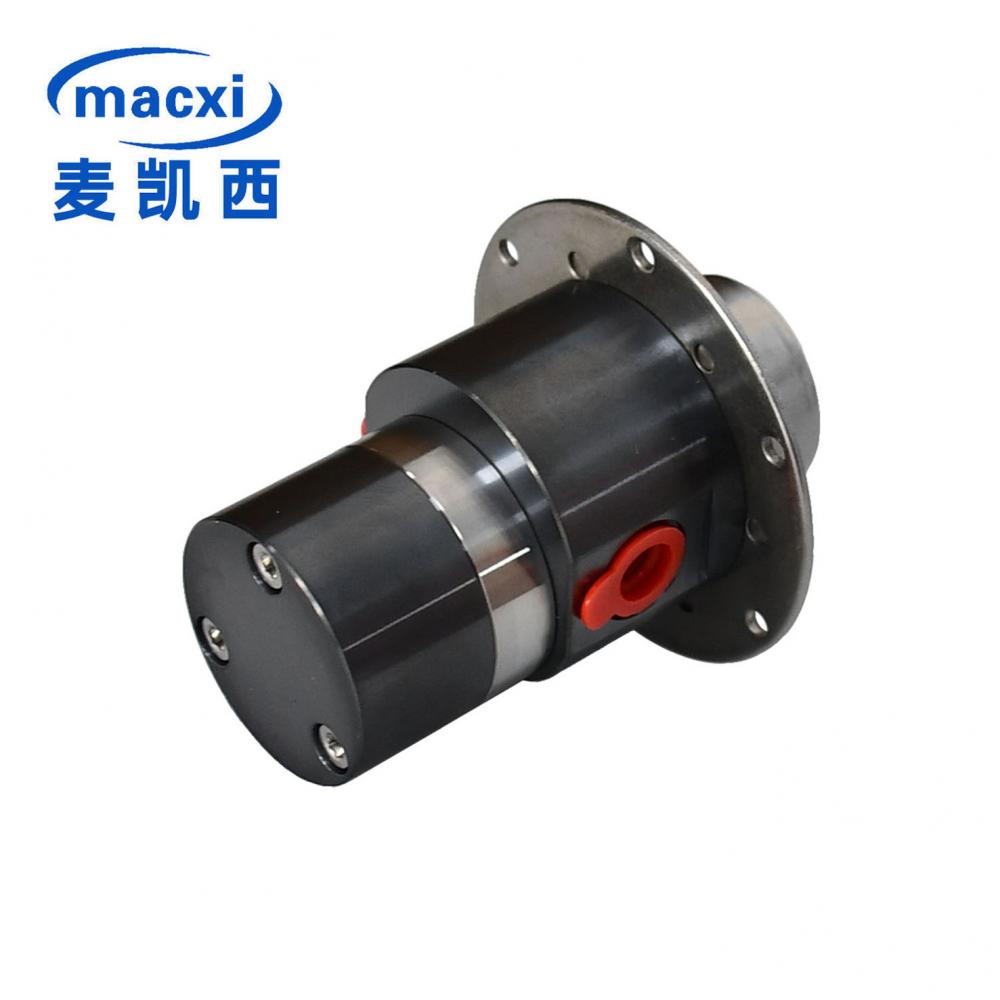

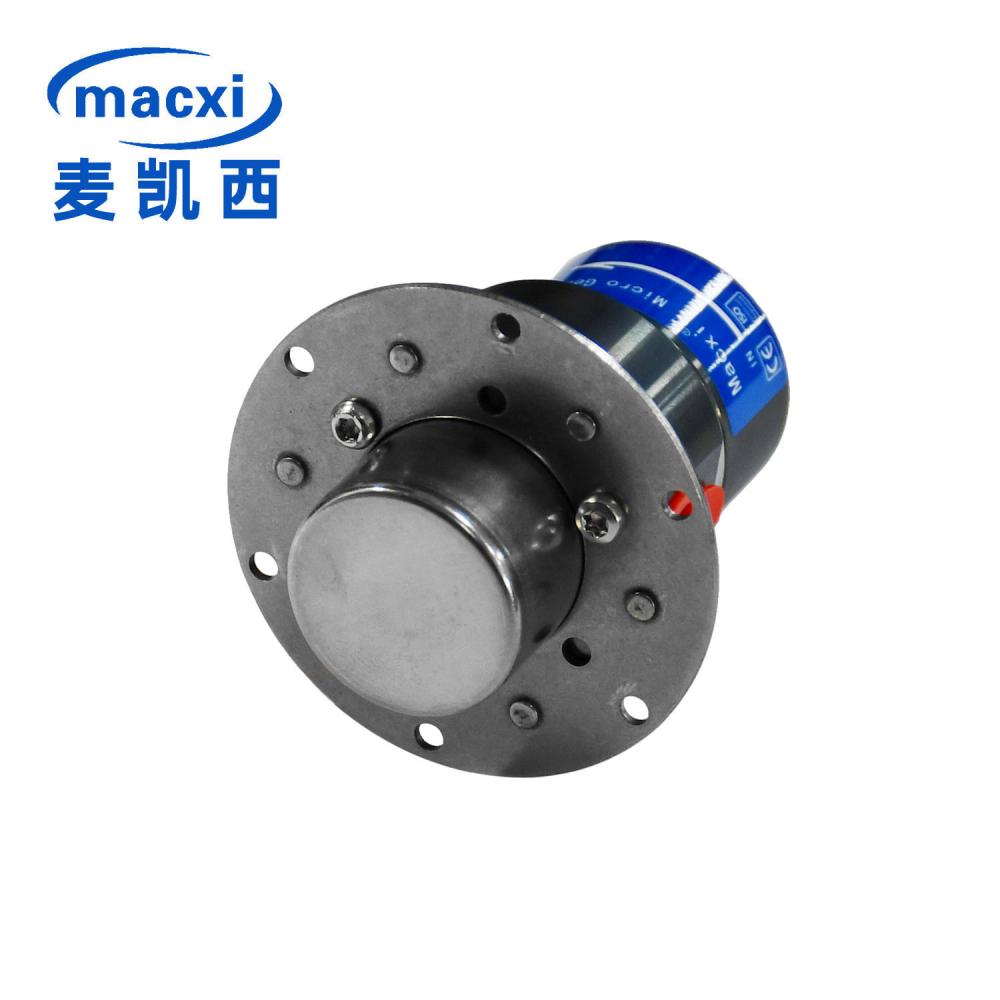

Product Model : M0.60T57

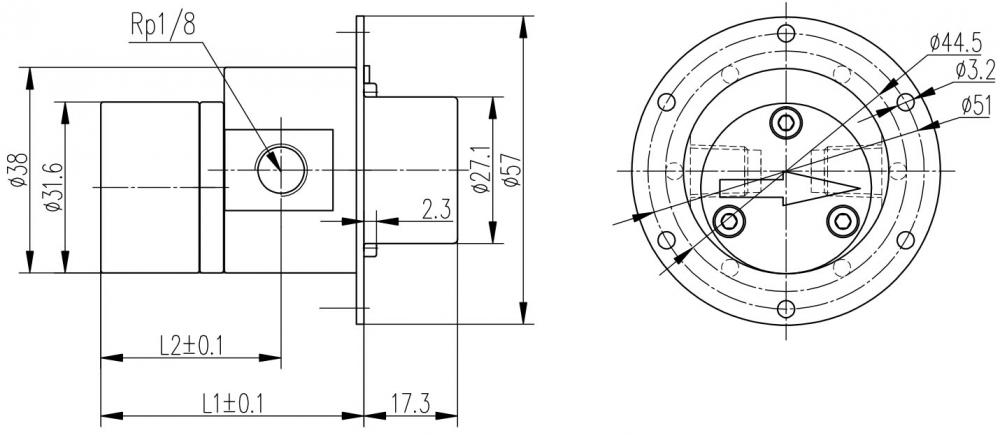

Product Diagram:

Product Parameters:

Pump Model	L1（mm）	L2（mm）	Weight(kg)	Imp.&Exp. Size	Pump Body material	Gear Material	Flow（ml/rev）
M0.15T57	48.8	33.5	0.34	G1/8	Stainless steel with Titanium nitride coating	WC	0.15
M0.30T57	48.8	33.5	0.34				0.3
M0.60T57	53.0	37.7	0.35				0.6

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

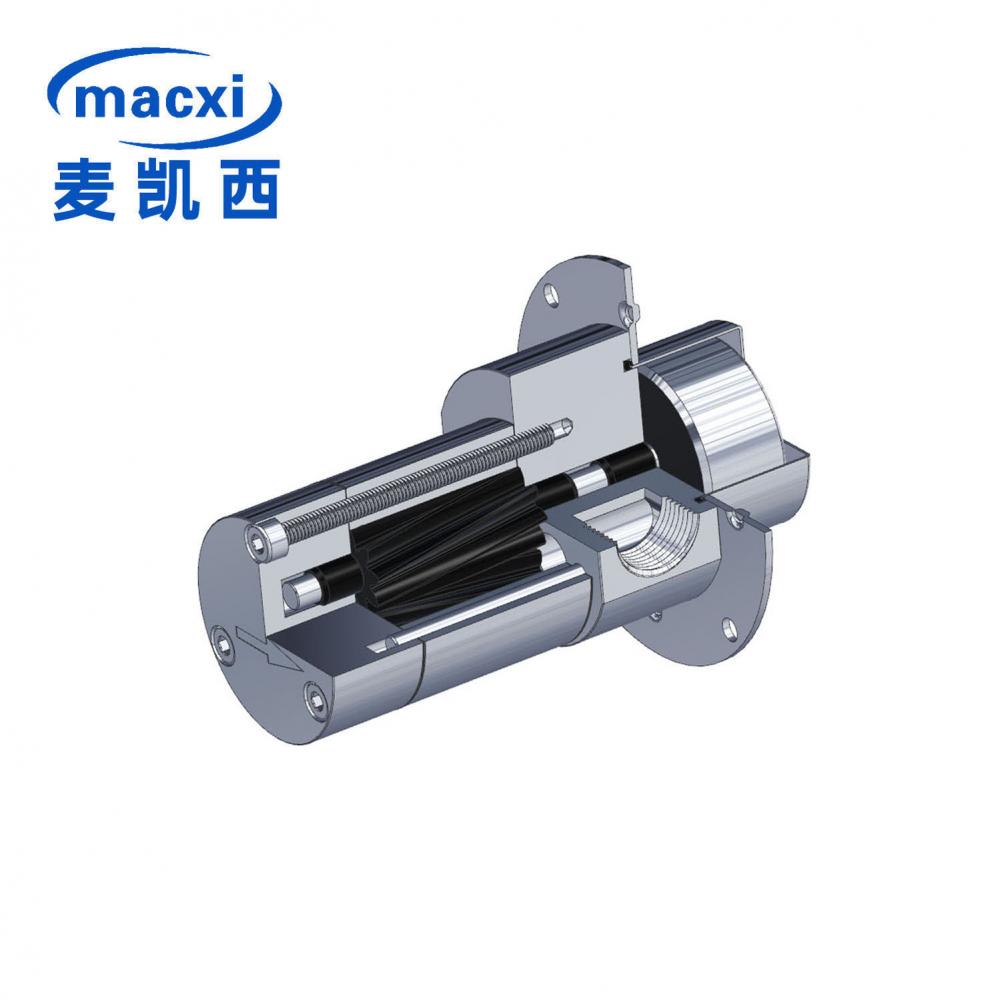

Pump head structure diagram:

1. Inner-hexagon screw*3      5.  Pump body               9.  Rear cover       13.  Countersunk head screw*3

2. Front cover                      6.  Tef/lon gasket*2        10.  O-ring              14.  Isolation cover

3. Shaft sleeve*6                 7.  Driving gear              11.  Platen

4. Pin*2                              8.  Driven gear              12.  Internal magnetic steel

Product characteristic diagram:
