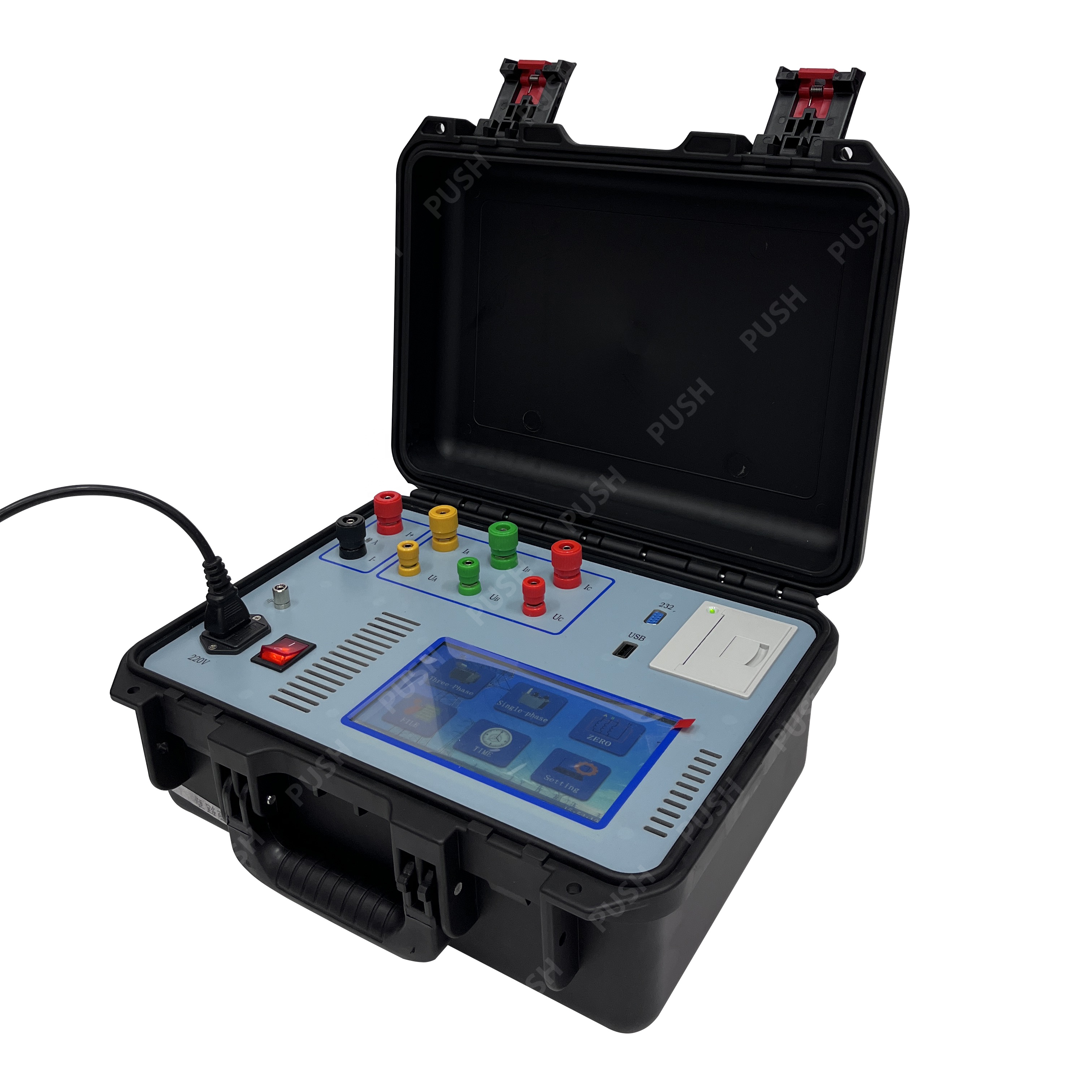

PUSH Electrical Testing Solutions: Impulse Winding & Short Circuit Impedance Testers
use:
- Auto Testing Machine
$1928.00
1 set (MOQ)
$1928.00
1 set (MOQ)
$1928.00
1 set (MOQ)
$1928.00
1 set (MOQ)
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm |
| Place Of Origin | Hebei, China |
| Brand Name | PUSH |
| Model Number | PS-ZK03 |
Product description
Voltage (range automatic) | 15 ~ 400V | ±(reading×0.2% + 3 digits)±0.04% (range) | |||
Current (range automatic) | 0.10 ~ 20A | ±(reading×0.2%+3 digits) ±0.04% (range) | |||
Power | COSΦ>0.15 | ± (reading × 0.5% + 3 digits) | |||
Frequency (power frequency) | 45～65(Hz) | ||||
Measurement accuracy | ±0.1% | ||||
Short circuit impedance | 0～100% | ||||
Measurement accuracy | ±0.5% | ||||
Repeat stability | ratio difference <0.2%, angular difference <0.02° | ||||
Instrument display | 5 digits | ||||
Instrument protection current | The test current is greater than 18A, the internal relay of the instrument is disconnected, and the overcurrent protection is provided. | ||||
Ambient temperature | -10℃～40℃ | ||||
Relative humidity | ≤85%RH | ||||
Working power | AC 220V±10% 50Hz±1Hz | ||||

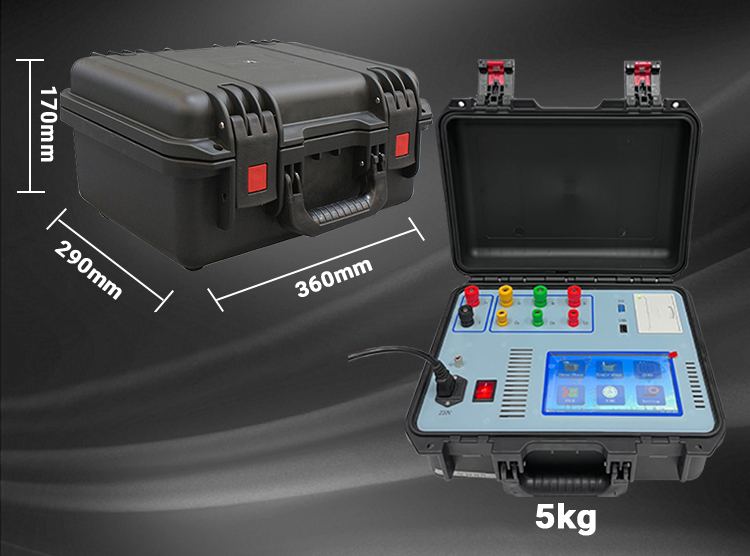

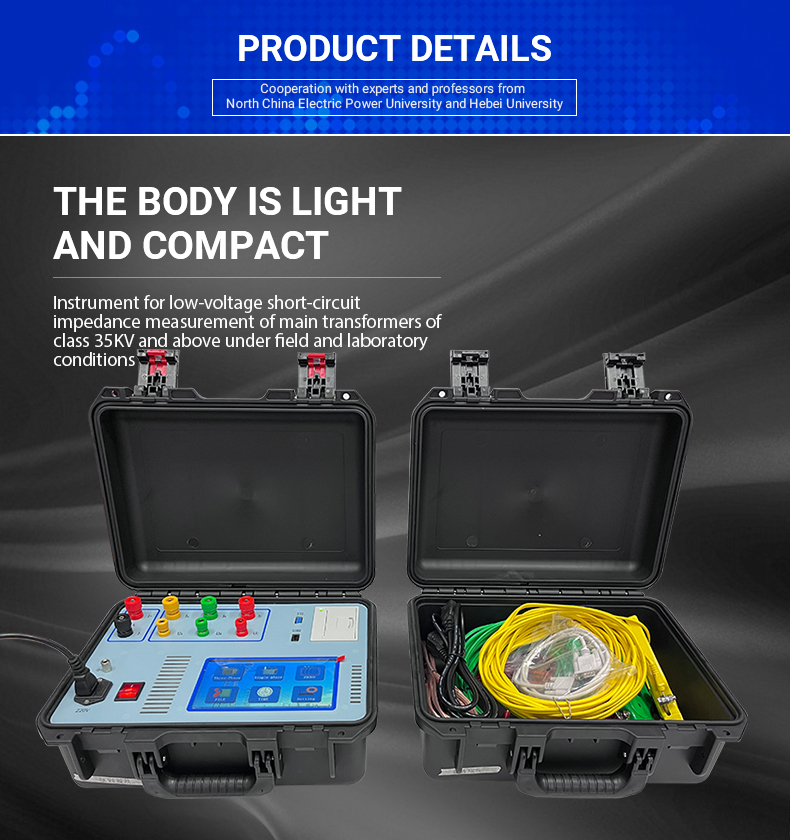

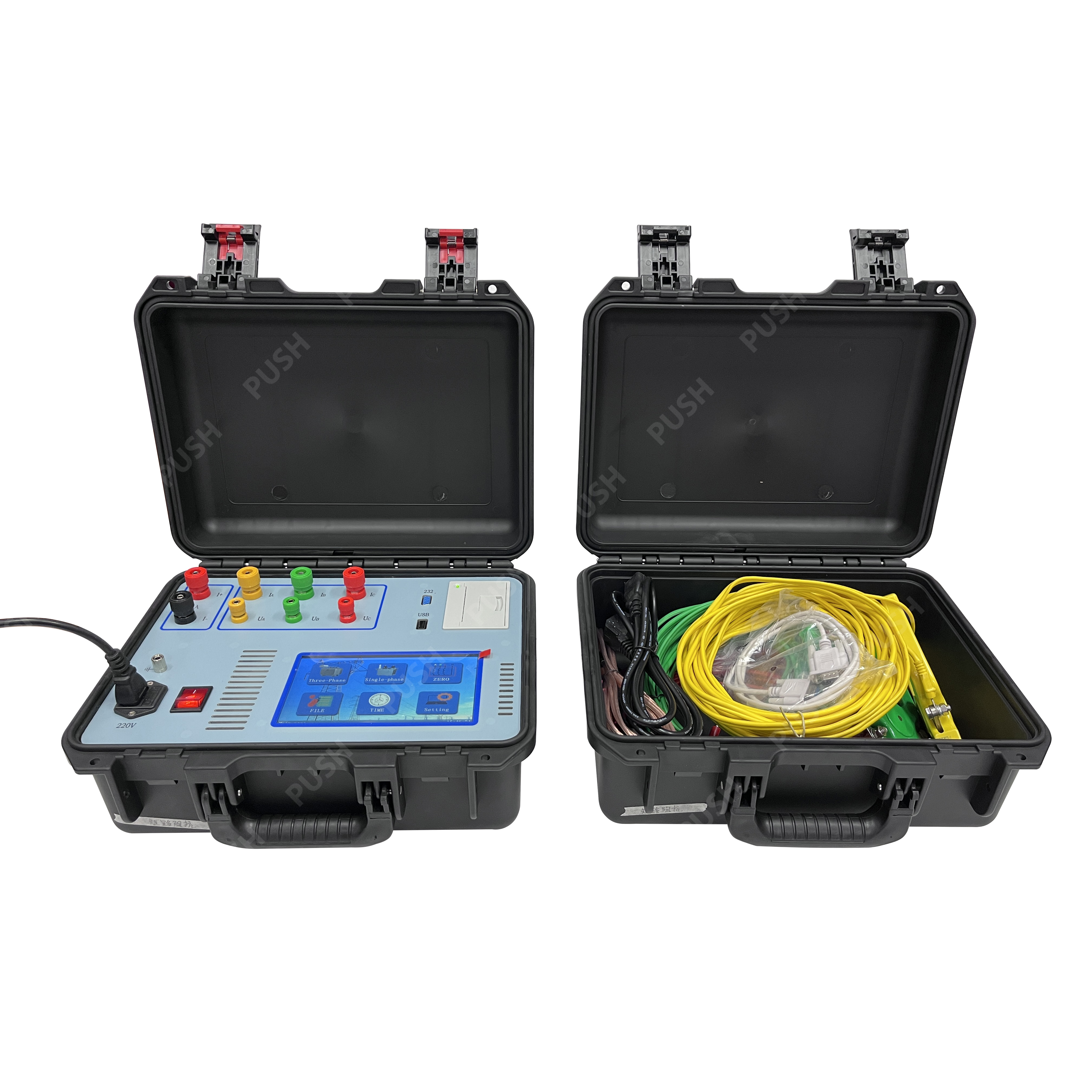

Dimensions | Host：360*290*170(mm) | Wire box：360*290*170(mm) | |||
Weight | Host：4.85Kg | Wire box：5.15KG | |||
Dear friends, we are manufacturers, can guarantee preferential prices and high quality.
2. How can I choose the right one for me?
Dear friends, you can contact us by email, online or other ways to help you choose the right one according to your requirements.
3. What if I have difficulty in using the instrument?
Dear friends, we will provide equipment operation manual, operation video and so on. We can also provide training through remote video call.
4. When can I receive the goods?
Dear friends, ordinary non customized models will be delivered within 3 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
Dear friends, for most of our customers, we provide door-to-door service. You only need to go through the import customs clearance procedures and pay the import tariff.
6. How about the packing and will the goods be damaged?
Dear friends, we will do standard export packing for each equipment, so far there has been no damage to the goods.
7. How do I pay for my first purchase?
Dear friends, Alibaba online order is very convenient, we will guide you to operate.
8. How can I supplement the vulnerable and consumable parts? What should I do with some broken parts?
Dear friends, if such a situation occurs, please contact us in time, we can provide vulnerable and consumable parts and spare parts supplement, and only charge the cost.
Video

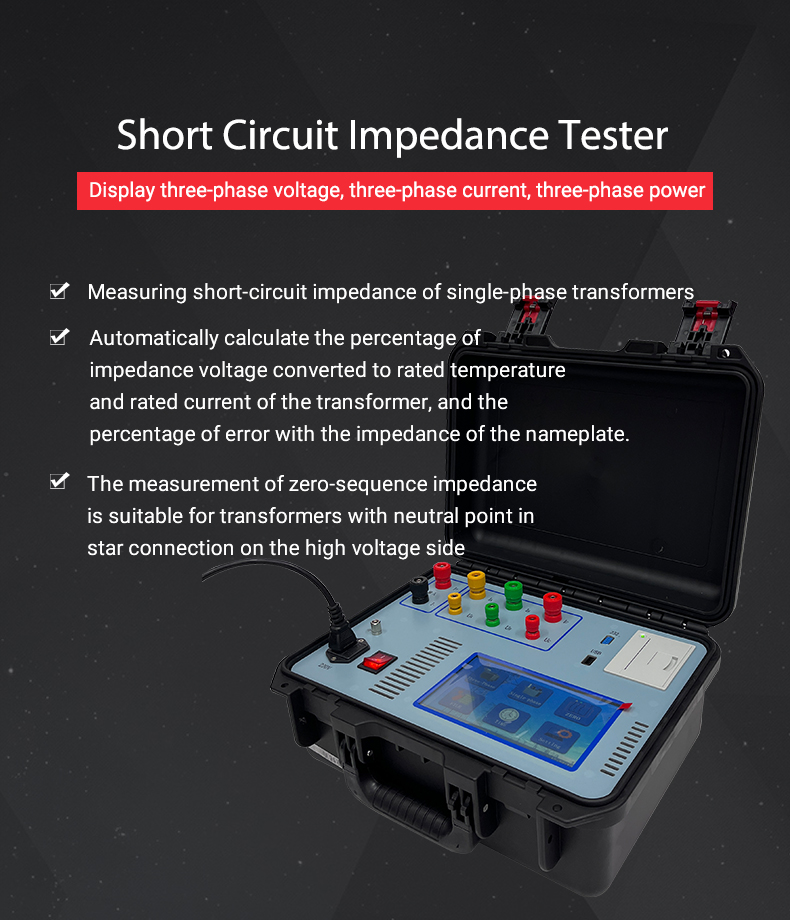

PUSH Electric High Accuracy Short Circuit Impedance Tester1
