Automatic setting machine is mainly suitable for a tunnel kiln burning and the second yard tile automatically packed in the annular kiln burning. Electric control and hydraulic elevator have characters of high efficiency and energy saving, simple maintenance, low cost, stable and reliable running etc.

The structure of the automatic setting machine

Automatic setting machine mainly has special strip cutting machine, cutting machine, point blank machine, clip machine, cutter, walking system, lift system, rotation system, hydraulic system and electrical system, etc.

Application of automatic setting machine

1.Setting machine and hydraulic pressure brick machine control connect together. Setting machine adopts the most advanced servo motor, high precision, accurate position, stable operation, automatic lubrication part, fixed time.

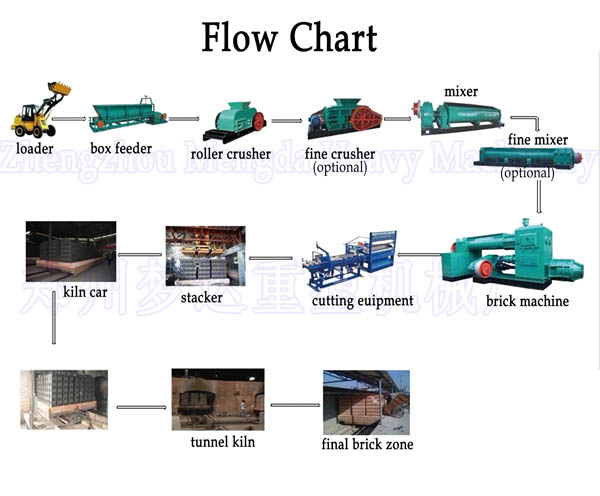

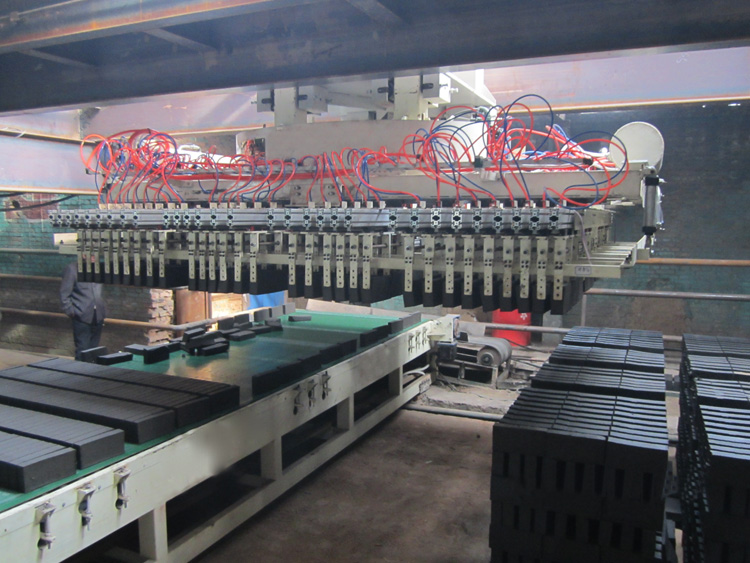

2.Setting machine has functions of automatic clip billet, carrying billet, putting billet. With the support of computer, the code into the pipe from the car adobe can be put each layer of dislocation, each floor tile is highly controlled by the encoder signals to a computer system, to overcome the defects such as other measuring device is susceptible to interference.

3.By changing the fixture, gripper clipping standard bricks, hollow bricks, hollow blocks and road bricks, etc., all kinds of products of different size. Catching lightly, laying accurately and smoothly that makes the rate of finished product greatly increased.

The characteristics of automatic setting machine

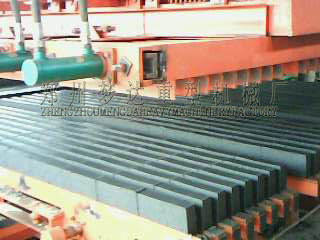

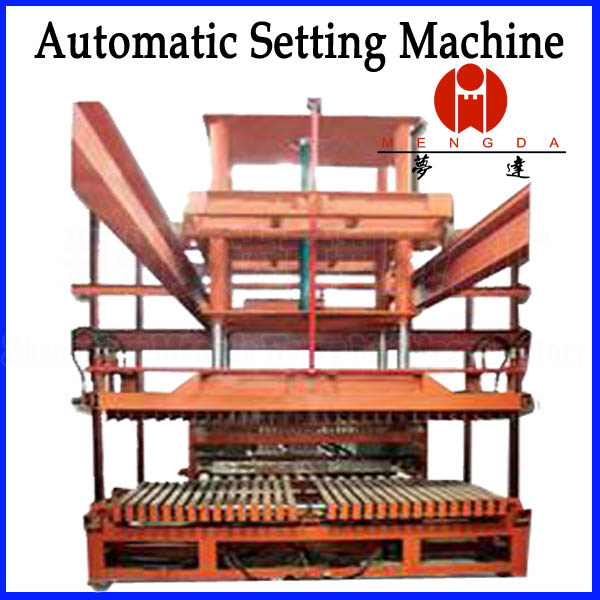

1.Automatic setting machine is composed of frame, walking vehicle, promotion, setting clamp, pneumatic system and PLC automatic control system, etc.

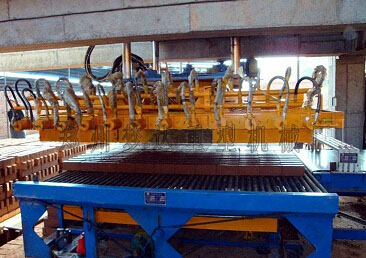

2.Vehicle is driven by a motor to walk, meshing gear and rack on either side of the car and vehicle is located in the frame of the orbit. Hoisting frame lifting adopts roller chain to make move accurately, avoid skid phenomenon, using four guide posts at the same time to increase the stability of the equipment. Setting clamp part has two rows of clamp, equipped with cylinder between two rows of clamp, driven by telescopic movement to achieve its span changes.

3.Brick holder rotating part adopts cylinder driving force, which has the advantages of simple structure, adjustable speed, steady running.

4.The operation makes the PLC programmable controller to realize automatic control with reliable action, strong security, and setting various forms and the setting machine is suitable for a burning process and secondary yard burning process, which is indispensable equipment in the large-scale brick automation production line.

Technical parameters of automatic setting machine

technicalparameters
production capacity (pcs/yser)	installed capacity (kw)	weight (kg)
30,000.000	26.6	18000
60,000.000	26.6	19600
120,000.000	26.6	19600
