R32 Dome Nut/Spherical Nut for Self-Drilling Anchor Drilling Systems
$2.05
≥10 piece
$1.96
≥2500 piece
Length:
- 5/8in
Options:
- ANCHOR BOLT
- Wall Anchor
- Hammer Drive Anchor
- Expansion Anchor
- Foundation Anchor Bolt
Basic Info
| System Of Measurement | Inch |
|---|---|
| place of origin | China |
| Material | Steel |
| Capacity | 200 |
| Surface Treatment | hot-dipped galvanized |
Product description

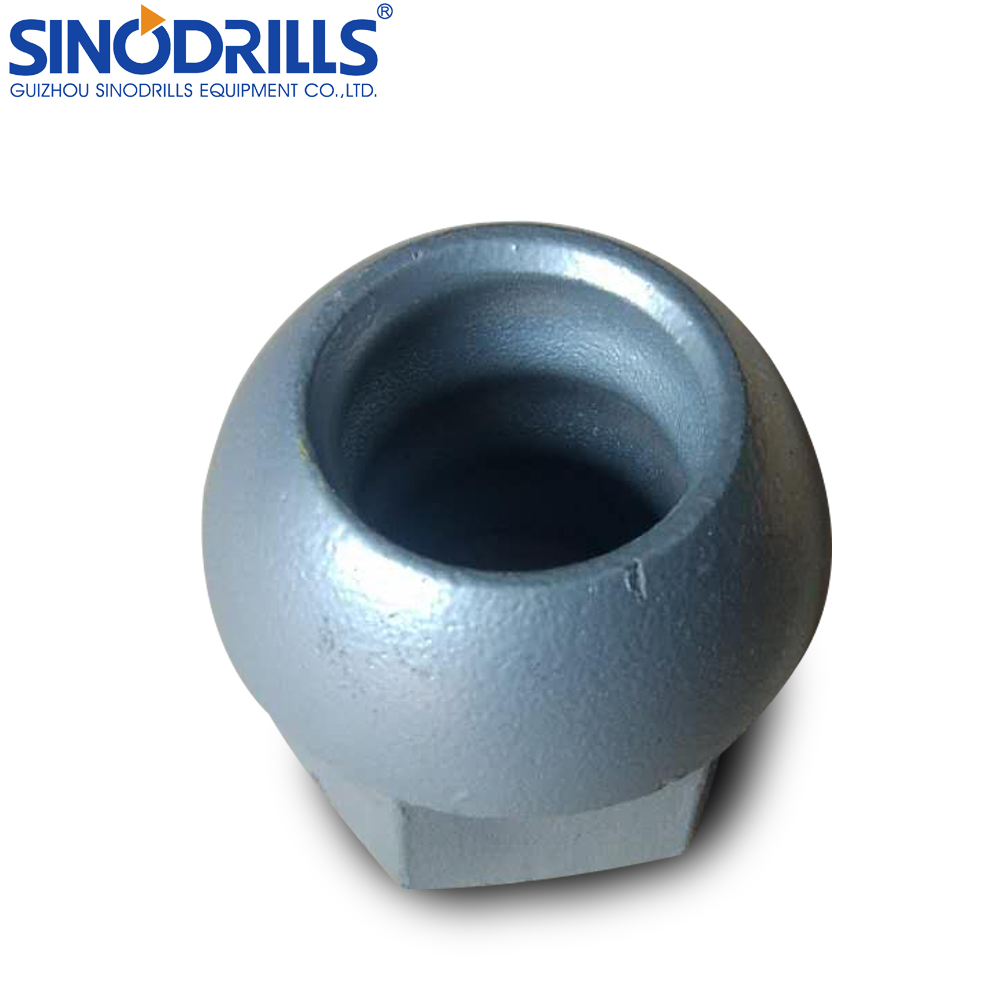

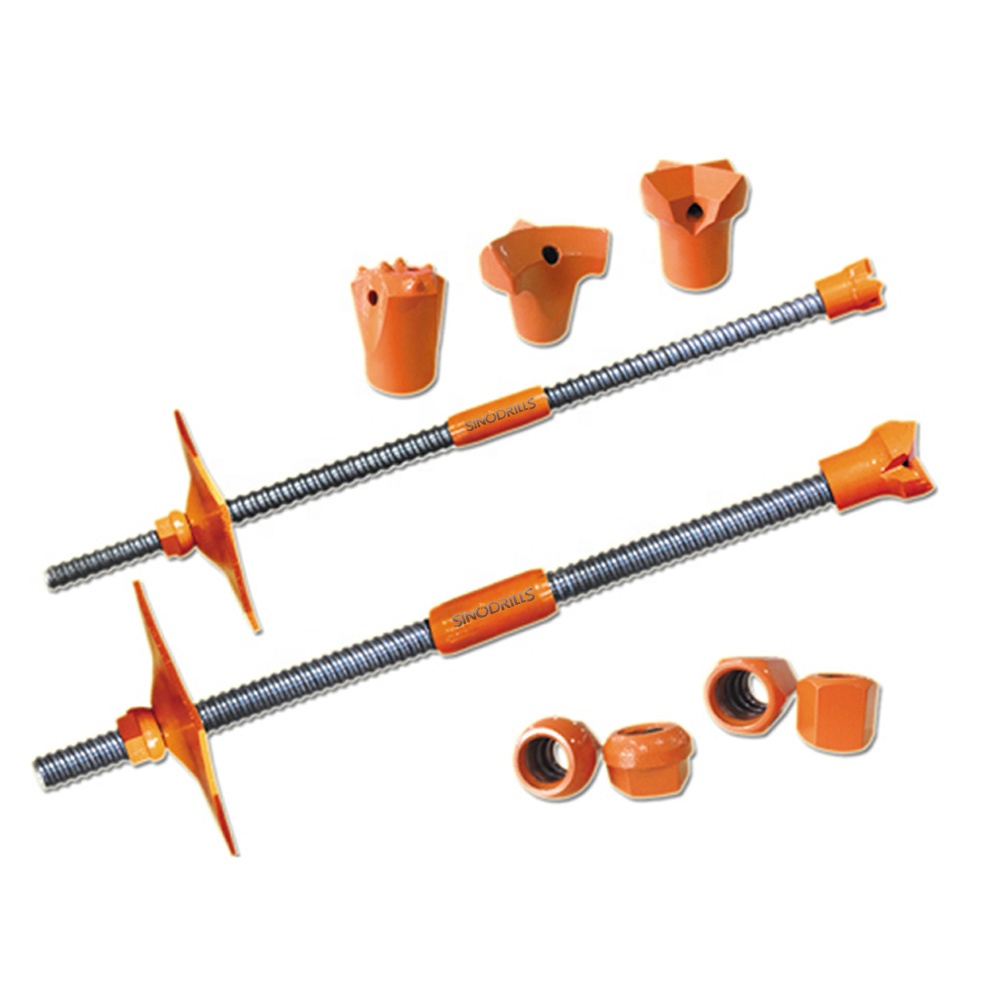

? R32 dome nut / R32 spherical nut for self drilling anchor drilling system
?
?
?
SINODRILLS Anchor nuts

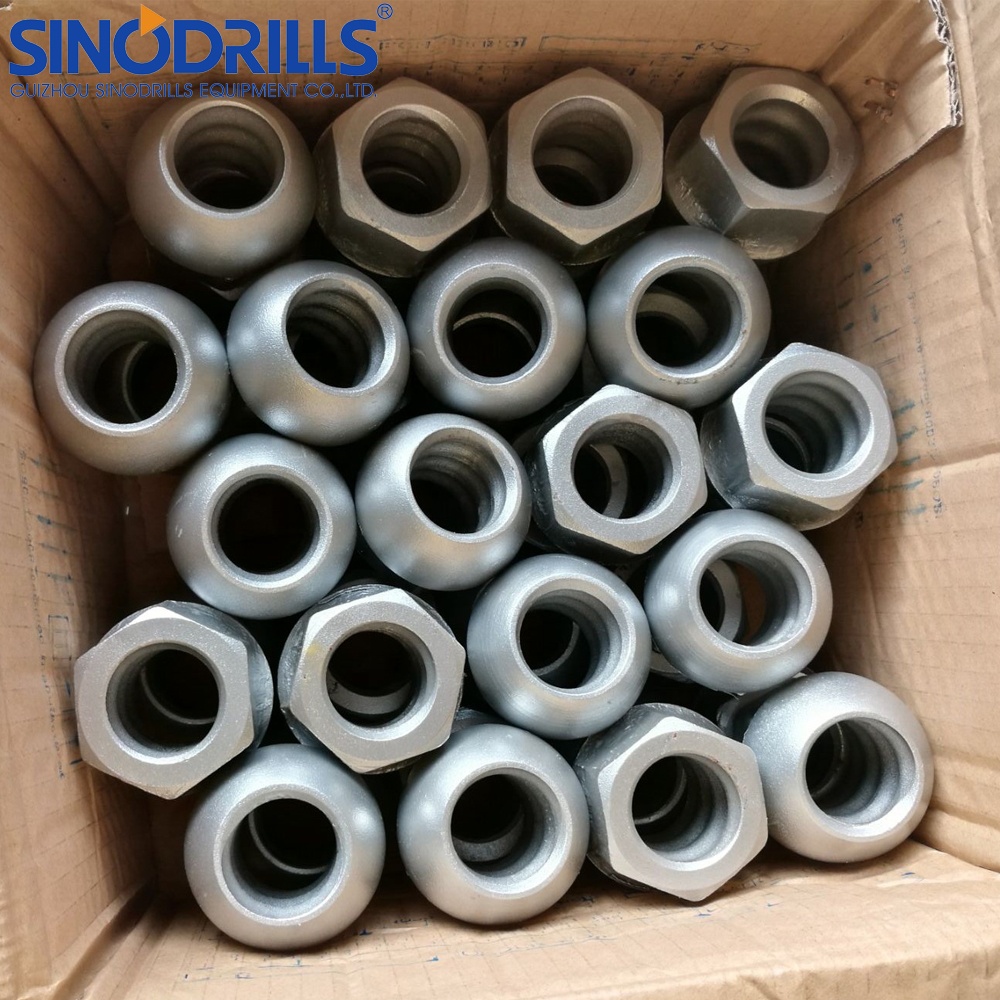

Anchor(domed) nut is used to lock the anchor system, make sure the anchor string is fastened with anchoring site, there usually have hexagonal and spherical two designs.
Hex Nut: R25, R32, R38, R51, T76

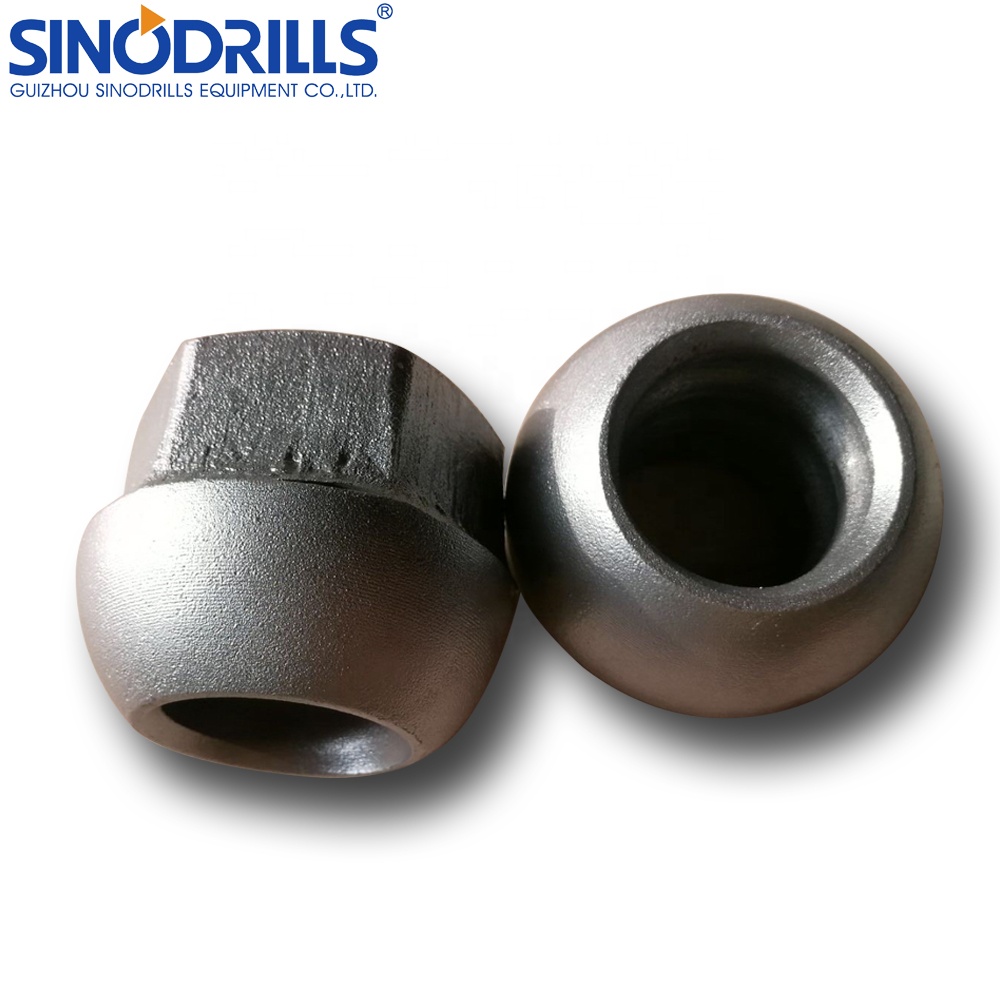

Domed nut: R32, R38, T30, T40, T52, T73, T76, T103, T111, T127, T130 etc.
?
?
?
?
|

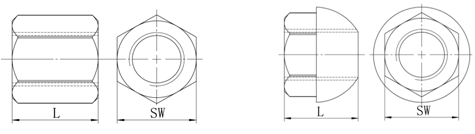

Hexagonal nut |
|||
|
Size |
SW (mm) |
L(mm) |
Unit weight (kg) |
|
R25 |
41 |
41 |
0.30 |
|
R32 |
46 |
45 |
0.35 |
|
R32 |
46 |
65 |
0.45 |
|
R38 |
50 |
60 |
0.50 |
|
R51 |
75 |
70 |
1.55 |
|
T76 |
100 |
80 |
2.80 |
|
Domed nut |
|||
|
Size |
SW(mm) |
L(mm) |
Unit weight (kg) |
|
R32 |
46 |
45 |
0.45 |
|
R38 |
50 |
50 |
0.60 |
|
R51 |
75 |
70 |
1.60 |
|
T76 |
100 |
90 |
3.20 |
|
T30 |
46 |
35 |
0.42 |
|
T40 |
65 |
50 |
0.90 |
|
T52 |
80 |
70 |
2.20 |
|
T73 |
95 |
70 |
2.20 |
|
T103 |
125 |
80 |
3.40 |
|
T127 |
?140 |
140 |
9.20 |
| ? | |||
|
Steel grade |
As per request |
||
|
Thread direction |
Left hand / Right hand |
||
|
Thread standard |
ISO 10208 / ISO 1720/ Other international standards |
||
|
Hardness (HRC) |
HRC25~HRC30 |
||
|
Features |
All nuts are machined and with chamfered edges to suit both domed plates and solid plates. |
||
?
?

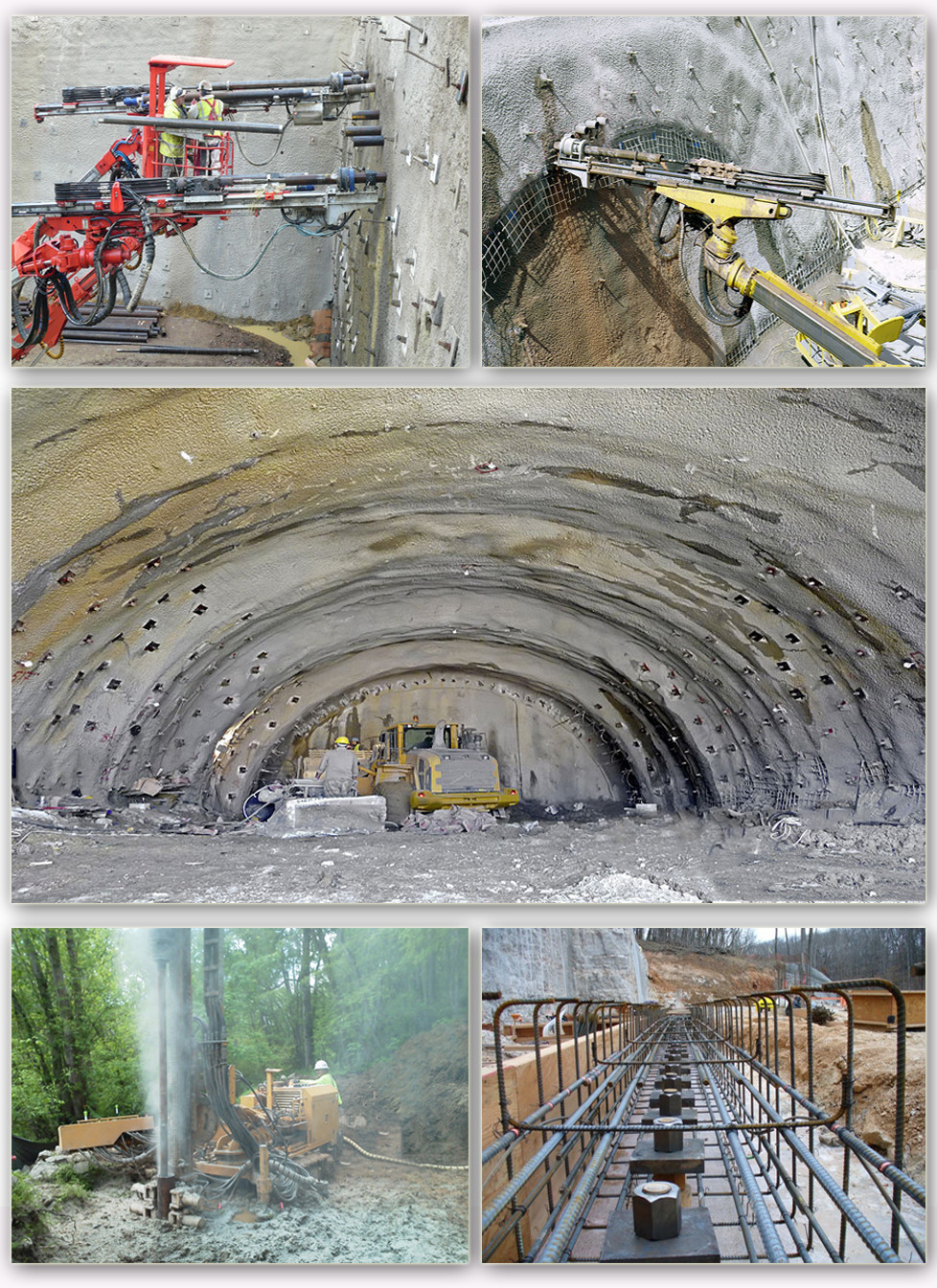

Application
?
?

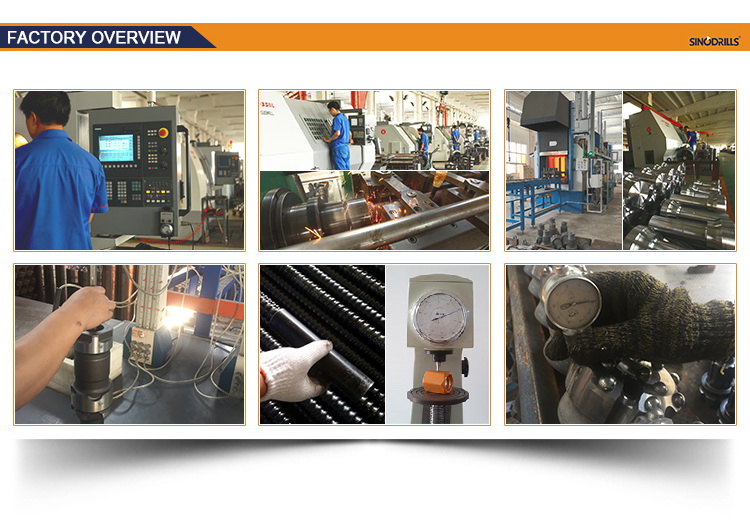

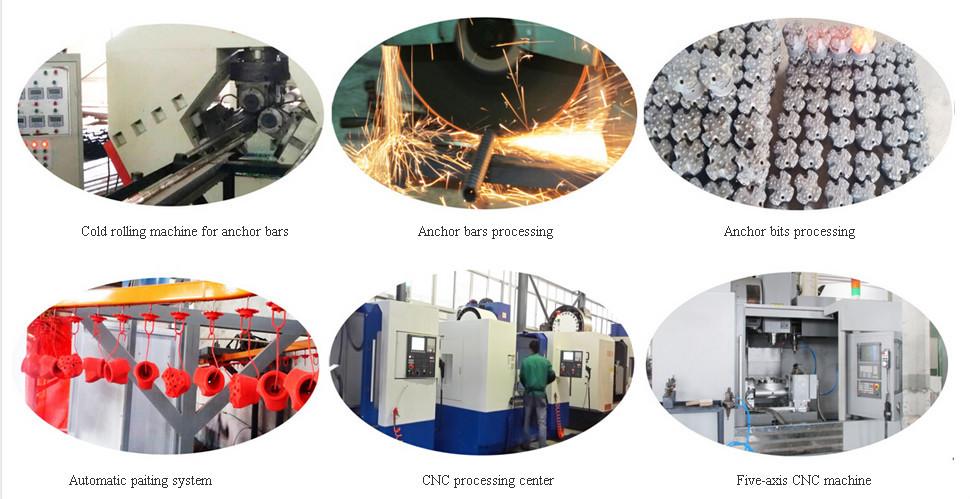

Processing
?
?
?
?
?
