R410A Air Cooled Ducted Split Unit

$2500.00

≥1 Others

Color:

White
Grey

Options:

Capacity 19.5kW-180.8kW
Refrigerant R410A

Get Latest Price

You might also like

R410A Air Cooled Ducted Split Unit

1 Unit (MOQ)

Basic Info

Model No.	SDSK-ST1HA
Brand Name	Sendo or OEM
Service system	Free Spare Parts, Onsite Installation, Field Maintenance And Repair Service, Overseas Call Centers
Warranty Service	1 Year
Kind of power	Electric
status	New
place of origin	China
species	Central Air Conditioners
Heating and cooling function	Cooling/Heating
Certification	Ce

Product description

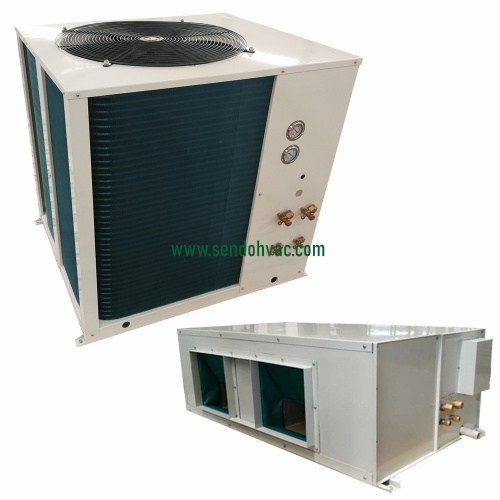

R410A Air Cooled Ducted Split Unit

Sendo split type air conditioners are designed and manufactured to meet the requirements of the home, office, hotel and others public occasion use. Wide cooling capacity range from 19.5kW to 180.8kW.

ODM/OEM, we could provide customized production according to your demand.

Colors for ODU can be ordered in either white or dark grey.

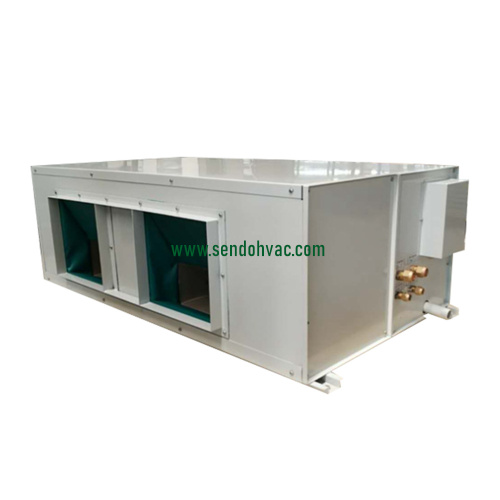

Three installation types for IDU: ceiling concealed, floor standing ducted and floor standing free blow.

IDU panels can be constructed of galvanized steel coated or panels are double-skin with injection of high density polyurethane.

Optional additional function section for IDU (DX AHU). Mixing section/Filter section/Electrical Heater section/Hot Water Coil section etc.

Features

1. The casing is made of zinc coated galvanised steel sheets. It is further treated with an electrostatic powder coat then over baked to provide a weather resistant finish to suit the harsh climate. All the screws are also zinc plated to improved durability.
2. High efficiency scroll type compressor is hermetically sealed, quiet running and supported on rubber mounts to minimise vibration. All compressors are provided with an internal overload protection, and incorporate crankcase heater for smooth start-up under any conditions. Famous brand compressor: Panasonic, Copeland and Danfoss. More reliable.

3. External rotor type axial fans for outdoor unit, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille.

4. The condenser and evaporator coils are manufactured from seamless copper tubes mechanically bonded to blue hydrophilic aluminum fins to ensure optimum heat transfer. The generously sized coils provide ample capacity under all normal operating conditions.
5. The indoor fan is centrifugal type. The fan is directly driven (Model 20~100) & belt driven (Model 120~180) by waterproof motor. The fan and motor assembly is tested and dynamic balance is implemented in the factory.

6. Ripple type acoustic insulation for compressor section, low noise. The inside of indoor unit panels will be covered with 10mm insulation to prevent the likelihood of condensation occurring.

7. Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.

Specifications

Model SDSK-ST1HXXA			20	25	30	35	40	45	50	60	70	90	100	120	140	180
Cooling	Capacity	kW	19.5	24.8	31.2	35.6	41.3	47.4	51.3	63.3	71.3	87.9	103.7	120.4	141.5	180.8
Cooling	Power Input	kW	7.2	9.3	11.8	12.8	15.1	17.9	18.4	23.1	26.6	28.1	39.3	43.0	50.5	64.6
Heating	Capacity	kW	22.6	28.9	35.8	40.8	46.9	54.4	58.9	72.6	81.9	100.0	115.8	125.2	147.2	188.0
Heating	Power Input	kW	7.13	9.21	11.68	12.67	14.95	17.72	18.22	22.87	26.33	27.82	38.91	40.9	48.0	61.3
Refrigerant		Type	R410A
Outdoor Unit	Compressor	Type	Scroll
	Condenser	Type	Copper Tubes Mechanically Expanded into Blue Hydrophilic Aluminum Fins
	Condenser Fan	Type	Axial / Direct
Indoor Unit	Evaporator	Type	Copper Tubes Mechanically Expanded into Blue Hydrophilic Aluminum Fins
	Indoor Fan	Type	Centrifugal Fans
	Supply Airflow	m³/h	3500	4500	5650	6450	7400	8550	9250	11450	12900	14800	17100	21000	24000	31000
	ESP	Pa	120	120	150	150	180	200	200	300	300	300	500	500	500	500
	Filter	Type	G3 Aluminium Filter / Washable
Connection	Liquid Side	mm	9.52×2	12.7×2			15.88/12.7			15.88×2			19.05×2	15.88x4		19.05×4
Connection	Gas Side	mm	15.88×2	19.05×2			28/19.05			28×2			35×2	28x4		35x4
