RAS System Oxygen Diffusers: Micro Bubble Technology in Ceramic Air Stones

$40.00 / piece

Options:

  • HLTC-190
Get Latest Price

Basic Info

Model No.
Brand Name
Condition New
Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works?, Energy & Mining, Food & Beverage Shops, Other
Showroom Location Indonesia, Thailand, Malaysia
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing type New Product 2020
Warranty of core components 1 Year
Core components Pump
Place of Origin Jiangsu, China
Brand Name Holly
Material wooden case, Ceramic
Weight 0.5-1.7kg
Size 380*105*28mm
warranty 1 Year
productivity 500l/Hour
Weight (KG) 1.5 kg
Product name Micro Bubble Diffuser
Color Blue White
Feature Easy Operation
Application water treatment
Brand Holly
Show More

Product description

Working Principle

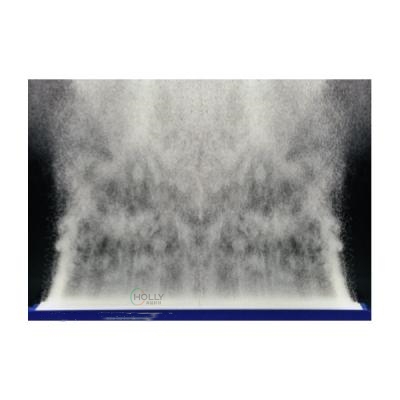

This product is a method to increase the total amount of gas dissolved in the liquid by increasing the contact area of gas and liquid. The gas passes through the very small pores of the microporous ceramic, and is dispersed in the liquid into many misty micro bubbles with a diameter between 0.05 and 0.5 mm. The gas is dissolved in the liquid during the floating of the microbubbles, to achieve the purpose of increasing a certain gas content in the liquid. The dissolution efficiency is directly proportional to the depth of the liquid. Because the micro bubble diffuser has a pressure resistance of 0.7Mpa, it can be used in liquids with a depth of less than 70 meters. In addition, the micro bubble diffuser only needs to be connected to a gas source with a pressure output greater than 0.1Mpa to work, without electric drive, so it is also suitable for use in occasions where stable power cannot be provided.
Technical parameters
Model
Dimensions
(cm)
Ceramic
Area
(cm2)
Best
Working
Pressure
(Mpa)
Max
Working
Pressure
(Mpa)
Max Under Pressure
(Mpa)
Flow Rate
(L/min)
Base
Material
N.W.
HLTC-190
L38*W8*H2.9
190
0.1-0.15
0.35
0.7
1.0~1.5L
Aluminum Alloy
1.5KG
HLTC-380
L70*W8*H2.9
380
0.1-0.15
0.35
0.7
2.0~3.0L
2.5KG

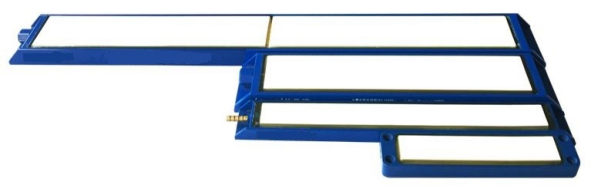

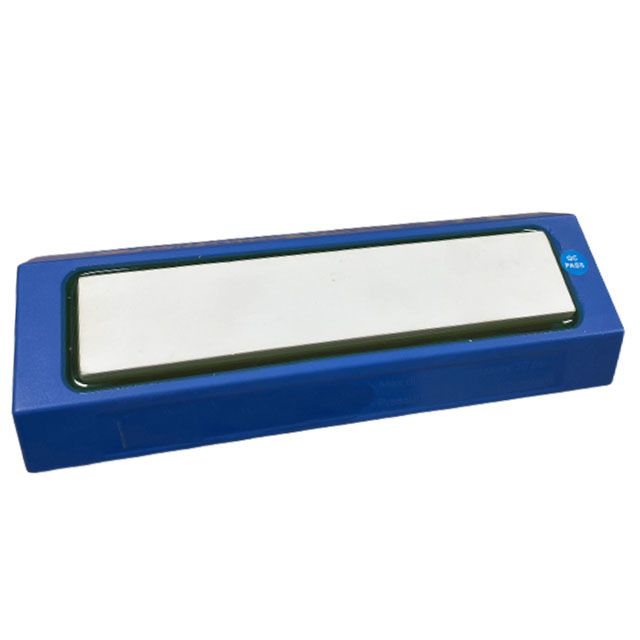

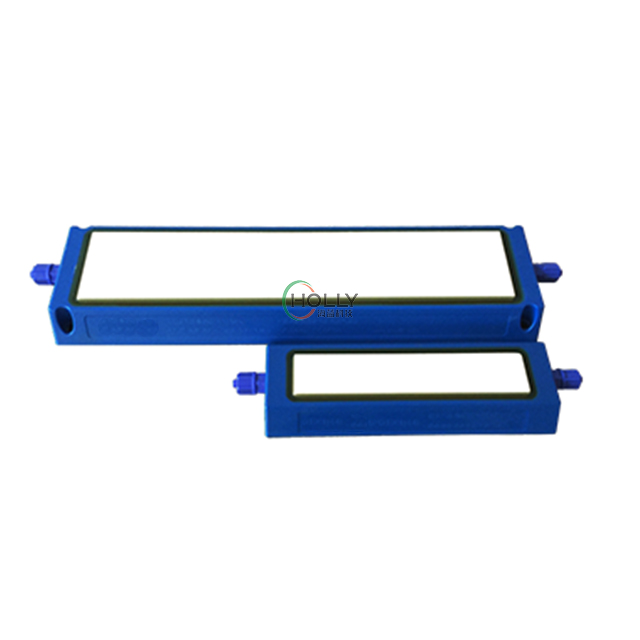

Different Models Show
Connection
12mm pagoda connector
8mm quick connector
Features
*High Oxygen Efficiency: Bubbles with diameter of 0.05~0.5mm, the oxygen transfer?rate is 35% at ?water depth of 1?meter, and it?increases by 5-8% every 0.5 meter increase in depth *High Pressure Endurance?: The ultimate pressure bearing capacity 0.7Mpa (kg/cm2), and there will never be a phenomenon that similar products will burst at 0.3Mpa pressure *High Utilization Rate: The oxygen transfer?rate is 3 to 5 times than Aero Tube, which saves 40 to 60% of gas, and the operating cost is the lowest in the world for similar products *Corrosion Resistance: All products are resistant to seawater. Corrosion-resistant, UV-resistant, and the service life is as long as 5-8 years without man made?damage *Easy Installation: Quick?connector which saves costs and is easy to install. Anyone can install without guidance. *Flexible Combination: Can be used alone or in combination *Low?Maintenance: Sanding with 80# sandpaper, it can be restored as before, easy to clean *High Energy Saving: No need to use electric power to drive, it can work normally with a pressure greater than 0.1Mpa *Wide Range Applications: Aquaculture oxygenation, reservoir oxygenation, water treatment system aeration

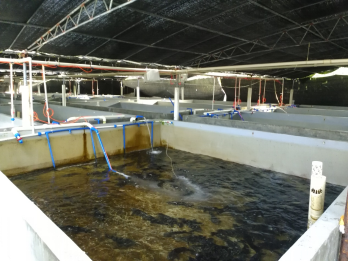

Applications

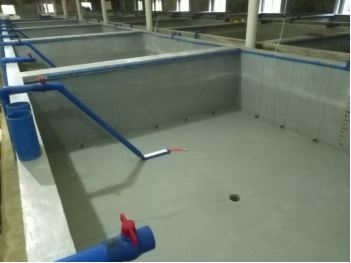

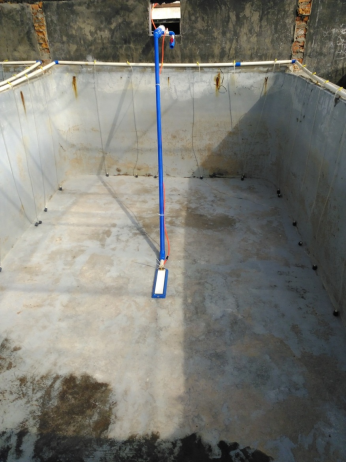

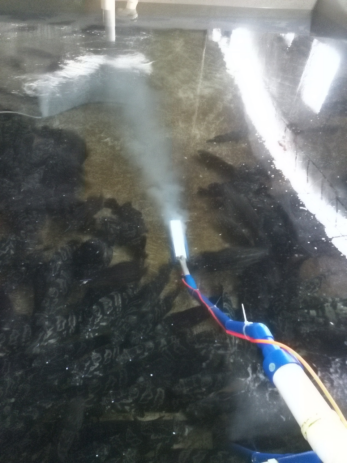

*RAS System : pure oxygen aeration, biological filter aeration, storage tank aeration *Flowing water aquaculture: pure oxygen aeration, storage tank aeration *Open pond aquaculture: pond aeration, emergency oxygenation in the feeding area * Amplification of microorganisms and microalgae: aeration and oxygenation *Others: denitrification, aeration
About Us
Yixing Holly Technology Co., Ltd
Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipment and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation
service of sewage treatment equipment.
