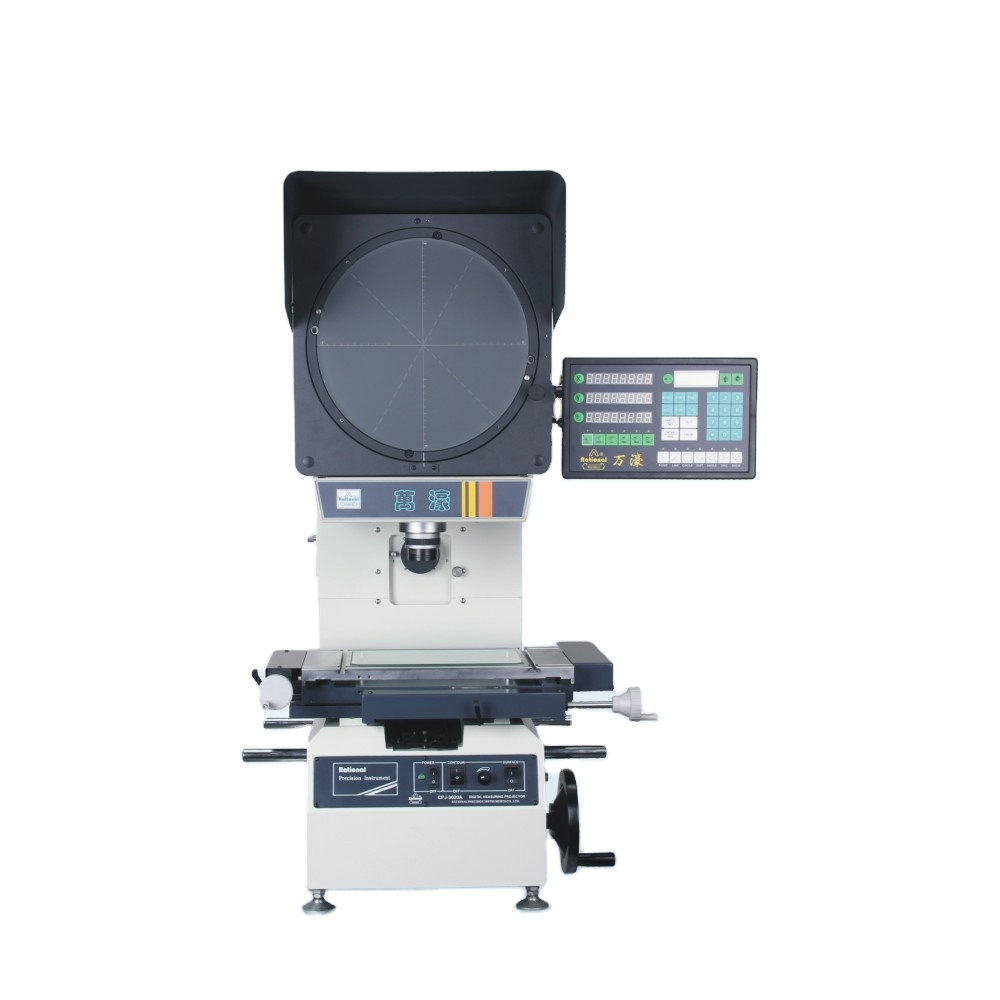

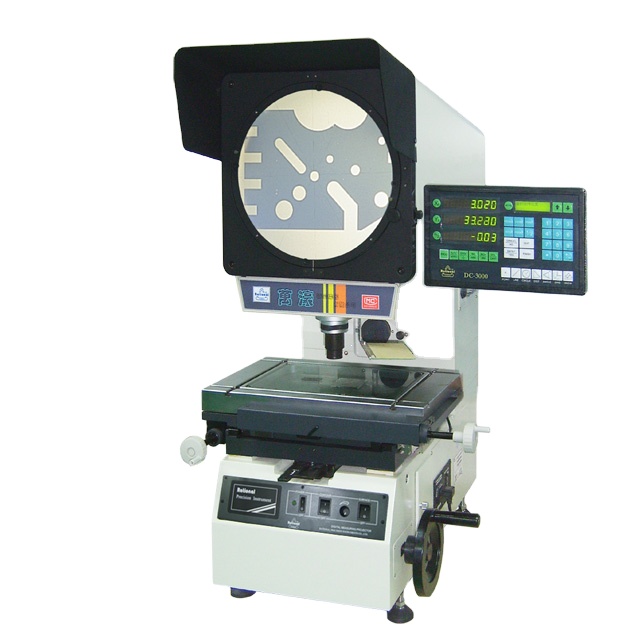

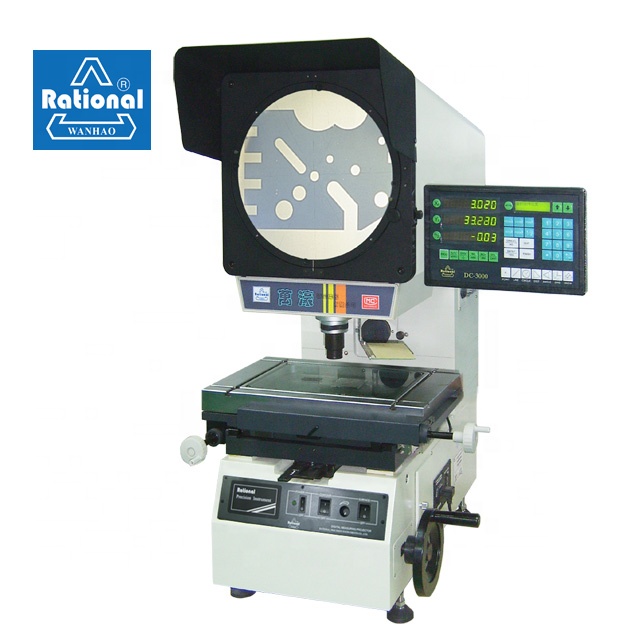

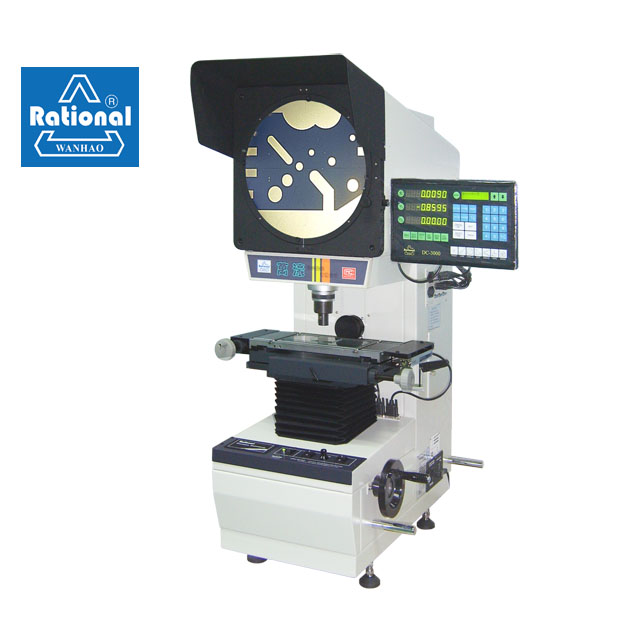

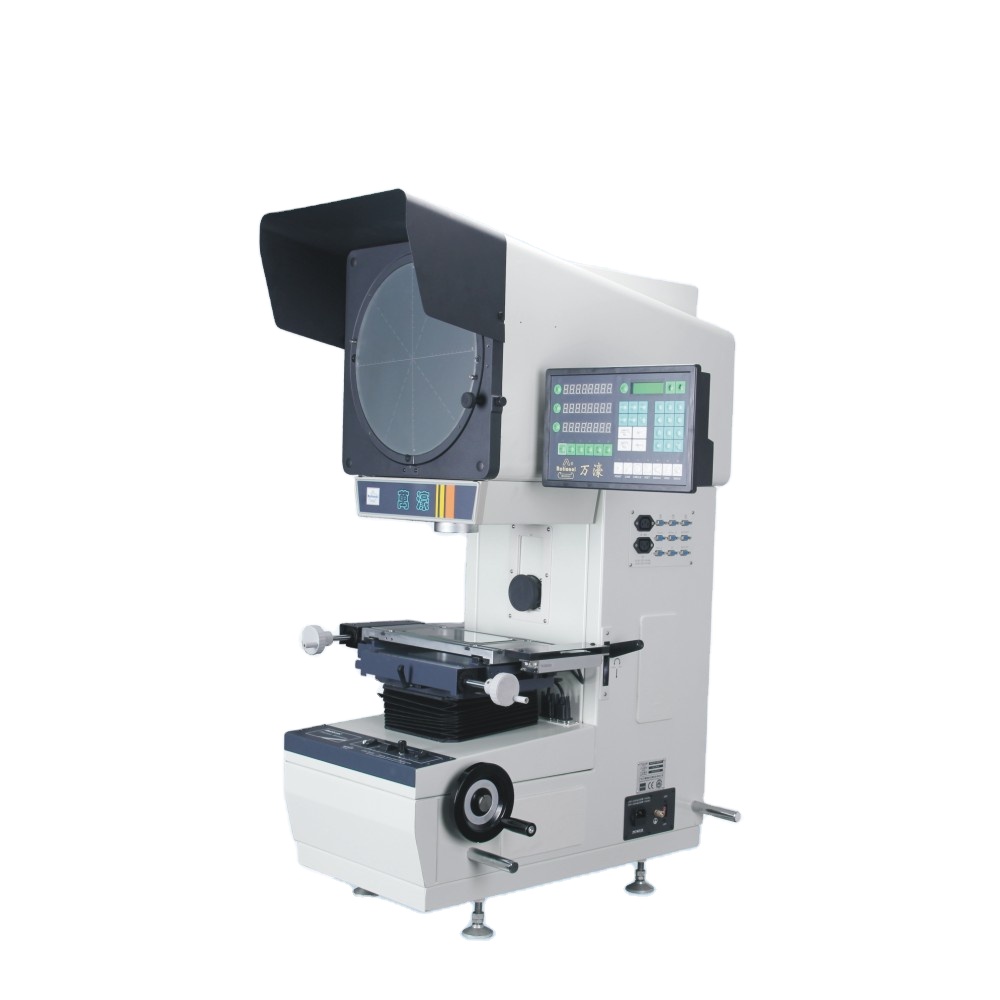

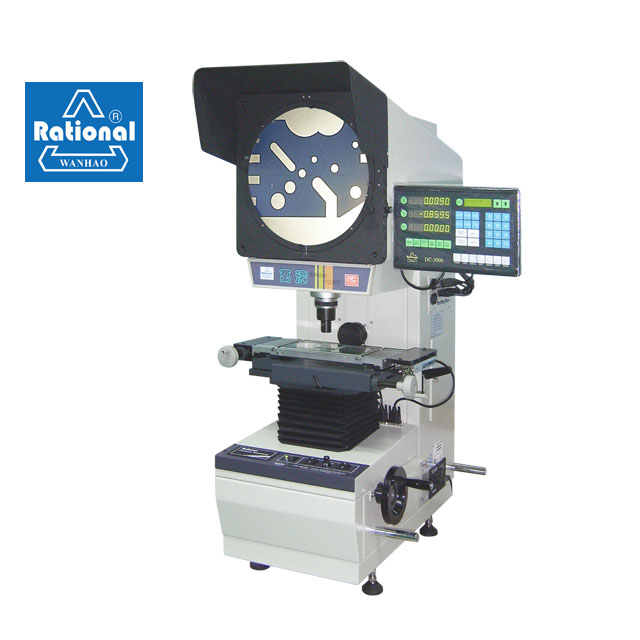

Rational Thread Profile Projector: Automatic Profile Projector & CMM Measuring Machine
$3459.00
~ $3859.00
/ set
Options:
- CPJ-3010
- CPJ-3010Z
- CPJ-3015
- CPJ-3015Z
Get Latest Price
You might also like
$2350.00
1 set (MOQ)
$4100.00
1 set (MOQ)
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm, Obm |
| Place Of Origin | Guangdong, China |
| Brand Name | Rational |
| Model Number | CPJ-3000 |
Show More
Product description
Products Description
Model | Reverse image Erect image | CPJ-3007 CPJ-3007Z | ? ? ? ? ? ? ? CPJ-3010? ? ? ? ? ? ? ? ? CPJ-3010Z | ? ?CPJ-3015? ? ? ? CPJ3015Z? ?? | |||||||
Metal table size (mm) | ?260*152 | ? ? ? ? ? 306*152 | 340*152 | ||||||||
Glass table size (mm) | ? ? ? ? ? ? ? 125*100 | ? ? ? ? ? 175*100 | ? ? ? ? ? ? ? 196*96 | ||||||||
X-axis Travel (mm) | ? ? ? ? ? ? ? ? ? 75 | ? ? ? ? ? ? 100 | ? ? ? ? ? ? ? ? ?150 | ||||||||
Y-axis Travel (mm) | ? ? ? ? ? ? ? ? ? 50 | ? ? ? ? ? ? ?50 | ? ? ? ? ? ? ? ? ? 50 | ||||||||
Z-axis Travel (mm) | 90(Focusing) | ||||||||||
Indication error (mm) | E1XY=(2.5+L/100) | E1XY=(2.5+L/100) | E1XY=(2.5+L/75) | E1XY= (3.0+L/50) | |||||||
Resolution (μm) | ?0.5μm | ||||||||||
Dimension (mm) | ? ? ? ? ? ? ? 770*550*1100 | ? ? ?770*550*1100 | ? ? ? ? ? ?770*550*1100 | ||||||||
Weight (kg) | ? ? ? ? ? ? ? ? ? ? ?120 | ? ? ? ? ? ? ?125 | ? ? ? ? ? ? ? ? ? ? 130 | ||||||||
Projector screen | Size (mm) | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?312? ? ? ? ? ? ? Worktable range > ?300 (crosshairs) | |||||||||
Rotary range | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?0~360° | ||||||||||
Resolution | ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 1' or 0.01° | ||||||||||
Optional 10X,20X,50X or 100X objective lens
Magnification | 10× (Optional) | 20× (Optional) | 50×(Optional) | 100× (Optional ) | ||||
Field of view (mm) | ?30 | ?15 | ?6 | ?3 | ||||
Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||||
Max. measuring Height (mm) | 80 | 80 | 80 | 80 | ||||
Power supply: AC 100-240V 50/60Hz. Total power: 400W | ||||||||
Q: Are your company a trading one or a factory ?
A: We have our own factory and we set up in China by technical guys from Taiwan in 1990s, has now grown to be a dominating supplier for Linear Scales, Video Measuring Systems, Profile Projectors in China, Korea and Vietnam and a main supplier in many other countries in Asia. for more options (in order to make the business more simple) for more than 24 years focusing on test instruments field and 18 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome fromall of you as long as you confirm us with your requirement.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the
required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate
to tell us your requirement, we will do our best to meet your needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up
you from airport.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's
necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and
debugging-packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out -Customer
Receiving - After Service.
Q: How to install and use the product?
A:About the profile projector you get from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the
required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate
to tell us your requirement, we will do our best to meet your needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up
you from airport.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's
necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and
debugging-packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out -Customer
Receiving - After Service.
Q: How to install and use the product?
A:About the profile projector you get from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
After-sale service
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final pricewith customer.
3)Order process:
3)Order process:
We offer below business term: | ||||||||
Accepted Delivery Terms | FOB, CFR, CIF, EXW, DDP | |||||||
Accepted Payment Currency | USD, EUR, HKD, CNY | |||||||
Accepted Payment Type | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow | |||||||
Nearest Port | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired | |||||||
4)Production and delivery process:
We will produce the profile projector according to confirmed PO requirements. Offering photoes to show production process. After finish production, offer photoes to customer to confirm again with the video measuring machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the video measuirng systems in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
