Introduction


This machine is specialized in order to adapt to the characteristics of rubber production technology research and development of a new generation of refining mill.It has high adaptability to the reclaimed rubber,high output,high quality.It also has the characteristic of effective energy saving,low noises and excellent environmental protection performance with a high ratio of output to input.


Characteristic

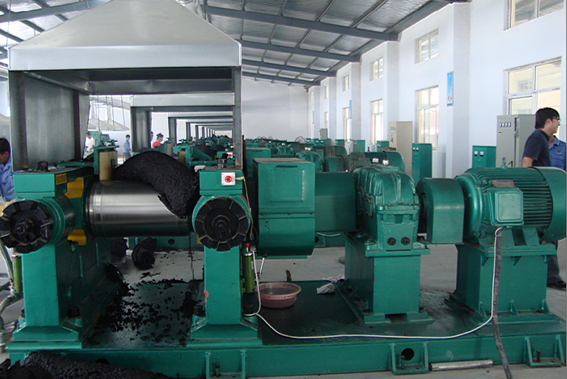

Refining mill is used to remove hard impurities contained in reclaimed rubber. The front and rear rolls surface are smooth, just like a waist drum shape. Refining machine when in operation, can crush hard impurities contained in the rubber from the roller center to ends, gathered on the film even edge, and then used a knife to remove the impurity glued on the edge.

Model Number			MRM480
diameter and length of the roller face(mm)			(frontφ480backφ510) x800/900
friction ratio			1:1.5(1.3)
Power(KW)			55
one time feeding quantity(kg)			10~30
machine weight(T)			9600
overall dimension(mm)			5300X2300X1700
