A stretch film wrapper is a type of equipment used to package goods, employing stretch film to tightly envelop items, offering protection, cushioning, and ease of handling. Stretch film conforms to the shape of the products, saving space, and reducing packaging material.

Advantage

Vertical stretch film outside pallet on 5 sided, pallet height automatic detection.

Each motorized command is controlled by impulses, instead each pneumatic command is controlled on position that guarantees automatically a maximum reliability.

All necessary data for the handling of the machine (as speed, times...) can be changed from the control board by, authorized stuff.

All manual process are linked together in order to avoid mechanical collisions even when precise knowledge of the machines operations is unknown.

Waterproof and Dust-proof complete protection of the load on pallet.

Less stretch hood material to secure your loads on pallet – we can run 20 micron film thickness.

No damages on vertical edges – stretch hood technology is applied from top to the bottom – we don’t squeeze the load, but we improve its stability thanks to our vertical, traverse and longitudinal stretch.

Only 1 single layer of material to cover 5 sided of the pallet load.

Possibility to run with transparent stretch hood film, stretch hood film with colors, stretch hood film with printed logo and images for marketing purposes and product identification.

No need heating sources.

Recyclable film.

Less operations downtime – long lasting reel without change of consumable and intervention of operator.

Possibility to detect automatically length, width and height of loads and pallet.

Easy handshaking with existing equipment.

User-friendly HMI.

Vertical machine and easy accessibility of all parts of the equipment.

No need of lifting inside for the products to be hooded for a stretch hood delivery under the wooden pallet.

Flexible system - different programs for different stretch hood finishing and pallet packaging.

Possibility to fit irregular loads on pallet.

Opening film system with suitable frame put under the welding bar.

Definite grip of the hood for the insertion in the gathering contrivance for curling and extension.

Mechanical film curling by gummed wheels.

Shape control during capping action.

Strong construction where each element of the machine has been tried and is safe in its running process.

Central structure having four painted steel tubular.

1 brackets supporting film’s coils max. 700/1000 mm.

Automatic unit to unroll film by gummed rollers.

Horizontal frame supporting a welding bar and a cutting bar, cutting operated by a piston.

4 arms with mechanical opening system working with 4 grippers activated by 2 pneumatic cylinders.

Trolley arms opening and closing controlled by inverter,

Electric control board PLC.

Technical parameter

Packaging efficiency: 30-50pallets/H

Packing height: 1000-2500mm

Packing layers: 1 layer

Conveyor height: 650mm (to be provided by customer)

Stretch hood efficiency: 170mm/s

Total power consumption: about 20kw

Outer dimension: L3700*W4700*H4400(subject to final design)

Power supply: 380V/3P/50HZ

Compressed air consumption: 10L/min

Air pressure: 0.5-0.8MPa

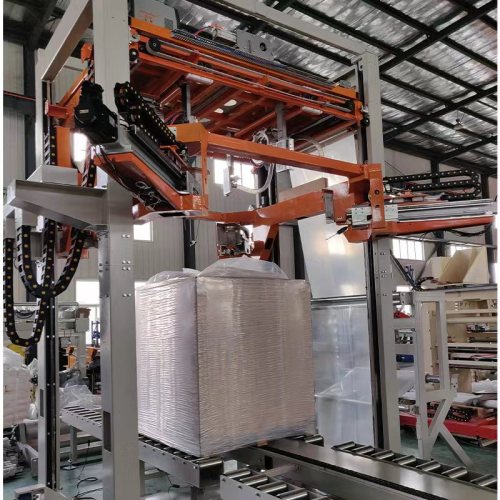

Goods after wrapping:
