Reverse circulation drilling rig drilling water well machine

1 / 3

Reverse circulation drilling rig drilling water well machine

$50000.00

≥1 Set/Sets

Get Latest Price

You might also like

Geological exploration underground RC drilling rig

1 Set/Sets (MOQ)

High drilling efficiency inner outer drilling rods machine

1 Set/Sets (MOQ)

Hydraulic water well RC rotary drilling rig forsale

1 Set/Sets (MOQ)

Surface crawler drill rig reverse circulation for sale

1 Set/Sets (MOQ)

Surface crawler rig reverse circulation rotary drilling rig

1 Set/Sets (MOQ)

Geological exploration underground RC crawler drill rig

1 Set/Sets (MOQ)

Reverse circulation rotary surface crawler drilling rig

1 Set/Sets (MOQ)

Hydraulic water well reverse circulation drilling rig

1 Set/Sets (MOQ)

300RC Hydraulic reverse circulation rotary drilling rig

1 Set/Sets (MOQ)

Reverse circulation Drilling Pipe for RC drilling machine

1 Set/Sets (MOQ)

Basic Info

Model No.	YKRC-series
Brand Name	YikYui
Where to provide local services (in which countries are there overseas service outlets)	South Africa, Bangladesh, Morocco, Saudi Arabia, Turkey, Canada, Peru, Australia, Romania, Tajikistan, Sri Lanka, Malaysia, Brazil, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Algeria, Colombia, Uae, Chile, South Korea, Argentina, Kenya, Indonesia
Certification	Other
Condition	New
Drill Hole Diameter	>300mm
Drill Hole Depth	>150m
Bit Type	Cone Bit
Drilling Way	Rotary
Type	Other

Product description

YKGL-150RC reverse circulation drilling rig drilling water well machines

RC reverse circulation drilling rig for zinc iron copper plant survey with rock hammer drill

YKGL-Reverse Circulation drilling rig is full hydraulic top drive type crawler drilling rig which is independenty developed by our R&D team. It can be used to mining investigation, geological investigation, borehole for water well and observation well, borehole drilling for GSHP system and so on.

Reverse Circulation drilling rig for water well investigation,mineral ores survey

Reverse Circulation Water Well Drilling Rig

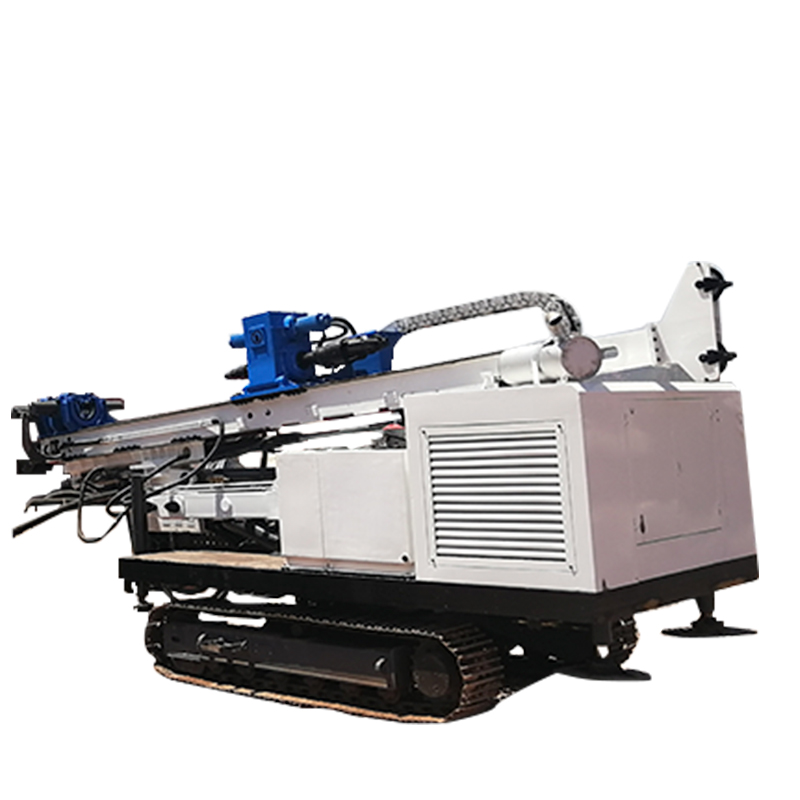

Crawler Drill Reverse Circulation Rotary Electric Drilling Rig 2

Technical Parameter for YKGL-150RC Reverse Circulation Water Well Drilling Rig

Model		YKGL-150RC
Borehole Depth		150m
Borehole Diameter		Φ110-Φ250mm
Drill Angle		-10~90°
Horizontal Hole Height		1.85-2.8m
Drill Head Rotary Speed(FR/RE)		30/60rpm; 54/108rpm; 62/124rpm; 105/210rpm
Max Output Torque of Drive Power Head		8000Nm
Drill Head Feeding Stroke		3500mm
Drill Head Max. Lifting Force		65KN
Drill Head Max. Thrust Force		45KN
Assistant Hoist Max Lift Force		11KN
Engine Model	Diesel	6BTA5.9-C125
	Electromotor	Y250M-4 + Y180L-4
Engine Power	Diesel	125KW/2200rpm
	Electromotor	55KW+22KW/1500rpm
Overall Dimension(Drill Reduce Type)		6750×2200×2950mm
Drilling Rig Weight,appx.		9000kg

Reverse Circulation Drilling Rig, The reverse circulation water well drilling rig is turnable rotary drilling rig which is mainly applied to hydrogeological exploration and other projects with holes.

Any request on our technical support and need online communication, just go Emailing or texting us for smoother response freely!

Here you go with 24 hours quotation, custom-made parts, processing flow design & optimization, one year warranty, on-site installation service. Contact Yikyui team by Email or Whatsapp# +86 13298164330 at any time!
