Surface crawler rig reverse circulation rotary drilling rig

1 / 5

Surface crawler rig reverse circulation rotary drilling rig

Get Latest Price

You might also like

Geological exploration underground RC drilling rig

1 Set/Sets (MOQ)

High drilling efficiency inner outer drilling rods machine

1 Set/Sets (MOQ)

Hydraulic water well RC rotary drilling rig forsale

1 Set/Sets (MOQ)

Surface crawler drill rig reverse circulation for sale

1 Set/Sets (MOQ)

Surface crawler rig reverse circulation rotary drilling rig

1 Set/Sets (MOQ)

Geological exploration underground RC crawler drill rig

1 Set/Sets (MOQ)

Reverse circulation rotary surface crawler drilling rig

1 Set/Sets (MOQ)

Hydraulic water well reverse circulation drilling rig

1 Set/Sets (MOQ)

300RC Hydraulic reverse circulation rotary drilling rig

1 Set/Sets (MOQ)

Reverse circulation Drilling Pipe for RC drilling machine

1 Set/Sets (MOQ)

Basic Info

Model No.	YKRC-series
Brand Name	YikYui
Certification	Other
Condition	New
Drill Hole Diameter	>300mm
Drill Hole Depth	>150m
Bit Type	Cone Bit
Drilling Way	Rotary
Type	Other

Product description

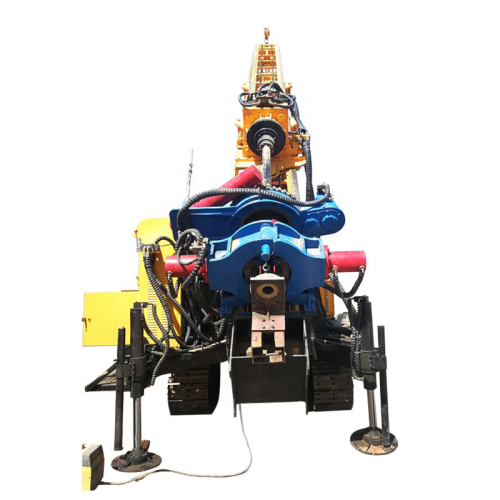

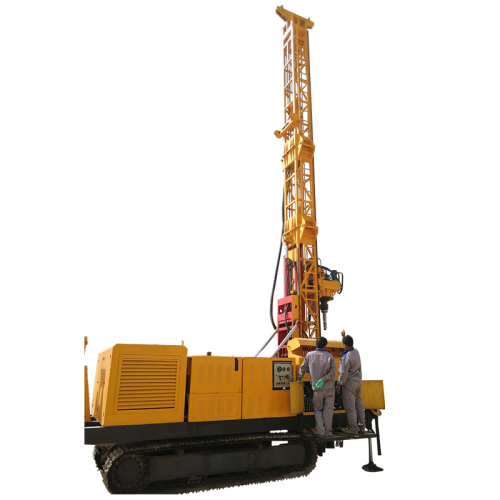

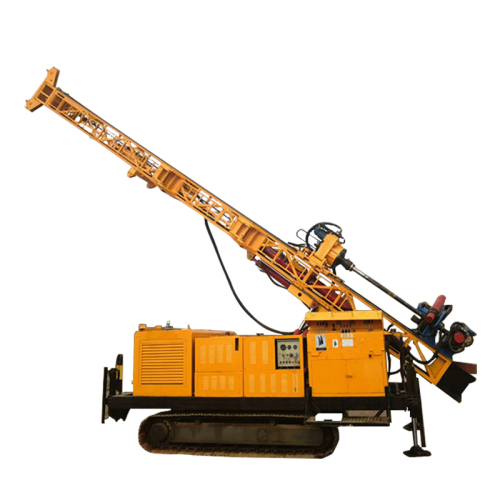

Surface crawler drilling rig reverse circulation rotary drilling rig

Inner and outer drilling pipes machine for water well DTH hammer impactor drill

YKGL-Reverse Circulation drilling rig is full hydraulic top drive type crawler drilling rig which is independent developed by our R&D team. It can be used to mining investigation, geological investigation, borehole for water well and observation well, borehole drilling for GSHP system and so on.

Reverse Circulation Rotary Drilling Rig 4

Technical Parameter for YKGL-300RC Reverse Circulation Water Well Drilling Rig

Model		YKGL-300RC
Borehole Depth		300-500m
Borehole Diameter		Φ150-Φ250mm
Drill Angle		-10~90°
Drill Head Rotary Speed(FR/RE)		35/70rpm; 57/114rpm;
Max Output Torque of Drive Power Head		10000Nm
Drill Head Feeding Stroke		7000mm
Drill Head Max. Lifting Force		160KN
Drill Head Max. Thrust Force		100KN
Main Hoist Lift Capability		70KN
Assistant Hoist Max Lift Force		20KN
Pipe-twisting machine	Output Rotary Speed	40rpm
	Max Output Torque	30000Nm
Engine Model	Diesel	6BTA5.9-C132
		132KW/2000rpm
Overall Dimension(Drill Reduce Type)		7650×2250×3217mm
Drilling Rig Weight,appx.		12000kg

Any request on our technical support and need online communication, Emailing or texting us for smoother response freely!

Here you go with 24 hours quotation, custom-made parts, processing flow design & optimization, one year warranty, on-site installation service. Contact Yikyui team by Email or Whatsapp# +86 13298164330 at any time!
