RF Signal Source Module Product Description

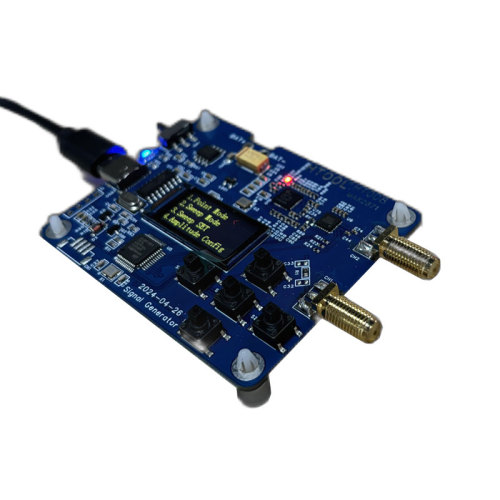

Adopts MAX 2871, master GD 32F303, 0.96-inch (90*160) OLED screen, and CH 340 G support USB to serial port (need to install driver) communication. Can be used with handheld spectrum analyser.

Signal Source Modules features（square wave、sawtooth wave）:

(1) Generates sine waves with frequencies from 23.5 MHz to 6000 MHz;

(2) Frequency resolution up to 78 Hz (less than 46 MHz);

(3) Extremely low phase noise-111 dbc @ 3 GHz: 100 KHz.

(4) Dual channel signal output:

Channel 1: 4-position range: -4 dbm, -1 dbm, 2 dbm, 5 dbm.

Channel 2: 11-position range: -15 dbm to 25 dbm.

(5) Supports sweep and spot frequency operation modes;

(6) Built-in USB serial port communication

(7) Support serial commands, can be used as a module to support secondary development

(8) support USB serial port control sweep frequency point frequency and other operations

Support USB power supply and 5V 1A lithium battery power supply.
