RFID Reader Writer and Animal Tag Scanner: T5577/EM4305 134.5kHz Device
Basic Info
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | SYC |
| Model Number | S-JR-R2D |
| Frequency | 125khz/134.2khz |
| Support | T5557, ATA5567, TA5577, EM4205, EM4305 etc |
Product description
T5577/EM4305 rfid reader writer 134.5khz animal tag scanner
?
?Specifications of?125khz/134.2khz rfid reader/writer:?
?
Item | Parameters |
Model | S-JR-R2D |
Frequency | 125Khz & 134.2Khz |
Support cards | T5557,ATA5567,ATA5577,EM4205,EM4305?etc |
Size | 104mm×68mm×10mm |
Colour | Black |
Interface | Virtual serial port(USB to RS232) |
Power Supply | DC 5V |
Operating Distance | 0mm-50mm(related to the card or the environment) |
Service Temperature | -10℃ ~ +70℃ |
Store Temperature | -20℃ ~ +80℃ |
Working humidity | <90% |
Read time | <200ms |
Read interval | <0.5S |
Weight | About 140G |
Cable length | 1400mm |
Material of reader | ABS |
Operating System | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
Indicators | Double Color LED (Red & Green) and Buzzer |
?
Instructions for use and Precautions:
Step 1 ?Please install the virtual serial port driver for the first time(Driver name is PL2303);
Step 2 ?Connect with computer through USB interface directly. When the buzzer sounded, Device into the self-inspection. And the same time, green light turn into red means standby.
Step 3 ?Openning the Demo(RFID_APP_EN.exe) and Writing the data by self.
?

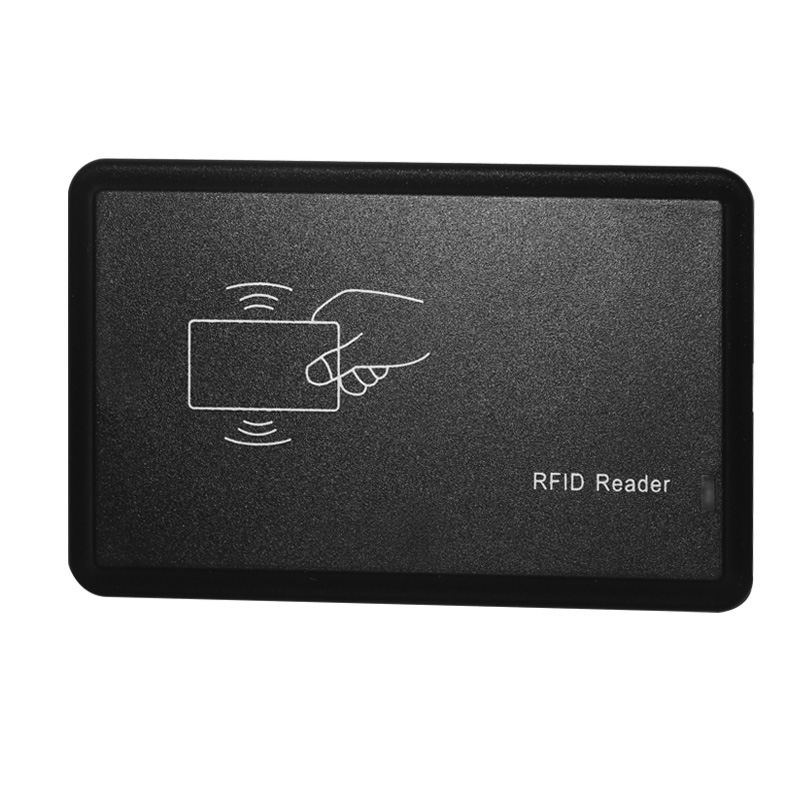

Pictures?of 134.2khz animal tag reader writer:?
Shipment:?
?
?
?
?
Shenzhen Sycreader RFID Technology Co., Ltd?was?established in 2008,has focused on RFID Industry about 10 years.Our main products have RFID?125KHz RFID Card Reader,134.2KHz RFID Reader,RFID Reader?13.56MHz,RFID?UHF Reader,RFID Handheld Reader,RFID antenna,Tags RFID?and?RFID solution?etc.
After 10 years of development,we have formed a complete set of production and marketing mode;the?professional R&D team and Sale team.The products which were produced?by SYCreader with High quality and competitive price,has won a good reputation.
Look forward to establish friendly and mutually beneficial partnership with you.
?
