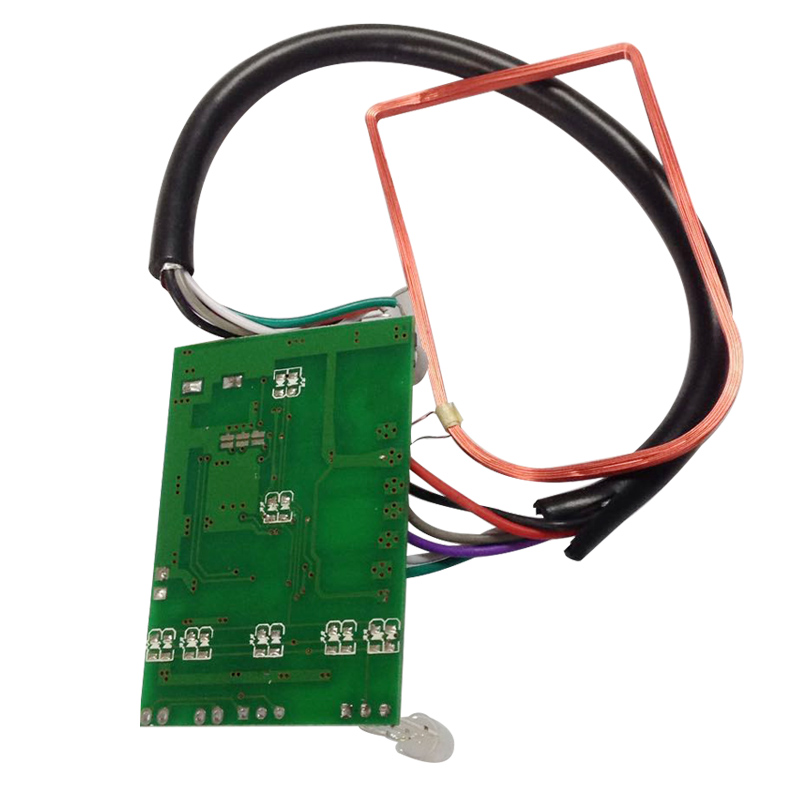

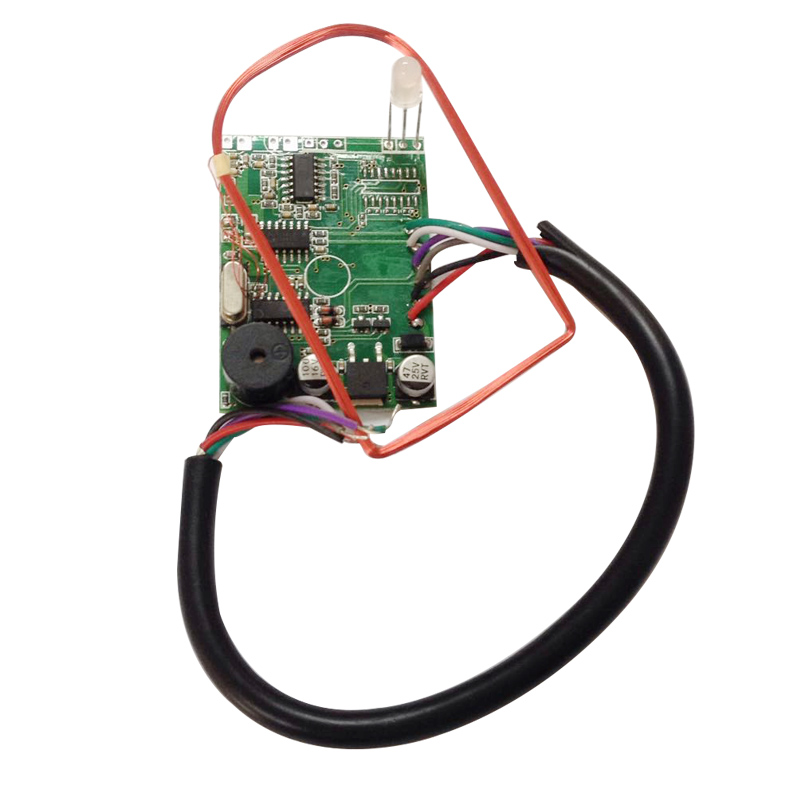

RFID 125KHz Read-Only Reader Module with Wiegand 26/34 Interface: The Ultimate Access Control Solution
Basic Info
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | Sycreader |
| Model Number | D1DL |
| Power supply | DC 12V |
| Working current | 100mA |
Product description
More Recomend:
125khz rfid reader???rfid reader 134.2khz? ??13.56mhz rfid reader???uhf rfid reader? ??2.4ghz rfid reader???handheld rfid reader? ??rfid reader module???rfid antenna? ??rfid tags???RFID solution
?
?
?
rfid 125Khz read only reader module with Wiegand 26/34
?
?Parameter List
?
Item | Parameter |
Frequency | 125Khz |
Support Cards | EM4100/TK4100.etc |
Working Voltage | DC 12V |
Working Current | 100mA |
Interface | Wiegand 26/34 |
Distance of?transmission | WG26/34≥100M |
Read??range | 0mm-100mm?(related to the card or the environment) |
Storage?Temperature | -20℃ ~ +80℃ |
Working?Temperature | -10℃ ~ +70℃ |
Size | 51mm*37mm*1mm |
weight | 20G |
Lead Length | 180mm±5mm |
Indicators | Double Color LED (Red & Green) and Buzzer ?(“Red” means standby, “Green” means reader success) |
?
Wiring definition
Black | GND | Red | VCC(12V) |
Purple | Wiegand 26/Wiegand 34(The output format is WG34 when purple line connect with black line) | Grey | Green light and buzzer long ring |
White | Wiegand D1 | Green | Wiegand D0 |
?
D1DL?reader module,widely used to access control system,attendance system,anti-theft system,warehousing system,metroetc.
?
?
?
?1.About 10 years experience of manufacturing RFID products,professional R&D team,to provide you more solutions.
2.Professional sales team,to provide you with professional troubleshooting,we will response to your question within 24 hours.
3.For shipping,besides Express(DHL,Fedex,UPS,TNT etc.),by Sea and By Air,deliver the goods to your forwarder can also be accepted.
4.For payment,we can accept T/T,Western Union and Alibaba Secure Payment etc.
?
Shenzhen Sycreader RFID Technology Co., Ltd?was?established in 2008,has focused on RFID Industry about 10 years.Our main products have RFID?125KHz RFID Card Reader,134.2KHz RFID Reader,RFID Reader?13.56MHz,RFID?UHF Reader,RFID Handheld Reader,RFID antenna,Tags RFID?and?RFID solution?etc.
After 10 years of development,we have formed a complete set of production and marketing mode;the?professional R&D team and Sale team.The products which were produced?by SYCreader with High quality and competitive price,has won a good reputation.
Look forward to establish friendly and mutually beneficial partnership with you.
?
