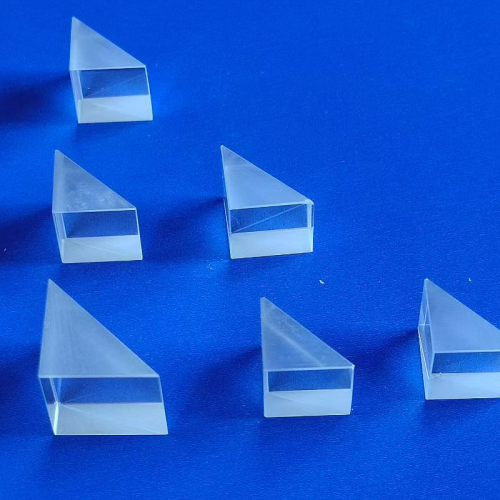

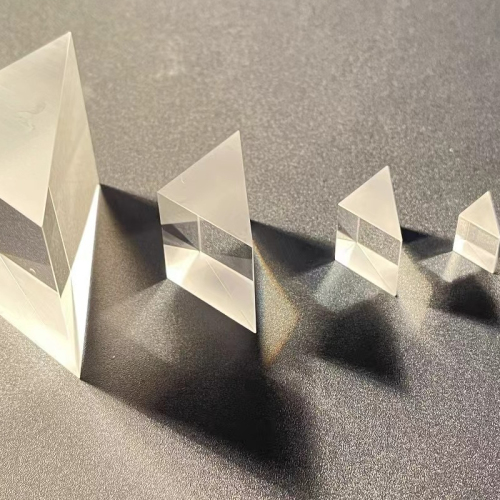

Right Angle Prism, Rectangular Prism
$6.80
~ $58.00
/
Get Latest Price
You might also like
Basic Info
| Model No. | RAP-CCRQ |
|---|
Product description
Right Angle? Prisms are designed to reflect light at a 90-degree angle, making them ideal for redirecting light paths without the need for additional components.
?
A right angle prism, also referred to as a right angular prism, is a three-sided optical element with one 90-degree angle and two other angles that complete the triangle. When light enters one face, it reflects off the second face at a 90-degree angle before exiting through the third face.?
?
The right angle prism mirror finds extensive use in fields such as astronomy, medical imaging, and engineering. In telescopes and spectrometers, it helps in directing light paths efficiently, improving the overall system performance. In optical communication systems, it plays a crucial role in signal routing and beam management. Additionally, it is widely in laser cutting, engraving, and alignment tools where precise control over light is essential. In industrial settings, the right angle glass prism also used in quality inspection systems and automated machinery to ensure accurate measurements and positioning.?
?
A right angle prism mirror is an optical device with a 90-degree angle that redirects light using total internal reflection. It is commonly used in applications requiring precise light manipulation and enhanced reflection demand. How does a right angle glass prism work? When light enters one face of the prism, it reflects off the second face at a 90-degree angle and exits through the third face
?
Depending on the manufacturer, some models offer customization options in terms of size, shape, and material to meet specific requirements.
?
Right Angle Prism Features
?
Deviate Beam or image by 90° or 180°
Substrate:K9, UV Fused Silica, CaF2, Znse, Silicon Crystal Silicon, Sapphire, N-SF11, N-SK18,N-LAL8? all kinds of high quality and environment- protection optical glass
AR Coating: on Hypotenuse or two legs accordingly customer options
Painted Black or not as request
?
Processing Requirements
?
| Material | all kinds of high quality and environment- protection optical glass?K9, UV Fused Silica, CaF2, Znse, Silicon Crystal Silicon, Sapphire, N-SF11, N-SK18,N-LAL8, ZF4 |
| Size Range | 5-400mm |
| Size tolerance(mm) | +/-0.1( commercial grade), +/-0.01-+/-0.05 (high precision) |
| Clear Aperture? | >95% |
| Surface Quality | 40/20 |
| Anlge Tolerance | +/-5' (commercial grade), 10''-30''(high precision) |
| Surface Accuracy | lambda/4 |
| Coating | AR coating and metallic and dielectric coating in UV,VIS,IR as choice |
| Others special shapes | multi-glue, cut the corners and edges, step and drilling |
?
More Related Product Display
?
?
Video

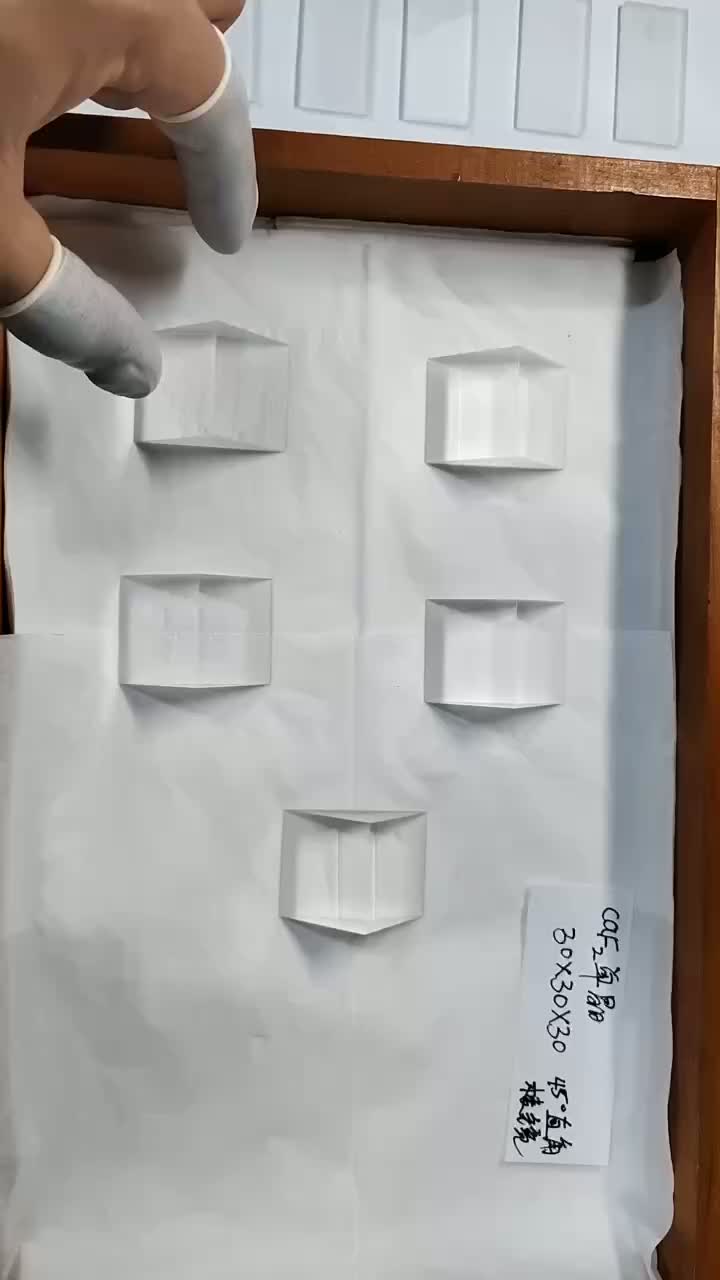

CaF2 Prism and Window
