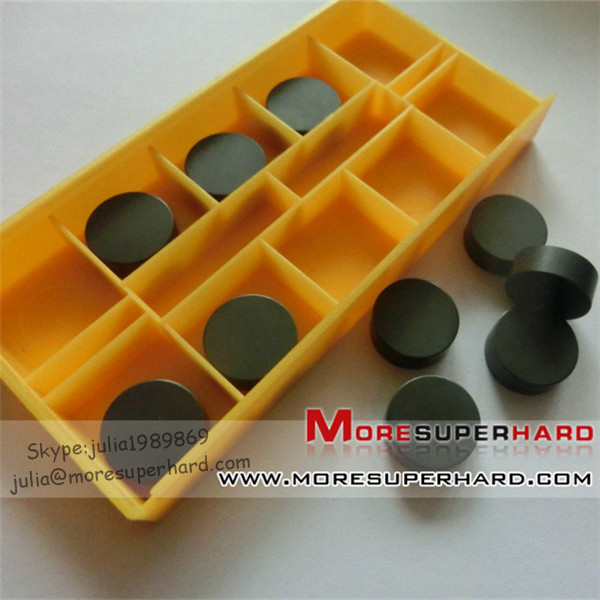

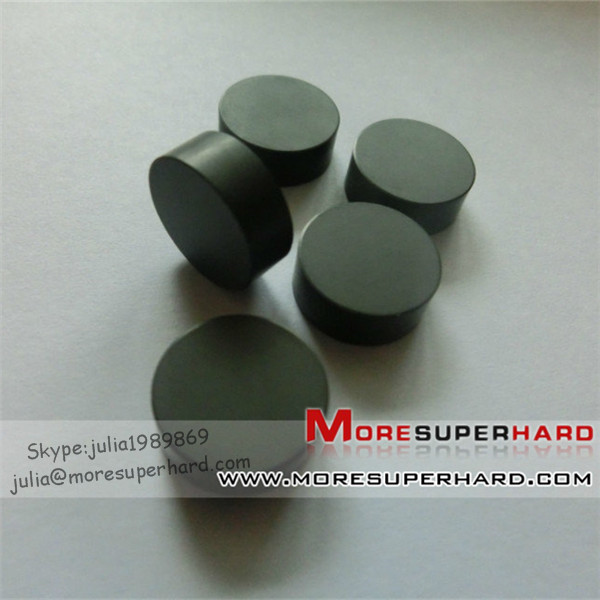

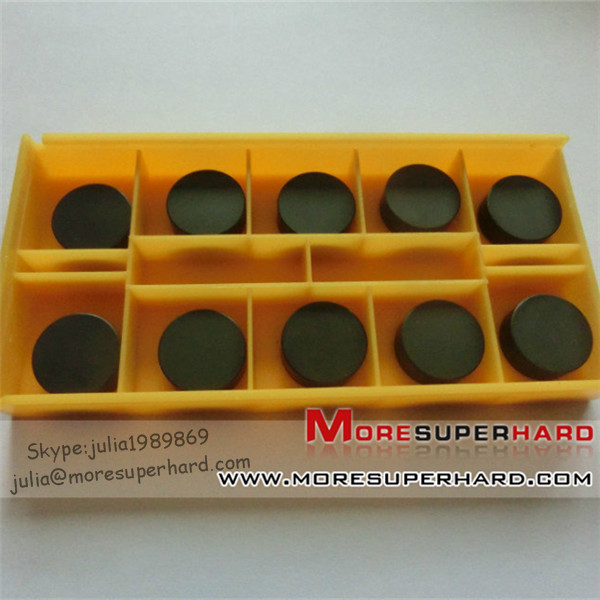

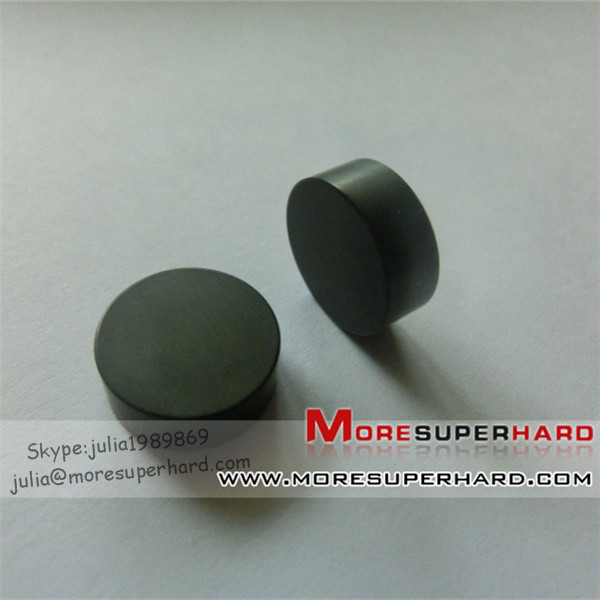

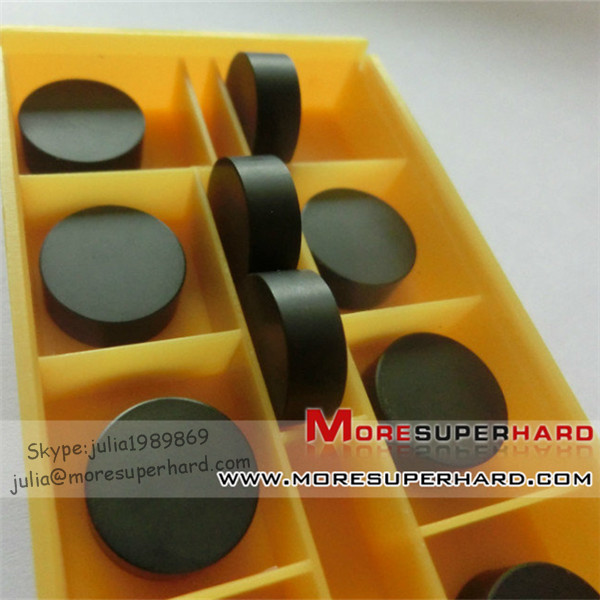

RNMN Solid CBN,Solid CBN tips-skype:julia1989869

PCBN is made by high pressure high temperature sintering of cubic boron nitride with a binder pahase, and there are mainly tow groups of binders, namely metal binder and ceramic binder. CBN and diamond are very similar in crystal structure, chemical bond and lattice parameters, thus they perfotm quite similar hardness and strength,. In cutting applications, the wear resistance of PCBN exceeds 50 times that of tungsten carbide.

Application

PCBN is typically recommended to machine ferrous materials such as hardened steel components over the range 45 to 70HRc and grey cast irons. The material combines high hot hardness, chemical stability and abrasion resistance to provide an effective solution for machining these very different work-piece materials.

Usages:

1. PCBN blades are mainly using in processing of hardened steel whose hardness is of HRC50-60. such as: carbon tool steel, bearing steel, die steel, high-speed steel and so on. It also using in processing of gray cast iron, ductile iron, chilled cast iron, and other high temperature alloy and so on.

2. PCD tools are using in cutting of non-ferrous metals (such as copper, aluminum, magnesium, etc.) and non-metallic materials (such as fiberglass, ceramics, reinforced plastics, etc.)

Products feature:

1. PCBN cutting tools, which also known as cubic boron nitride(CBN) blade, has high hardness and excellent thermal stability.

2. PCBN inserts` cutting temperature can reach 1300°C.

3. PCD tool, also known as polycrystalline diamond blade, has high hardness, excellent wear resistance, low friction coefficient, and excellent thermal conductivity.

Specification:
SNGN0903XX
SNGN0904XX
SNGN1204XX
SNGN1207XX
SNGN1507XX
SNGN1907XX
SNGN2509XX
SPGN0903XX
SPGN1204XX
SPGN1504XX
TNGN1103XX
TNGN1604XX
TNGN2207XX
TPGN1103XX
TPGN1603XX
FNGN1307XX
FNGN1707XX
CNGN1204XX
CNGN1207XX
CNGN1604XX
CNGN1607XX
RNGN090400
RNGN120400
RNGN120700
RNGN150700
RNGN190700
RNGN190900
RNGN250900
RNGN251000
RBGN090400
RBGN120700
