The Hole Opener Advantage
This solid body design virtually eliminates cutter flex, maximizing the energy directed to fracturing rock. Engineered to withstand the high rotational torque and pull forces required to fracture harder rock, a smooth running Hole Opener with high penetration rates.

Larger Holes with Smaller Rigs - By drilling a hole in stages, larger holes can be drilled with smaller rigs. A smaller hole requires less power.
Replacing Cutters and Cutting Cost - On most Hole Opener designs, the cutters can be easily replaced. The cost to replace a cutter is a fraction of the cost to replace a large tricone rock bit.
Cost of Large Rock Bits - Larger diameter rock bits not only cost a lot, they can be difficult to find. A more economic solution is to use a hole opener that uses smaller tricone rock bit segments.
Flexability - Hole Openers can be fabricated in just about any size, and can be configured to drill through any formation.
Operational Considerations
Drilling Weight - The choice of drilling weight is determined based on the recommendations of the bit manufacturer and the number of cutters on the hole opener.

Rotary Speed - Maximum speed is determined by the manufacturer's recommendation and the calculation to account for the linear distance the cutter is moving per revolution.
Hole Cleaning - A frequently over looked point of hole opener operation is hole cleaning. The volume of cuttings to remove from a hole increase by a squared factor with an increase in hole diameter.

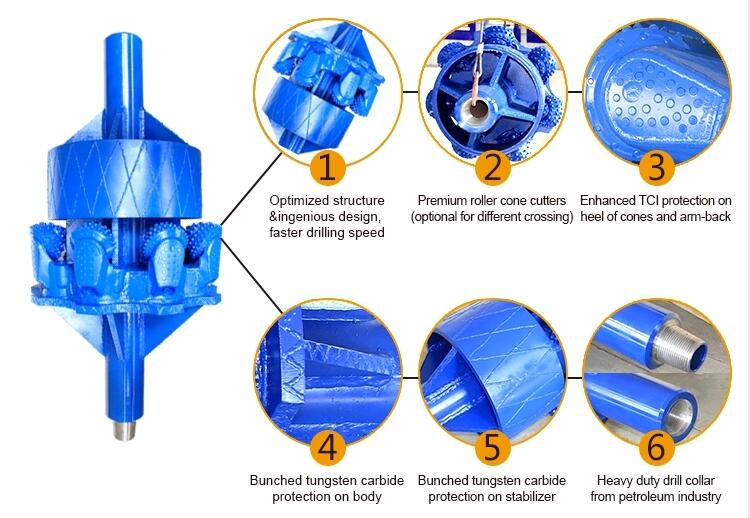

The horizontal directional drilling rock reamer bit advantage .

Lubricating system protection of the bearing and seal system of the bit

Welding surface with hard alloy to protect the cones  High strength Tungten Carbide teeth,

High temperature hear teamtment forged alloy steel.

Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation

Hard alloy welding prevent bit wear and tear at worl and ptotect the bearing .

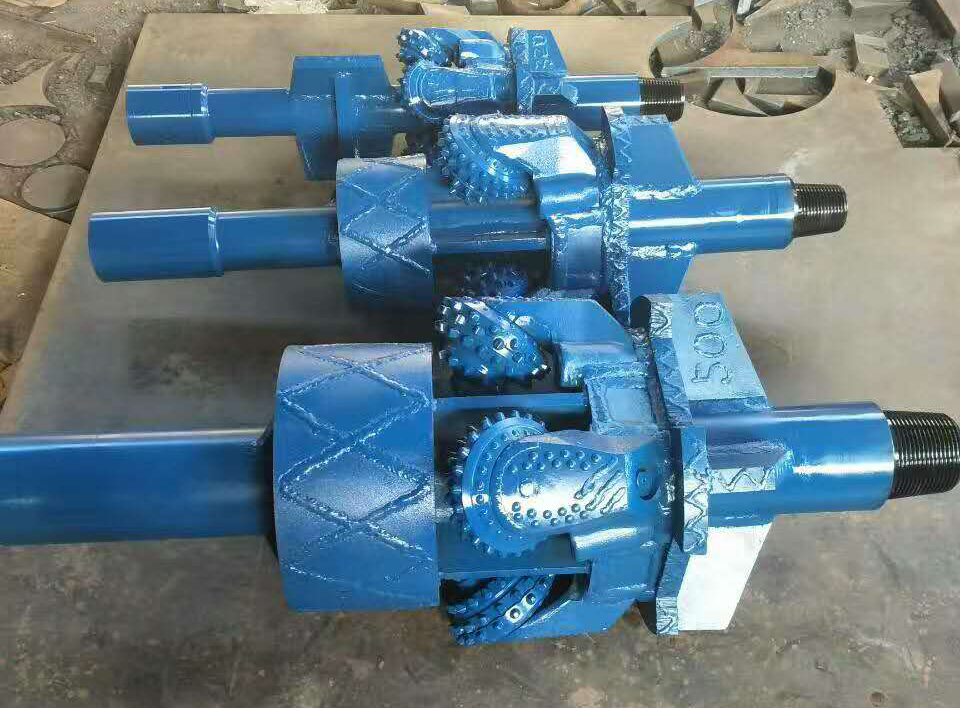

Product name	horizontal drectional drilling rock reamer
Size	312mm 400mm 406mm 500mm
Type	TCI tricone bit hole openers
Roller cones number	3 pcs tricone bit cones ,4 pcs roller cones,5 pcs /6pcs tricone bit legs
Roller cones size	81/2" roller cones
Roller cones IADC	517,537,617,637
Connection	4 1/2" IF box & pulling eye or as your requirement
Usage	horizontal directional drilling
Application formation	medium hard with high compressive strength and hard stringers, such as hard shale, limestone, sandstone and dolomite, etc.
Feature	welding to protect the cones
Industrial standard	SY/T5164

The size and type of hole opener with cones

Size		Bit Type  ( IADC Code )
In.	mm
15 1/2	394	117, 127, 437, 517, 537, 617, 637
18	457	117, 127, 437, 517, 537, 617, 637
22	558.8	117, 127, 437, 517, 537, 617, 637
28	711.2	117, 127, 437, 517, 537, 617, 637
32	812.8	117, 127, 437, 517, 537, 617, 637
34	863.6	117, 127, 437, 517, 537, 617, 637
36	914.4	117, 127, 437, 517, 537, 617, 637
38	965.2	117, 127, 437, 517, 537, 617, 637
40	101.6	117, 127, 437, 517, 537, 617, 637
42	1066.8	117, 127, 437, 517, 537, 617, 637
44	1117.6	117, 127, 437, 517, 537, 617, 637
46	1168.4	117, 127, 437, 517, 537, 617, 637

Hole opener Application

My company information

Hejian Deris Petroleum Drilling Equipment Co., Ltd. Established in 2000 . Have 7 years export experienced . Both Professional Manufacturer and Supplier engaged in 3 " to 26" Tricone bit, 3 " to 17 1/2" PDC bit, 300mm to 2000mm hole opener ,core barrel, single cone bit ,roller cone bit ,drag bit , Hammer bit and drill pipe etc other drilling tools .
Products are widely used in petroleum, natural gas, hydrological address, ore drilling ,water well project , no-dig / Trenchless,Piling project .

Introducing the latest technology, advanced production equipment, Perfect testing system to e nsure superior quality .The company has a group of experienced designers and engineers who provide specialized solutions in the field of drilling.

 Over the years, the high quality products have been exported to more than 30 countries and regions such as the United States, Canada, Germany, Iran, Qatar, Chile and Southeast Asia at reasonable prices.

Certificate

 Hole opener Package and shipping

Package Type : wooden case ,also be packaged according to customers requirement

Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better

Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.

If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.

How about our Customers feedback ?

The drilling deepth more than 460meters 1 pc Metal seal bearing tci tricone bit  .

TCI Tricone bit Drilling 3500 meters well no problem

1 pc Hole opener drilling more than 10 well no problem

Drilling to 1600 meter the PDC drill bit continue work good enough
