When there are no drilling tools in the well, it can completely seal the annular space formed by square drill pipe,

coring tool, cable and steel wire in the process of drilling, coring and logging, and can pass through the annular

space formed by the wellbore with the use of pressure reducing and pressure regulating valve. Drilling tool can

be forcibly lifted down by the drill pipe .

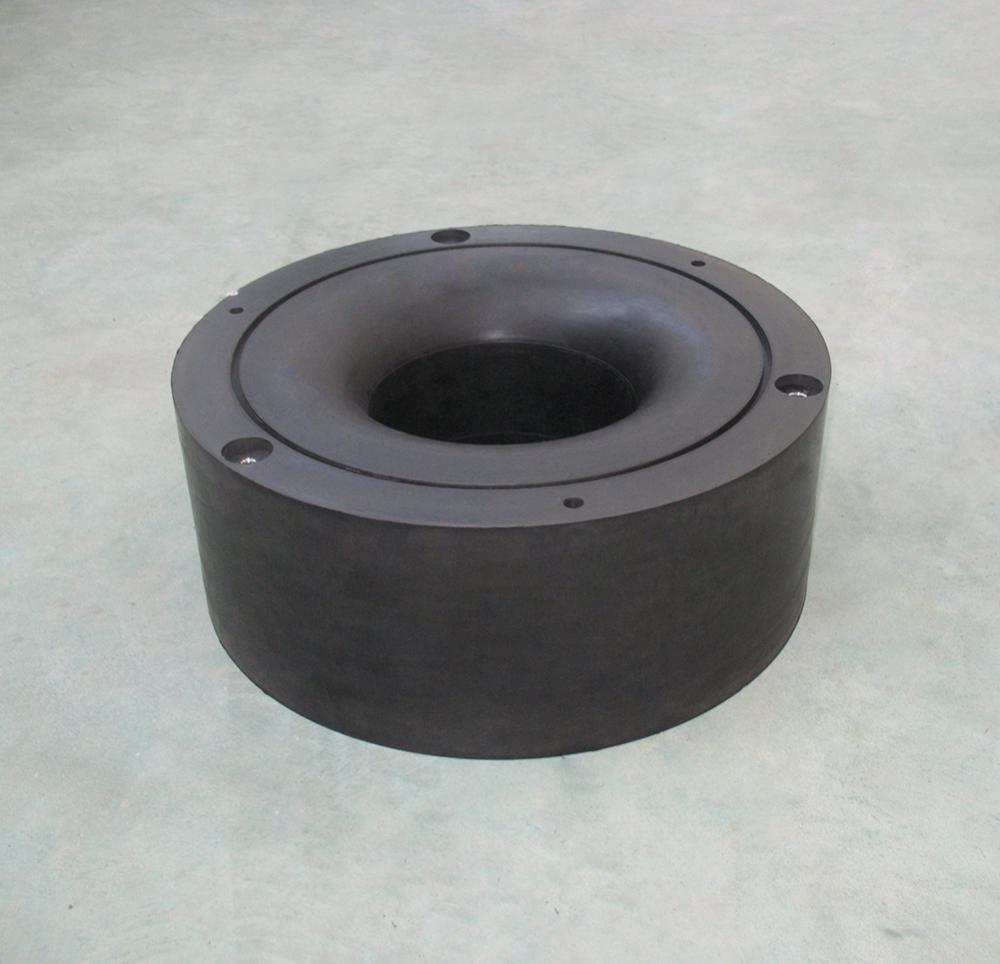

Bop Rubber Core and Assembly

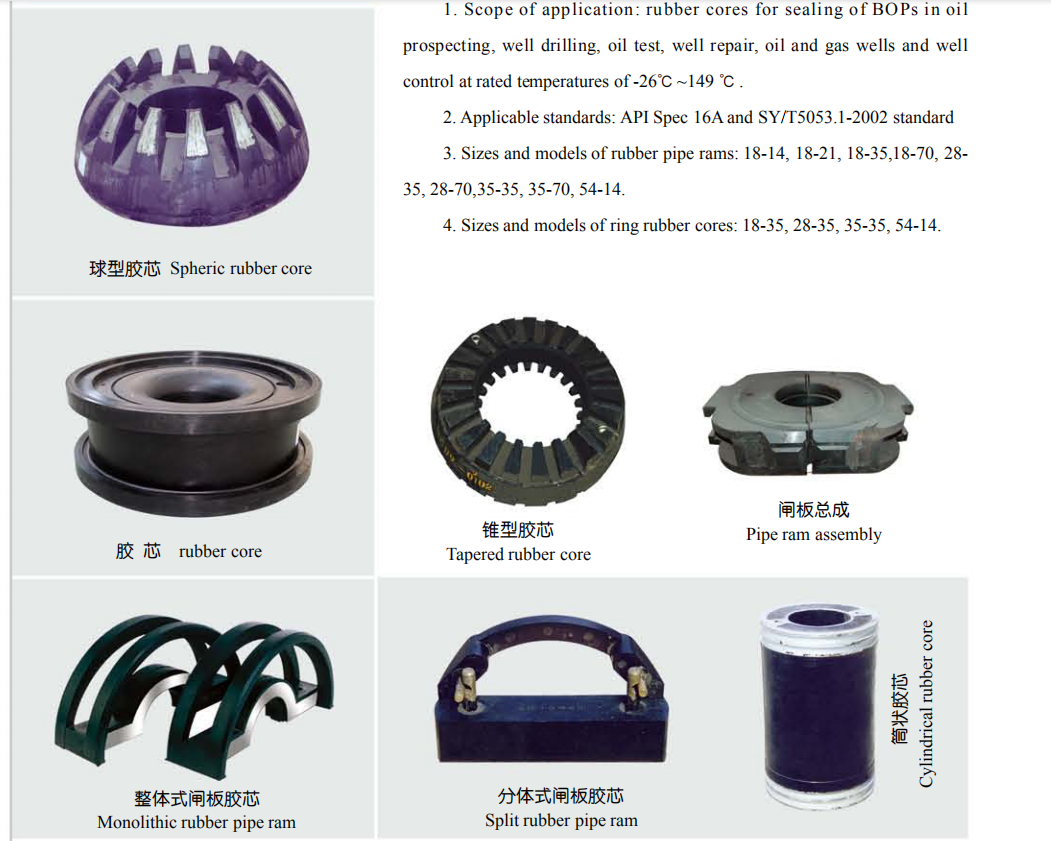

1. Scope of application: rubber cores for sealing of BOPs in oil prospecting, well drilling, oil test, well repair, oil and gas wells and well control at -26℃~149℃.

2. Applicable standards: API Spec 16A and SY/T5053.1-2002 standard.

3. Sizes and models of rubber pipe rams: 18-14, 18-21, 18-35, 18-70, 28-35, 28-70, 35-35, 35-70, 54-14.

4. Sizes and models of Spheric rubber core: 18-35, 28-35, 35-35, 54-14

5. Characteristic

In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.

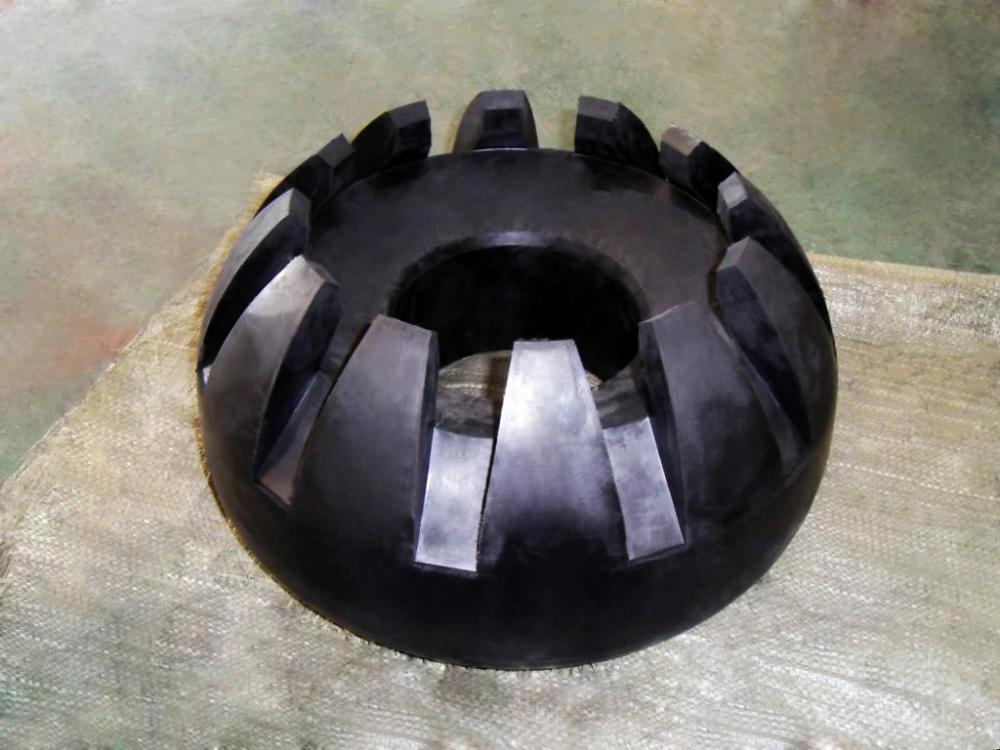

Blowout preventer with spherical plastic core and dust-proof ring.

Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0~DN in ans shapes, better performance by combining with ran blowout preventer in the use.

Working Principle:

When wells must be sealed in case of kicks high pressure(10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to move the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening, hydraulic pressure oil enters into open-cavity above piston from housing oil inlet, to push piston moving downwards, so that plastic will reset with its own elasticity, wellhead will be open.
