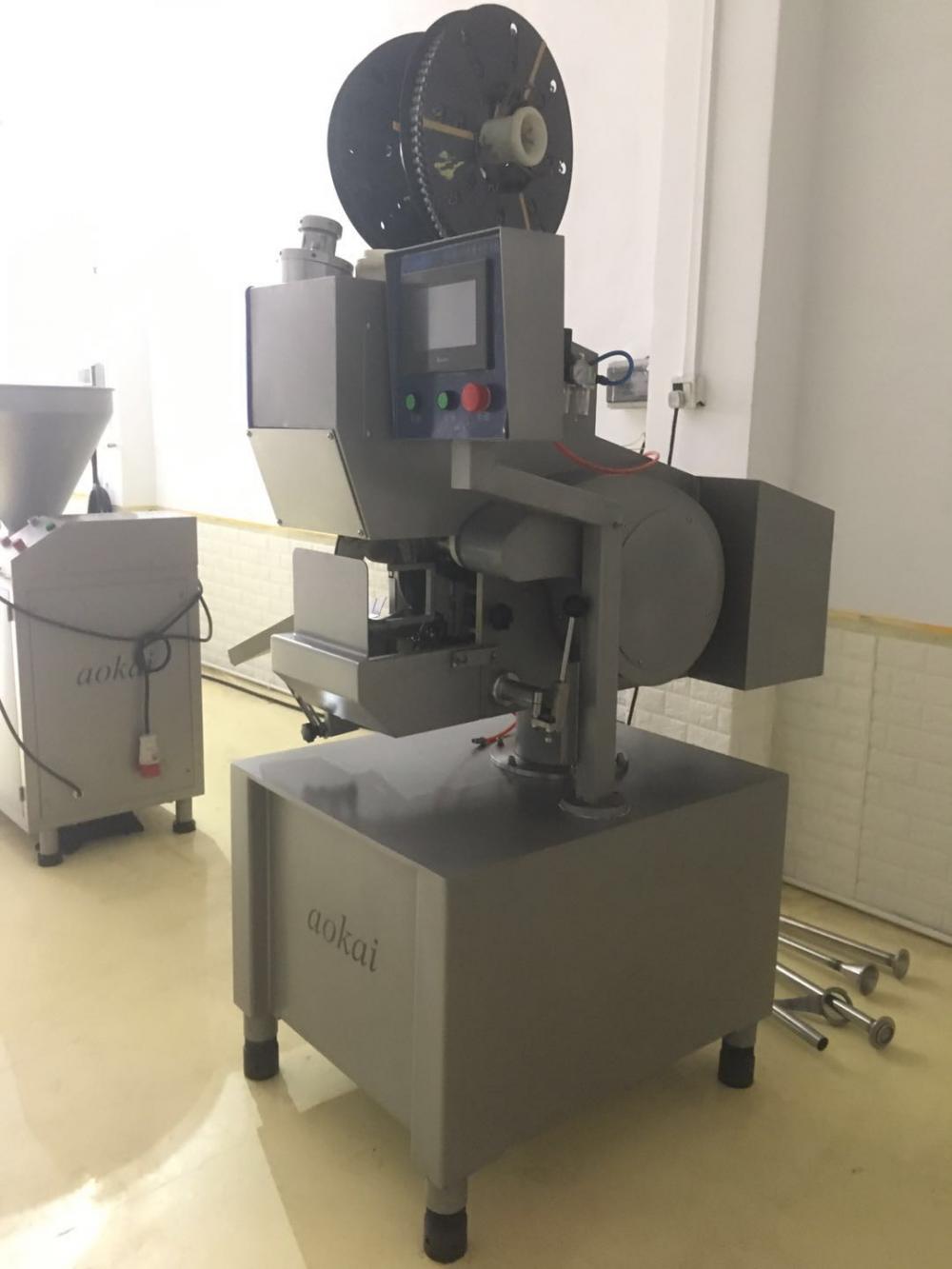

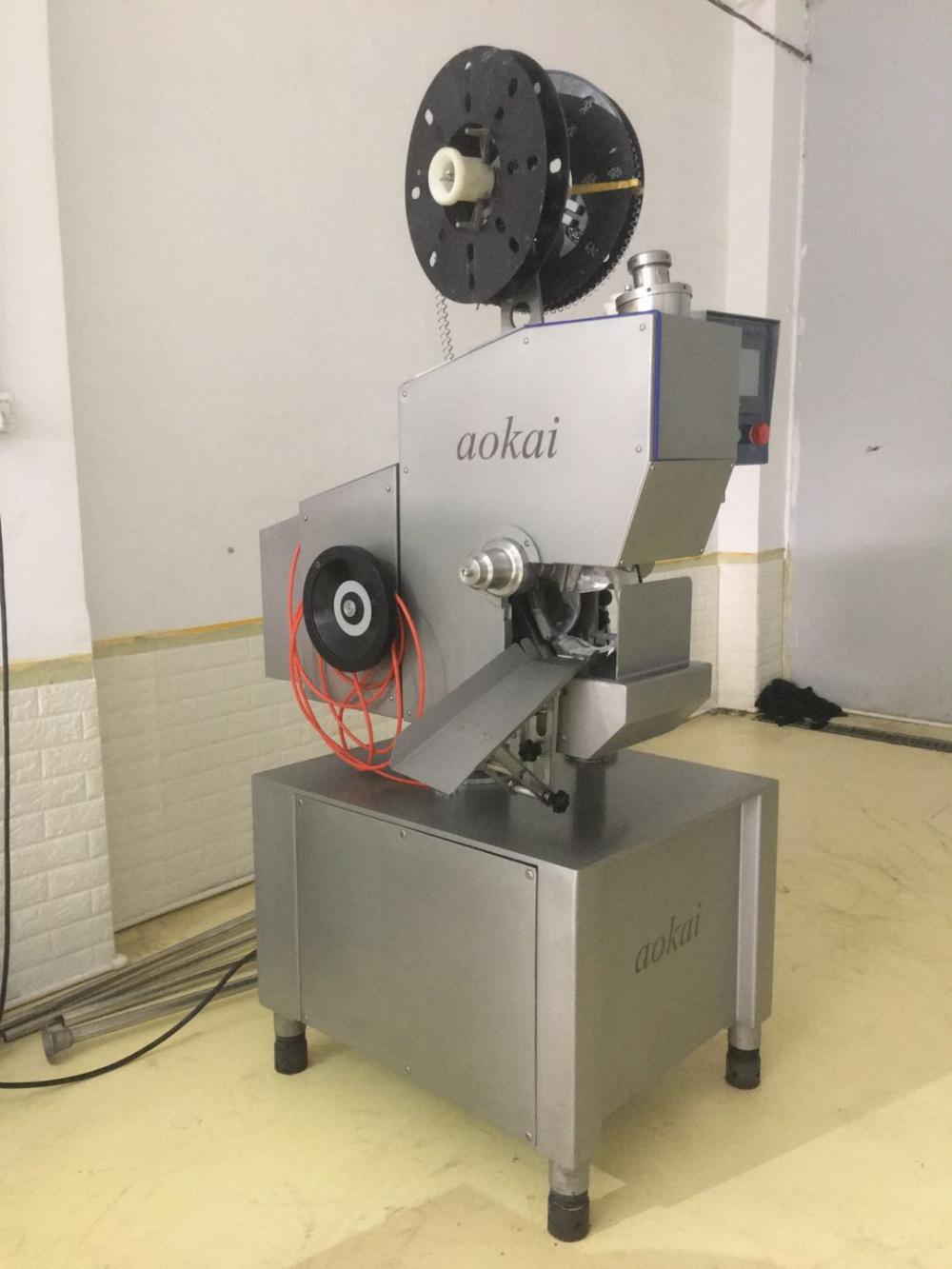

Sausage double clipping machine



The sausage double clipping machine is fully automatic working. It is simple in structure, easy maintenance, low failure, which greatly reduce the labor and raise the working efficiency. It is the ideal equipment in meat sausage production. It is working after sausage vacuum filler continuously.



This clipping machine is working with program PLC controller, and servo motor as power source. It is a new type of industrial automation equipment which integrates with automation technology, computer, and communication. It have the characteristics of flexible programming, complete in functions, high efficiency and simple operation.



All the cam of clipping machine is manufactured by machining center to ensure the accuracy of the curve, and positioning. And the material of cam is heat treated which have been carefully processed to make it smooth and wear-resistant. All the connecting rods are made of high quality cast stainless steel which are with good mechanical properties and corrosion resistance.



The side doors of clipping machine is water proof structure, safe and easy for working and maintenance.



This clipping machine electric parts is controlled by fully closed system, which can working under various programming status, easy adjusting, highly automation, servo motor and other related key electric appliances all working with worldwide famous brand, stable in operation, accurate in breaking, and speed with convertor.

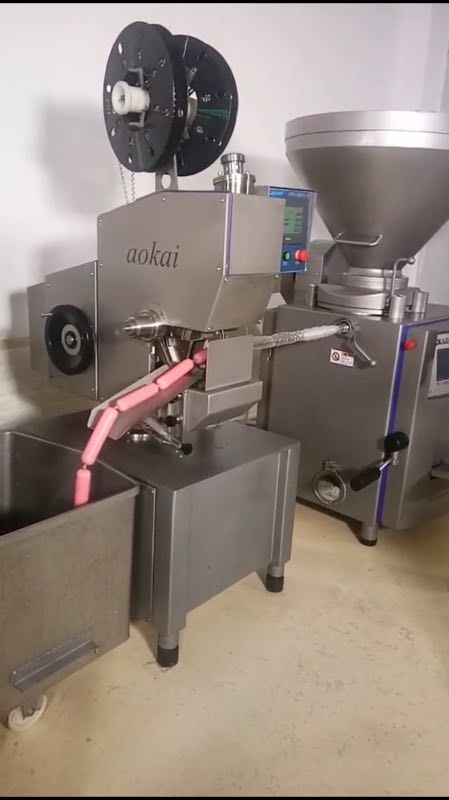

This clipping machine is suitable working with various kind of sausage filling machine, and realize automatic sausage processing line.



This clipping machine is optional working for three punches which is 15-7, 15-8, and 15-9, and correspondingly working with three sizes of aluminum great wall buckles.



It is suitable working with sausage double filling machine, which greatly improves working capacity.



This clipping machine is working with disc. Clipper, the firmed clipper have high strength and beautiful look. The two ends of sausage are firmly and tightly clipped, and keep long life period of sausage.



This clipping machine have the function of cutting sausage casing. According to the technology request, each 1-99 sausage cuts one time, or can be don`t cut. It is easy setting.



Main Parameter:



Center height: 1000mm, adjustable

Working speed: unit machine max. Speed is 100 times/minutes. (Suggestion: 70-80 times/minutes.)

Motor: Japan SANYO servo motor, highest rpm is 1500r/min.  Power: 3kw

Voltage: 220-450V (Optional)

Air pressure: Working pressure: 0.5-0.6Mpa, Air consumption: 0.3m3/H

Punches: 15-7, 15-8, 15-9 (Optional)

Suitable for clipper: 15-7, 15-8, 15-9

Suitable for type of casing: Nylon, composite nylon casing, PVDC casing.



The molds and diameter of casing:



Molds	15-7	15-8	15-9
Sausage Casing	40-60mm	60-90mm	90-120mm

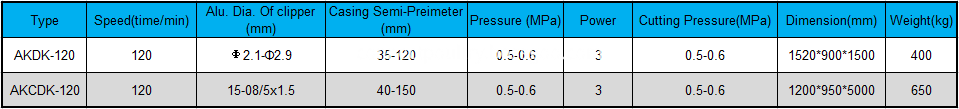

Model
