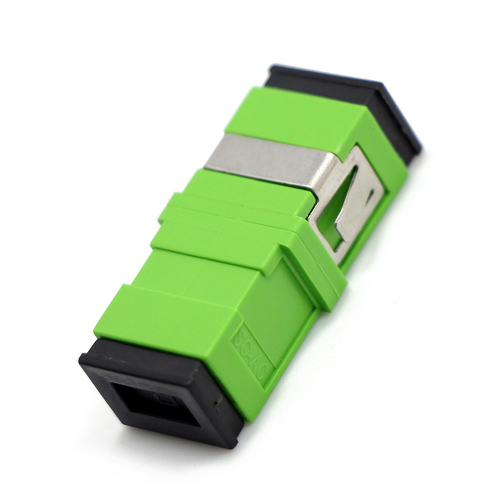

SC Simplex Flangeless Adapter

A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. JJT supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.

Features:

> Low Insertion Loss

> Compliant with IEC

> RoHS Compliance

> Available Ceramic Sleeves

>Integration design in housing, no welded point

>With / without inner shutter

Applications:

> CATV System

> Local Area Networks

> Telecommunication Networks

> FTTH and FTTx

> Testing Equipment

> Fiber LAN

Specification:

Connector Type	SC Simplex Flangeless	Color	Beige/green/blue/aqua/Violet/Lime
Insertion Loss	<0.20dB	Sleeve	Ceramic
Durability	<0.2dB Change 1000 times	Repeatability	<0.2dB
Mounting Type	Short flange	Compliance	RoHS/CE/ISO 9001/IEC
Operating Temp	-40℃ to +75℃	Storage Temp.	-40℃～+85℃
Flammability Rate	UL94-V0	Package	50 Pcs/Blister Box

Dimension:
