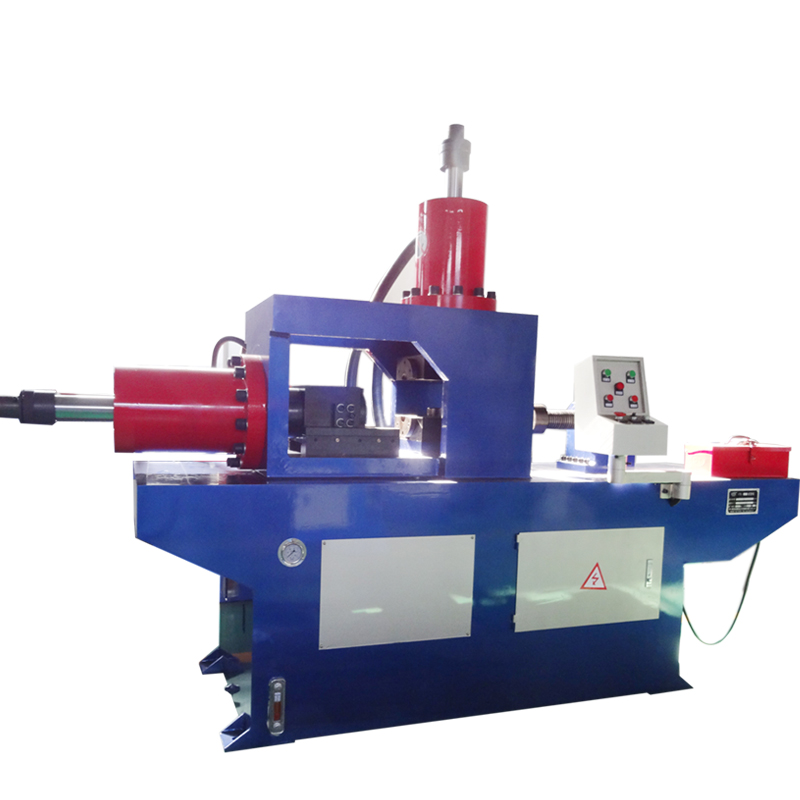

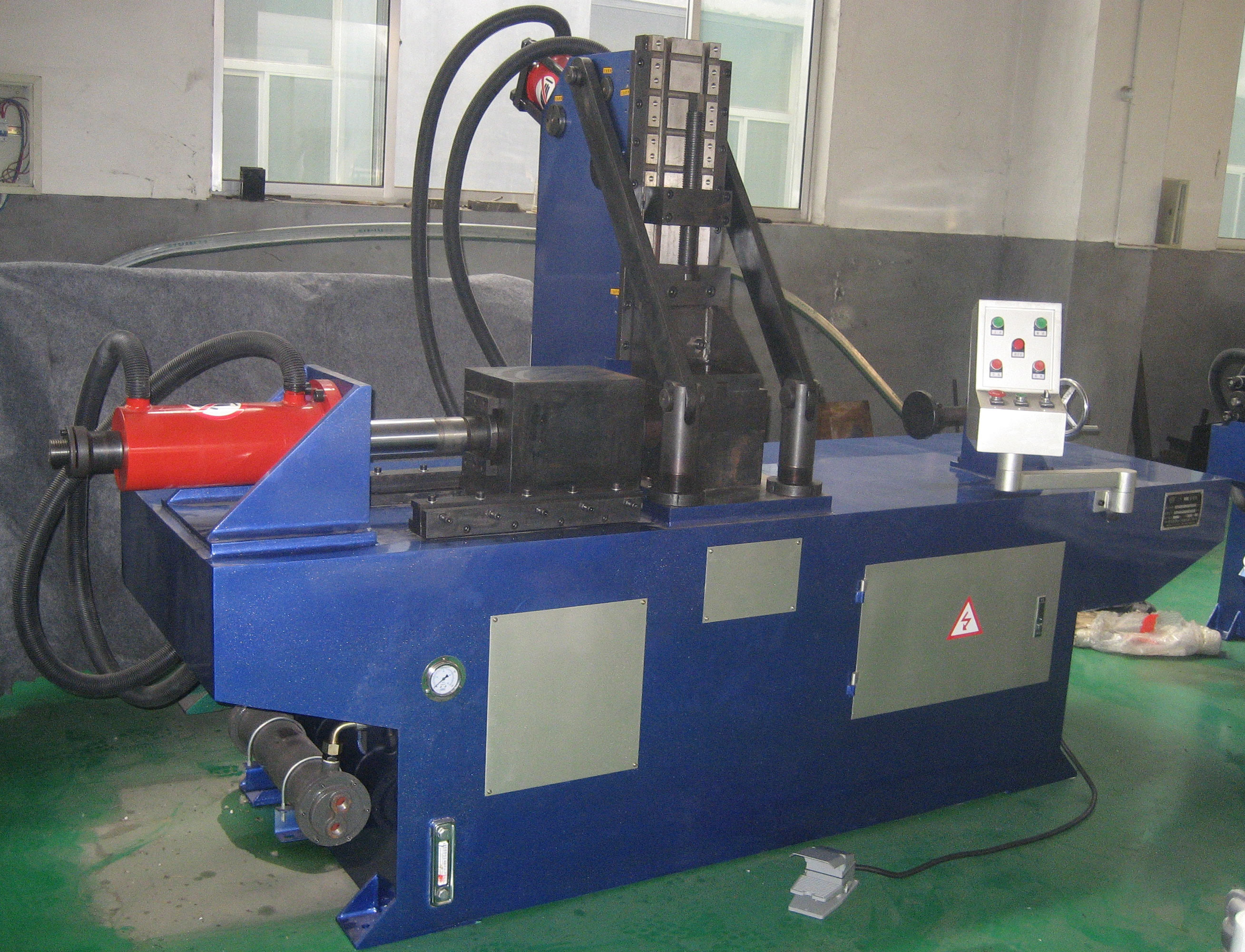

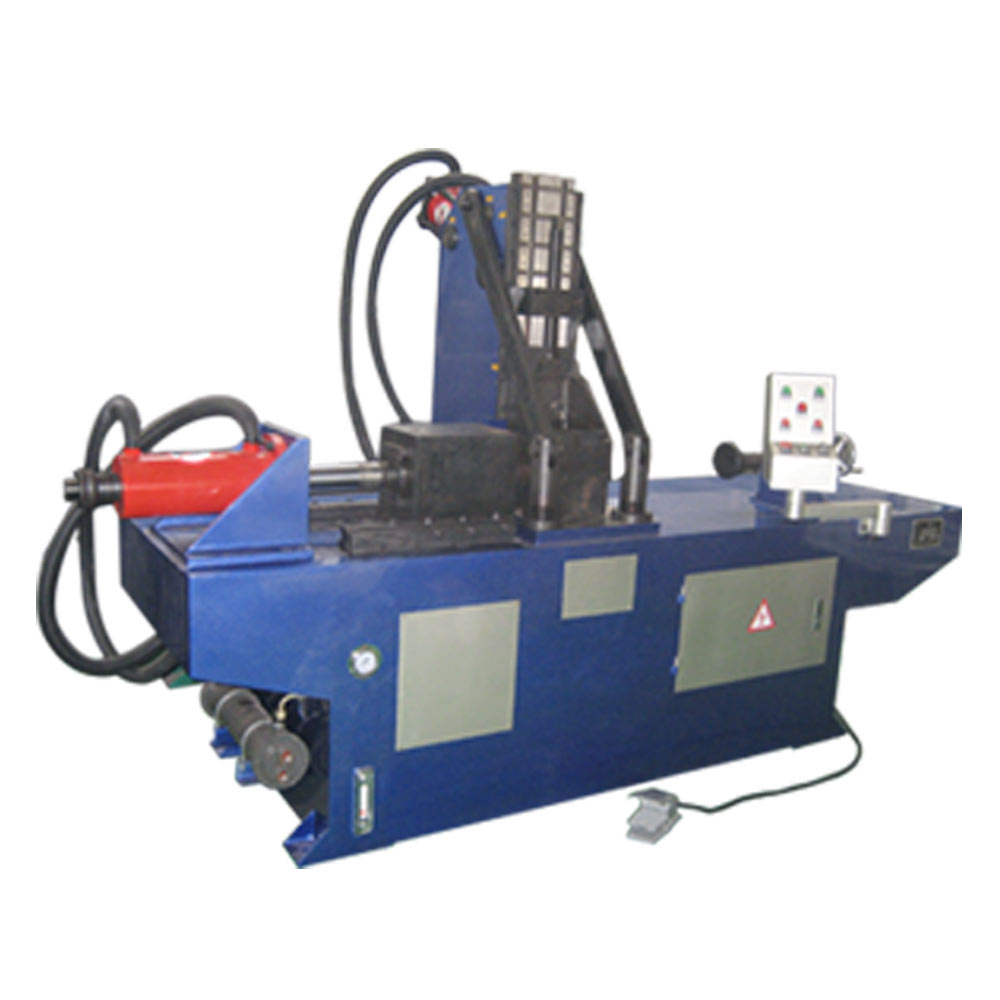

Semi Automatic SG100NC Pipe End Forming Expander Machine

Video

1 / 6

Semi Automatic SG100NC Pipe End Forming Expander Machine

$11030.00

≥1 set
$11000.00

≥2 set

Options:

Get Latest Price

You might also like

Pipe End Forming Machine: Hydraulic Tube End Expanding and Shrinking Machine

1 set (MOQ)

Multifunction Pipe Sealing Machine and Metal Baseball Bat Making Machine

1 set (MOQ)

Taper Tube End Forming Machine for Furniture Legs

1 set (MOQ)

Semi-Automatic 118 Pipe Tube End Forming and Beveling Machine

1 set (MOQ)

Factory End Price Tube Reducer Machine for Pipe Expanding and Shrinking" could be condensed to: "Tube Reducer Machine - Factory End Price

1 set (MOQ)

Automatic Double Head W-Shaped Pipe End Forming Machine for Trampoline Frame Reducer

1 set (MOQ)

Automatic Pipe Press Arch Punching Hole and Tabernacle Tube End Forming Machine for Trampoline" However, for better SEO and readability, you might consider shortening it to: "Pipe Press Arch Punching & Tube Forming Machine for Trampolines

1 set (MOQ)

Pipe End Reduce and Expanding Machine

1 set (MOQ)

China Factory Multifunctional Pipe Reducing and Tube End Forming Machine - Price

1 set (MOQ)

Semi Automatic SG100NC Pipe End Forming Expander Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Material / Metal Processed	stainless steel, Aluminium alloy, Carbon steel
Raw Material	pipe and bar
Machine type	Pipe End Forming Machine
Max.Shrinking Capacity (Thickness)(mm)	8 Mm
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2023
Warranty Of Core Components	1 Year
Core components	Engine
Max.Shrinking Capacity (Diameter)(mm)	100 mm
Tube Contracting Cycle (s)	8 - 15
Max. Tube Contracting Length (mm)	200
Condition	New
Place of Origin	shandong
Brand Name	soar
Extra Services	End Forming
Automation	Automatic
Year	2023
Power (kW)	11
Warranty	1 Year
Weight (KG)	36000
Key Selling Points	Multifunctional
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location	None
Product name	pipe end forming machine
Application	Carbon steel,stainless steel copper pipe, aluminium alloypipe
MOdel	SG100NC

Product description

Products Description

Model	SG50NC	SG60NC	SG80NC	SG100NC	SG120NC
Max pipe capacity	φ50×3 MM	φ60×3 MM	φ80×6 MM	φ100×8 MM	φ120×8 MM
Pipe cycle	4	4	4	5	6
Power	5.5	7.5	11	11	18.5
Overall size (L×W×H)m	2.4×0.5×1.6	3×1.1×1.9	3×1.1×1.9	4×1.2×1.9	4×1.2×1.9
Weight（T） T	0.9	1.7	2	3.6	3.8

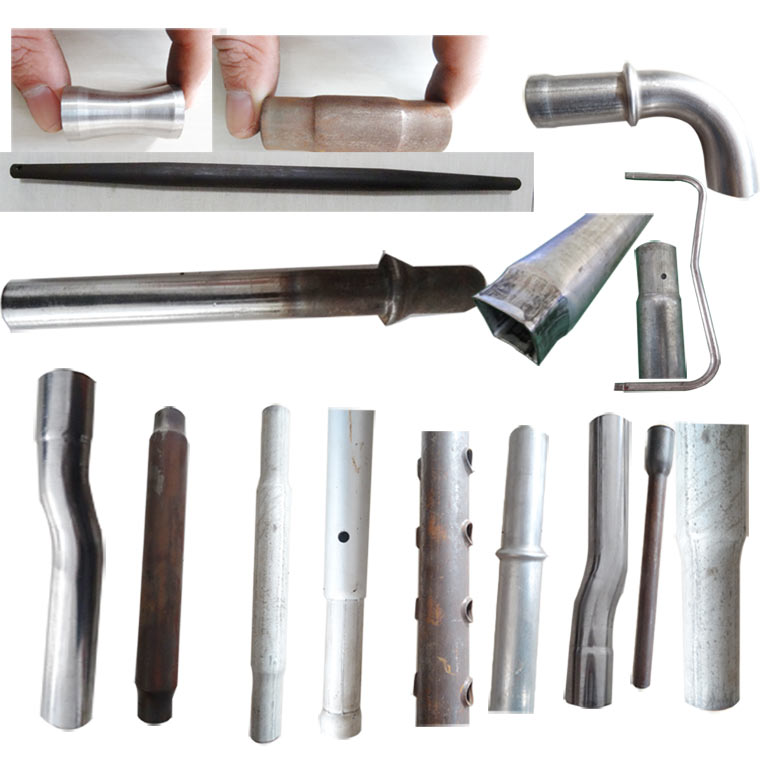

Applicable to pipe shape	convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type.
Applicable to material of pipe	Carbon steel,stainless steel copper pipe, aluminium alloypipe

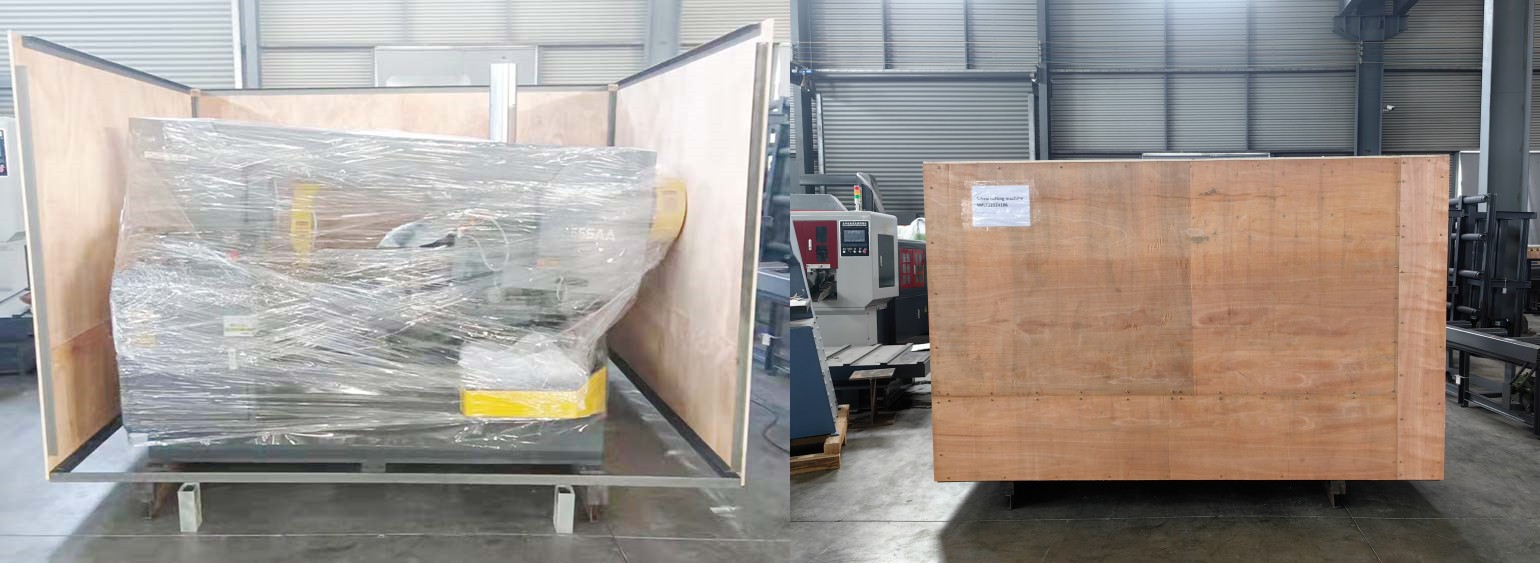

Product packaging

Inner package foamed plastic or stretch film,outpackage:iorn frame or wooden case.
Delivery shipped in 7-25days after payment

SALES AND SERVICE NETWORK

Customer Photos

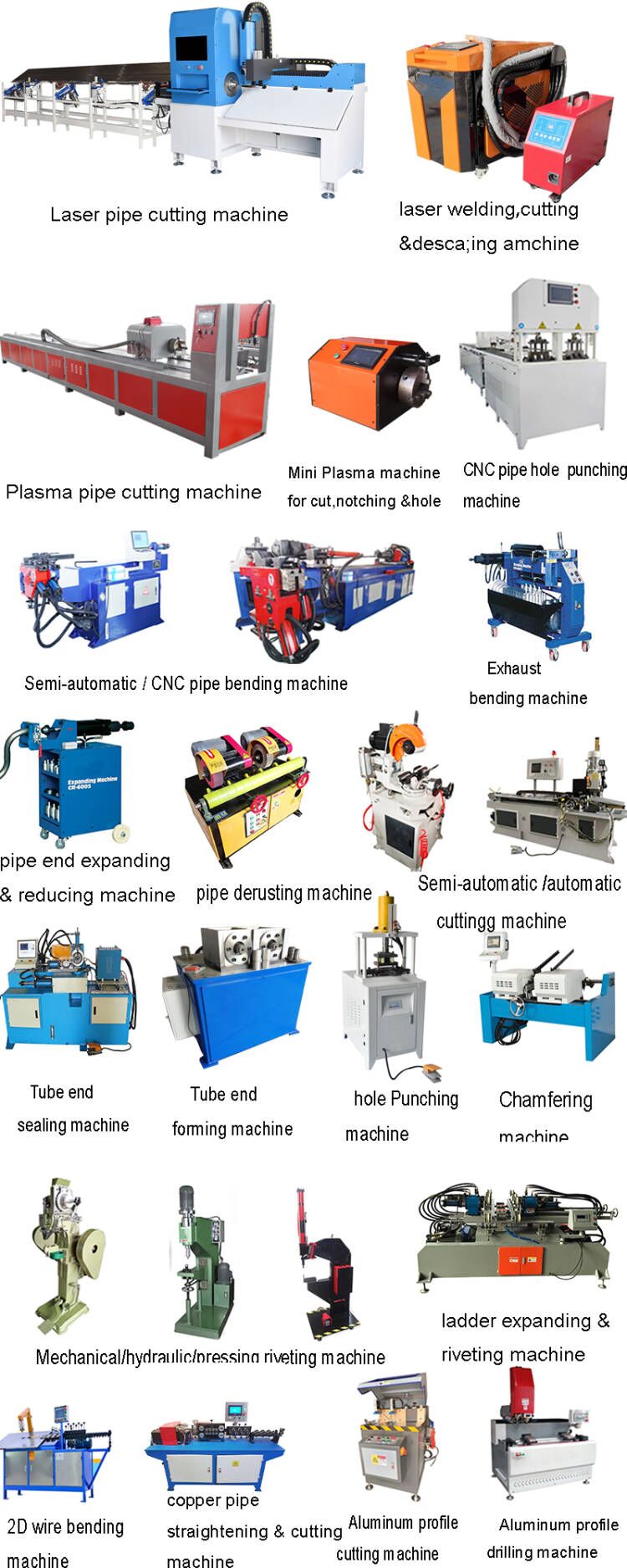

recommend products

1 how lony have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yor anget in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
