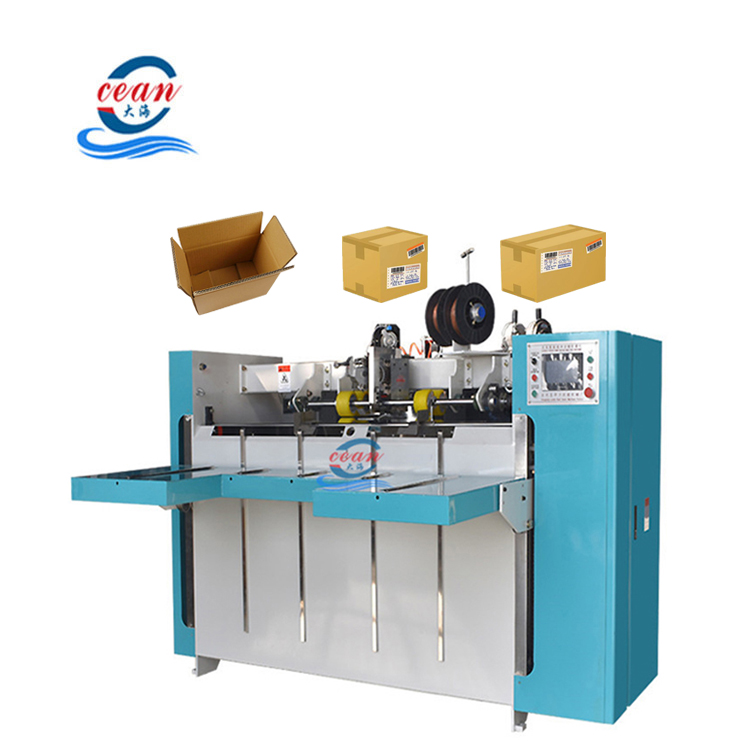

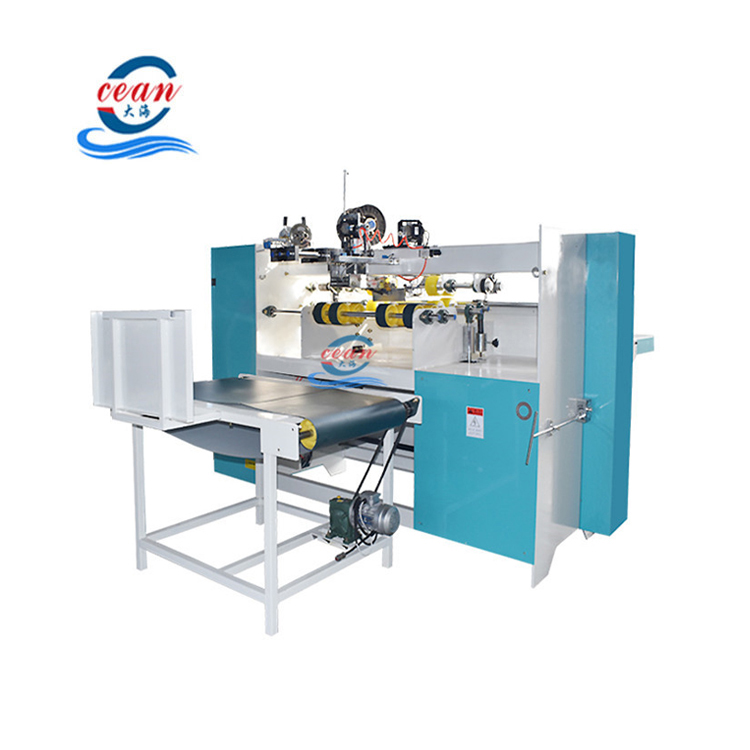

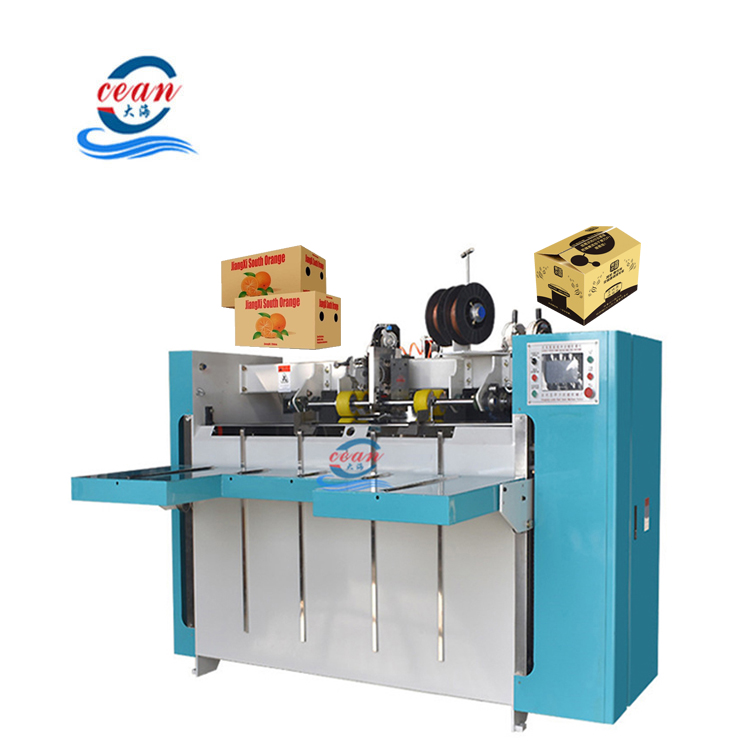

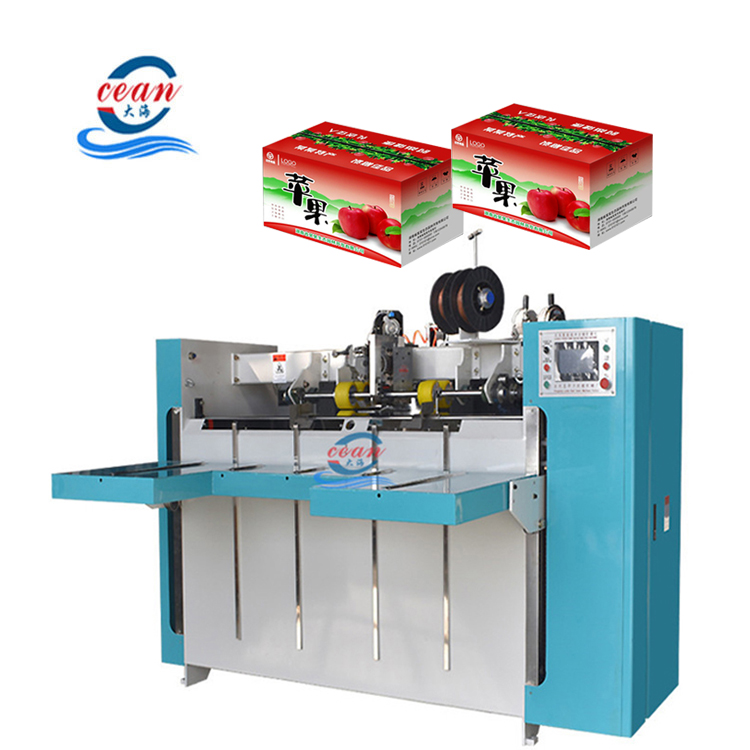

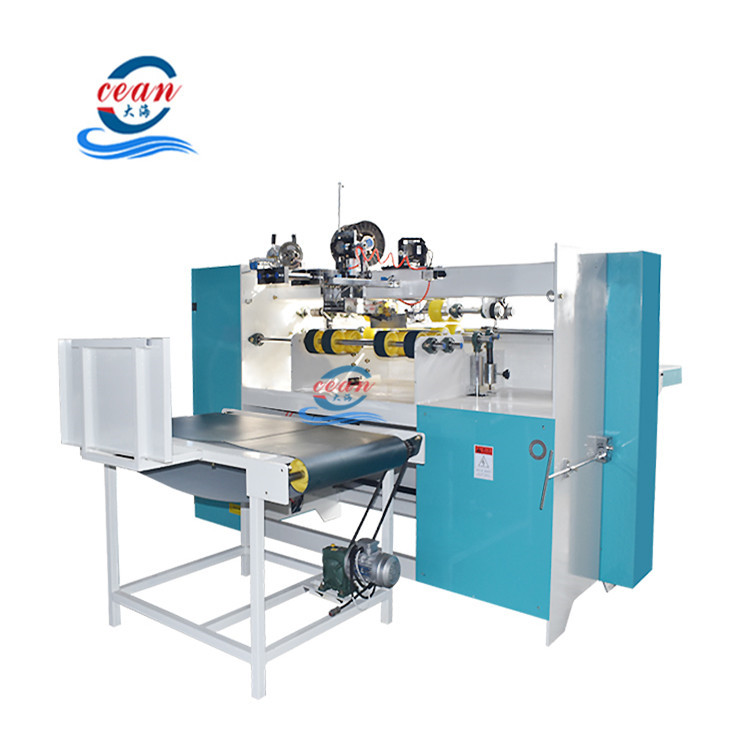

Semi Automatic Stapling Machine for Nail Box and Carton Stitching

Video

1 / 7

Semi Automatic Stapling Machine for Nail Box and Carton Stitching

$8000.00

≥1 set
$7500.00

≥2 set

Options:

BDJ2000
5KW

Get Latest Price

You might also like

Semi-Automatic Paper Box Stitching and Nailing Machine for Carton Boxes

1 set (MOQ)

Semi Automatic Stitching Stapling Machine for Corrugated Box

1 set (MOQ)

DXJ Carton Box Stapling Machinery - Corrugated Carton Box Stitching Machine

1 set (MOQ)

Double Servo Stitching Carton Box Stapling Machine

1 set (MOQ)

Semi Automatic Double Head Carton Stitching Machine for Corrugated Cardboard Boxes

1 set (MOQ)

Semi Automatic Stapling Machine for Nail Box and Carton Stitching

1 set (MOQ)

Semi-Automatic Carton Box Stitching Machine BZD 2000 - Customizable Size

1 set (MOQ)

High Speed Single Piece Corrugated Carton Stitching and Forming Machine

1 set (MOQ)

Carton Box Forming and Stitching Machine for Corrugated Boxes

1 set (MOQ)

Carton Box Stapling Machine: Packing Box Stitching and Corrugated Box Making Equipment

1 set (MOQ)

Basic Info

Model No.
Brand Name
Applicable Industries	Manufacturing Plant, Printing Shops, Other
Showroom Location	Egypt, Canada, Turkey, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Australia
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty Of Core Components	1 Year
Core components	Plc
Condition	New
Automatic Grade	Automatic
use	Paper Forming Machine
Place of Origin	Hebei, China
Brand Name	Ocean
voltage	380v
Dimension(LWH)	500025002000mm
Weight	20000 KG
Warranty	1 Year
Key Selling Points	Easy To Operate
Machine name	carton stitching machine
application	corrugated box shape forming
Finished Products	Carton Box
Feeding way	manual feeding
Box Type	single piece carton box
Thickness	3-5-7 ply corrugated cardboard
control	quick order change
system	servo system
Max size	3000mm
nail distance	can reach 100mm

Product description

semi automatic stapling machine nail box machine carton stitching machine

Double servo semi-auto stitching machine is latest improved product base on normal semi-auto stitching machine. The whole drive and running part adopt two pieces servo motor to drive machine running. The feeding part, stitching head and back baffle also adopt servo motor. When adjust back baffle through touch screen to operate, accurate, fast and convenient, needn’t worker take rule to adjusting. Improve the disadvantage of normal stitching machine used gear and bear to drive machine running, reduce the machine failure, prolong the machine use life. The stitching machine is the idea equipment in carton factory.

Specifications

Max(L+W)*2?	2460mm
Min(L+W)*2	606mm
Max(W+H)*2	1515mm
Min(W+H)*2	300mm
Height of feeder	900mm
Power	6HP
Size	2800*2600mm
Speed	450 stitches/min
Stitching pitch	30-100mm
Number of stitching	1-99 stitches

1. It can nail single nail, double nail, strengthen nail completed in one-time, can be suitable for?different kinds of customer requirements of nails.
2. It can be changed size quickly in one minute, can be operated easily and not had to?experience.
3. Paper feeding section can automatic count, send after the bundle into the bundle.
4. It is man-machine interface control for convenient operation.
5. Back-automatic counting.The finished products done can be sent to the end of conveyor by?setting the number.
6. Semi-finished products nailing to the finished products display only need two operators. This?can operate simply

semi automatic stapling machine nail box machine carton stitching machine
