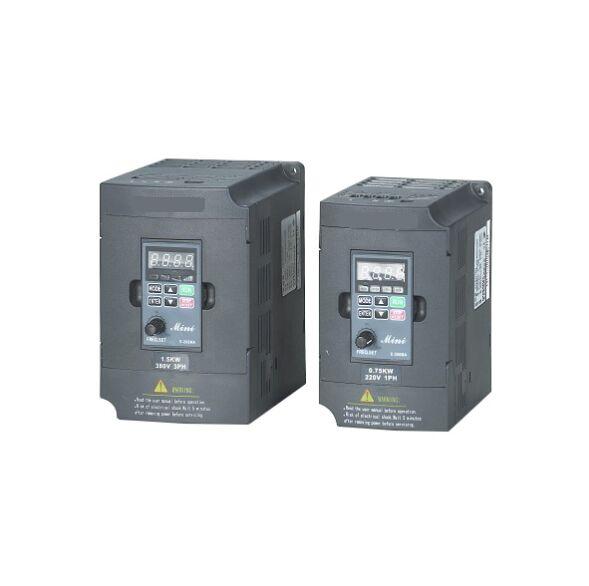

Sensorless Vector Micro AC Drive Variable Frequency Drive
Basic Info
| Model No. | ZVF200-M |
|---|
Product description
ZVF200-M Series VFD is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The ZVF200-M Series drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
Single phase, 220V ± 20%, 0.4 to 2.2kW
Three phase, 380V ± 20%, 0.75 to 7.5kW
Main Features:
ZVF200-M Series VFD is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The ZVF200-M Series drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
1. 16-bit microprocessor controlled PWM output
2. Automatic torque boost &Slip compensation .
3. Output frequency : 0.1 ~ 400 Hz.
4. 8-step speed control &7-step process control .
5. Low-noise carrier frequency up to 15KHZ.
6. 2 accel./decal. Times & S-curve .
7. Process follower 0-10VDC . 4-20mA.
8. Communication interface RS485.
9. Energy saving &Automatic voltage regulation (AVR).
10. Adjustable V/F curve & Simple vector control
11. Automatic adjustment of accel./decal. Times.
12. PID feedback control .
13. Simple position function .

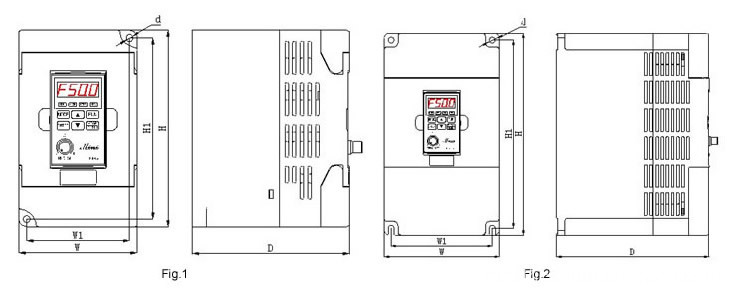

Outline Dimension & Mounting Dimension
| Inverter Model |
Voltage (V) |
Power (KW) |
Current ( A) |
Dimension (mm) | Figure | |||||
| H | W | A | B | D | d | |||||
| ZVF200-M0004S2MD | 220V | 0.4 | 2.5 | 141.5 | 85 | 130.5 | 74 | 113 | 5 | Fig.1 |
| ZVF200-M0007S2MD | 0.75 | 5.0 | 141.5 | 85 | 130.5 | 74 | 113 | 5 | ||
| ZVF200-M0015S2MD | 1.5 | 7.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 | ||
| ZVF200-M0022S2MD | 2.2 | 10 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 | ||
| ZVF200-M0007T4MD | 380V | 0.75 | 2.3 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 | |
| ZVF200-M0015T4MD | 1.5 | 3.7 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 | ||
| ZVF200-M0022T4MD | 2.2 | 5.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 | ||
| ZVF200-M0037T4MD | 3.7 | 8.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 | Fig.2 | |
| ZVF200-M0055T4MD | 5.5 | 9.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 | ||
Drawing:
Sensorless Vector Micro AC Drive Variable Frequency Drive
