SF-2 Dx Self Lubricant Bushings & Oilless Bearings
Basic Info
| Place Of Origin | Zhejiang, China |
|---|---|
| Brand Name | AUG |
| Model Number | SF-2 |
| Type | Sleeve,flange,ring,washer,split, solid, tube, roll, roller |
| Material | steel, bronze, POM |
Product description
SF-2 dx self lubricant bushings,polyurethane bushing,oilless bearings
?
?
SF-2
Marginal?Pb-free?Self-lubricating?Bearing
?
Material Features
SF-2 Marginal Pb-free self-lubricating bearing is used steel-backing as its structure,sintered porous bronze as its interlayer,surface inlaid the modified POM.Suitable for marginally lubricated and dry operation onthe conditions of lubrication in dents grease.It has been widely applied to metallurgical machinery, Mine machinery,water conservancy machinery,vapor lovomotive,building machinery,agriculture machinery,steel rolling industry etc.
?
Material ?structure???????
Pom with fibre | 0.3~0.5mm |
| Porous bronze | 0.2~0.3mm |
| Steel backing | 0.4~2.2mm |
| Copper plating | 0.008mm |
?
Specification???????????
| Performance index | Data | |
| Max Load Capacity P | Static load | 250N/mm^2 |
| Dynamic load | 140N/mm^2 | |
| Max line speed | grease lubrication | 2.5m/s |
| Maximum pv value | grease lubrication | 2.8N/mm^2·m/s |
| Ficition coef | grease lubrication | 0.05~0.25 |
| Working Temperature | -40°C~+130°C | |
| Thermal Conductivity | 4w/m·k | |
| Coefficient of linear Expansion | 11×10^(-6)/k | |
?? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
Application????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????
1. Good load capacity and anti-wear.
2. It is used in high load capacities and low speed with rotational, oscillating or frequent stop-start motion.
3. It can work long time without oil in the condition of boundary lubrication, under oil or grease lubrication interval, the work is longer.
4. It is machinable for the thicker of POM.
5. The bushes can be applied in auto chassis, forging machine, metallurgical, civil engineering, power station, strip rolling industries etc.
?

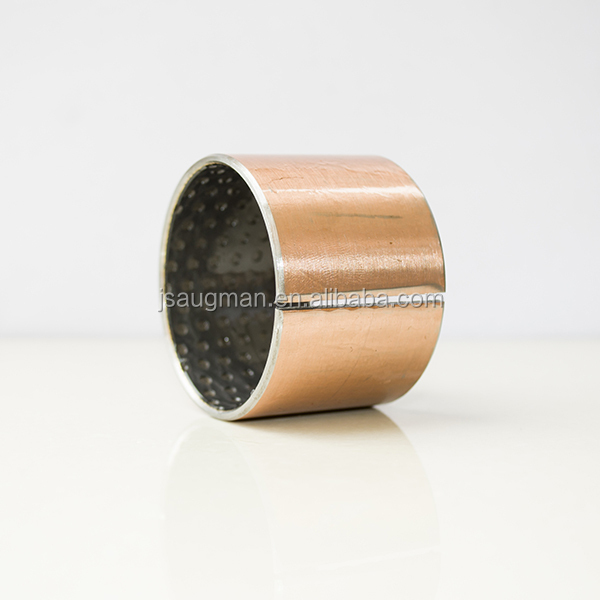

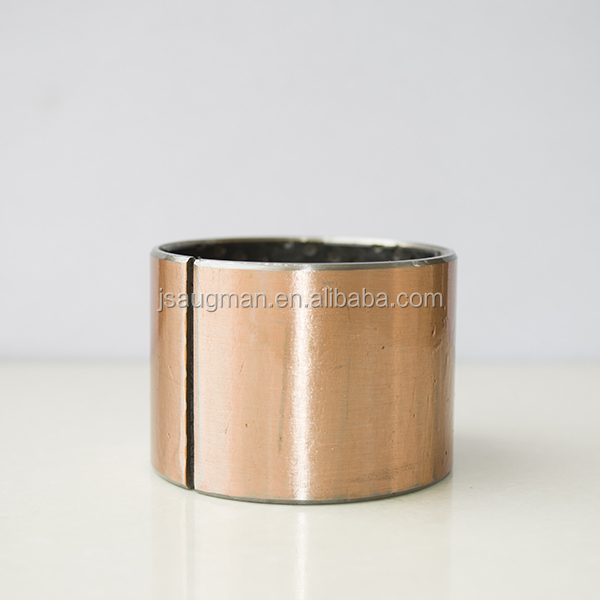

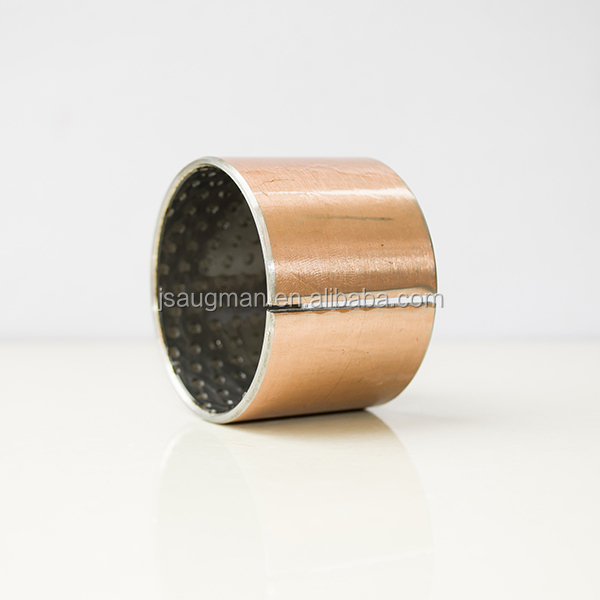

Picture showing?????????????????????????????????????????????????????????????????????????????????????????????????????????????
?

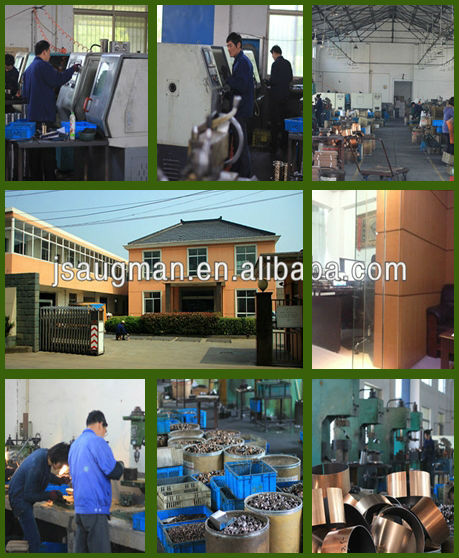

Factory????????????????????????????????????????????????????????????????????????????????????????????????
Our factory is located in the centre of Yangtze economy delta zone with convenient transportation, specialized in research, study and producing of self-lubricated bearings.
Our factory is equipped with advanced production and inspection line and managed by a high tech group.
Our factory dedicated in study and producing serials self-lubrication bearings which could be used in all sorts of condition respectively with high performance.
Our factory is looking forward to have an opportunity to work and cooperate with you.
?
Our Srevices
1. Sample order is available
2. Small order is acceptable
3. Customized is available as per drawing or sample
?
Please do not hesitate to contact us if you have any questions!?
?
Tel : 0086-573-84838380 ??
Fax: 0086-573-84838381
Cell: 0086-13600550024
Skype: augmanjohnson
