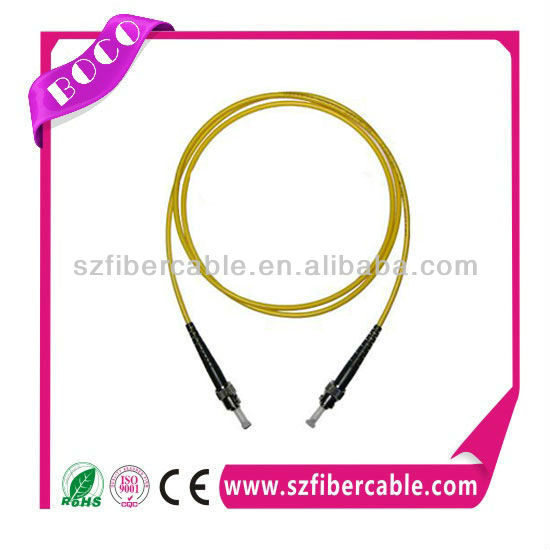

Sigele-mode simplex ST PC Fiber optic patch cord
Basic Info
| Model No. | ST-SM-SX-PC |
|---|---|
| Brand Name | Boco |
Product description
Sigele-mode simplex ST/PC Fiber optic patch cord
| Number of Conductors | 1 |
| Color | Yellow |
| Standard | GR-326-Core, IEC Standard |
| Green production | CE, RoHS Standard |
| Testing | Excellent Polished and 100% tested |
| Fiber type | Single-mode |
| Cord type | Simplex |
| Polish | PC |
| cable diameter | 0.9mm/2.0mm/3.0mm |
| cable jacket | PVC/LSZH |
| length | 3m |
Parameter
|
Mode |
Single mode |
Multimode |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
0.2dB |
0.3dB |
0.2dB |
|
Return Loss |
55dB |
65dB |
35dB |
|
Interchangeability |
0.2dB |
||
|
Salt Spray |
0.1dB |
||
|
Repeatability |
0.1dB (1000 times) |
||
|
Vibration |
0.2dB (550Hz 1.5mm) |
||
|
Temperature |
0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
0.2dB (+25+65 93 R.H.100 hours) |
||
|
Apex Offset |
0m ~ 50m |
||
|
Radius of Curvature |
7mm ~ 25mm |
||
|
Standards-Compliant |
ROHS,IEC and GR-326 |
||
|
Fiber cable performance specifications |
|||
|
Fiber type |
Min.Bandwidth |
Distance |
attenuation |
|
62.5/125 |
850/1300nm 200/500 MHz/Km |
@100Mbps 2km @1Gig 220m |
850/1300nm 3.0/1.0dB/km |
|
50/125 |
850/1300nm 500/500 MHz/Km |
@100Mbps 2km @1Gig 500m |
850/1300nm 3.0/1.0dB/km |
|
50/125 10Gig Optimized |
850/1300nm 2000/500 MHz/Km |
@100Gig Varies by VCSEL typical 300m 2850nm |
850/1300nm 3.0/1.0dB/km |
|
9/125 |
1310/1550nm Approx 100 Terahertz |
Up to 100km Varies by transceiver |
1310/1550nm 0.4/0.3dB/km |
|
Fiber type |
Singlemode:1,9/125-G652D |
|
Multimode:4,50/125-OM2 |
|
|
Fiber |
Corning,China Fiber,other |
|
Connector1 |
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
|
Polishing |
PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
|
Connector2 |
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
|
Polishing |
PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
|
Cord type |
Simplex ,Duplex |
|
Cable diameter |
0.9mm ,2.0mm, 3.0mm |
|
Cable jacket |
PVC,LSZH,OFNR,OFNP |
|
length(M) |
0.5m,1m,3M,5m,10m,20m,200m |
Application
*Optical fiber communications system
*Optical fiber access networks
*Optical fiber CATV
*Optical fiber test equipments
*Optical fiber data communication

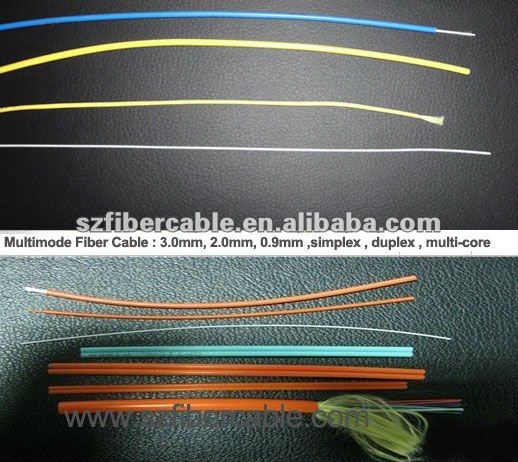

Fiber Cable Types :
Singlemode Fiber Cable : 3.0mm ,2.0mm ,0.9mm,simplex,duplex,multi-cores

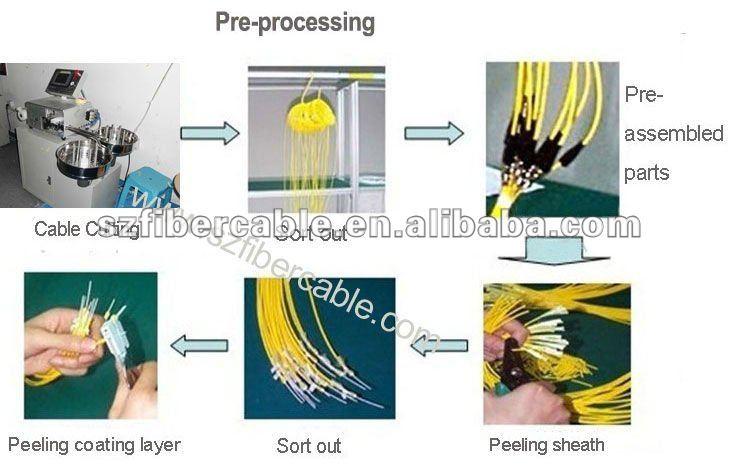

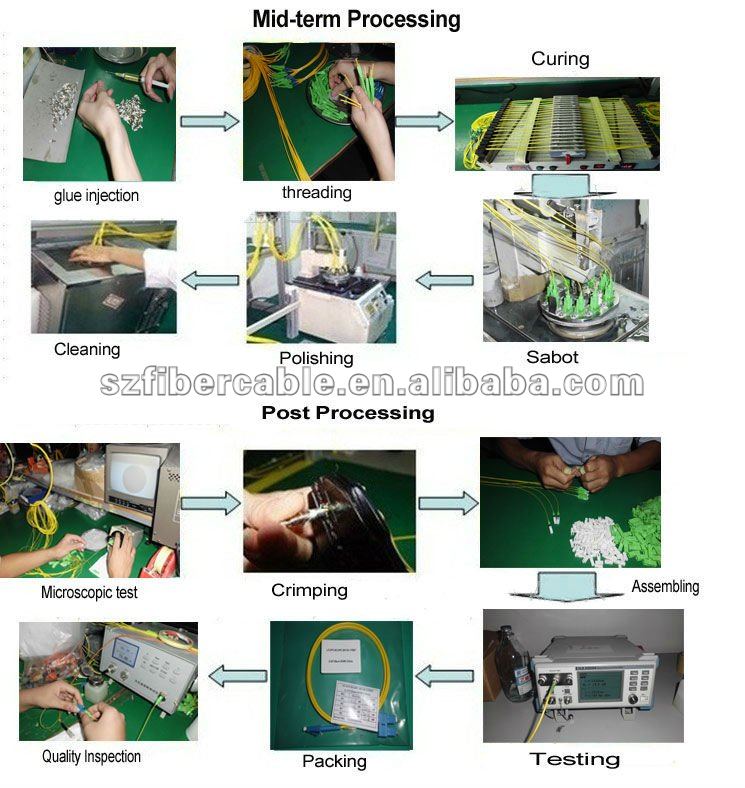

Fiber Optic Patch Cords Processing steps :

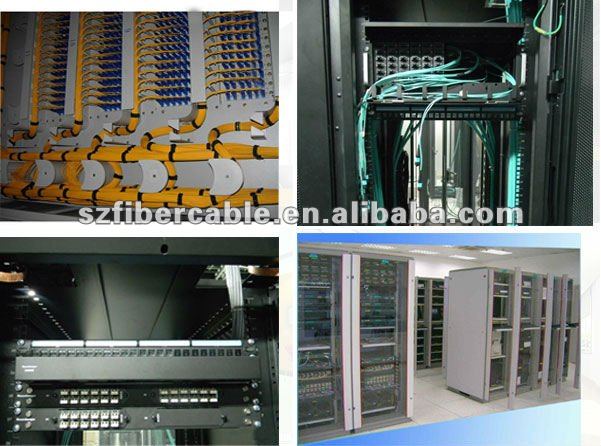

Patch Cords Application :
Why Chose us :
1. Fast delivery
2. Competitive price
3.. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Free sample provided
7. Longtime warranty
8. Value-added service: except good products, we can provide good services on logistic and other help you may need
