Parameters:
Maximum load current: 0.5AModel: YMS-2010 SModel: YPS-1025AMaximum load current: 0.5A
Load Voltage: 100VDC
Ambient temperature: T85
Induction distance: 1-30M on-off distance is optional.

Working principle:

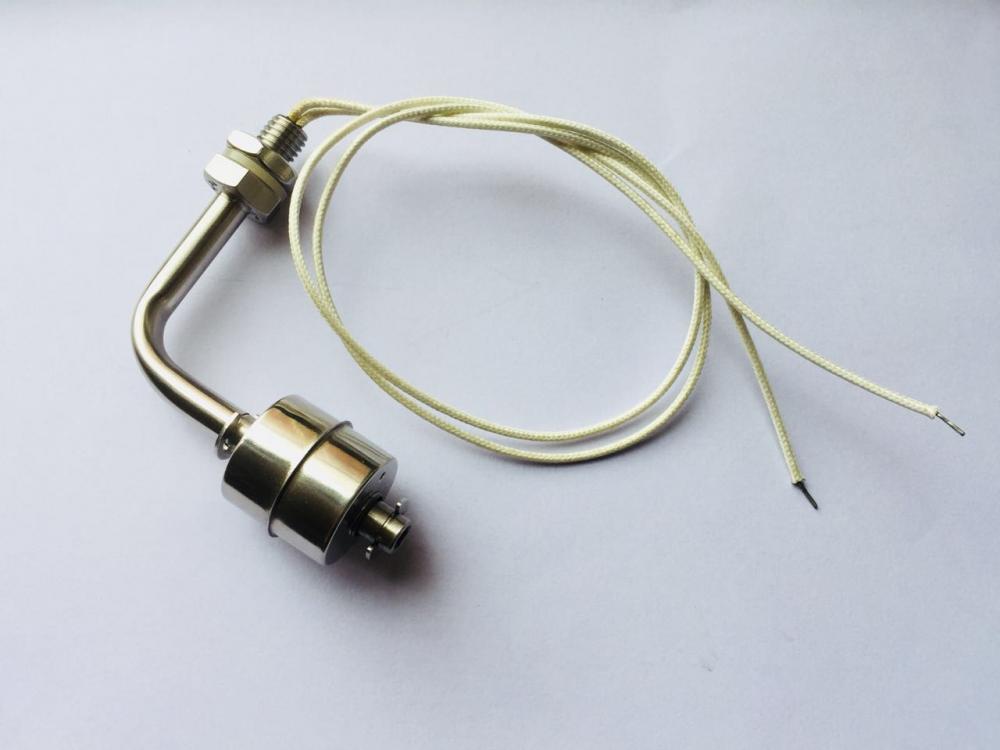

The liquid level switch is mainly composed of a reed switch and a float ball. There are magnetic materials in the float ball. One or more magnetic reed switches are set in the closed plastic tube. Then the tube is passed through one or more floats with magnetic materials. The fixed double-loop is used to control the position of the float ball and the magnetic reed switch. With the rise or fall of the liquid, the float ball is connected with the beginning of the magnetic spring in the ball. Point, generating the action of opening and closing, making liquid level control or indication (when the float ball is close to the reed switch is on; when leaving, the switch is off)

Application:
This product is mainly used in household appliances (such as induction cooker, rice cooker, microwave oven, water heater, water dispenser, etc.), industrial equipment, horticultural equipment, etc.This product is mainly used in household appliances (such as drinking water machine, humidifier, dehumidifier, electric water heater, home tap water direct drinking system, etc.), industrial equipment, horticultural equipment, medical equipment, beauty and hairdressing equipment, aquaculture and industrial water purification, sewage treatment system, automatic door control system and other industries. According to the special needs of different customers and different environments, the products have a variety of sizes, a variety of materials can be selected, and can be customized.

Advantage:
1. Simple structure, light volume and long service life.
2. Easy to use and cheap
3. PP material, PVDF material and PVC material can be selected.
4. Simple working principle, no power supply, no complex circuit
5. High reliability, float balls of different specifications are available.
