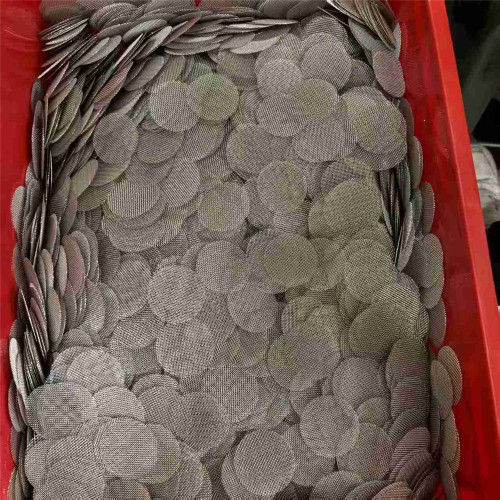

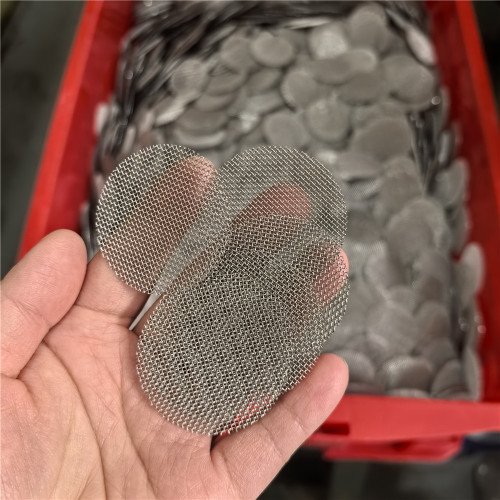

You may find the single layer filter disc in everywhere,this filter disc is commonly used in applications that require fine particle removal, such as pre-filtration, final filtration, and process control. It can be customized to meet specific needs, including variations in diameter, thickness, and mesh density.Normally the filter mesh disc is made of 304 stainless steel wire mesh and cutting in round shape with its precise mesh size options, and compatibility.Each filter disc is manufactured using advanced techniques to ensure accuracy and consistency. The stainless steel 304 material guarantees durability and longevity, even in harsh environments.Whether for industrial, commercial, or technical applications, this product offers a reliable and efficient filtration solution.

?

Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.

?Wire diameters: 0.01 mm - 5 mm.

?Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).

?Weaving methods: plain weave, twill weave, dutch weave, etc.

?Layer: single layer or multiple layers.

?Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.

?Marginal materials: copper, aluminum, stainless steel, rubber, etc.

?Filtration precision: 0.2 μm - 100 μm.

?

Features

Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.

Chemical properties: acid, alkali and corrosion resistance.

Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.

?

Application:?
