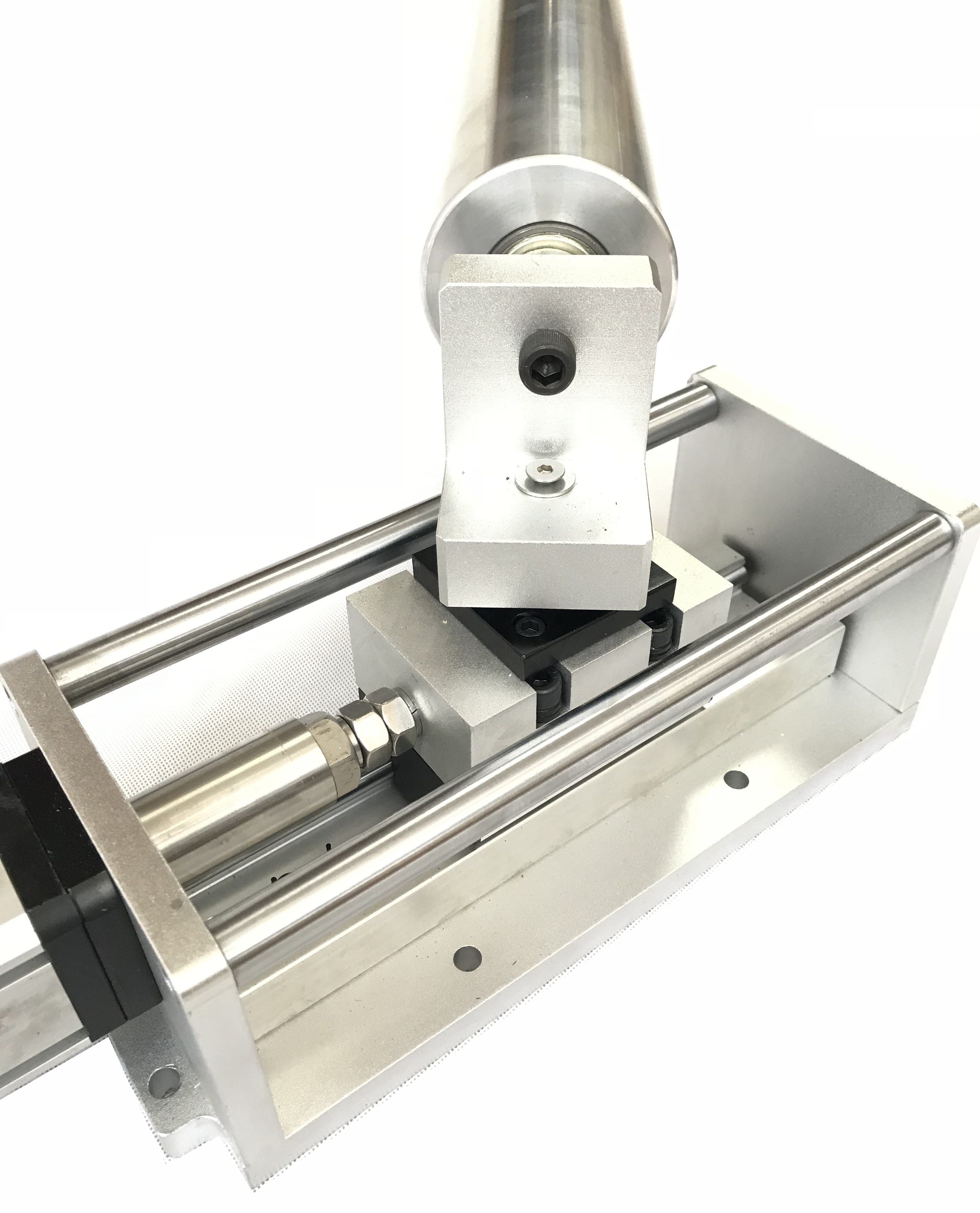

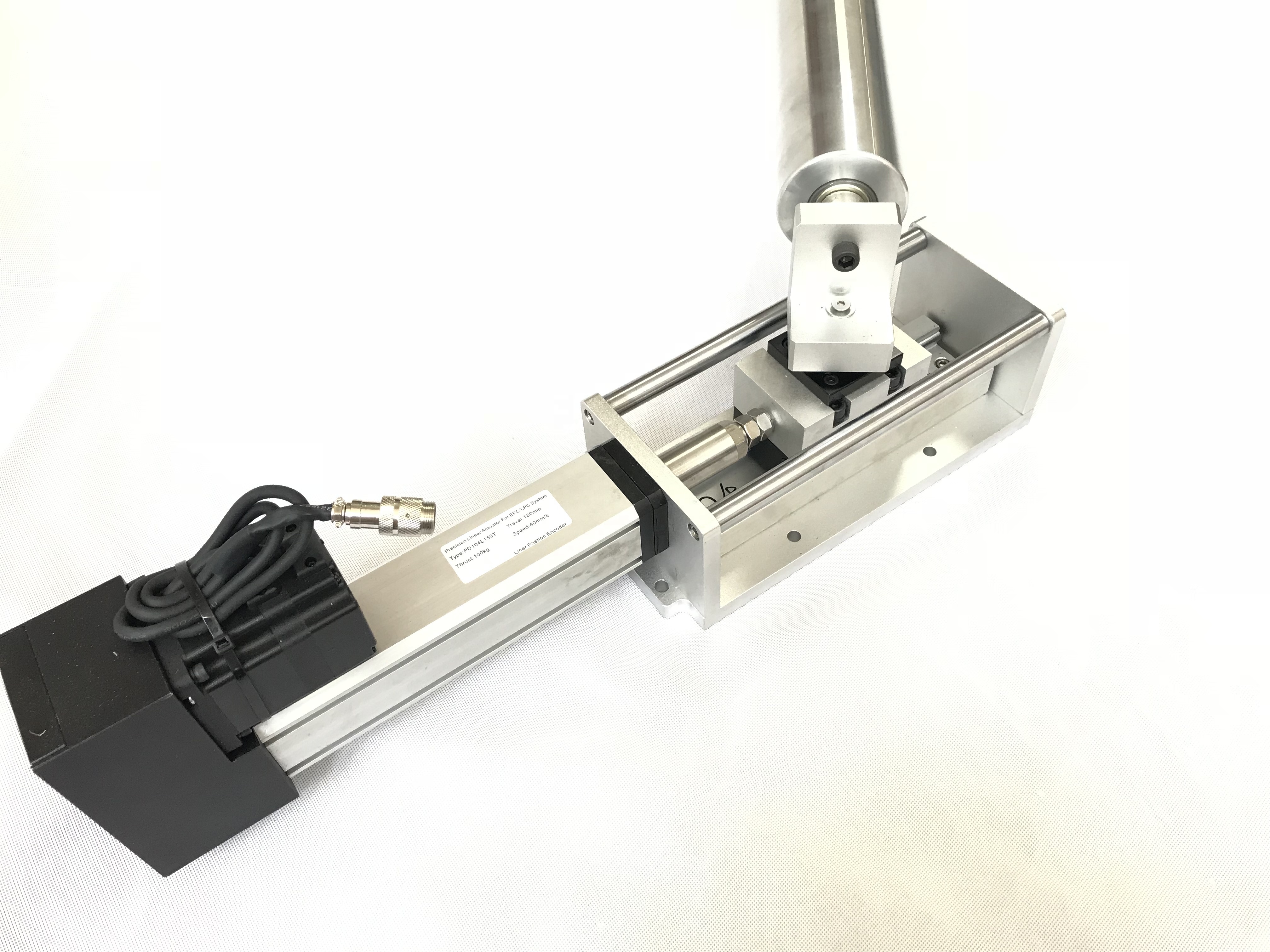

Single Roller Steering Web Guide Control System End Pivot

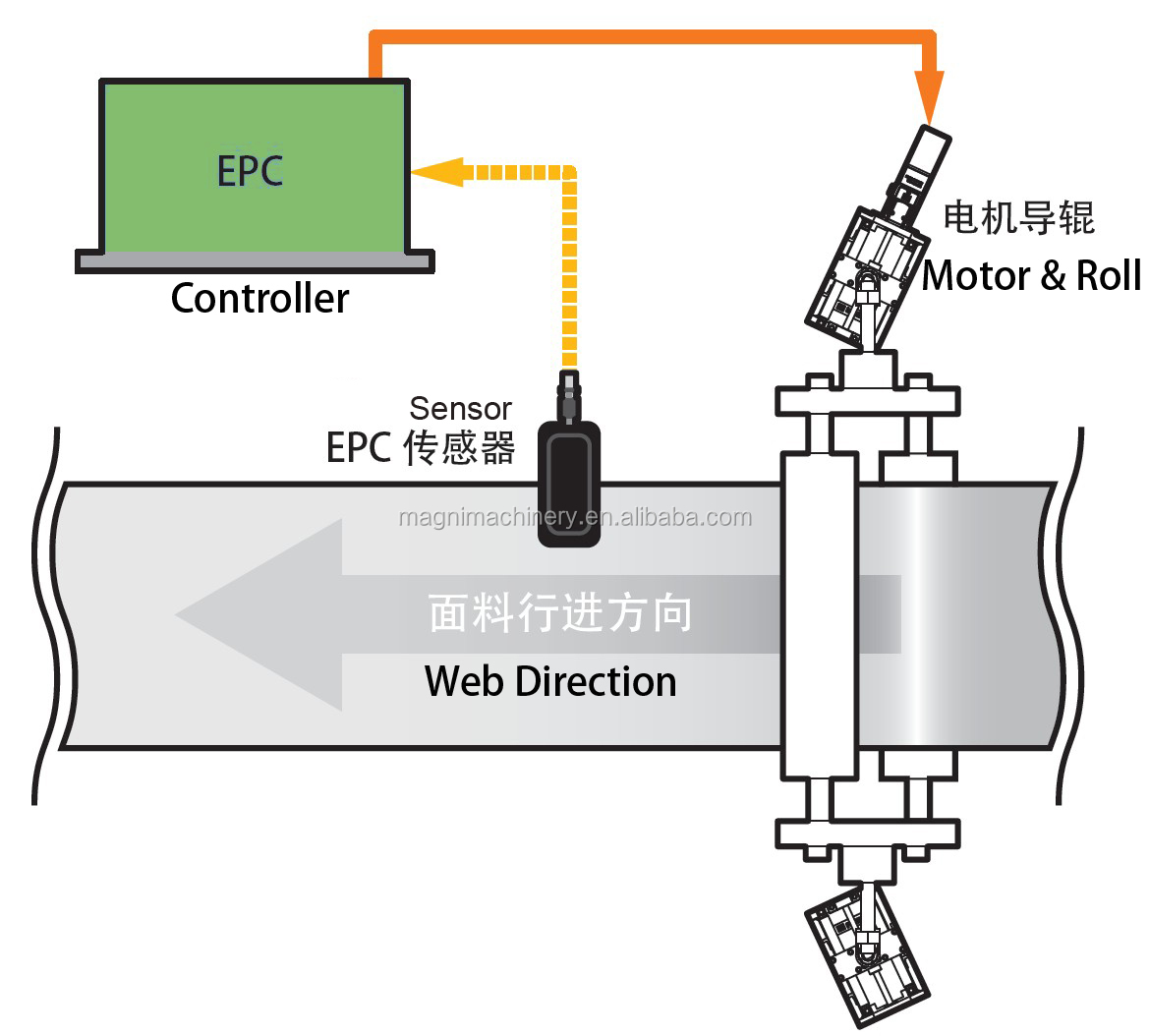

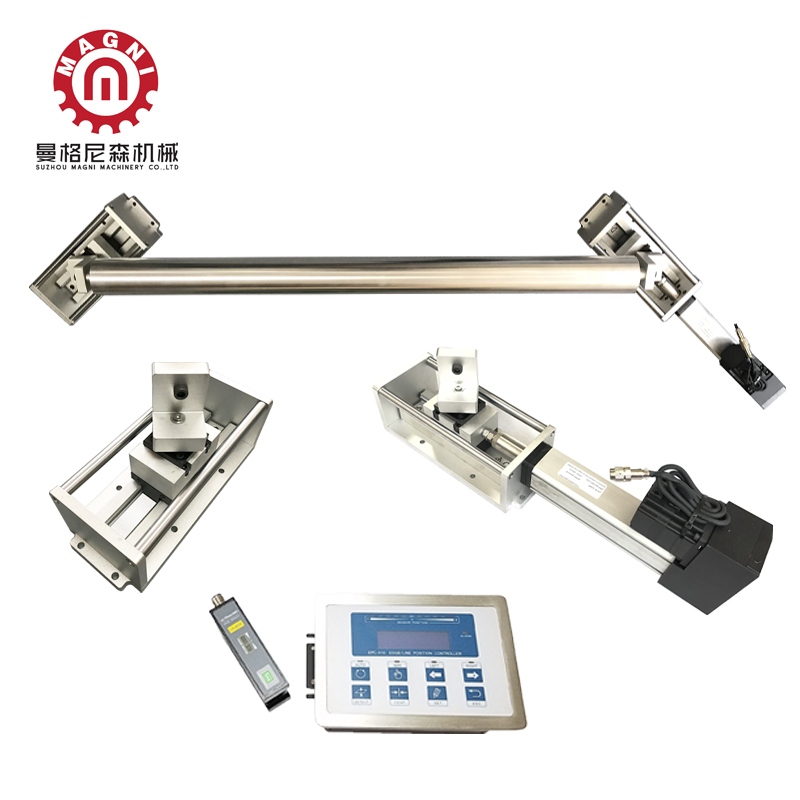

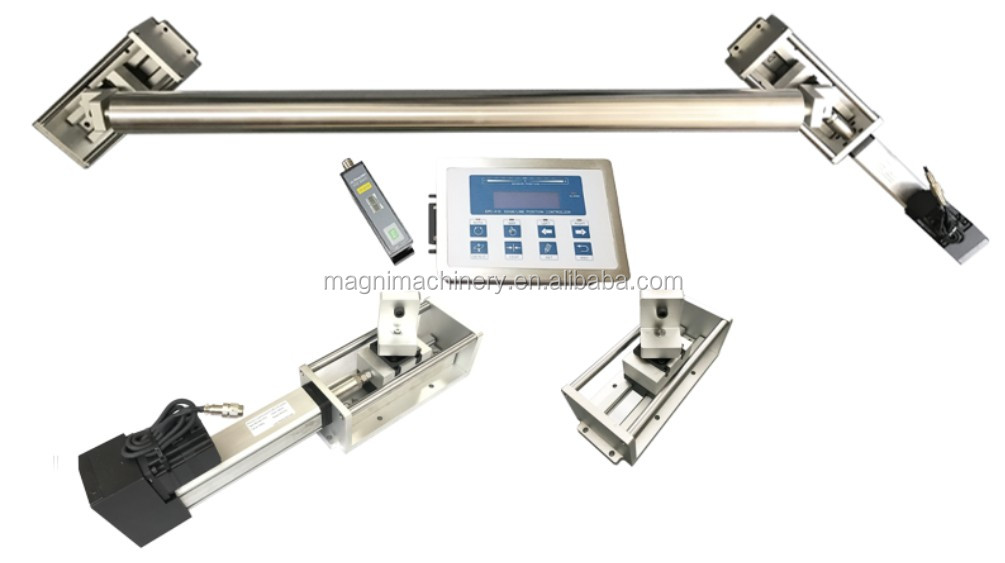

The roller steering guides web control system consists of a controller, sensor, servo motor, a web guide frame and a guide roll.
These five parts constitute a closed-loop control system. The system corrects the coil precisely through a long entrance span
feeding way. This innovative deviation correction system can correct the lateral error of coil.
Features

* The length of guide roller is special customized.
* Single guide roll or double guide roll can be optional used.
* Adopt high precision servo motor control system, Fast and accurate correction.
* Low friction ball bearings and precision guide rods are used to drive parts.
* High durability, long-term continuous operation and low maintenance rate.

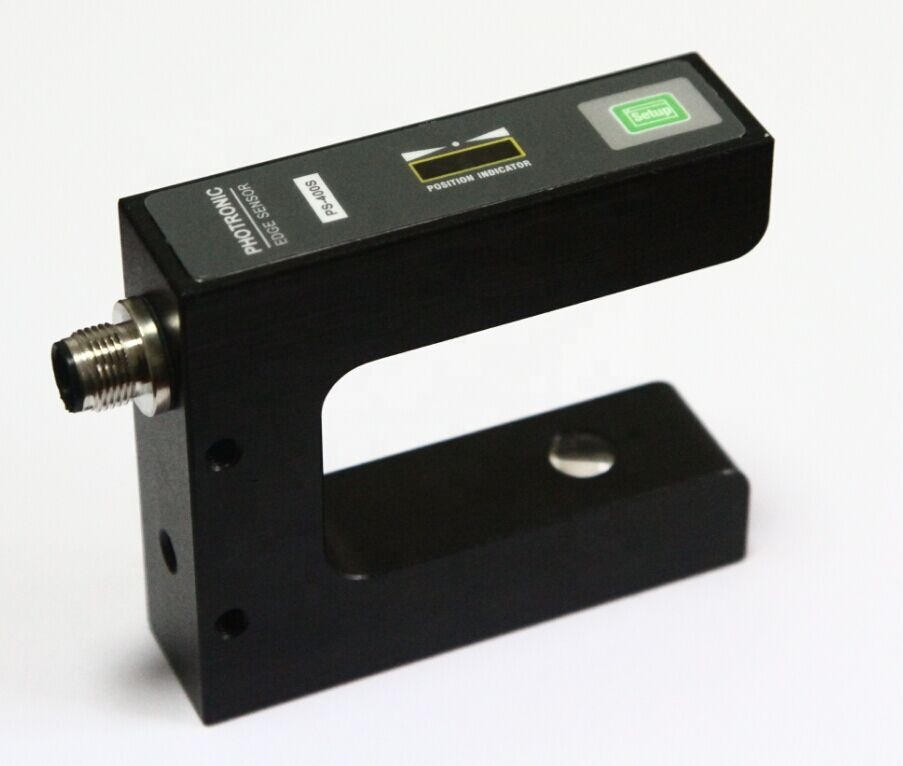

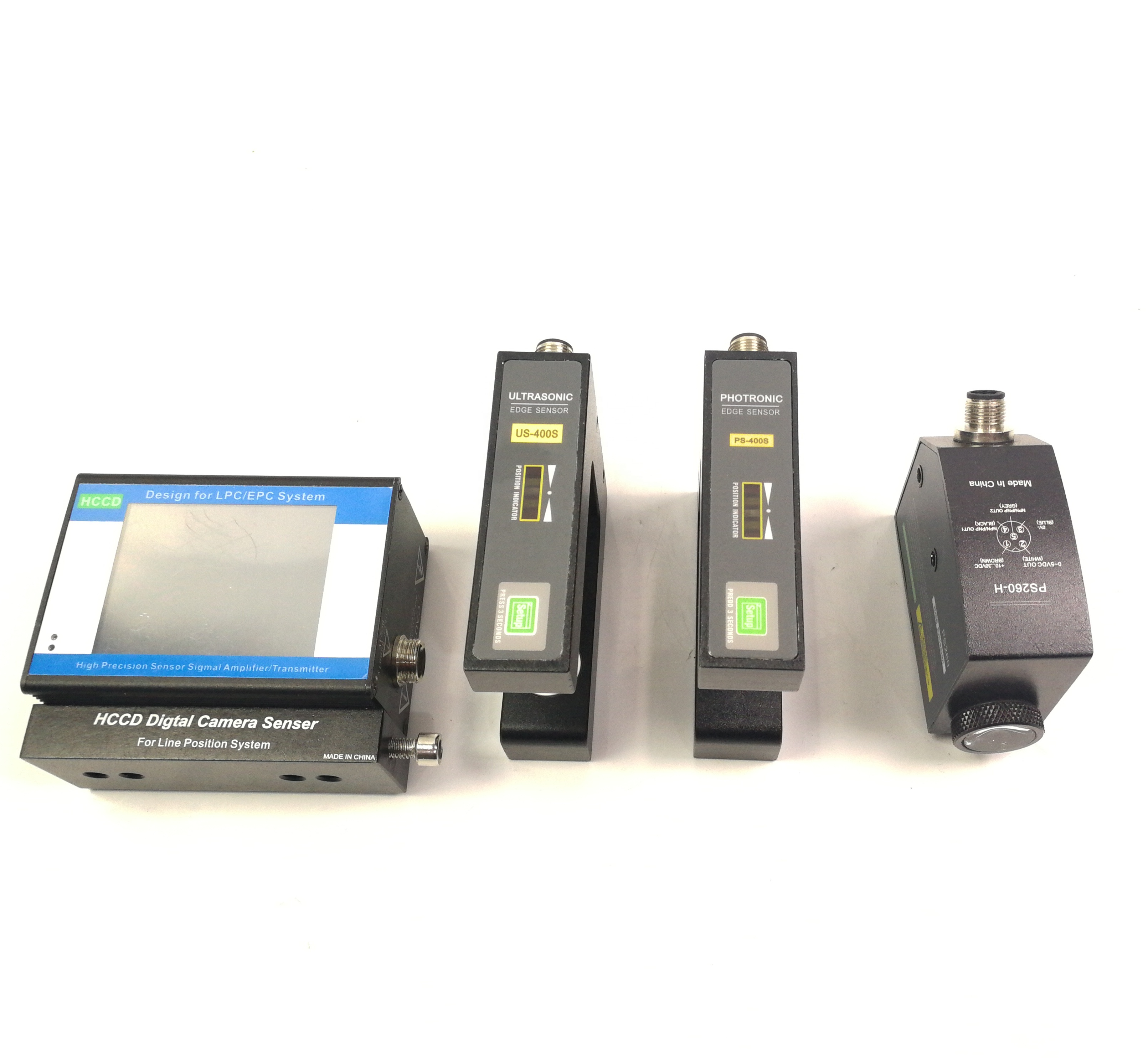

* Selection of sensors based on coil material.
* Optional configuration of LPC, EPC, CPC.
* Modular assembly to achieve rapid compliance.

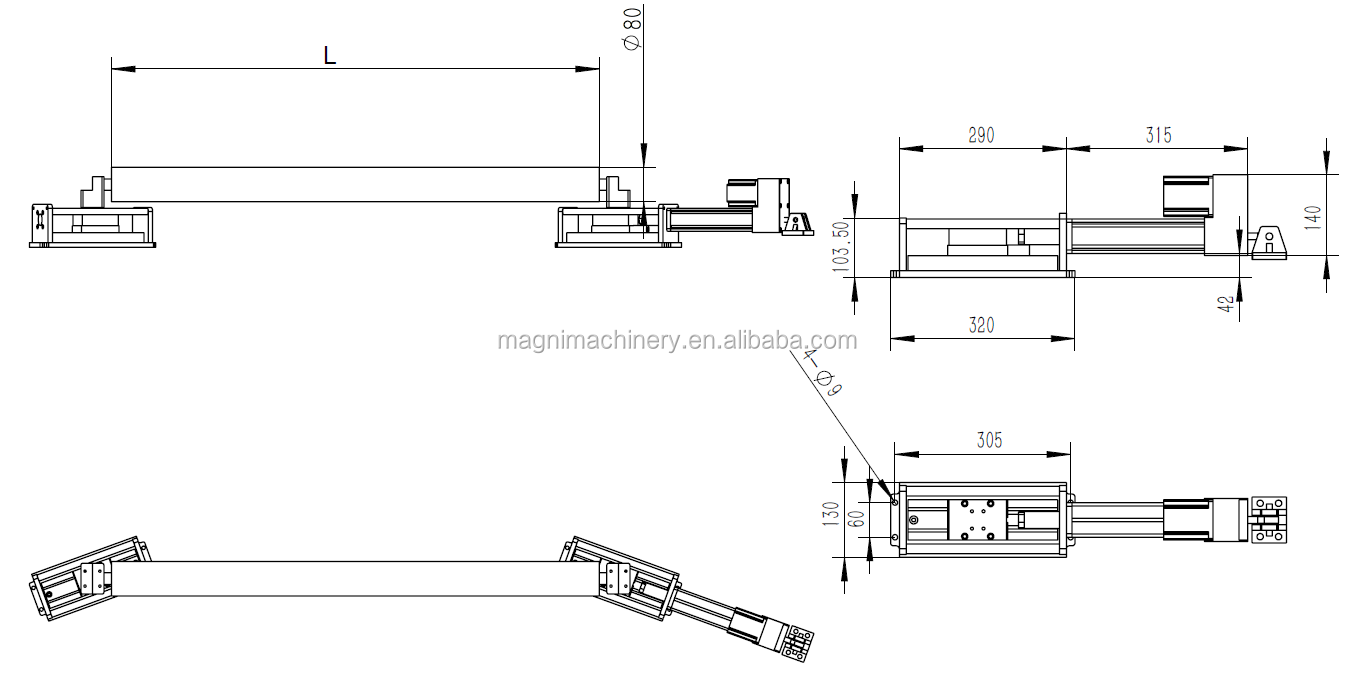

PRODUCT SPECIFICATIONS
Model
Roll Dia(mm)
Thrust Weight
Max drive speed
Guide stroke
Sensor
Alignment Mode
GSPD104L
80/100
1000Kg
40mm/s
150mm
US-400S/PS-400S/PS-260
EPC/LPC/CPC
GSPD204L
80/100
2000Kg
40mm/s
150mm/200mm
US-400S/PS-400S/PS-260
EPC/LPC/CPC
Guide roll length: Special made
3
Operating weight
125Ton

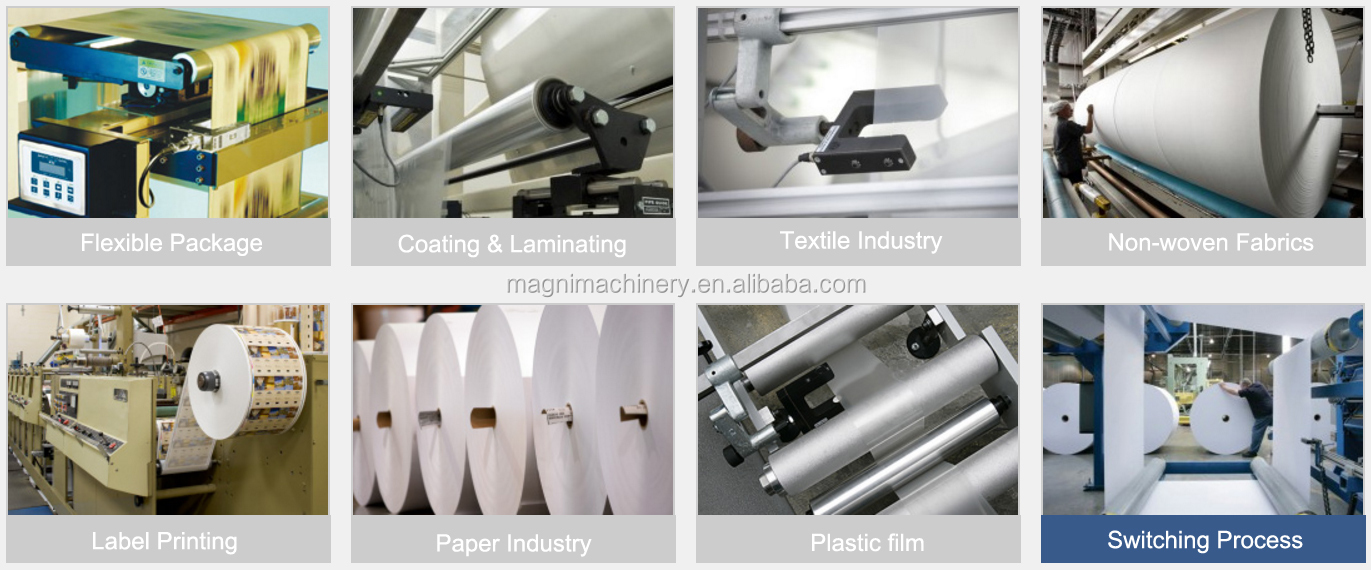

Application of Steering Web System

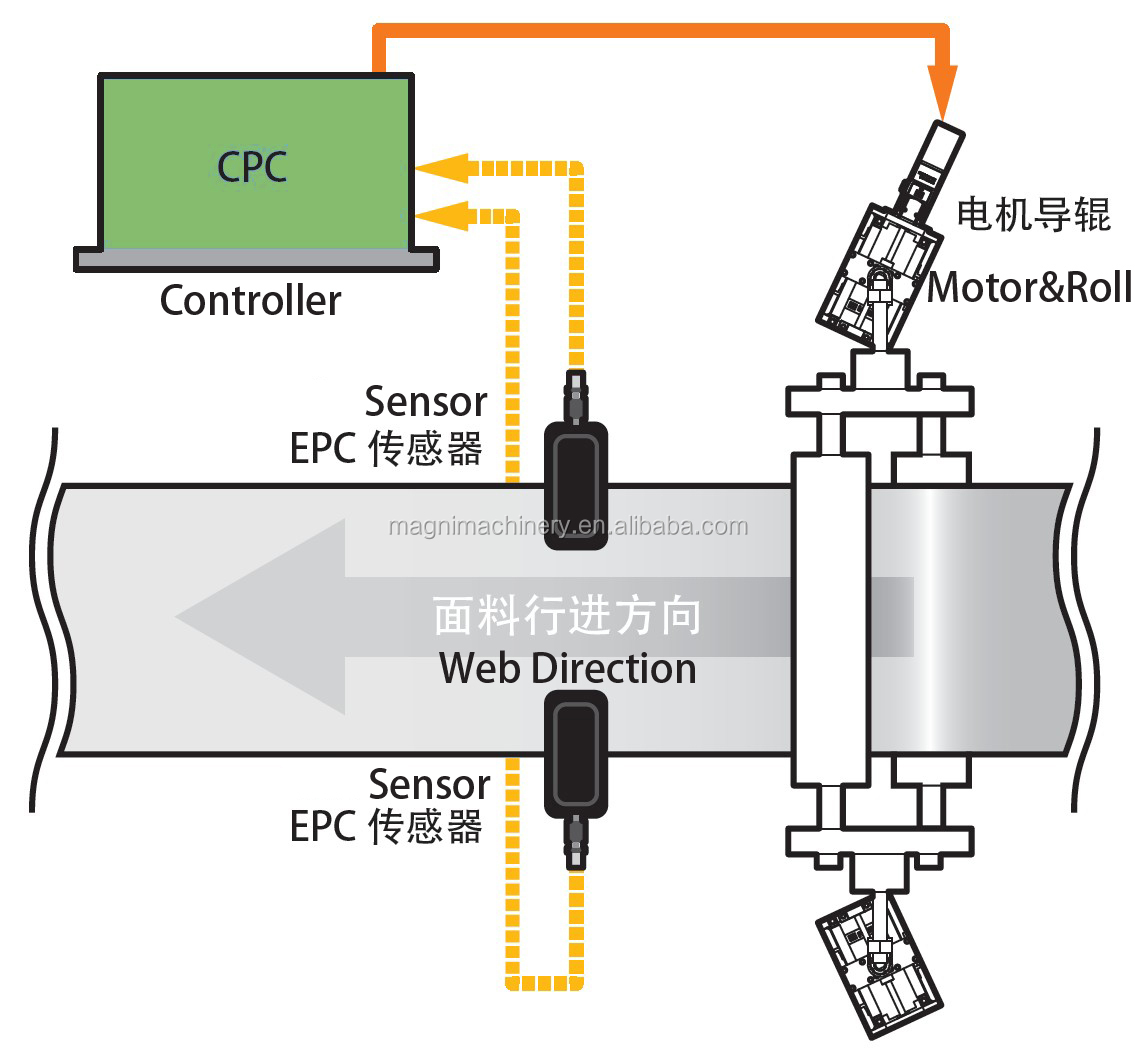

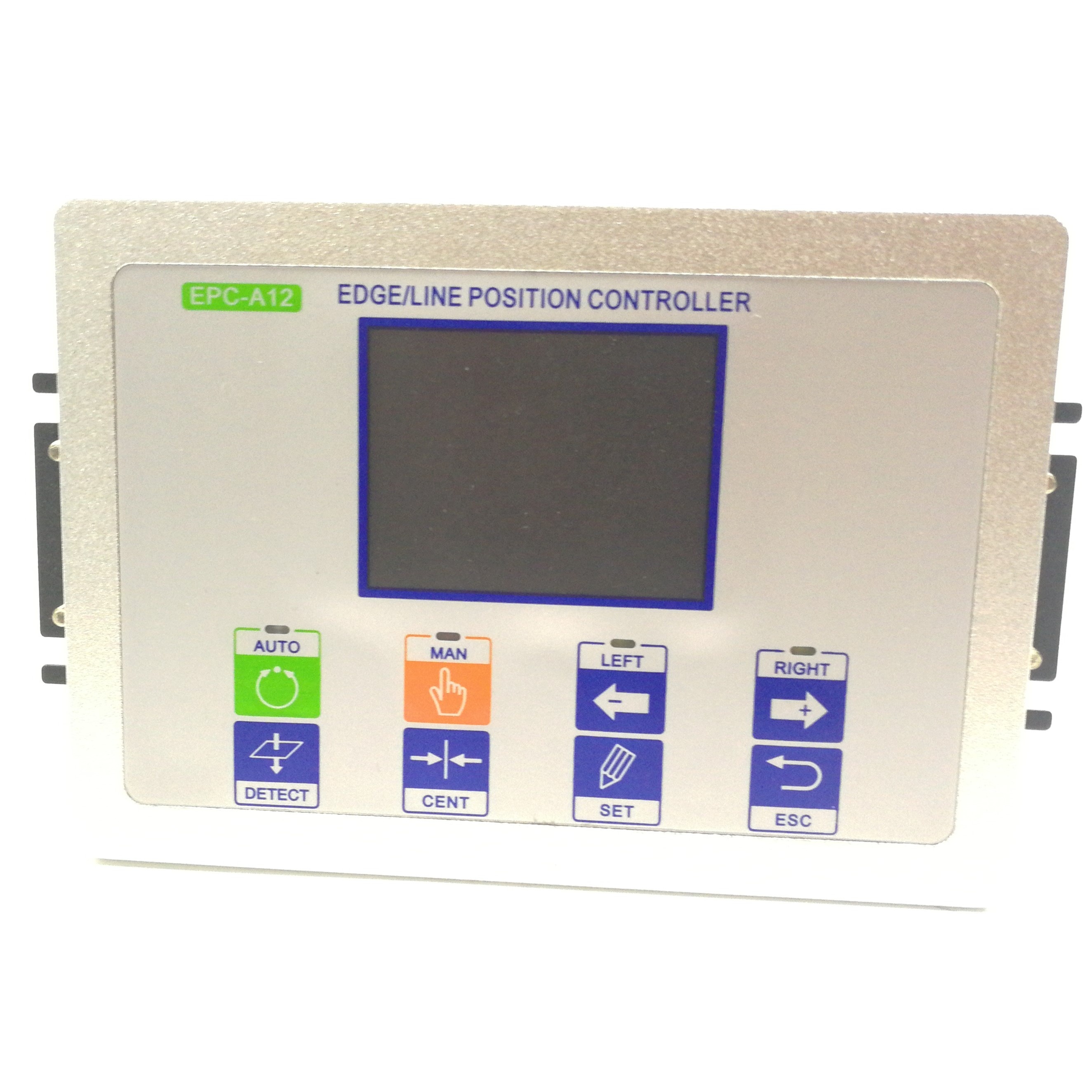

EPC System

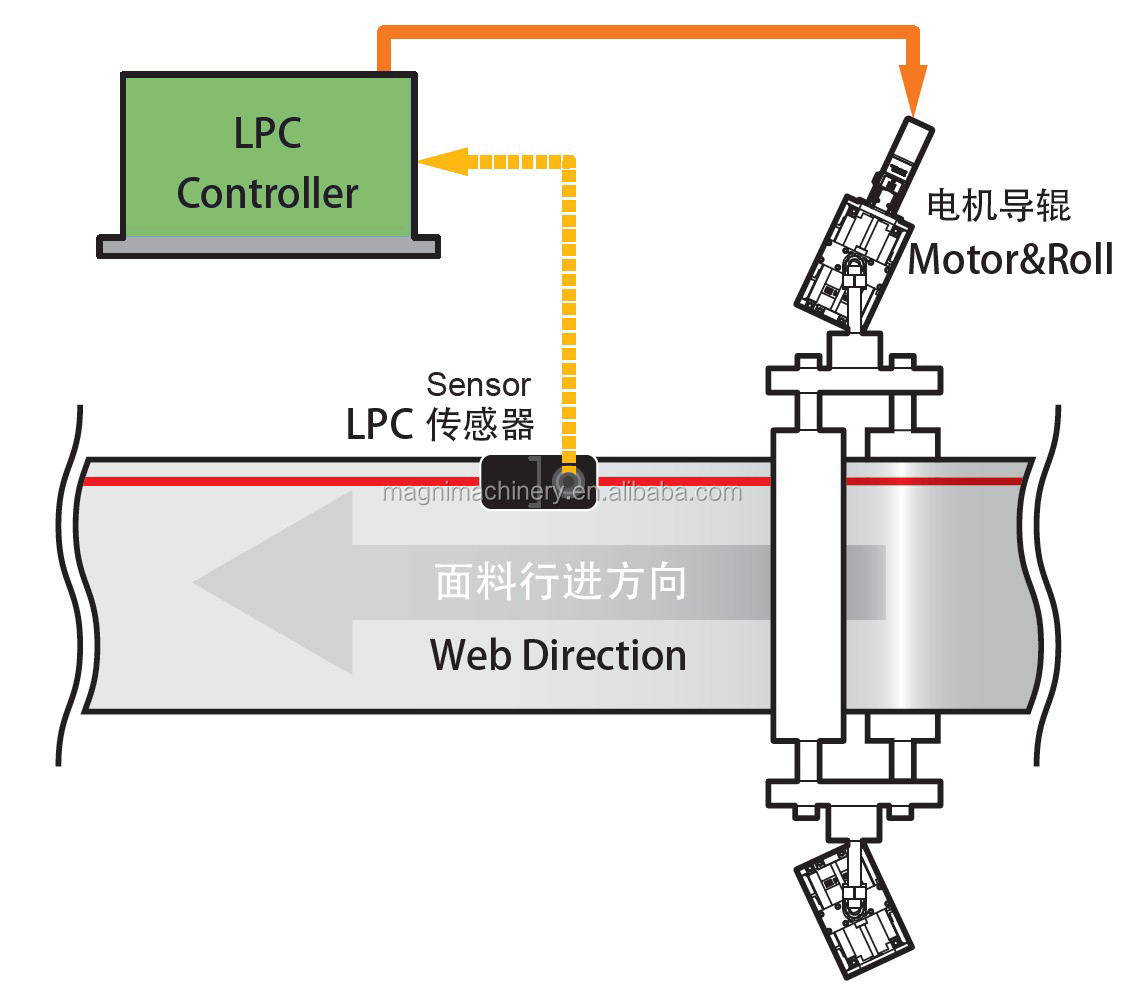

LPC?System

CPC?System

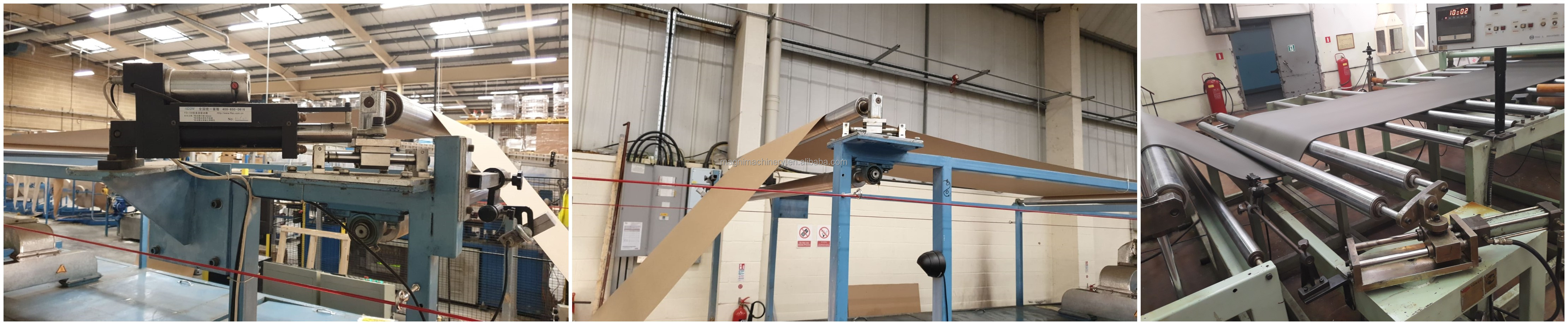

Successful Project
