Single Swing Wire Mesh Fence Gate

The single swing wire mesh fence gate is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials. The mesh size is 50*50, 50*100, 50*200, or as your requirement. The single swing gate is designed for residential, school or garden.

Specification of swing gate

Gate frame

type of the vertical-hinged door	Single leaf Double leaf
Height of the gate(m)	1.0m,1.2m,1.5m,1.8m,2.0m
Width of the gate(m)	Single leaf: 1m,1.2m,1.5m Double leaf: 2m,3m,4m,5m,6m,8m
Gate frame	Square tubes:  35X35mm, 40X40mm, 50X50mm, 60X60mm, 40x60mm
Surface treatment	Galvanized Steel pipe+Powder Coated
Color	RAL 6009, RAL6005

Gate Panel:

Wire diameter	3.8mm, 4mm, 4.8mm, 5mm, 6mm,
Mesh	50*100mm, 50*150mm, 50*200mm
Height	1.5m, 2.2m, 2.4m,
Post	40*60*1.5mm,60*60*2mm
Surface Treatment	galvanized then Powder coated ,hot-dipped

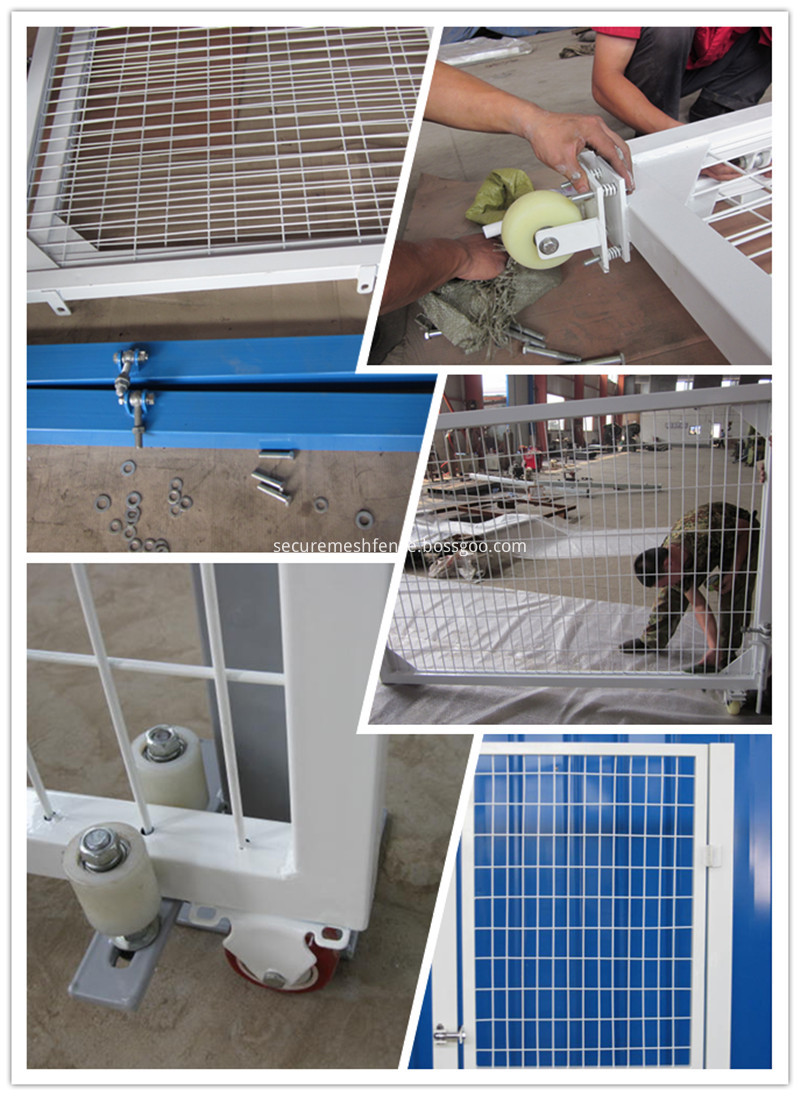

Installation of Swing gate:

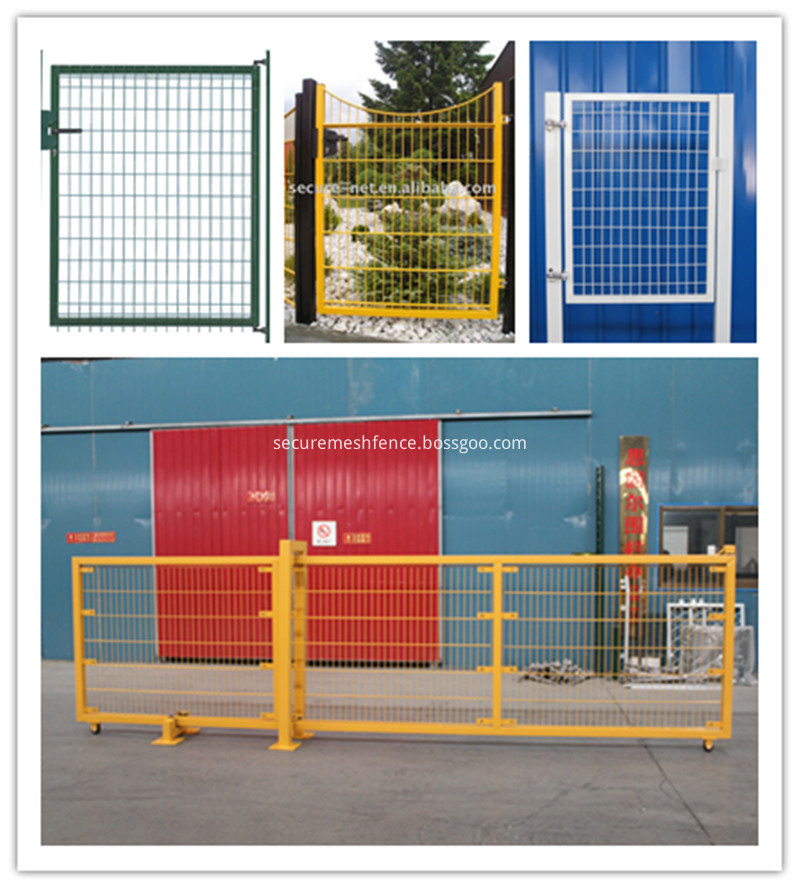

Different designs of swing gate:

Packaging of Swing Gate

1) fence gate panel: plastic film +wood/metal pallet.

2) fence gate post: every post pack with a plastic bag (the cap is covered well on the post)+metal pallet.

3) accessory: small plastic bag carton box.

4) There is 4 metal corners to keep the pallet more strong.

Company Information
Hebei Secure-Nett Fence Facility Co., Ltd. found in 2000, is located in Anping, which is famous as production base of Welded Wire Mesh in China. Our company mainly produce and sell Steel Tubular Fencing, Metal Mesh Fence,358 security fence, Chain Link Fence, Fence Gates and so on, we can also customize products according to customer requirements.
Our products widely used in realty, village, garden, school, hospital, construction, playground, factory, port, airport, military affairs, prison, freeway and railway etc. Just contact me freely whenever you need!
