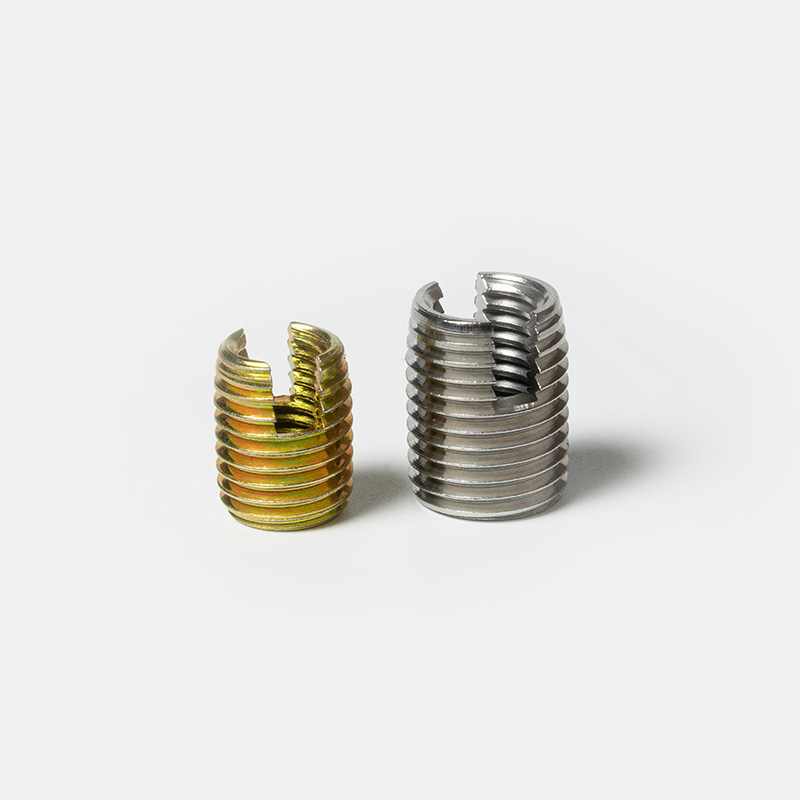

Slotted Type Thread Self Tapping Insert

302 Self Tapping Threaded Inserts, also known as helicoils or threaded bushings, are designed to create a secure anchor within an untapped pilot hole. These engineering components can convert unthreaded holes for use with machine screws, and are particularly useful in housing materials which have a low shear strength, as the large diameter of the insert increases the thread engagement and load-bearing capabilities of a fastening. 302 Self-Tapping Threaded Inserts have the added benefit of reducing wear within machinery which requires frequent clamping and unclamping.

Size& Type：
Metric:
M2-M30, with cutting slot, also for normal Inch sizes.
M3-M24, with cutting bore, also for normal Inch sizes.

Material:
Stainless Steel
Case-hardened steel, zinc plated
Brass
Other material on request

Finishes& Coating:
Zinc plated (Yellow, Blue, etc.)
Dry Film Lubricants
