Small Multifunction Inkjet Printer For Production Line

Inkjet coding Machine Introduce

Online Thermal Inkjet Coder Introduce

1. High Speed, High Resolution

    a). Fast, consistent and trouble free printing with excellent code clarity

    b). Printhead configuration for up to four printheads with print heights from 12.7mm to 203.2mm at print speeds            up to 300 metres per minute

    c). Print up to four lines of 600dpi resolution vertical and horizontal text, bar codes, 2D data matrix codes and logos

2. Reliable

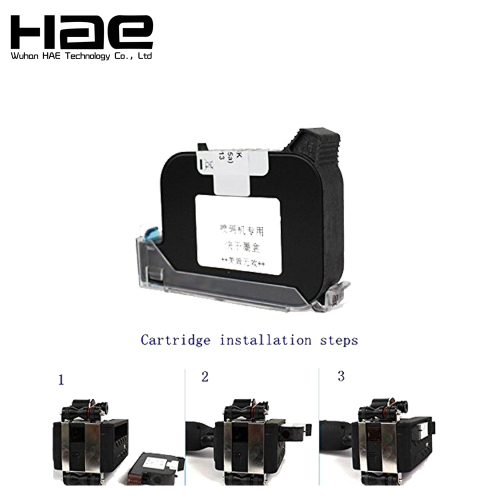

    Maintenance free printer with no replacement parts other than the inkjet cartridge Clean, mess free and easy to change HP ink cartridges
3. Intelligent

    Single Intuitive Touchscreen interface for easy job selection and edition

Industrial Inkjet Coding Machine Advantages:

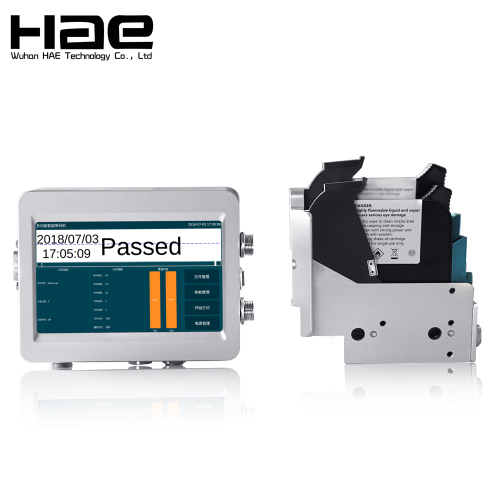

1. Operation interface with 7 inch touch screen make it easier to operate.

2. High system integration, small size, less component and easy to install and maintain.

3. Full metal shell, industrial design and stronger.

4. Take H P original driving board to make print effect higher quality

5. Wireless print head verify tech , more stable and intelligent.
6. 1-16 printing heads for choice
7. Application Industrial: Bill, Food, Beverage, Electronics, Wire, Cable

Continuous Inkjet Coding Machine Parameters

Model	HAE-3000 Multifunction Inkjet Printer
Print system	HP TIJ2.5
Display screen	7 inch touch screen
Template format	LGPV1.0
Interface	Internet access/USB
Print height(customize machine printing head can be 8pics)	12.7mm
	2*12.7mm
	3*12.7mm
	4*12.7mm
	25.4mm
	25.4mm+12.7mm
	2*25.4mm
	50.8mm
Max print speed	38m/m@600×600DPI , 76m/m@600×300DPI 150m/m@300×150DPI
Print data type	Text, batch number , manufacture& expiry date, image, database
Others	Simulation speed print\Simulation sensor print
Power supply	110-220VAC , 50/60Hz
Max power	120W
Temperature/Humidity	5℃~35℃ , 10%~90%
Package dimension	500*390*140 mm(L*W*H) for standard machine
Package weight	3.7Kg/1HEAD   4.2Kg/2HEAD  4.7Kg/3HEAD 5.2Kg/4HEAD

Date Inkjet Coding Printer details

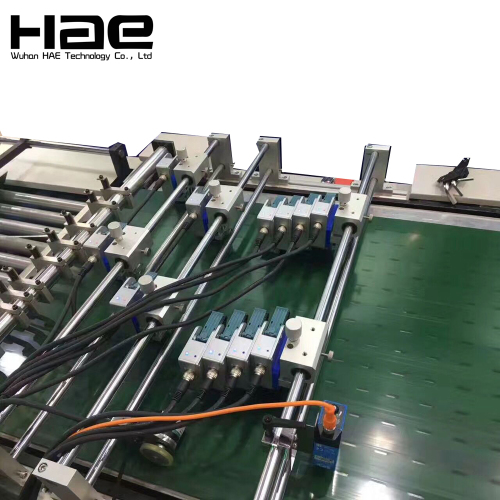

Coder Inkjet Coding Machine Production

Our Service

1. Consult customer for their requested application
2. Do a best recommendation
3. Free sample printing
4. Free to coordinate shipping according to customer's request
5. Free training
6. Provide detailed edition &operation video and user manual
8. 7x 24 hours technical support
9. Life time technical support

Inkjet Code Printer Package and shipping

Inkjet Coding Machine packed with it's own handling case, then packed with carton

Inkjet Coding Machine shipping method can be by sea, by air or express
