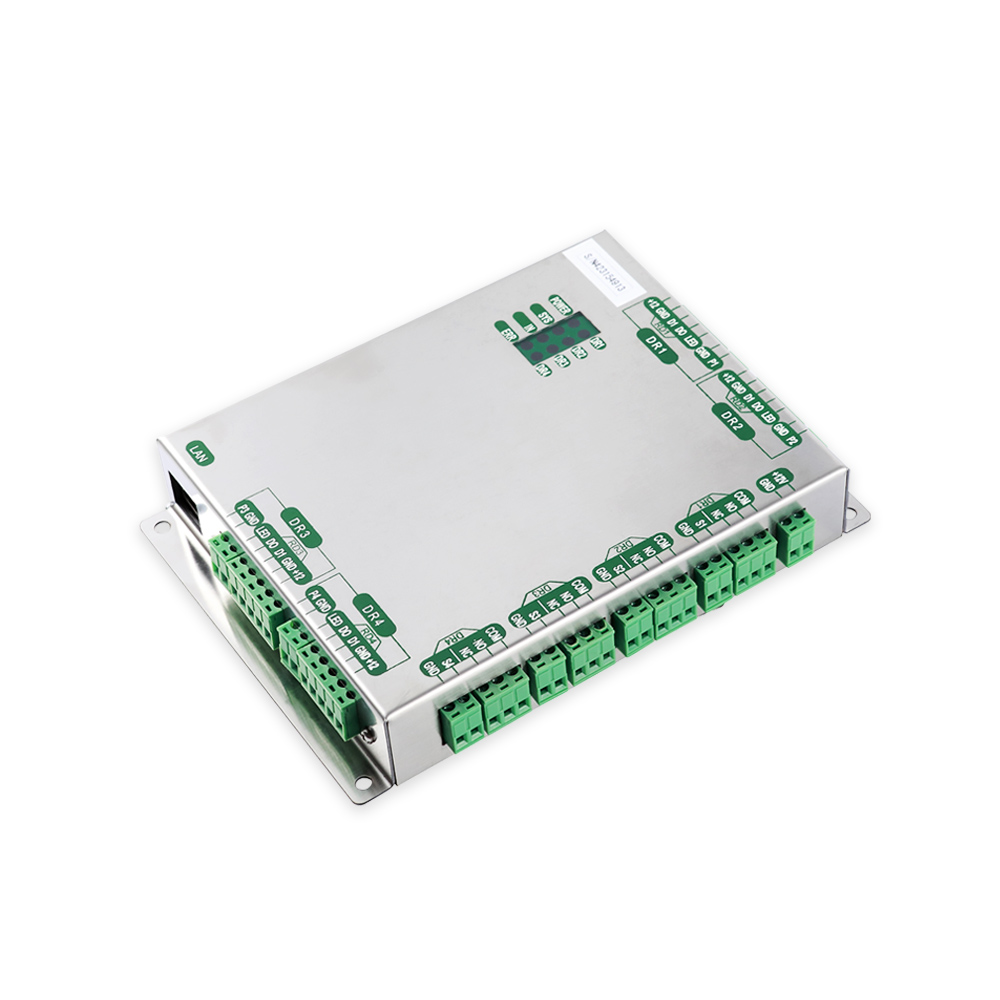

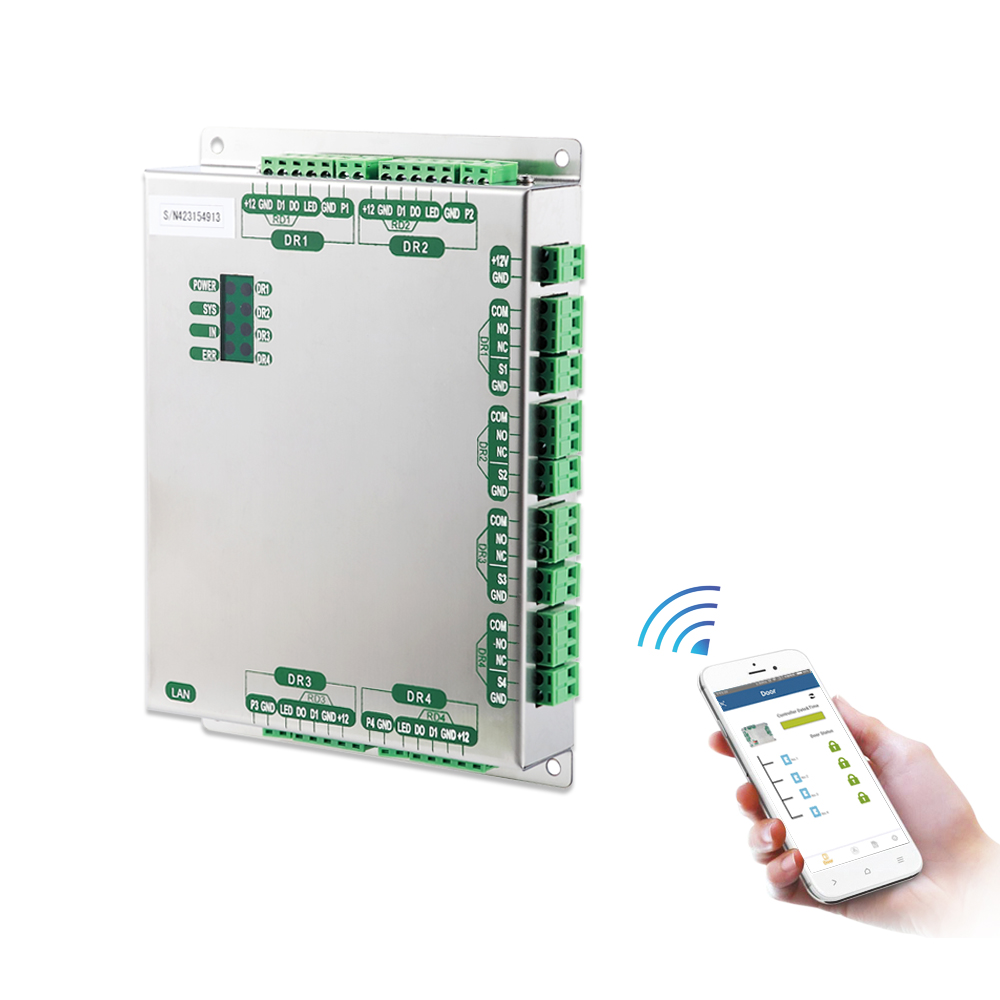

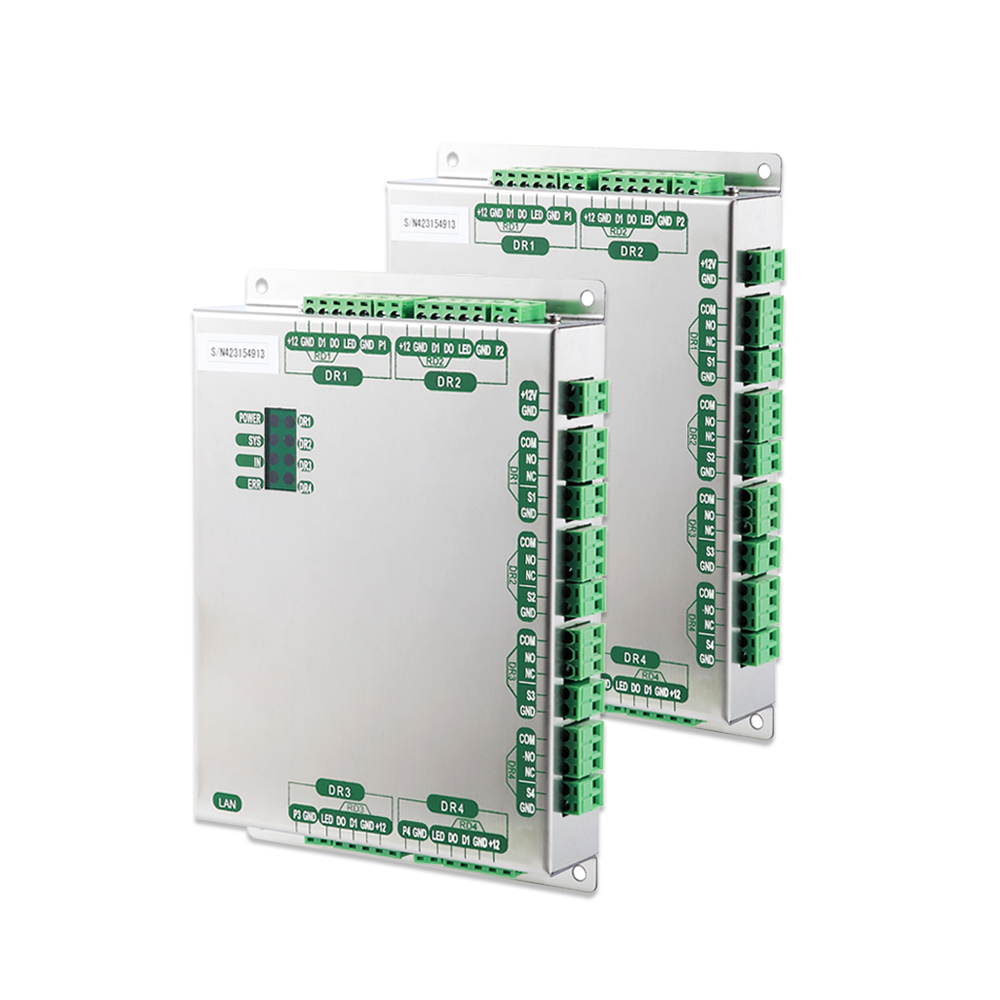

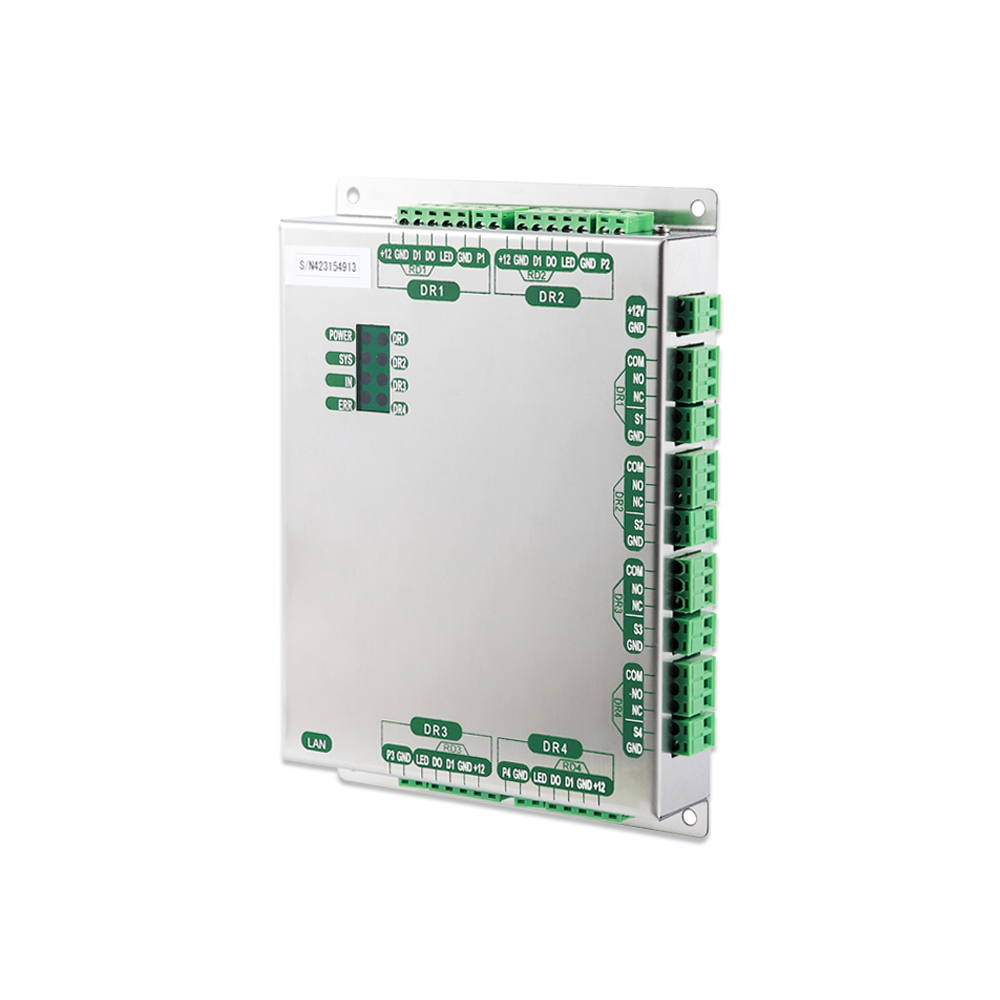

Small size with full metal housing Support Different Wiegand Format For Four Door Access Controller.

Model Name:  C4-Smart
Brand Name:  GRANDING

Product Description:

C4-SMART DOUBLE DOOR  ACCESS CONTROL PANEL FOR FOUR DOORS.

C4-Smart Access control Panel is built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install.

Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C4 's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.

The C4 can communicate at 38.4 Kbps via  TCP/IP networks. It can store up to 20,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

Features:

• There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
• Multiple hardware protection measure
• Integration with Other Security Systems
• Supports different wiegand reader of wiegand 26 to 40
• The controller support different wiegand format, and can connect to different reader, including ID card reader and MF card reader
• Input/Output Ports to Control Doors
• Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
• Using either serial or TCP/IP communication, it provides reliable network system
• It is easy to manage the system by browser from client PC. There is no need to install software on each client.
• Normal open after first punch card can be setup
• Real-time Monitoring of Door status
• Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
• Interlock function
• Link different doors with special logic that one door is Open, others should be closed.
• Multi-card operation
• This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
• Anti-Passback
• Duress Mode
• SDK available

Specifications:

Model Name	C4-Smart (for four doors)
User	20,000
Event	100,000
Communication	TCP/IP
Reader Interface	4
Max of Doors Controlled	2
Input port	4 (2 Exit Buttons and 2 Door Sensors)
Door Closing Delay	1-600s
Running indicator	LED light
Transmission distance	80-100m
Power supply	DC12V/ 4-7A
Static current	50-100mA
Working Temperature	-35oC~70oC
Operating Humidity	10% to 90%
Wiegand Format	Wiegand 26-40 bit
Weight	1.0KG
Dimension	167*133*31mm
Software	Smart Access Control Management

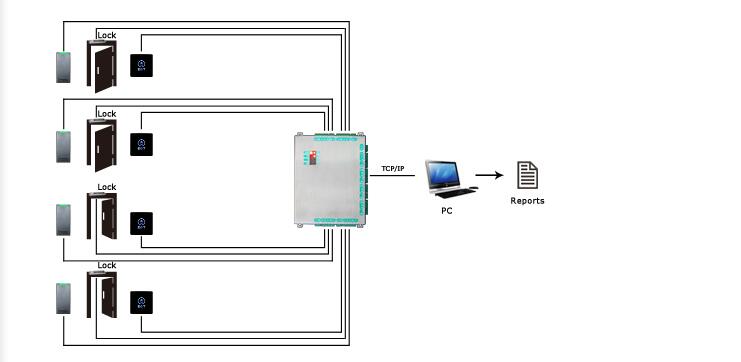

Connection Diagram:

Payment & shipment:

Payment Terms: Paypal or West Union for sample order; T/T for regular order; L/C for large order.
Shipment Way: International Express TNT, UPS, Fedex, DHL, Aramex ; International Air; or by Sea shipment.

FAQ :

1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pcs. But we offer better price for big order.

2. Q: What if the products have problems?
A: We offer 1 year warranty except for the man-made damage. And we can offer any technical support for operation problem.

3. Q: Dose the device's language can be in other language?
A: Yes, of course. Multi-language can be customized. Our device support English, Spanish, Portuguese, Russian, Arabic, French, German, etc.

4. Q: What about the Payment?
A: You can pay for the order via: T/T, Western Union, Paypal, Alibaba Credit Card payment, L/C, DP

5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, Fedex

Big order: By Sea or By airlines.

6. Q:How can I get a sample to check your quality?
A: You can require for samples to check our quality. You should pay for the sample and freight cost, if order more than 500 pcs, we return the sample cost to you.

7. Q: What about the lead time for mass production?
A: small order: 1 week after payment
Big order: 2-3 weeks.

8. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your email so that we'll regard your inquiry priority.
