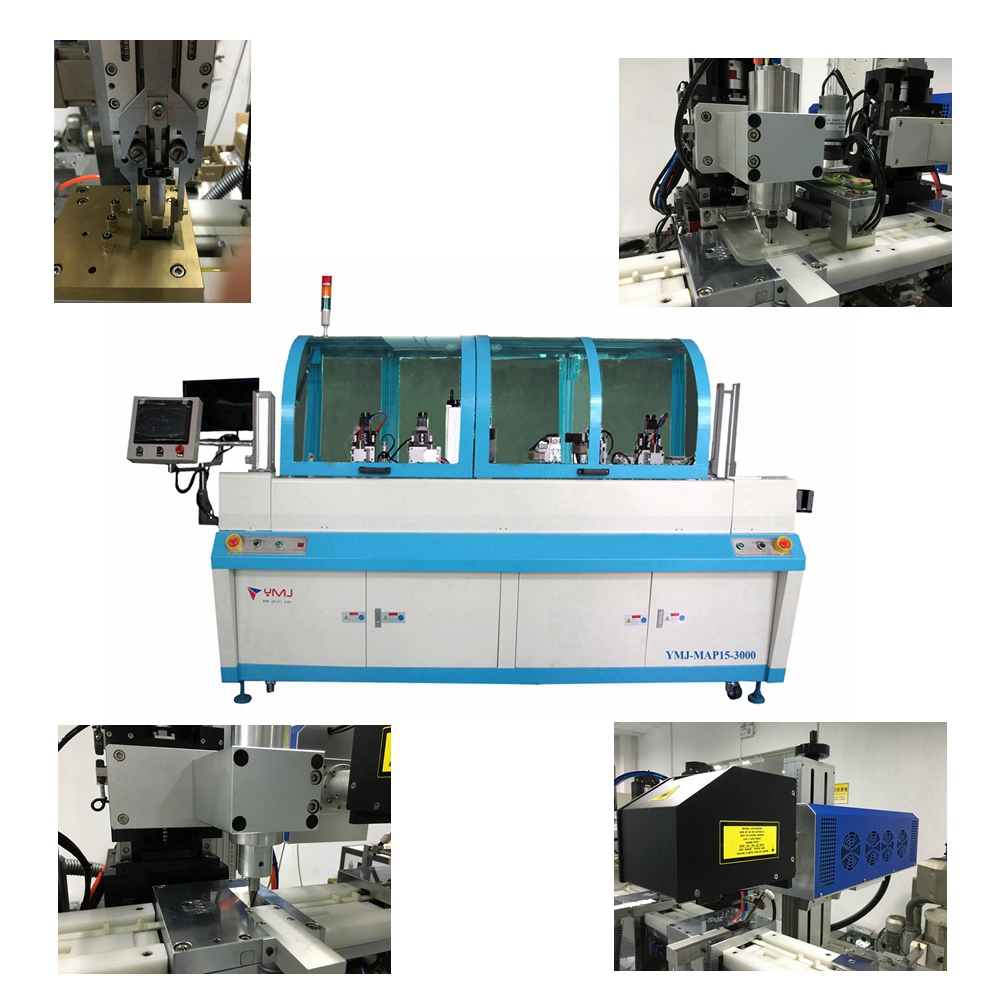

Smart Card Wire Pulling Out Production Equipment is used for dual interface card wire out pulling process. It will mill slots automatically by milling head, and then pull out embedded wire, to realize antenna out pulling. Compared to traditional manual out pulling process, automation working process increases working efficiency and precision greatly.

This milling and wire pulling out production equipment has slot milling group and wire embedding group, which integrates functions of feeding, slots milling, wire pulling out, wire sorting, detecting and card collecting.

Highly automation and advanced technology greatly improve the percent of pass and working efficiency.

Milling station is controlled by servo motor. X-Y axis accuracy: ±0.01 mm, Z axis accuracy:  ± 0.01 mm and flatness accuracy:  ±0.02 mm.

High precision milling and pulling head guarantee the accuracy of milling and antenna pulling out processes, only in this way could keep coil away from damage.

Technical parameter:

Company Profile:

Shenzhen Yuanmingjie Technology Co., Ltd was founded in 2010 for research and development of intelligent manufacturing equipment. With many years innovations and development, Yuanmingjie has become the High Technology Corporation who has got high reputation in China and overseas. Yuanmingjie is the Shenzhen innovative enterprise and the member of Shenzhen software industry association, we also got Guangdong province credible enterprise identification.

Yuanmingjie integrated R&D, manufacturing and sales, who concentrates on supplying better equipment and supporting facilities solution for smart card factories. Our main products include production line for contact smart card, contacless smart card, dual interface smart card, RFID electrical labeling and personalized equipment.

Elites are valued by Yuanmingjie technology, lots of professionals with more than 10 years experience in equipment development gather here. With so many years of technical innovation and experience, Yuanmingjie breakthrough the traditional dependence of domestic enterprises on foreign techniques, reaches a leading position in China, who firstly adopts advanced Ultrasonic Embedding technique and Precision Vibrator Bowl. Meanwhile dual interface smart card equipment and milling and embedding two in one equipment have got National Invention Patent and CE certificate.

Spirit of Yuanmingjie: To develop by guide of market, to gain customers by credibility, to gain reputation by better quality.

Mission of Yuanmingjie: To create value for customers and society constantly.

Vision of Yuanmingjie: With continual technical innovation, wisdom and efforts from members of yuanmingjie, we will fulfill customers current need and create high needs, to be the top automatic equipment and technical solutions supplier.
