Smart Vehicle Loop Detector System for Automated Car Parking Gate Operation

Video

1 / 7

Smart Vehicle Loop Detector System for Automated Car Parking Gate Operation

$25.00

≥1 piece
$22.00

≥30 piece
$20.00

≥100 piece

Options:

Single Channel Loop Detector

Get Latest Price

You might also like

12V/24V DC Inductive Vehicle Loop Detector Sensor DLD-M1H: Advanced Parking Management Solution

1 set (MOQ)

Single Vehicle Loop Detector M1H for Car Counting Systems

1 piece (MOQ)

Sensor Vehicle Detection System: Single Loop Coil Technology for Toll Station Entrance/Exit Traffic Control with Model M1H

1 set (MOQ)

Custom Blue M1H Single Loop Vehicle Detector with DC12V/24V Power Compatibility

1 piece (MOQ)

Magnetic Traffic Vehicle Automatic Ground Loop Detector

1 piece (MOQ)

Single Loop Detector for Toll Station: Enhancing Traffic Control at Entrances and Exits

1 set (MOQ)

Single Loop Coil Sensor Vehicle Detection System for Toll Station Traffic Control

1 set (MOQ)

AC/DC 12~24V Dual Channel Inductive Wireless Vehicle Loop Detector: Advanced Traffic Management Solution

1 piece (MOQ)

Lightning Loop Detector: Enhancing Access Control in Gate Systems

1 set (MOQ)

Smart Vehicle Loop Detector System for Automated Car Parking Gate Operation

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Guangdong, China
Brand Name	Chisung
Model Number	DLD-M1H
Model Name	DLD-M1H Loop Vehicle detector
Power supply	AC/DC12V24V
Work Temperature	-20oC ~ +70oC
Dimension	7922.590mm ( LWH )
Work Frequency	20kHz ~ 130kHz
Self-calibrating	1s to 2s
Power Consumption	3W maximum
Loop Inductance Range	50μH ~ 800μH ( ideal 100μH ~ 300μH )
Sensitivity	4 levels adjustable
Color	Blue

Product description

Product Overview

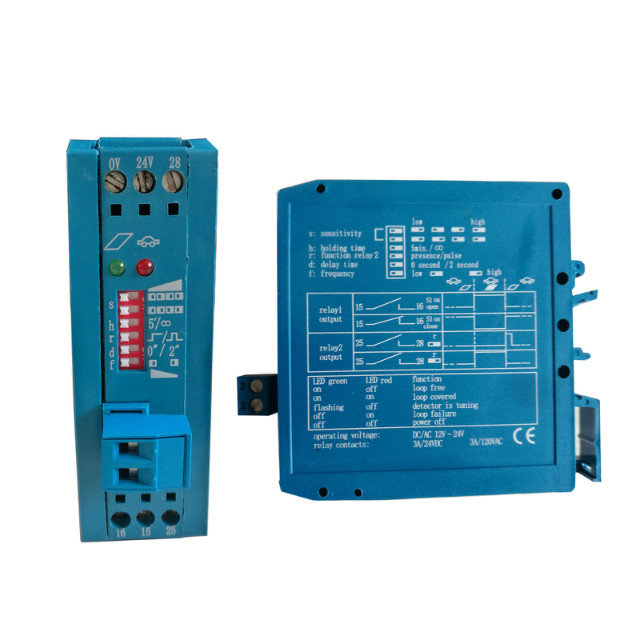

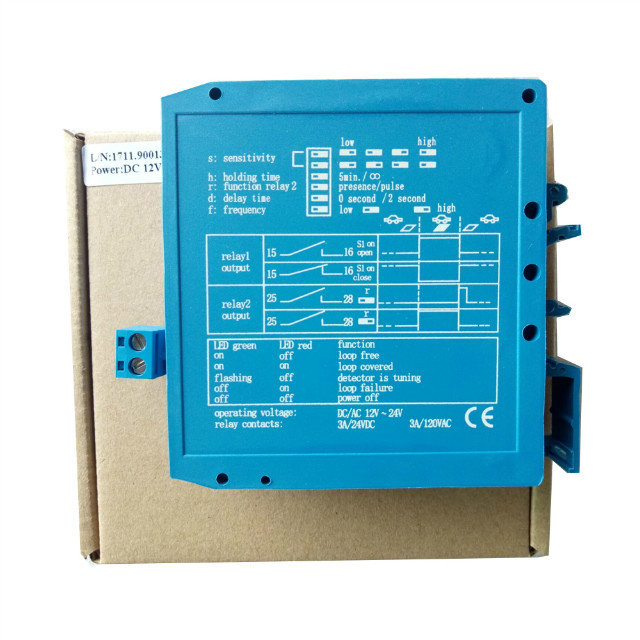

M1H loop detector

The M1H is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use to automatic calibration when the operating voltage is applied.

We send out thousands of Loop detectors every year, and almost no problems occur.
We provide high quality products.

PRODUCT SPECIFICATIONS

M1H Loop Vehicle detector Technical Data :
1) Power Supply : AC/DC 12~24V
2) Power Consumption : 3W maximum
3) Output Relay : 120V/3A AC
4) Work Temperature : -20oC ~ +70oC
5) Loop Inductance Range : 50μH ~ 800μH ( ideal 100μH ~ 300μH )
6) Work Frequency : 20kHz ~ 130kHz
7) Sensitivity : 4 levels adjustable
8) Self-calibrating : 1s to 2s
9) Dimension : 79×22.5×90mm ( L×W×H )

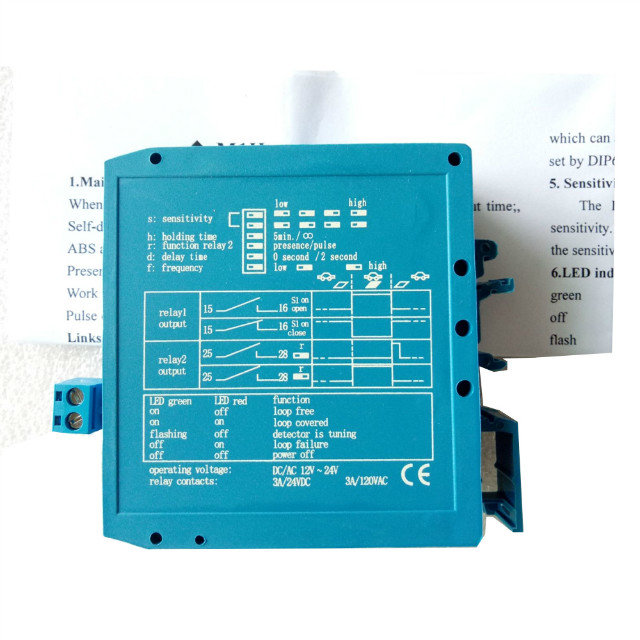

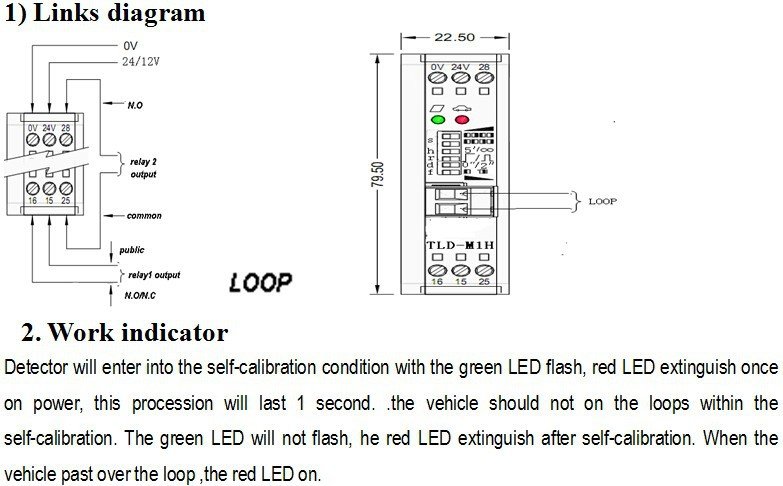

LED indicator
Green red
Off OFF----no power
flash flash----self-detection
on off ------vehicle entre into the work condition
on on-------vehicle entre into the work condition
off on-------can not detect the loops

Pyment Term	Leading Time	Minimum Order	Supple Ability	Package
T/T; West uinon ; Alibaba online order etc?	5-7 Working days	1 Unit	10000Unit	Paper Carton?

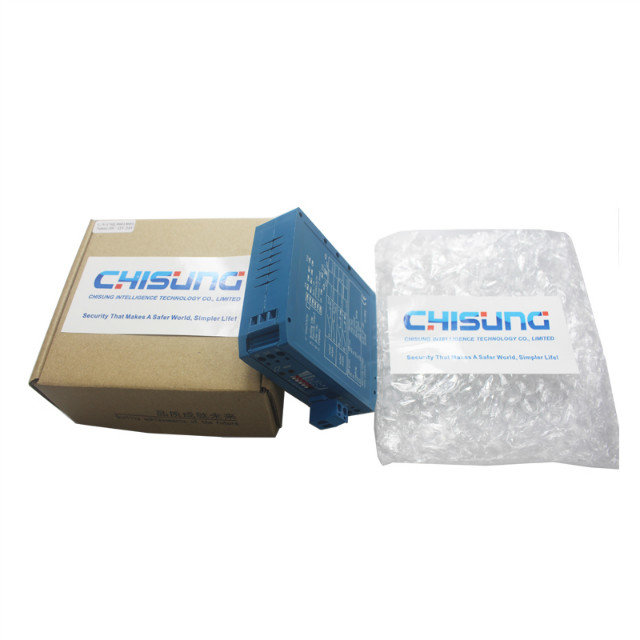

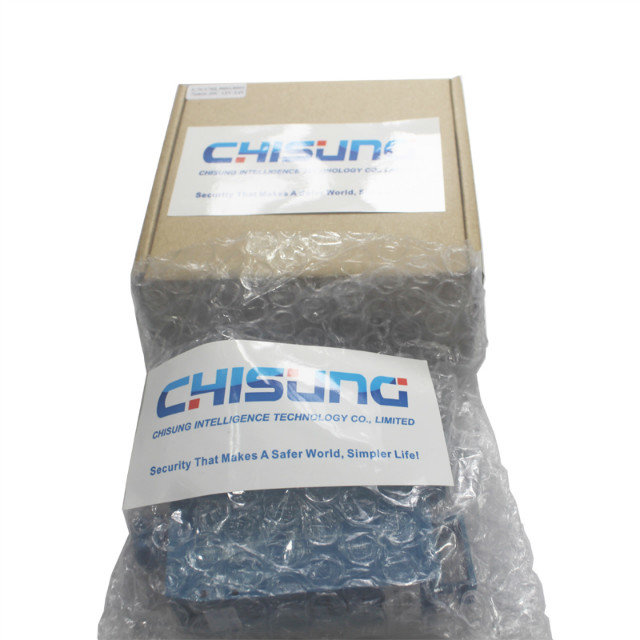

Packing List

Standard Packing List

1 pc M1H loop detector

1 carton box

1 manual

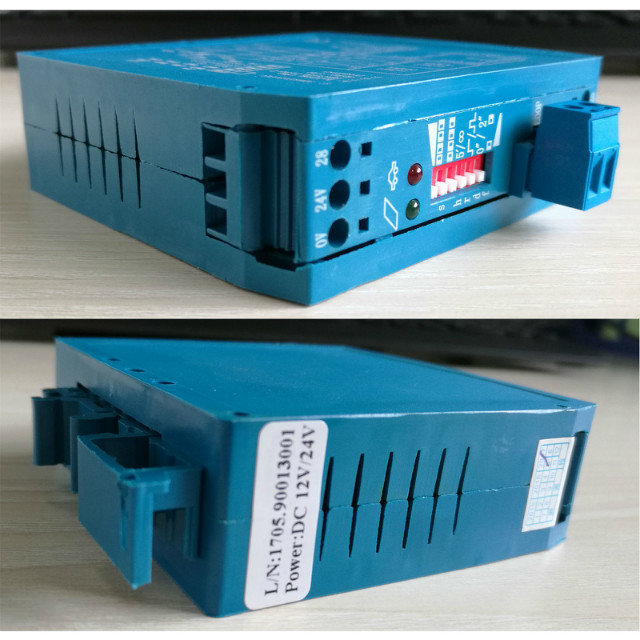

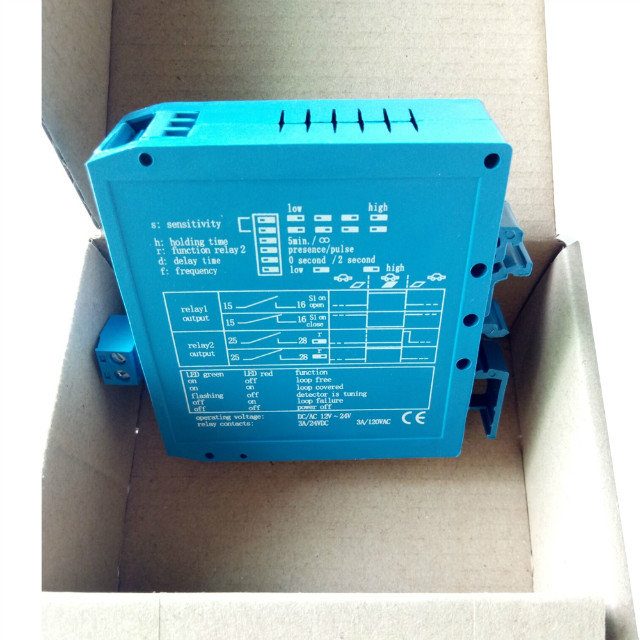

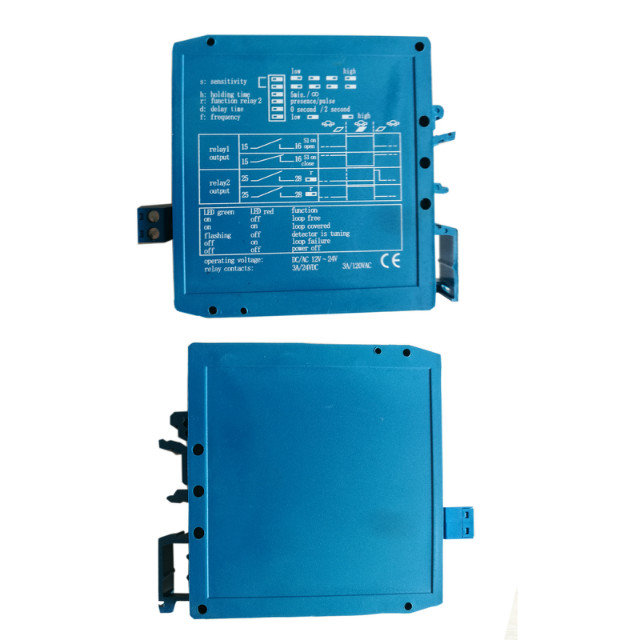

Product Display

FEATURES AT A GLANCE

M1H Loop Vehicle detector main feactuers :
1) When the DIP switch is on position or changing the presence output time, Self-detection
would be done ;
2) ABS align to the pillar which can combine with each other compactly ;
3) Presence output time can be adjustable ;
4) Work mode can be set by the DIP switch ;
5) Pulse output or permanent output can be adjustable .
